The S6-EM is a compact, waterproof stand-alone programmable access control system that provides proximity entry._x000d_
The product unique feature is simple in design, easy operation, and high reliability.
Brand:
S4AItem NO.:
S6-EMStandalone Door Entry Systems All-in-one Machine
Model No.: S6-EM
S6-EM
Metal Standalone EM Reader
> Metal case, anti-vandal
> Waterproof, conforms to IP66
> One relay, 2000 users, standalone
> Card type: 125KHz EM card
> Working temperature: -40 oC ~ 60 oC (-40 oF ~ 140 oF)
> Pulse mode, toggle mode
> Built in LDR for anti tamper
> Card block enrolment
| Product Parameter | Parameter Descr1ption |
| S4A Model | S6-EM |
| Product Name | Metal Standalone Access Control |
| User Capacity | 2000 |
| Card | EM Card |
| Operating Voltage | 9~24V DC |
| Idle Current | < 40mA |
| Proximity Card Reader | EM |
| Radio Technology | 125KHz |
| Read Range | 3~25 |

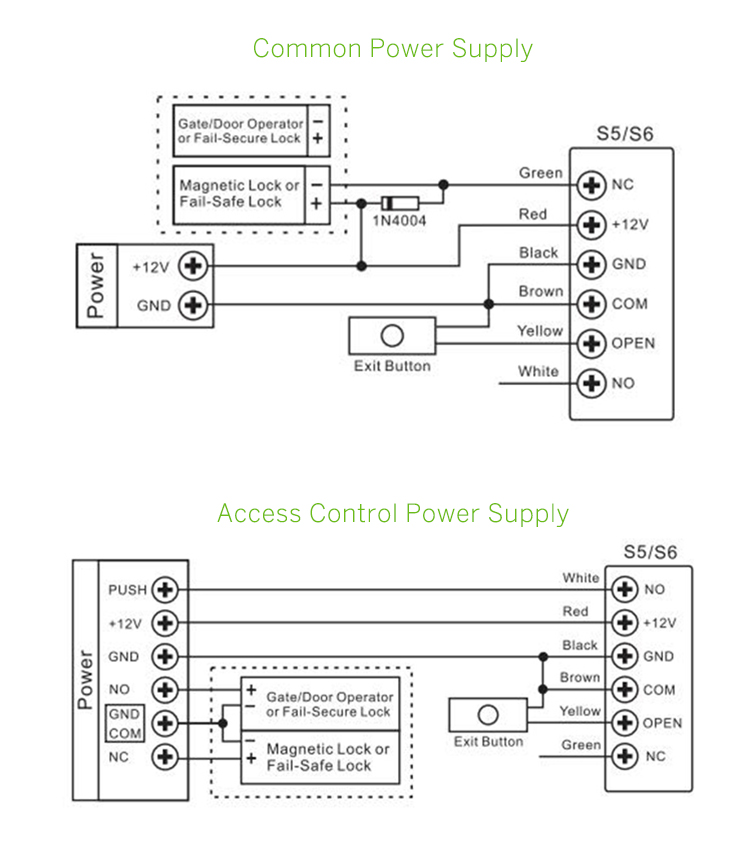

| Wiring Connections | Relay output, exit button |
| Relay | One (NO, NC, Common) |
| Adjustable Relay Output Time | 0-99 Seconds (5 seconds default) |
| Lock Output Load | 2 Amp Maximum |
| Environment | Meets IP66 |
| Operating Temperature | -40 oC ~ 60 oC (-40 oF ~ 140 oF) |
| Operating Humidity | 20% RH ~ 98% RH |
| Physical | Zinc Alloy |
| Surface Finish | Powder Coat |

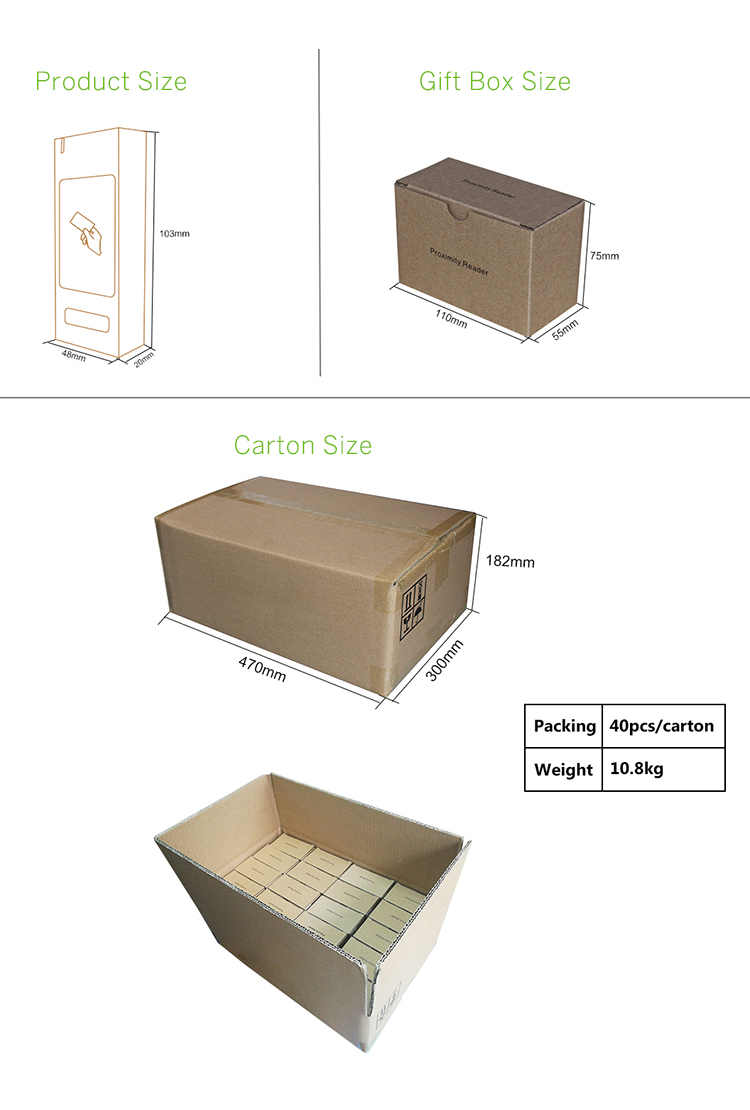

| Dimensions | 10.3L x 4.8W x 2.0H (cm) |
| Unit Weight | 260g |
| Shipping Weight | 320g |
> Card type: EM or EM+HID Card> Capacity: 10,000 card users> Waterproof IP68> Rainproof, moistureproof, durable> Can be used as WG26 reader
> Card Type: MF or MF Card> Waterproof degree: IP65> Capacity: 15,000 users> Working frequency: 125KHz or 13.56MHz
> Card type: EM or EM+HID Card> Can be used as WG26 reader> Can connect external EM/HID WG26 output, reader> Two units can be interlocked> Can realize Anti-passback function for single or two doors> Can add consecutive user cards> Can set master to add card/master delete card
> Card Type: EM or MF Card> Working frequency: 125KHz, 13.56MHz> 10,000 card users> Operating voltage: DC12~24V> Wiegand 26/34 Input and Output> Support admin add card, admin delete card and setting card
> Card type: EM or MF Card> User Capacity: 10,000 card users> Voltage: DC12~24V
>Card Type: 125KHz EM Card>User Capacity: 10,000 card users>Keypad Characteristic:Operate by infrared remote control
> Card type: EM Card> User Capacity: 10,000 card> Operate by infrared remote control > Support admin add card, admin delete card and setting card
>Operating Voltage:DC 12-24V>Operating Humidity:0%~95%>Door Relay Time:0～99s(adjustable)
