The S2-EM is a compact, waterproof stand-alone programmable access control system._x000d_ The product unique feature is simple in design, easy operation, and high reliability.
Brand:
S4AItem NO.:
S2-EMCard Access Control System
Model No.: S2-EM
S2-EM

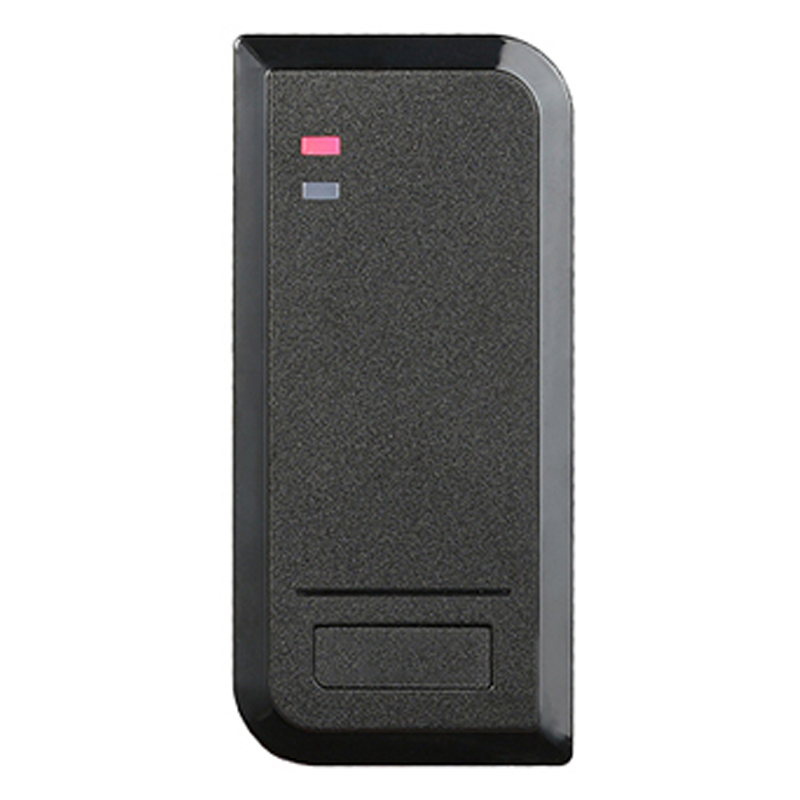

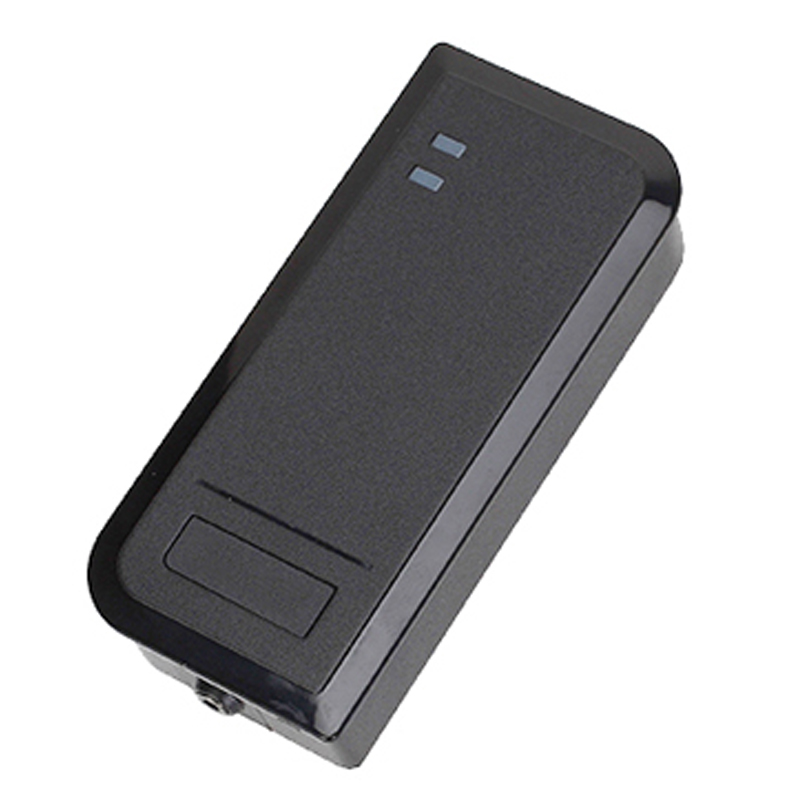

Standalone Economical Reader

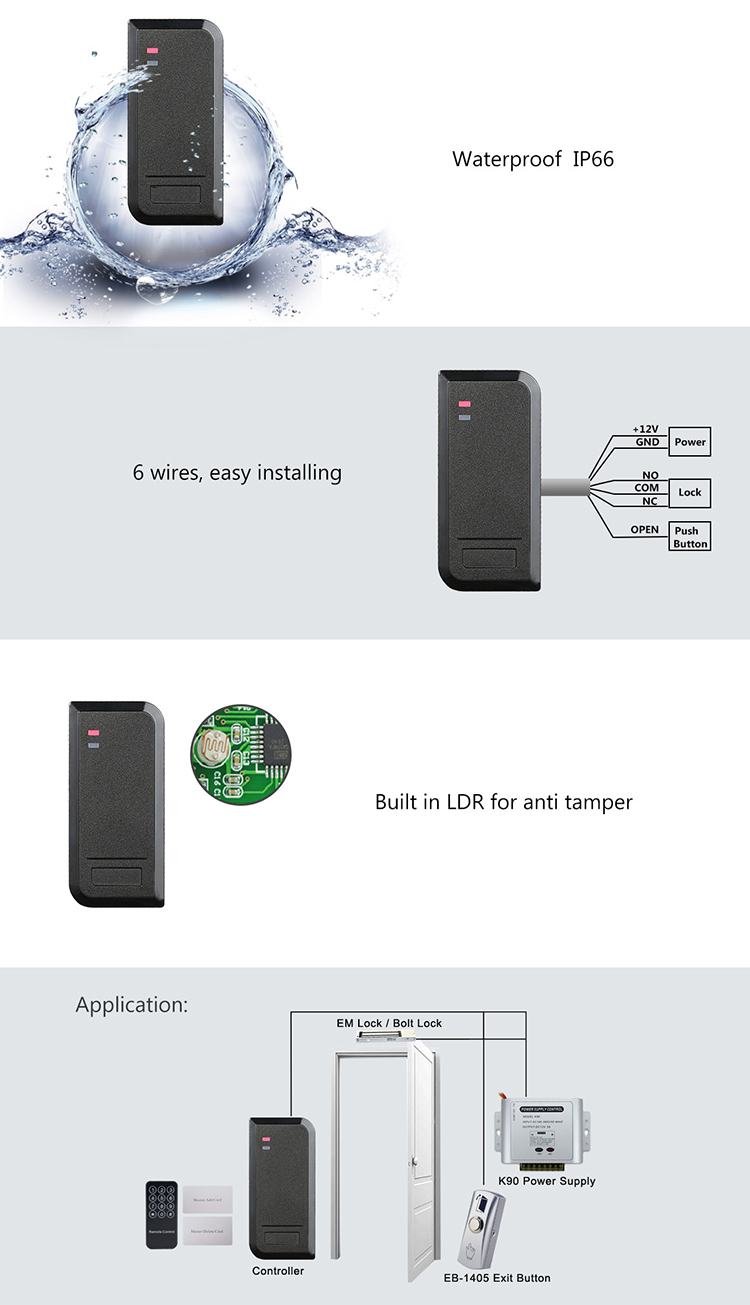

> Waterproof, conforms to IP66
> One relay, 2000 users, standalone
> Card type: 125KHz EM card only
> Working temperature: -40 oC ~ 60 oC (-40 oF ~ 140 oF)
> Pulse mode, toggle mode
> Built in LDR for anti tamper
> Card block enrolment

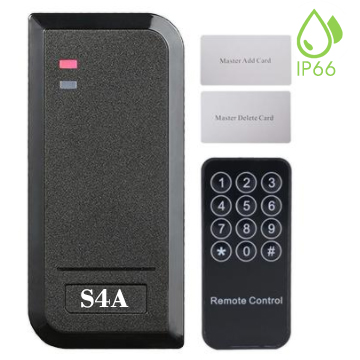

> Easy for programming by master cards and remote control
> Easy for install, 6 wires only
| Product Parameter | Parameter Description |
| S4A Model | S2-EM |
| Product Name | Metal Standalone Access Control |
|
|
|
| User Capacity | 2000 |
| Card | EM card |
| Operating Voltage | 9~24V DC |
| Idle Current | < 40mA |
| Proximity Card Reader | EM |
| Radio Technology | 125KHz proximity card |
| Read Range | 3~250px |

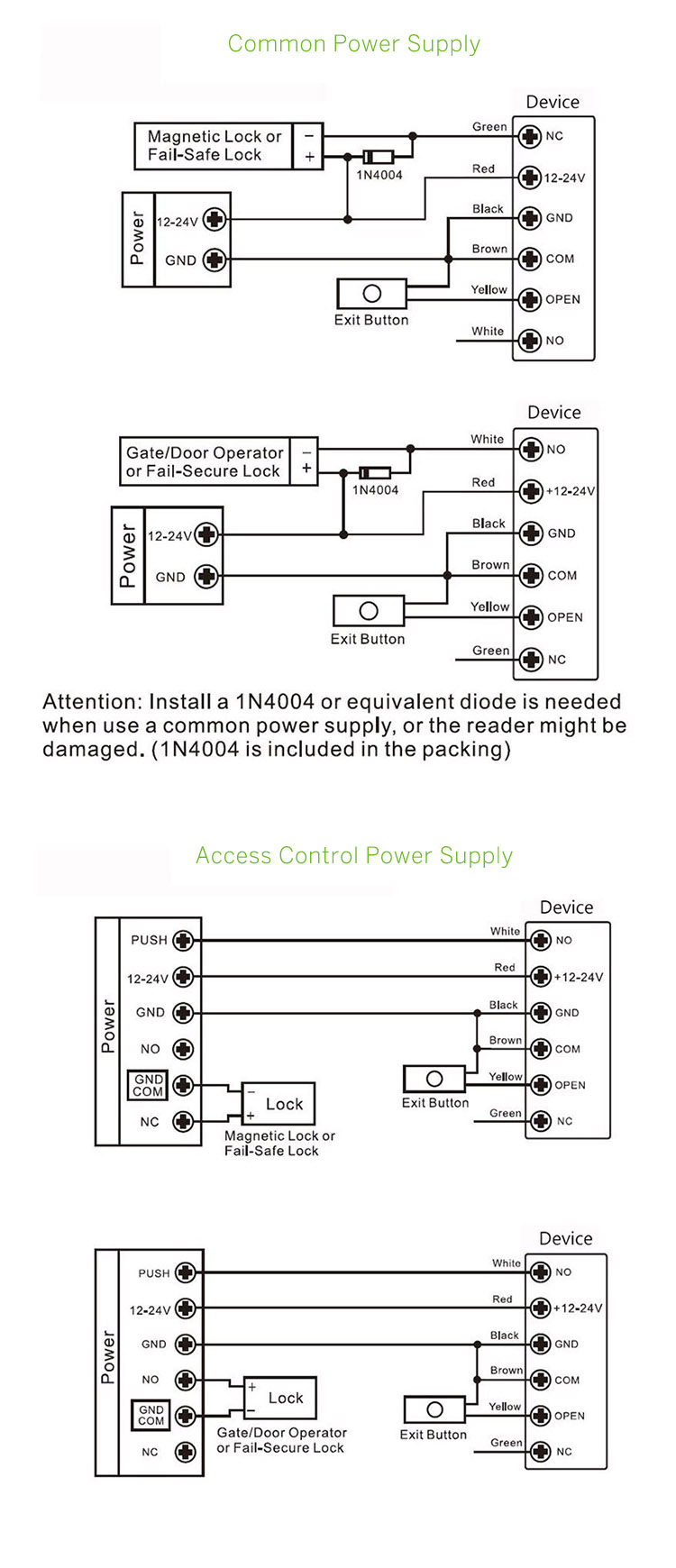

| Wiring Connections | Relay output, exit button |
| Relay | One (NO, NC, Common) |
| Adjustable Relay Output Time | 0-99 Seconds (5 seconds default) |
| Lock Output Load | 2 Amp Maximum |
| Environment | Meets IP66 |
| Operating Temperature | -40 oC ~ 60 oC (-40 oF ~ 140 oF) |
| Operating Humidity | 20% RH ~ 98% RH |
| Physical | ABS Shell |
| Colour | Black |

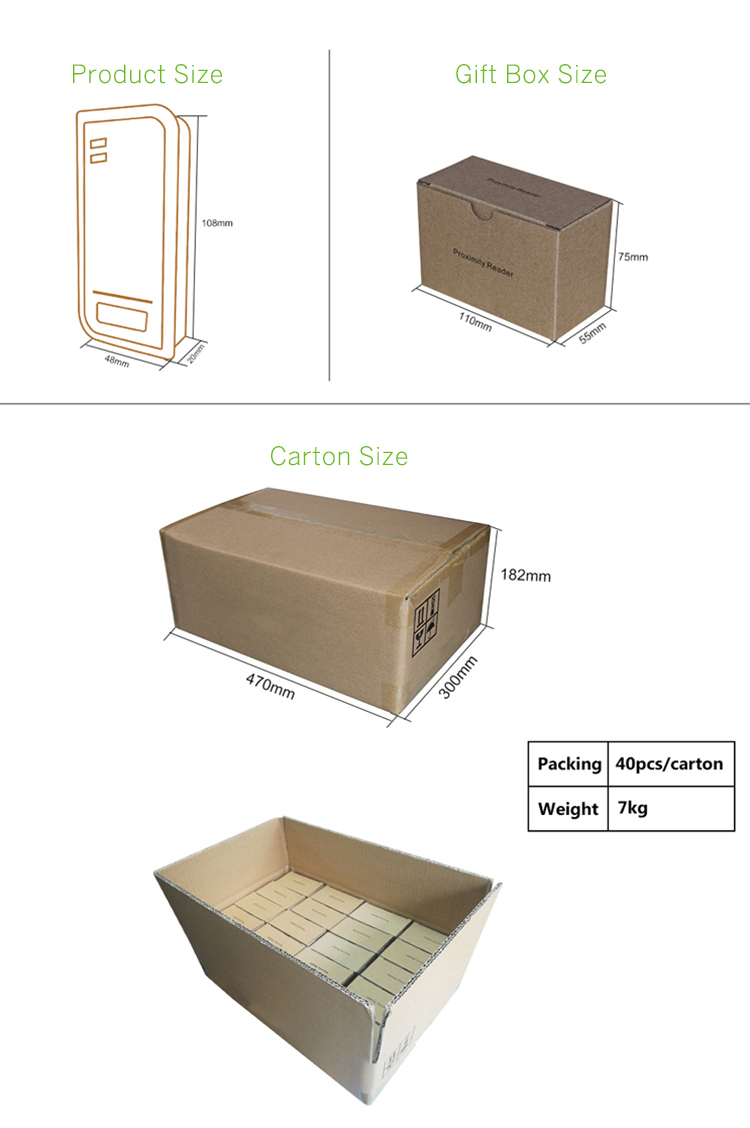

| Dimensions | 10.3L x 4.8W x 2.0H (cm) |
| Unit Weight | 100g |
| Shipping Weight | 150g |
> Card type: EM or EM+HID Card > Capacity: 10,000 card users > Waterproof IP68 > Rainproof, moistureproof, durable > Can be used as WG26 reader
> Card Type: MF or MF Card > Waterproof degree: IP65 > Capacity: 15,000 users > Working frequency: 125KHz or 13.56MHz
> Card type: EM or EM+HID Card > Can be used as WG26 reader > Can connect external EM/HID WG26 output, reader > Two units can be interlocked > Can realize Anti-passback function for single or two doors > Can add consecutive user cards > Can set master to add card/master delete card
> Card Type: EM or MF Card > Working frequency: 125KHz, 13.56MHz > 10,000 card users > Operating voltage: DC12~24V > Wiegand 26/34 Input and Output > Support admin add card, admin delete card and setting card
> Card type: EM or MF Card > User Capacity: 10,000 card users > Voltage: DC12~24V
>Card Type: 125KHz EM Card >User Capacity: 10,000 card users >Keypad Characteristic:Operate by infrared remote control
> Card type: EM Card > User Capacity: 10,000 card > Operate by infrared remote control > Support admin add card, admin delete card and setting card
>Operating Voltage:DC 12-24V >Operating Humidity:0%~95% >Door Relay Time:0～99s(adjustable)
S4A appreciate any of your inquiries and sincerelyhope to enjoy a fruitful long-term business relationship with youto share in the mutual benefits, If you have any questions, please feel free to contact us.
