RFID Standalone Access Control Support 10,000users

> Card Type: EM or MF Card

> Working frequency: 125KHz, 13.56MHz

> 10,000 card users

> Operating voltage: DC12~24V

> Wiegand 26/34 Input and Output

> Support admin add card, admin delete card and setting card

  • Brand:

    S4A
  • Item NO.:

    MT60
  • Specifications
  • Wiring Diagram
  • Package
  • Download

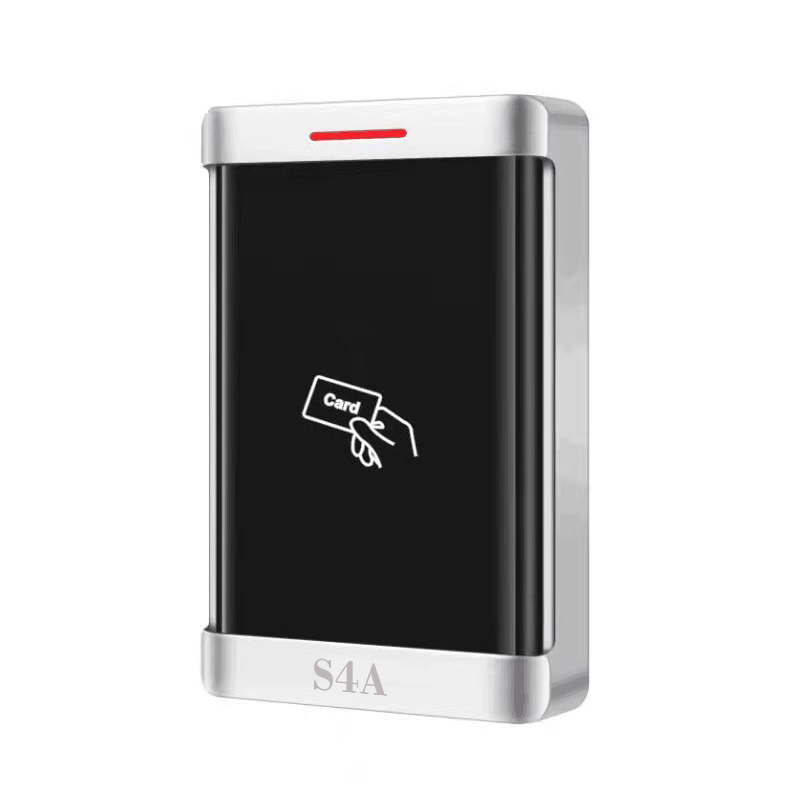

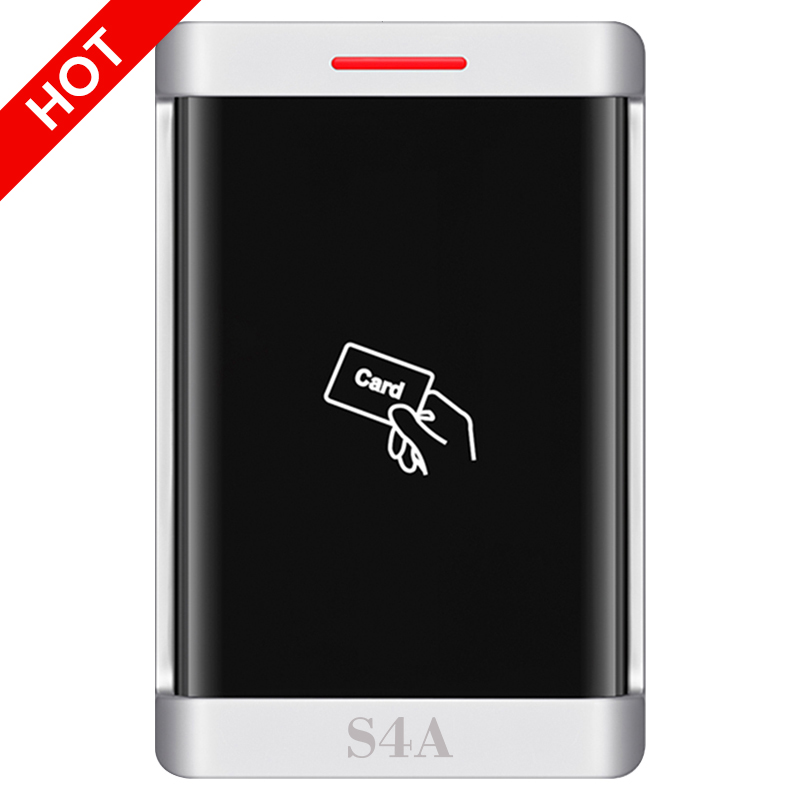

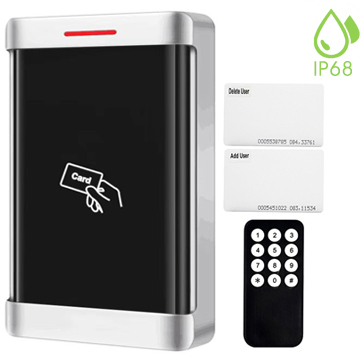

RFID Standalone Access Control Support 10,000users

Model No.: MT60


This series of products is a new generation of multifunctional standalone access control. It adopts a new ARM core 32-bit microprocessor design, which is powerful, stable, and reliable. It includes reader mode and standalone access control mode etc.. It's widely applied to different occasions, such as offices, residential communities, villas, banks, and prisons,s etc.


Product Feature:

> Contains reader mode, the transmission format could be adjusted by users.

> Support admin add card, admin delete card and setting card.

> 10,000 card users.

> Wiegand 26/34 Input and Output

> The unlocking signal adopts NO,NC,COM output of relay.


Capacity

10,000 user

Operating Voltage

DC 12-24V

Operation Current

≤100mA

Standby Current

≤35mA

Maximum Rated Current

≤1A

Door Opening Time

0-99s(Adjustable)

Operating Temperature

-20°C~60°C

Operating Humidity

0%~95%

Dimensions

115x75x23mm

Large Capacity Access Control

This is working with Professional Access Power supply:


access control

This is working with ACB-001,002,004 Network Access Control board.


access control reader

Large Capacity Access Control

RFID Standalone Access Control User Manual_202105
