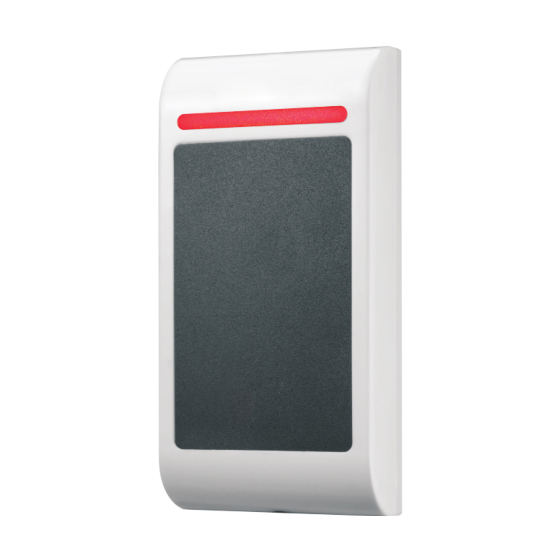

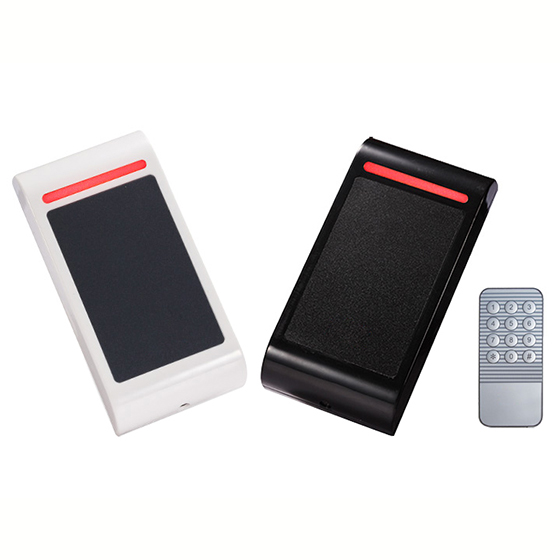

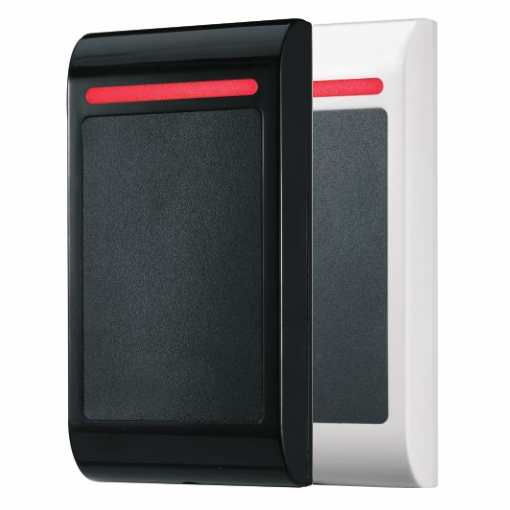

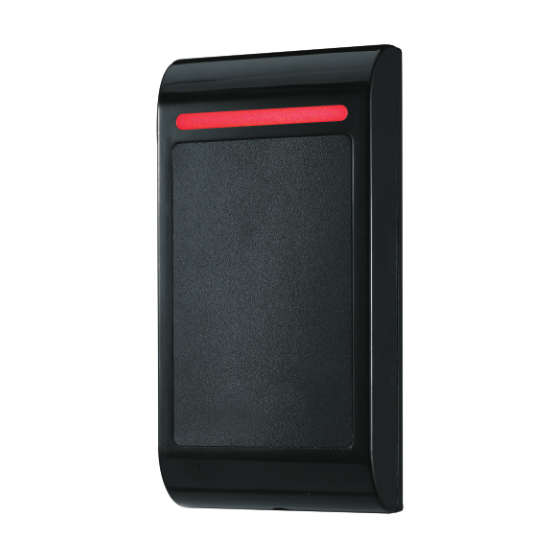

Large capacity access controller

> Card type: EM or EM+HID Card

> Can be used as WG26 reader

> Can connect external EM/HID WG26 output, reader

> Two units can be interlocked

> Can realize Anti-passback function for single or two doors

> Can add consecutive user cards

> Can set master to add card/master delete card

  • Brand:

    S4A
  • Item NO.:

    M3
  • Specifications

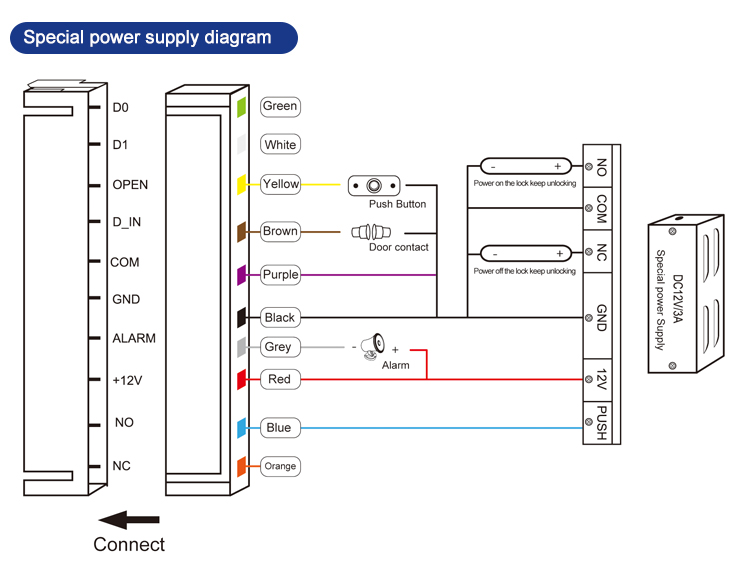

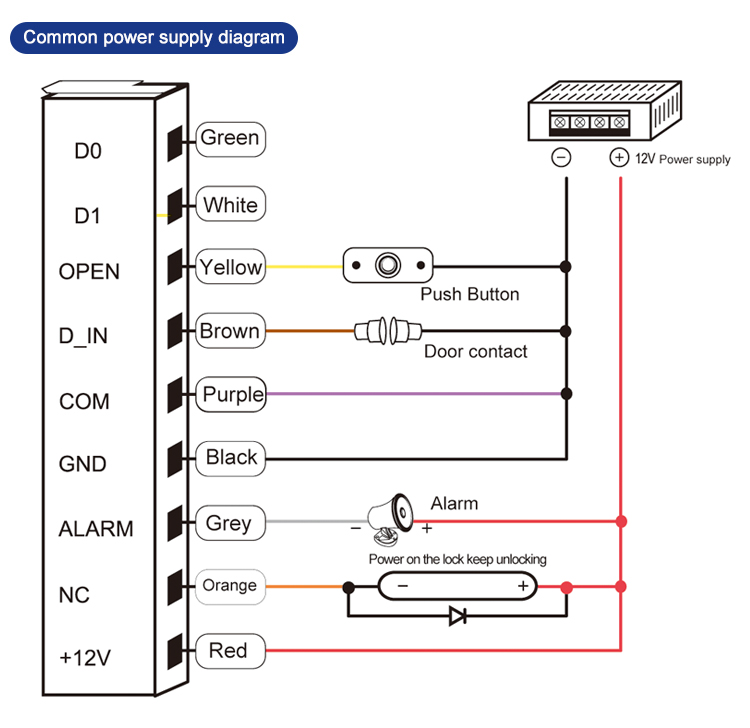

  • Wiring Diagram
  • Package
  • Download

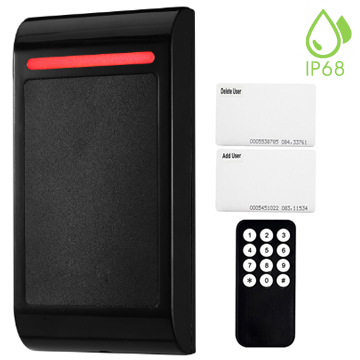

Large-capacity access control

Model No.: M3 EM, EM+HID


> Can be used as WG26 reader

> Can connect external EM/HID WG26 output reader

> Two units can be interlocked

> Can realize Anti-passback function for single or two doors

> Can add consecutive user cards

> Can set master to add card/master delete card


Card type

EM or EM+HID

Waterproof

IP68

Capacity

10,000 card users

Environment Humidity

10%~90%

Lock output

≤3A

Working voltage

DC12V±10%

Static electricity

≤30mA

Alarm output

≤20A

Output short circuit protection time

≤100μS

Card read distance

3~8cm

Ambient temperature

-45℃~60℃

Door Opening Time

0~99s(Adjustable)

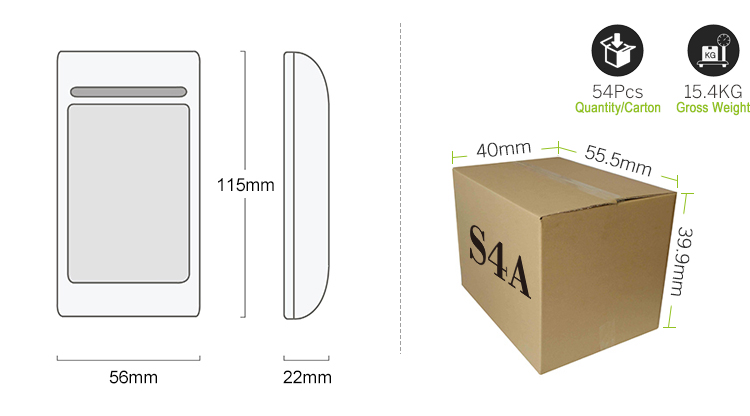

Dimension

115*56*22mm

Large capacity access controlLarge capacity access control

Large capacity access control

Large capacity access control

Large capacity access control
