M010 Large Capacity RFID Access Control

>Operating Voltage:DC 12-24V

>Operating Humidity:0%~95%

>Door Relay Time:0~99s(adjustable)

  • Brand:

    S4A
  • Item NO.:

    M010
  • Specifications

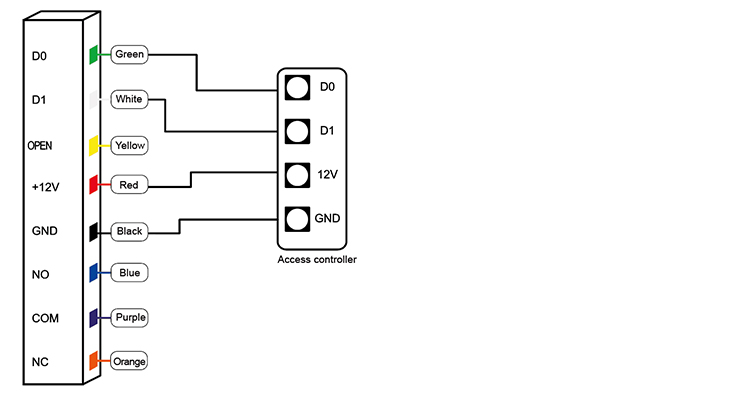

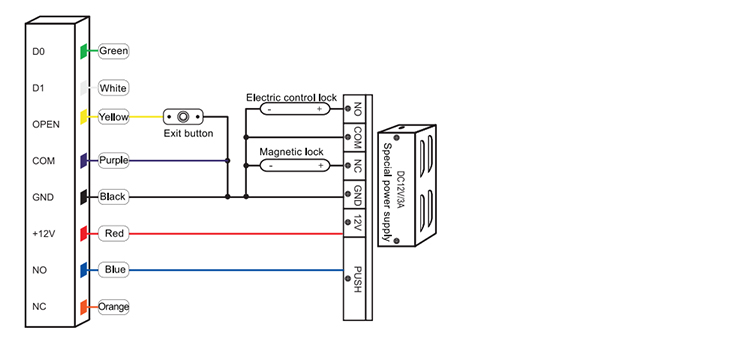

  • Wiring Diagram
  • Package

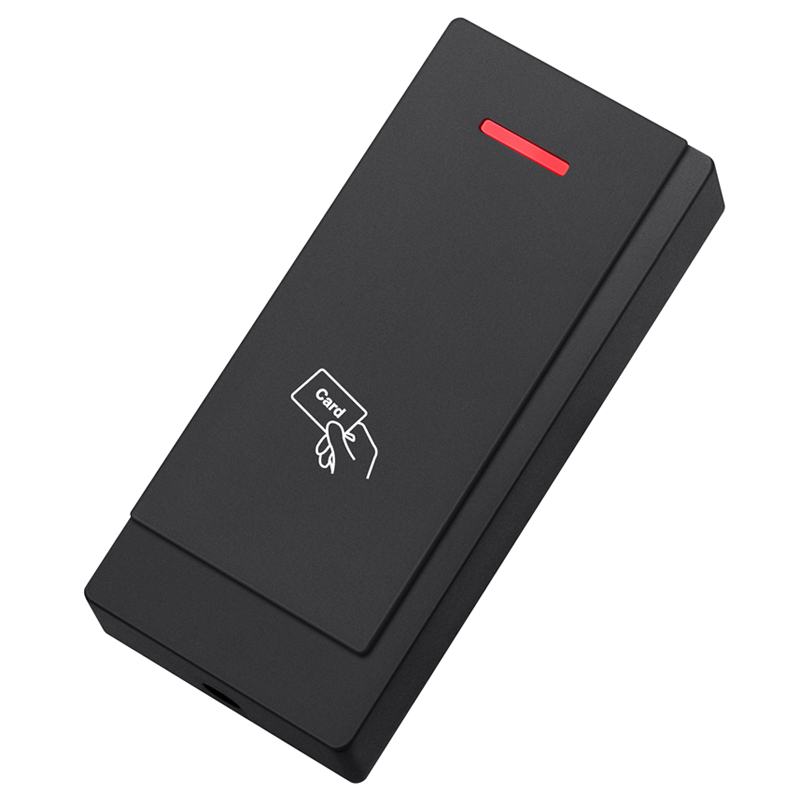

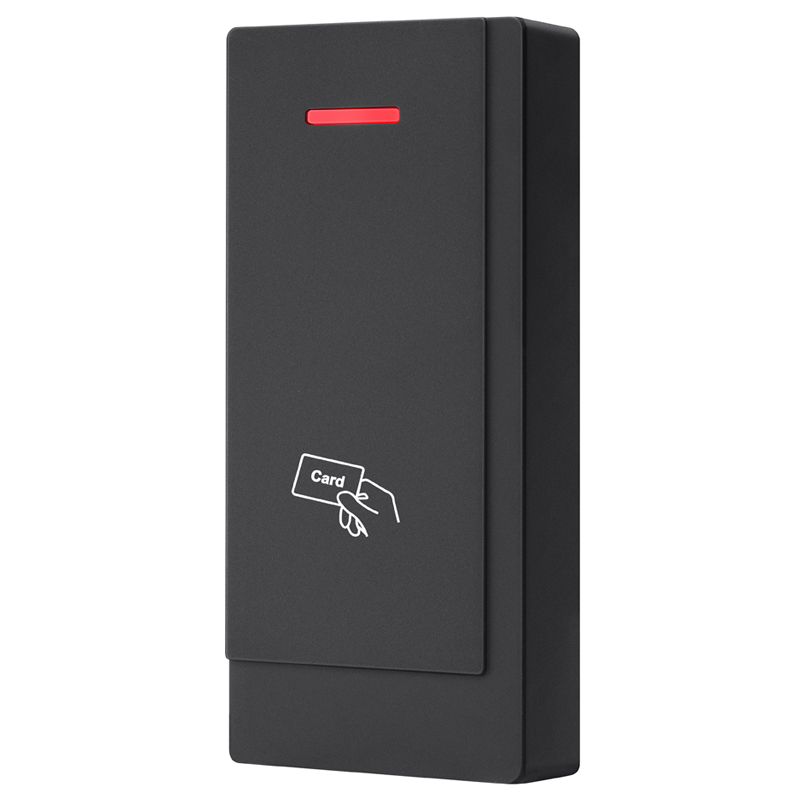

M010 Large Capacity RFID Access Control

Model No.: M010


Advantage

> NEC Relay

> Relay Toggle Mode

> Reader Mode

> Data backup


Product ParameterParameter Descr1ption
S4A ModelM010
Product NameLarge Capacity RFID Access Control

Operating VoltageDC 12-24V
Operating Humidity0%~95%
Door Relay Time0~99s(adjustable)
Standby Current≤35mA
Operating Temperature-20℃~60℃
Maximum Rated Current≤1A


Feature

Card TypeRead 125KHz EM Card
Keypad CharacteristicOperate by infrared remote control
Output WayContains reader mode, the transmission format could be adjusted by users.
Admin CardSupport admin add card, admin delete card and setting card
User Capacity10,000 card users
Unlocking signalThe unlocking signal adopts NO,NC,COM
output of relay



Large Capacity RFID Access ControlLarge Capacity RFID Access ControlLarge Capacity RFID Access Control

Large Capacity RFID Access Control
