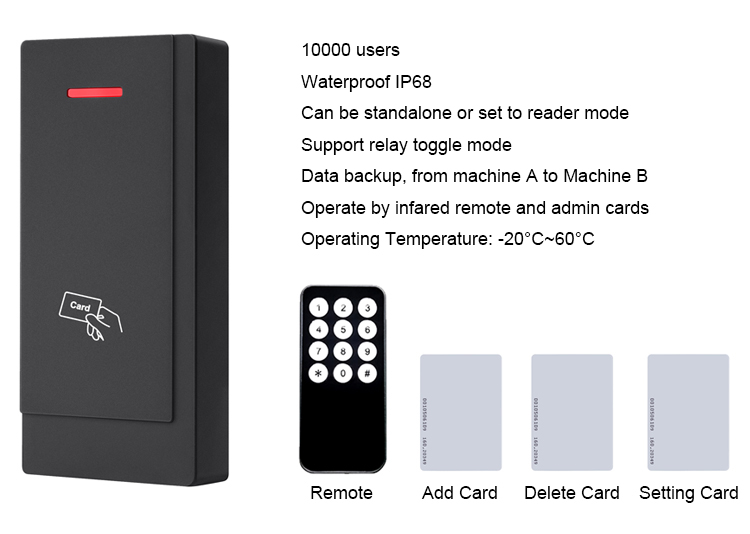

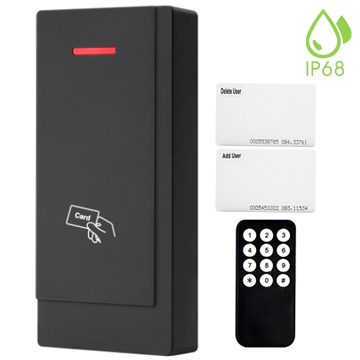

High-capacity access control all-in-one machine 125khz Standalone Controller Or Reader With 10000users

> Card type: EM Card

> User Capacity: 10,000 card

> Operate by infrared remote control

> Support admin add card, admin delete card and setting card

  • Brand:

    S4A
  • Item NO.:

    M035
  • Specifications
  • Wiring Diagram
  • Package

High-capacity access control all-in-one machine 125khz Standalone Controller Or Reader With 10000users

Model No.: M035


Introduction

This series of product is a new generation of multifunctional standalone access control. It adopts new ARM core 32-bit microprocessor design, which is powerful, stable and reliable. It includes reader mode and standalone access control mode etc.. It’s widely applied to different occasions, such as offices,residential communities, villa,bank and prison etc..


Operating Voltage

DC 12-24V

Standby Current

≤35mA

Operation Current

≤100mA

Operating Temperature

-20℃~60℃

Operating Humidity

0%~95%

Maximum Rated Current

≤1A

Door Relay Time

0~99s(adjustable)

Dimension

105*46*20mm

High-capacity access control all-in-one machine

High-capacity access control all-in-one machine125KHz Standalone Controller125KHz Standalone Controller

High-capacity access control all-in-one machine
