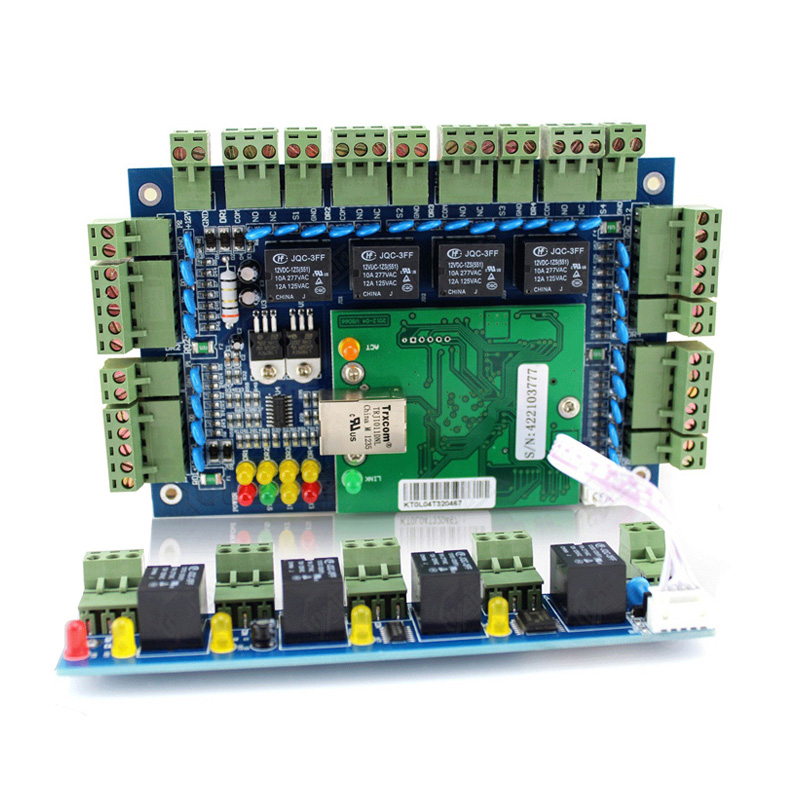

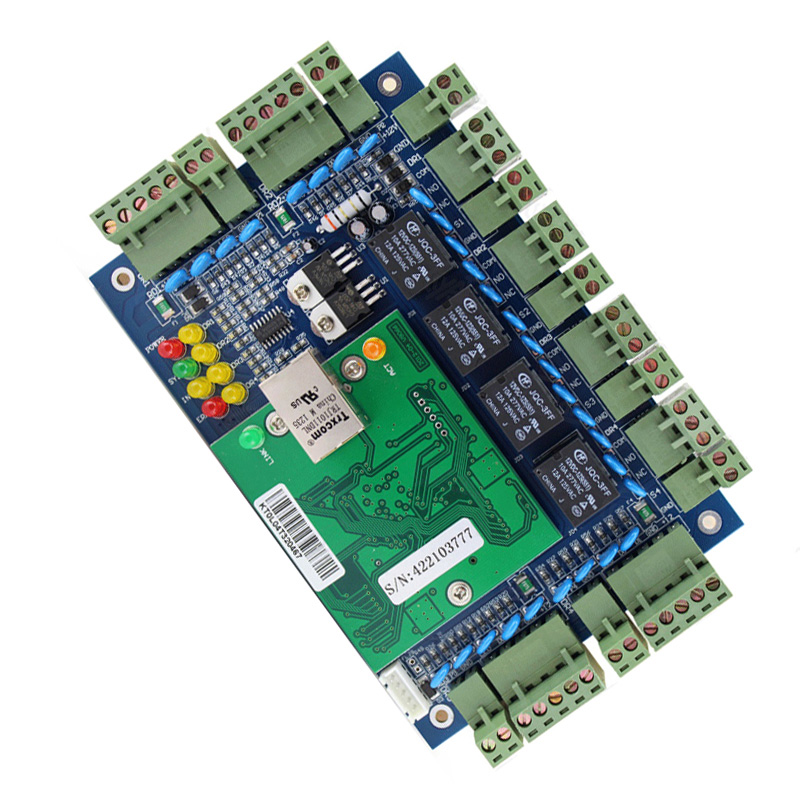

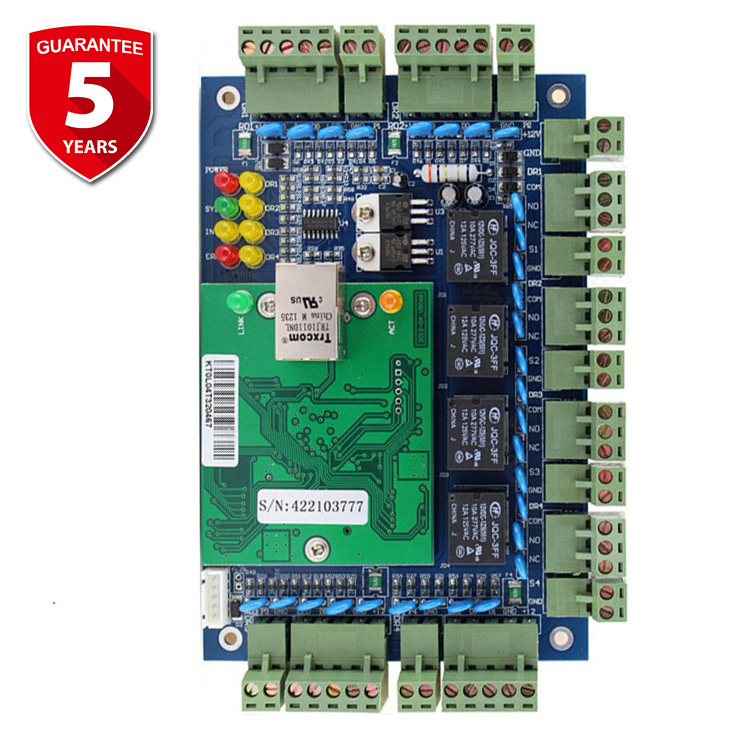

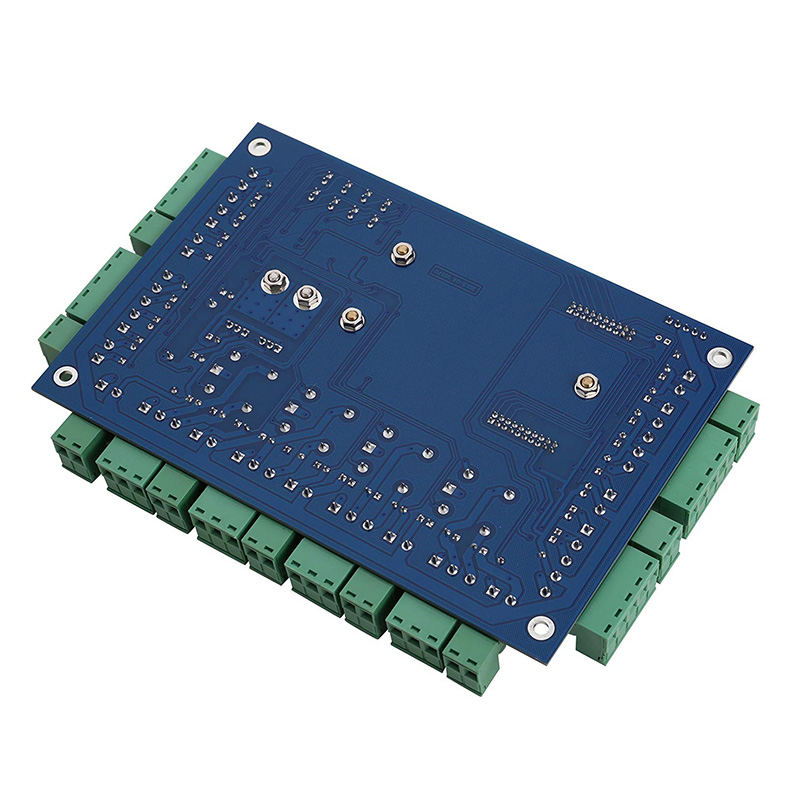

Network Four Door Wiegand Access Controller Panel in Access Control System

Four-door Network access control board built-in TCP/IP, Support APP/4G/Web-server with free software.

Connect 4pcs RFID access reader and 4pcs exit push button

  • Brand:

    S4A
  • Item NO.:

    ACB-004
  • Specifications

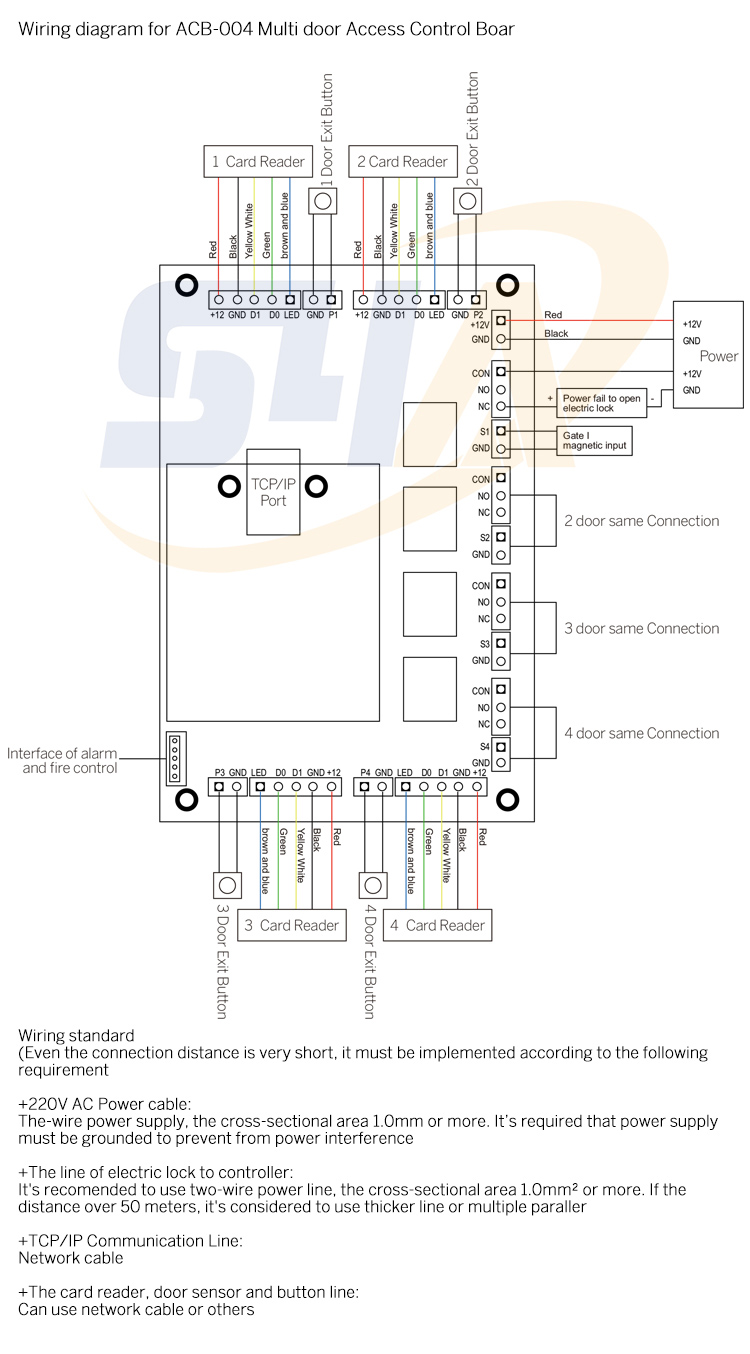

  • Wiring Diagram
  • Package
  • Download

TCP/IP Network Four-Door Wiegand Access Controller Panel/Board in Access Control System

Model No.: ACB-004


Why is Access Control System important?


Why network access control? access control systems are useful because they enable organizations to control the myriad of different endpoints connected to corporate networks, thereby helping to protect them from rogue and compromised devices.


Rfid Access Control


Parameter

Single Door Control Panel

Multi Door (2) Control Panel

Multi Door (4) Control Panel

Model #

ACB-001

ACB-002

ACB-004

Communication

TCP/IP 10M/100M adaptive

TCP/IP 10M/100M adaptive

TCP/IP 10M/100M adaptive

Description

Control 1 door, get in and out the door by swiping the card, or get in by swiping the card and get out the door by button

Control 2 doors, get in and out the door by swiping the card or get in by swiping the board and get out the door by button

Control 4 doors, get in the door by swiping the card, and get outdoor by button

Size of PCB board

160mm *106mm

160mm *106mm

218mm *106mm

Size of Case

273mm*228mm*65mm

Power Supply

12VDC 4-7A

Power Consumption of Circuit Board

Less than 100mA

Input Format of Reader

Wiegand 26 (All card reader with compatible protocol, such as Motorola, HID, EM, Mifare one, etc)

Quantity of Readers

2pcs

4pcs

4 pcs

Door Controlled

1door

2 Doors

4 Doors

Door opening time extending setting

1-600 seconds(adjustable)

Max q ' ty of controller

No limit

Rfid Access Control

Rfid Access Control PanelRfid Access Control PanelRfid Access Control Panel

Parameter

Single Door Control Panel

Multi Door (2) Control Panel

Multi Door (4) Control Panel

Model #

ACB-001

ACB-002

ACB-004

Communication

TCP/IP 10M/100M adaptive

TCP/IP 10M/100M adaptive

TCP/IP 10M/100M adaptive

Description

Control 1 door, get in and out the door by swiping the card, or get in by swiping the card and get out the door by button

Control 2 doors, get in and out the door by swiping the card or get in by swiping the card and get out the door by button

Control 4 doors, get in the door by swiping the card, and get outdoor by button

Size of PCB board

160mm *106mm

160mm *106mm

218mm *106mm

Size of Case

273mm*228mm*65mm

Power Supply

12VDC 4-7A

Power Consumption of Circuit Board

Less than 100mA

Input Format of Reader

Wiegand 26 (All card reader with compatible protocol, such as Motorola, HID, EM, Mifare one, etc)

Quantity of Readers

2 pcs

4 pcs

4 pcs

Door Controlled

1 door

2 doors

4 doors

Door opening time extending setting

1-600 seconds(adjustable)

Max q ' ty of controller

No limit

Operation Temperature

-40℃~70℃

Operation Humidity

10-90 % RH , No Condensation

Q ' ty of users

20,000 Users

Q ' ty of Event Buffers(offline)

100,000 event buffers

Power interruption protection measure

High-Speed Memory, Records never lose

Max Distance from Reader to Controller

100m (suggestion distance 80m)

Max Distance between Controllers

TCP/IP: Depends on net coverage area

Package included:

PCB board, software, manual, certificate. carton

Alarm for long time door open, illegal break-in, intimidate

Yes

Fire and alarm linkage

If no connection with the expansion board, only has a software interface alarm and drives the computer speaker. If connected with an expansion board, is able to alarm by hardware, if connected with a strengthened expansion board, then is able to Security alarm, Model is ACB-EA05

The compulsive open and close door at a long time

Yes

Open door in the remote distance

Yes

Interlock

No

Yes

Yes

Anti pass back and tail

Yes

Yes

Yes

Multi-card open door

Yes

Open a long time at a specified time

Yes

Electronic map

Yes

Urgency locking

Yes

First card unlocking

Yes

Unlock based on internal and external validation

Yes

Keypad (card+passwor, supper password)

Yes

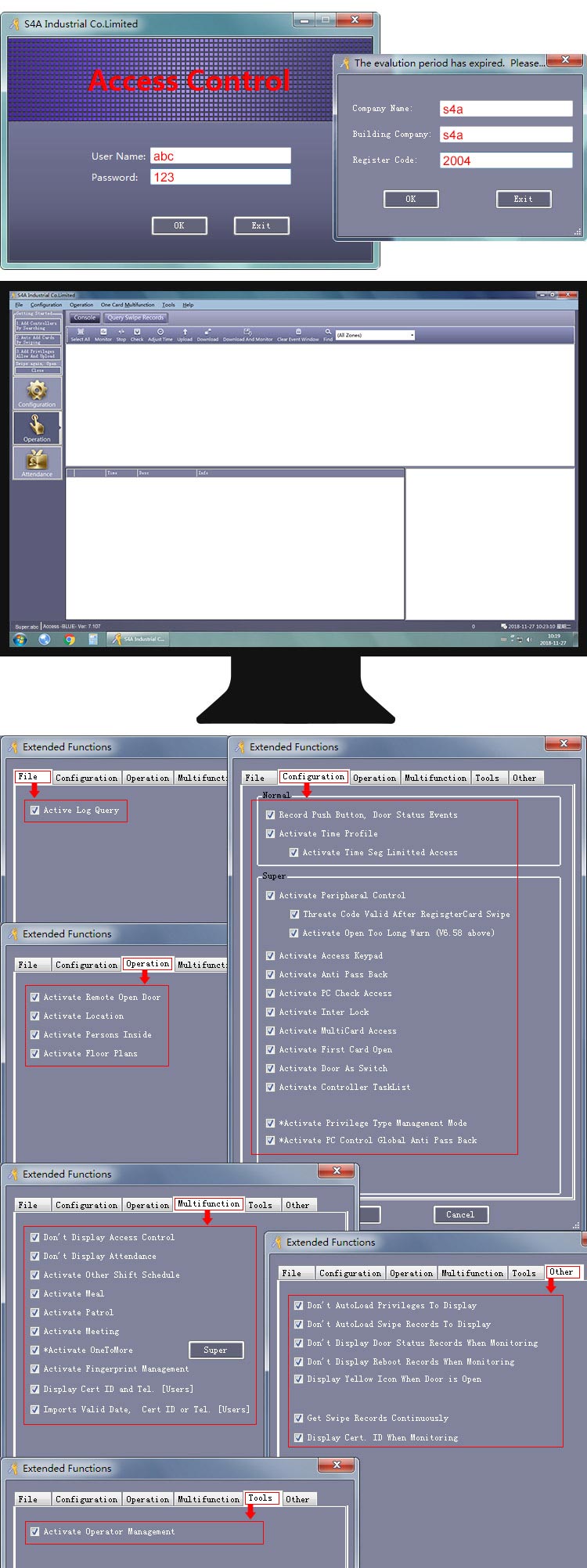

Here are all available powerful functions for our ACB-001, ACB-002, and ACB-004

Rfid Access Control

Rfid Access Control

TCP/IP Network Four Door Wiegand Access Controller Panel/Board in
Access Control System

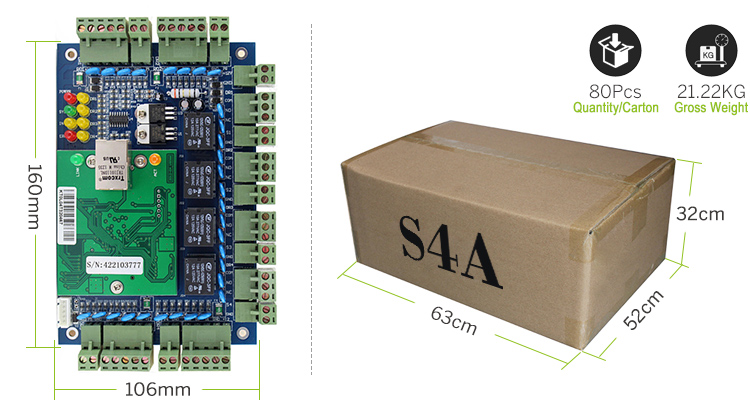

Model No.

Dimension

Quantity/Carton

Net Weight

Gross Weight

Carton Size

ACB-004

160x106mm

80pcs

20.9KG

21.22KG

63x52x32cm

Access Control System

S4A ACB-004 User Manual_TCP/IP Network Four Door Wiegand Access Controller Panel/Board in Access Control System
