> Supply power: AC/DC 12~30V
> Reaction time: Relay output<45ms
> Dimension: 186x175x53mm
> Detection mode: Receive the open signal by the truncation of infrared ray which operated by foot
> Widely be used in the operating room of hospital and laboratory to prevent hand pollution
Brand:
S4AItem NO.:
S4A-219TAutomatic Door Pedal Switch Support 12-24V
Model No: S4A-219T
What is Foot Sensor Switch?

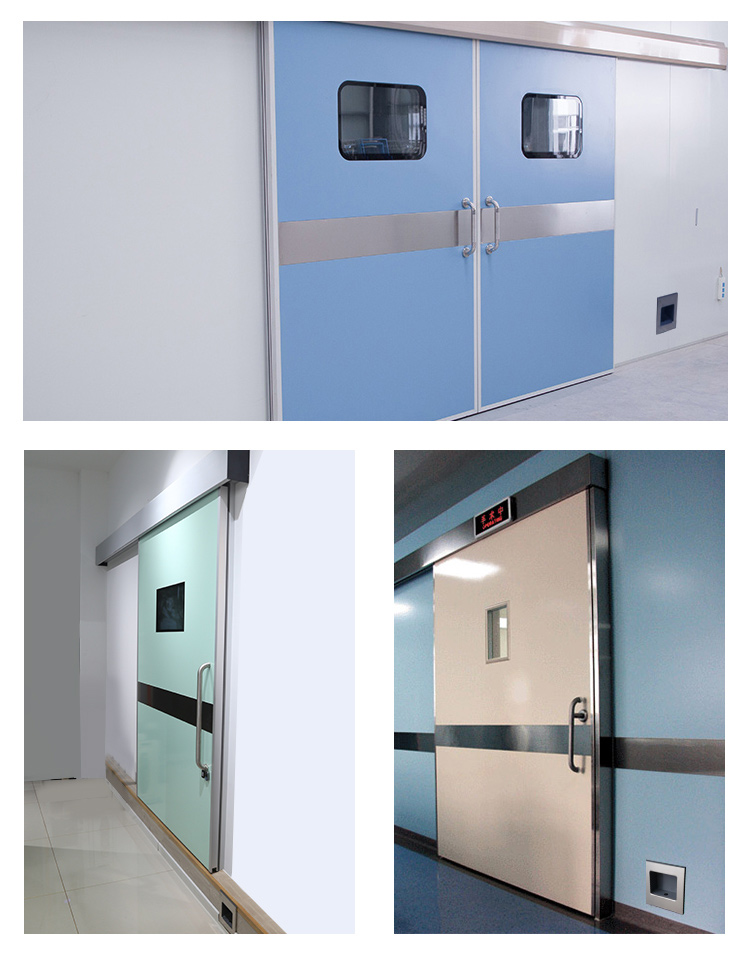

Foot switch (photoelectric activation sensor) , fixed on the lower part of the wall (embedded), operated by foot without hand’s touch. Usually it is used in circumstances that direct hand touch is not allowed to assure environment clean, such as operating clean rooms in hospital and food manufacturing industries.
Features:

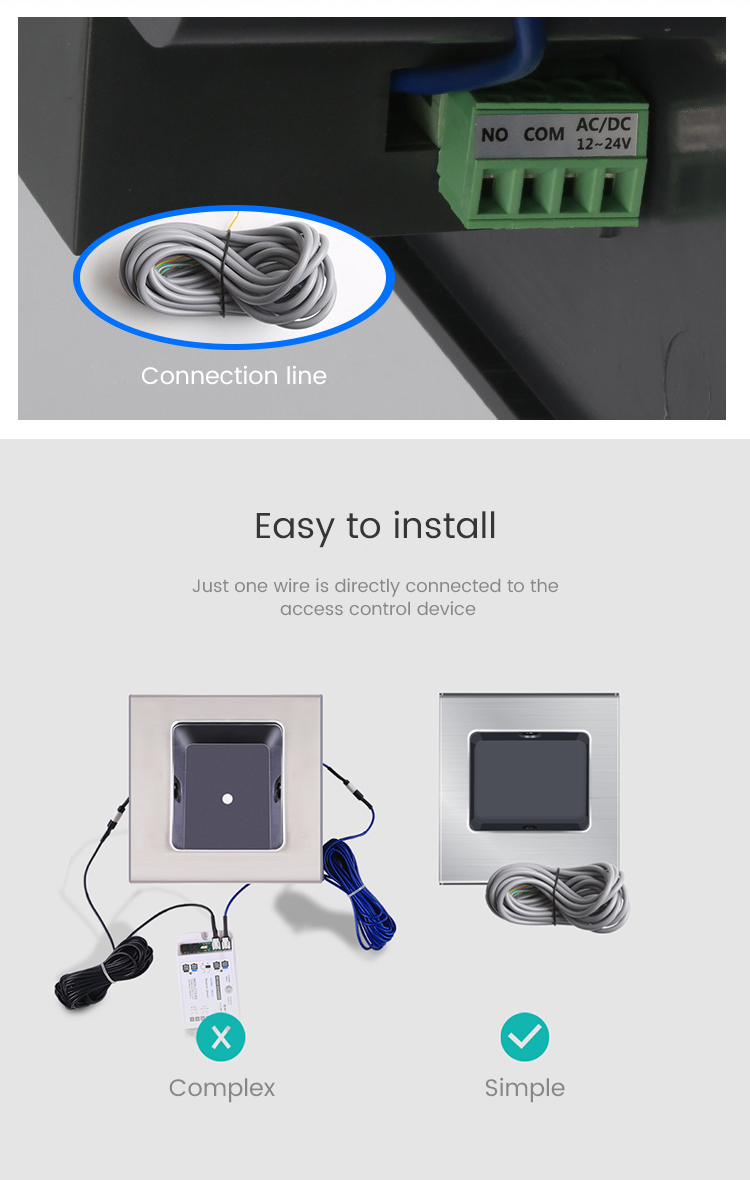

With pull in & out socket for easy wiring

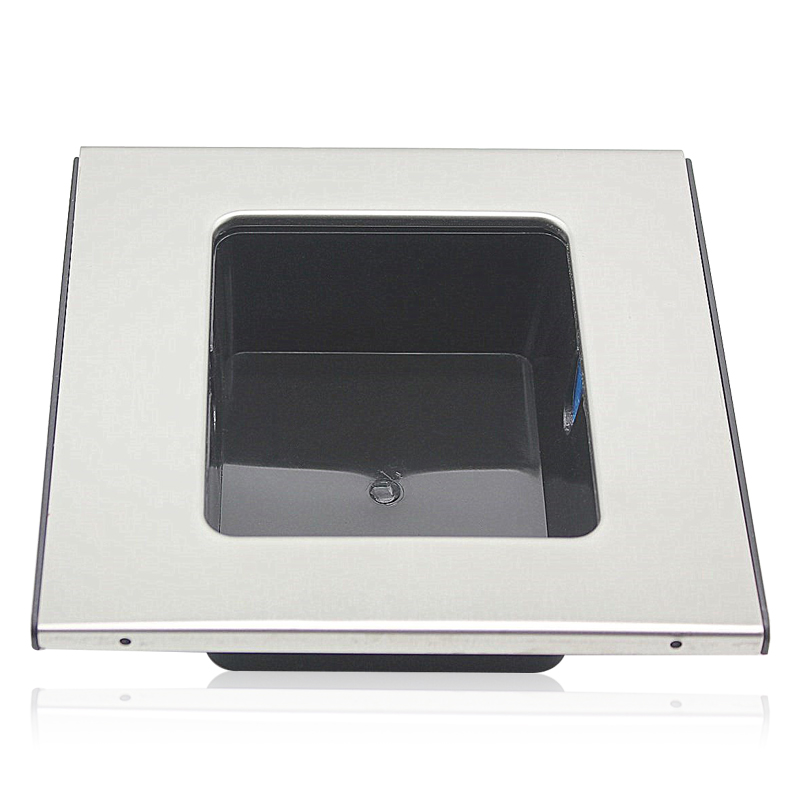

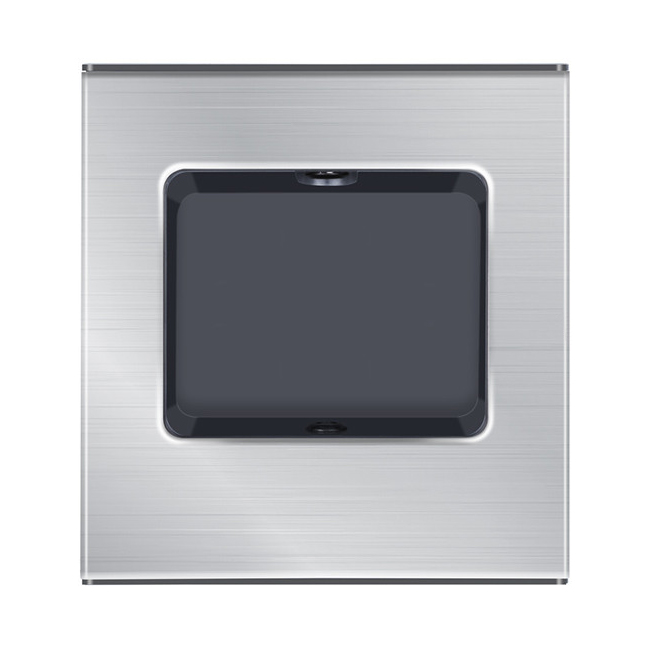

Adopt microcomputer control with exquisite design of stainless steel wire cover

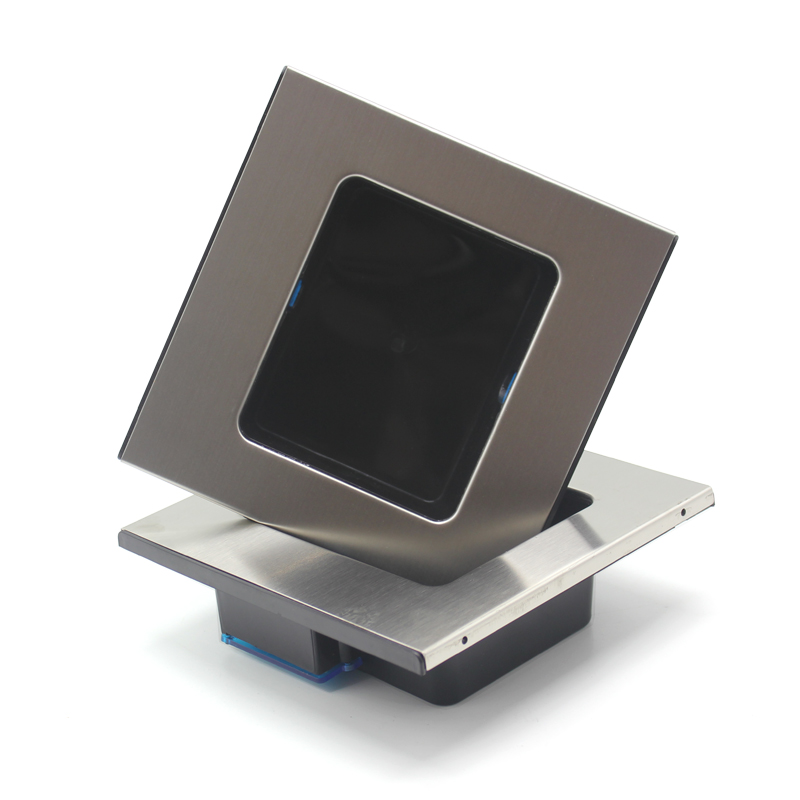

Installation with hidden screw hole, easy to be fixed and stable performance
Widely be used in the operating room of hospital and laboratory to prevent hand pollution
Detection mode: Receive the open signal by the truncation of infrared ray which operated by foot
Active infrared ray of modulation-demodulation controlled by microcomputer
|
Technical measure |
Active infrared ray of modulation and demodulation |
|
Recommend installation height |
0.3m height from the ground |
|
Detection mode |
Truncation of infrared ray by foot operated to produce the open signal |
|
Reaction time |
Relay output <45ms |
|
Supply power |
AC/DC 12~30V |
|
Stand-by current |
8.2mA |
|
Operating current |
47mA |
|
Supervisory signal |
4.5S MA |
|

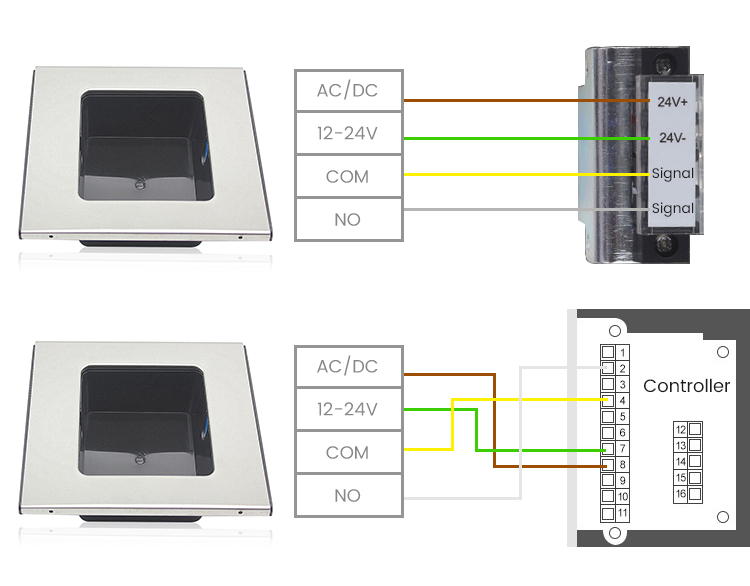

Signal output |
Relay normally open or normally closed |
|
Operation temperature |
-20℃~55℃ |
|
Interference immunity |
Sunlight 81000LUX, incandescent lamp 36000LUX, electronic microwave conforms to 89336CEE standard |
|

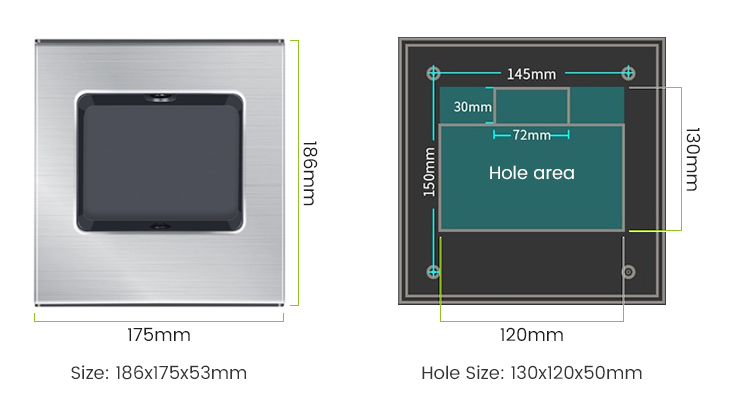

Hole Size |
130x120x50mm |
|
Dimension |
186x175x53mm |
| Item Number | Description | Quantity | Cartons | Net Weight | Gross Weight | CARTON SIZE |
| pcs | (Total) | Carton/KG | Carton/KG | (CM) | ||
| S4A-219T | Automatic Door Pedal Switch Support 12-24V | 36pcs | 1 | 19KG | 20KG | 61*38*39cm |
S4A Datesheet_Automatic Door Pedal Switch Support 12-24V
