>Card type：EM/MF
>Reading Range:3-6cm
>Dimensions: 136x70x18mm
Brand:
S4AItem NO.:

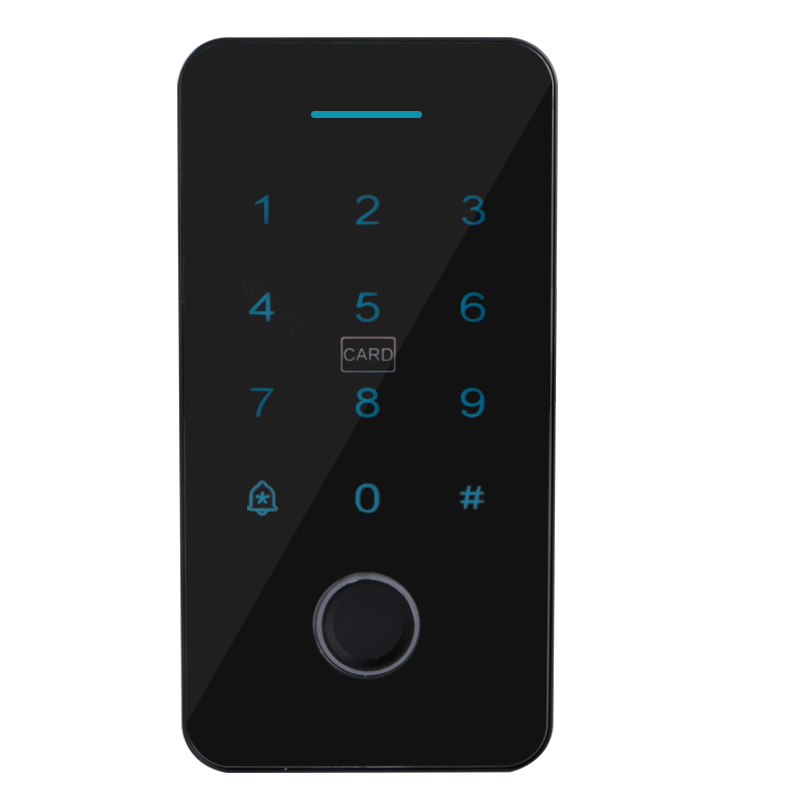

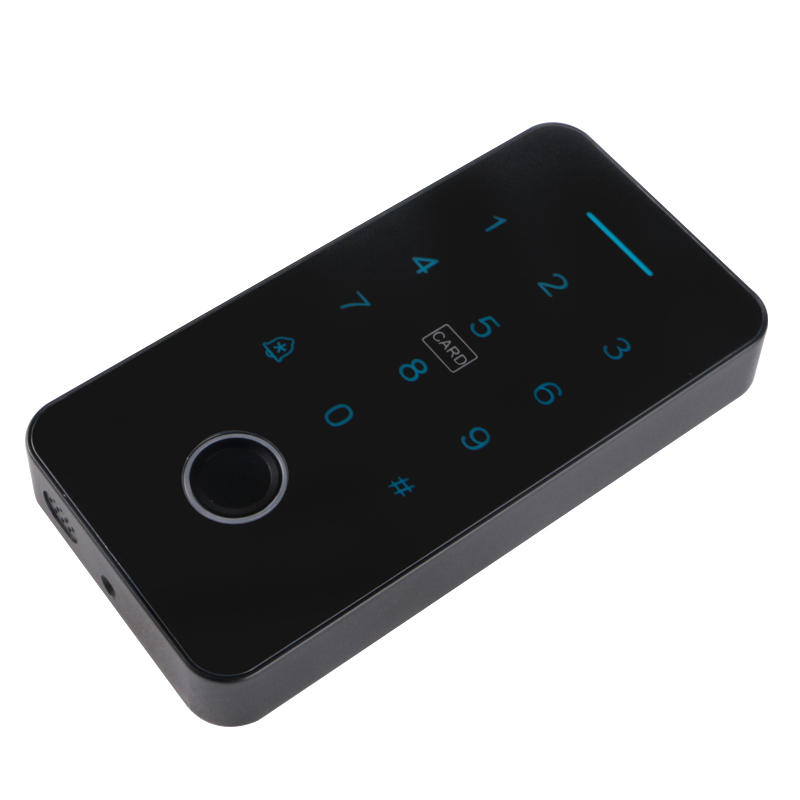

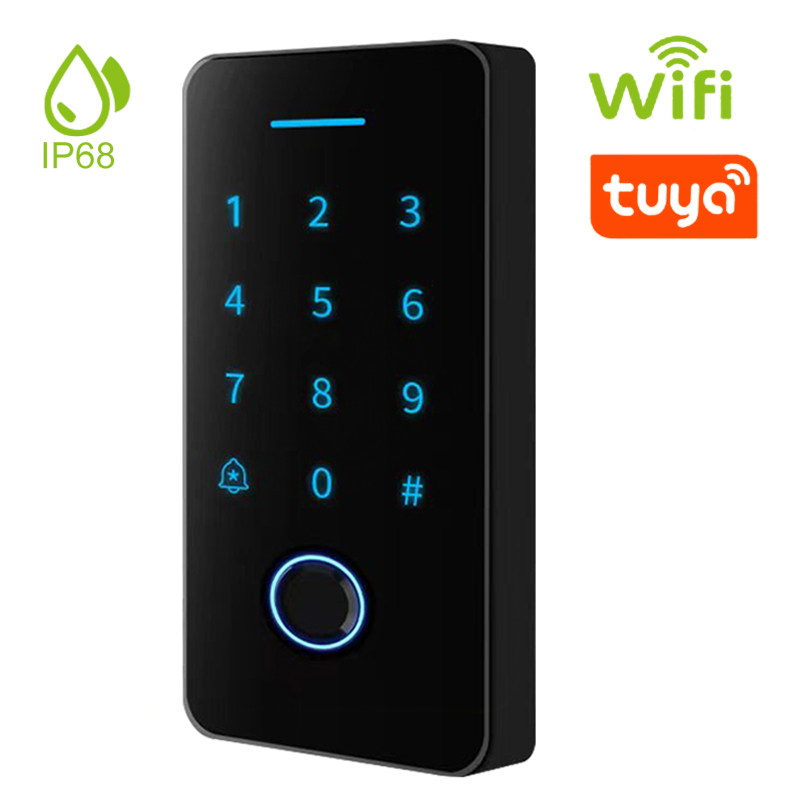

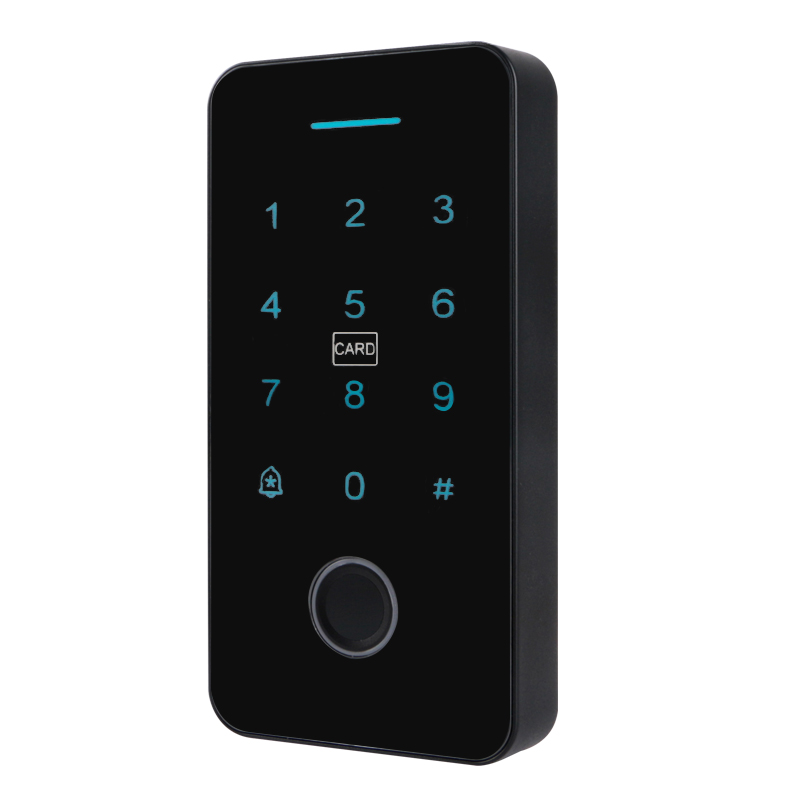

F100Tuya Smart WiFi Access Control Systems with EM and Mifare-Touch Keypad and Fingerprint
Model No.: F100
The device is a standalone access control and proximity card reader which supports EM & MF card types. It builds-in STC microprocessor, with strong anti-interference ability,high security and reliability,powerful function and convenient operation. It’s widely used in high-end buildings, residential communities and other public places.
Features:
Ultra-low Power: Standby current is less than 30mA
Wiegand Interface: WG26 or WG34 input and output
Searching time: Less than 0.1s after reading card
Backlight keypad: Operate easily at night
Doorbell interface: Support external wired doorbell
Access ways: Card, Pin code, Card & Pin code
Independent codes: Use codes without related card
Change codes: Users can change codes by themselves
Delete users by card No.: The lost card can be delete by keyboard
| Product Parameter | Parameter Descr1ption |
| S4A Model | F100 |
| Product Name | Touch Screen WiFi Standalone Access Controller |
| Card type：EM/MF | Static electricity: ≤30mA |
| Working voltage: DC12V±10% | Ambient temperature: -45℃～60℃ |
| Reading Range:3-6cm | Electric lock output: ≤3A |
| Humidity: 10% to 90% | Short-circuitProtect: ≤100μS |

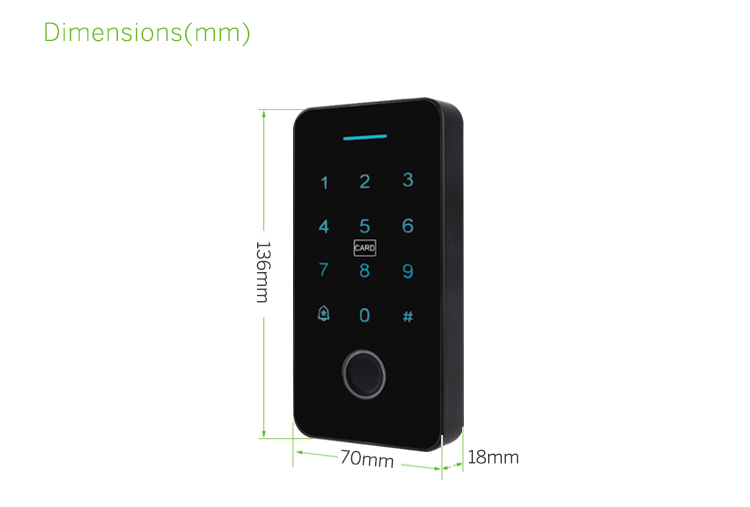

| Door Opening Time:0-99s(Adjustable) | Dimensions: 136x70x18mm |
| Unit Weight | 0.35kg |
| Standard Package | 54PCS |
| Carton Weight | 19KG |
| Carton Size | 114*75*16(cm) |
S4A_Datesheet_Tuya Smart WiFi Access Control Systems with EM and Mifare-Touch Keypad and Fingerprint
> Card type: EM, HID, MF, CPU Card(Factory default: EM 125KHz)> Metal backlight keypad> User capacity: 10,000 users> Dimensions: 139x70x20mm> Waterproof IP68> Support WIFI
> Card type: EM Card> Access ways: Card, code, card + code, Mobile APP> Protocol: Wiegand26 Input/Output> Searching time: Less than 0.1s after reading card> Backlight keypad: Easy to operate at night> Doorbell interface: Support external wired doorbell
> Card type: EM Card> Access ways: Card, code, card + code, Mobile APP> Protocol: Wiegand26 Input/Output> Searching time: Less than 0.1s after reading card> Backlight keypad: Easy to operate at night
> Support APP+2G+3G+4G> Voltage: 5~24V> 10A relay> Installation Environment: With WiFi> Support iOS and Android phon
> Card type: EM or MF Card> User Capacity: 2000> Card Reading Distance: 3-6 cm> Size: 117x71x22mm
> Card type: EM or Mifare Card> Hardware User: 1000> APP User: 100 (including 255 card/PIN users)> Waterproof, conforms to IP66> Metal housing, anti-vandal> iOS and Android available> Multiple Access Modes: Smartphone, Card, PIN
> Card type: EM or Mifare Card> Hardware User: 1000> APP User: 100 (including 255 card/PIN users)> Waterproof, conforms to IP66> Metal housing, anti-vandal> iOS and Android available> Multiple Access Modes: Smartphone, Card, PIN
> Card type: EM or Mifare Card> Hardware User: 1000> APP User: 100 (including 255 fingerprint/card/PIN users)> Waterproof, conforms to IP66> Metal housing, anti-vandal> iOS and Android available> Multiple Access Modes: Smartphone, Fingerprint, Card, PIN
S4A appreciate any of your inquiries and sincerelyhope to enjoy a fruitful long-term business relationship with youto share in the mutual benefits, If you have any questions, please feel free to contact us.
