WIFI rfid panel reader access control

> Card type: EM Card

> Access ways: Card, code, card + code, Mobile APP

> Protocol: Wiegand26 Input/Output

> Searching time: Less than 0.1s after reading card

> Backlight keypad: Easy to operate at night

  • Brand:

    S4A
  • Item NO.:

    K35 WIFI
  • Specifications
  • Wiring Diagram
  • Package

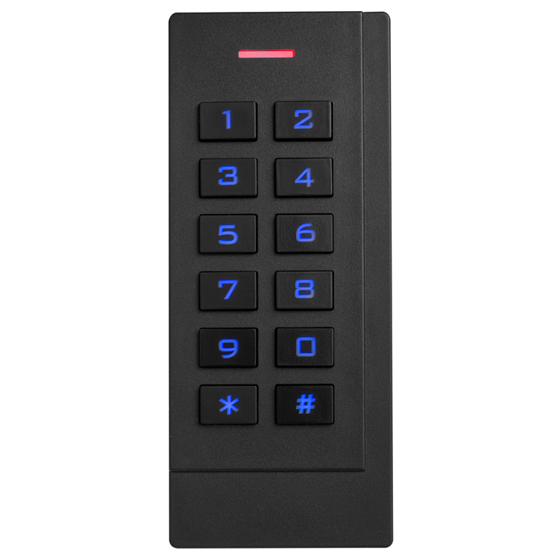

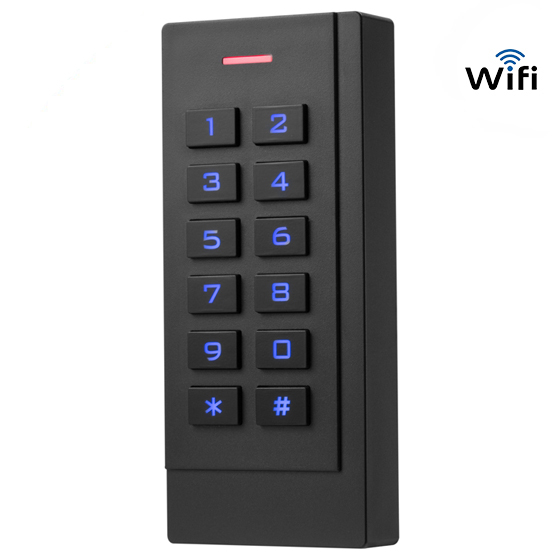

WIFI rfid Panel Reader Access Control

Model No.: K35 WIFI EM


The device is a WIFI access control keypad and proximity card reader, which supports EM card types, it's one of the most advanced standalone access control. It adopts unique design, builds-in USA Atmel microprocessor, with strong anti-interference ability, high security and reliability, powerful function, and convenient operation. It's widely used in high-end buildings, residential communities, and other public places.


Feature

> Ultra-low power consumption: Standby current is less than 30mA

> Protocol: Wiegand26 Input/Output

> Searching time: Less than 0.1s after reading card

> Backlight keypad: Easy to operate at night

> Access ways: Card, code, card + code, Mobile APP


Card type

EM

User Capacity

10,000 users

Operating Voltage

DC 12-24V

Card Reading Distance

2~5cm

Standby Current

≤30mA

Lock Output Load

≤3A

Alarm Output Load

≤20A

Door Relay Time

0 ~ 300s

Short-circuit Protection Output Time

≤100μS

Operating Temperature

-40℃~60℃

Operating Humidity

10%~90%

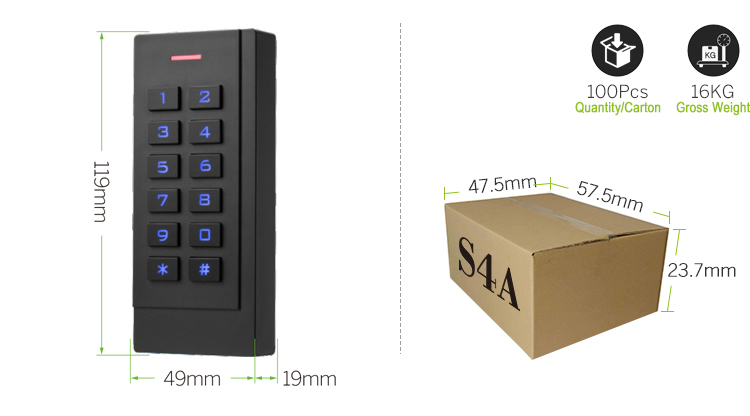

Dimensions

119x49x19mm


WIFI Access Controller

WIFI Access Controller

WIFI Access Controller
