Tuya Bluetooth Standalone Access Controller with RFID

> Card type: EM or Mifare Card

> Hardware User: 1000

> APP User: 100 (including 255 card/PIN users)

> Waterproof, conforms to IP66

> Metal housing, anti-vandal

> iOS and Android available

> Multiple Access Modes: Smartphone, Card, PIN

  • Brand:

    S4A
  • Item NO.:

    H1-BT
  • Specifications
  • Wiring Diagram
  • Package
  • Download

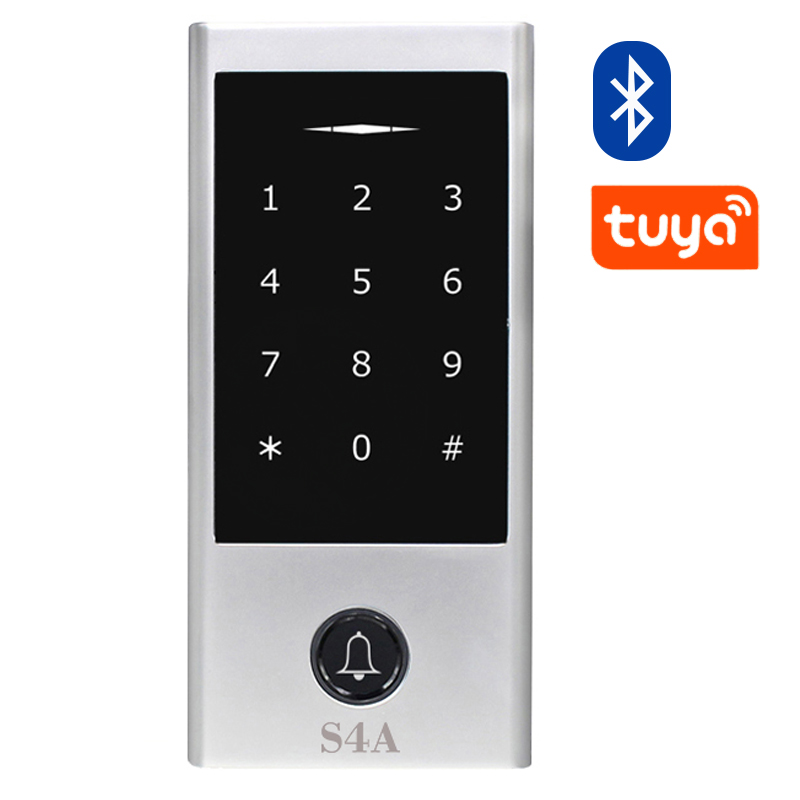

Tuya Bluetooth Standalone Access Controller with RFID

Model No.: H1-BT EM, MF


The H1-BT is a Bluetooth-enabled waterproof touch keypad + RFID access controller. It's integrated with Tuya which supports 100 users(including 255 card/PIN users). It's available for both iOS and Anddroid.


> Waterproof, conforms to IP66

> Metal housing, anti-vandal

> Card type: EM Card or Mifare Card

> iOS and Android available

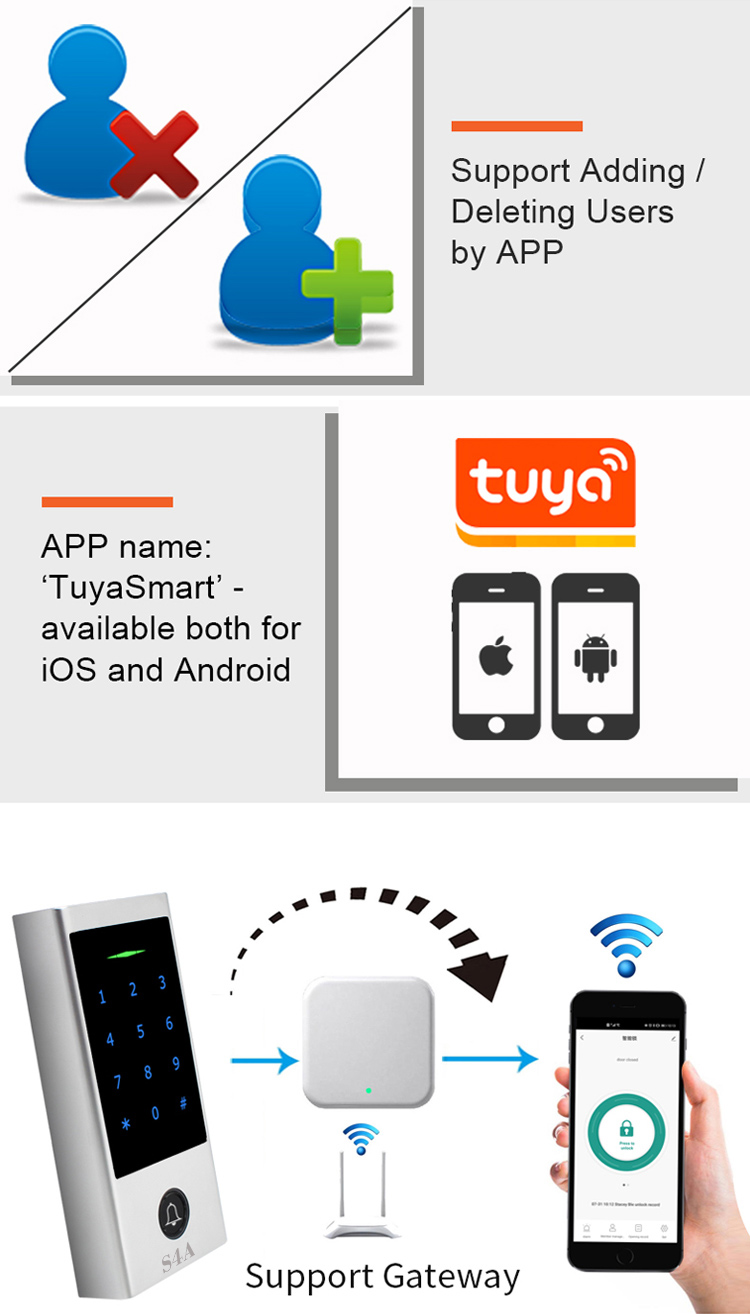

> Add / Delete users by APP

> Support checking Opening Record

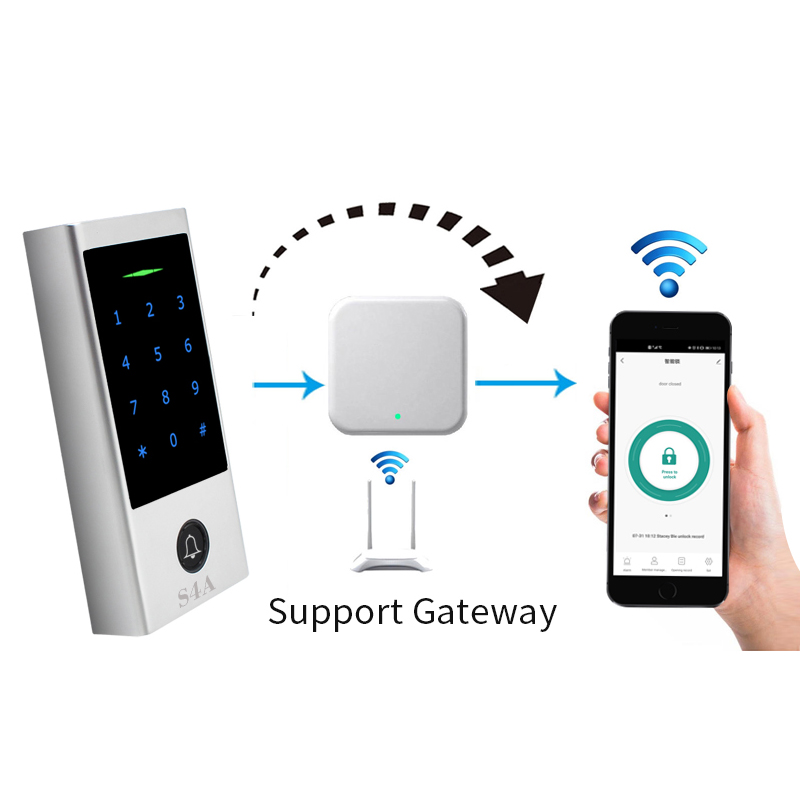

> Support Gateway

> Multiple Access Modes: Smartphone, Card, PIN


User Capacity

Hardware User: 1000, APP User: 100 (including 255 card/PIN users)

Common User

988

Visitor User

10

Panic User

2

PIN Length

4~6 digits

Operating Voltage

12~18V DC

Idle Current

≤ 60mA

Active Current

≤ 150mA

Proximity Card Reader

EM or Mifare

Radio Technlogy

125KHz/13.56MHz

Read Range

2~6cm

Wiring Connections

Relay output, exit button, alarm, door contact, Wiegand input/output

Relay

One (NO, NC, Common)

Adjustable Relay Output Time

0~99 Seconds (5 seconds default)

Lock Output Load

2 Amp Maximum

Wiegand Interface

EM card version: Wiegand 26~44 bits input & output (Factory default: Wiegand 26bits)

Mifare card version: Wiegand 26~44 bits, 56bits, 58bits input & output (Factory default: Wiegand 34bits)

PIN Output

4 bits, 8bits (ASCII), 10 digits Virtual Number(Factory default: 4bits)

Environment

Meets IP66

Operating Temperature

-40℃ ~ 60 (-40°F ~ 140°F)

Operating Humidity

0%RH ~ 98%RH

Physical

Zinc-Alloy

Color

Sliver & Black

Dimensions

L145 x W68 x H25 (mm)

Unit Weight

500g

Shipping Weight

615g


Biometric Access ControlBiometric Access Control

Biometric Access Control

Biometric Access Control

Biometric Access Control

Biometric Access Control

S4A Datesheet_Tuya Bluetooth Standalone Access Controller With RFID
