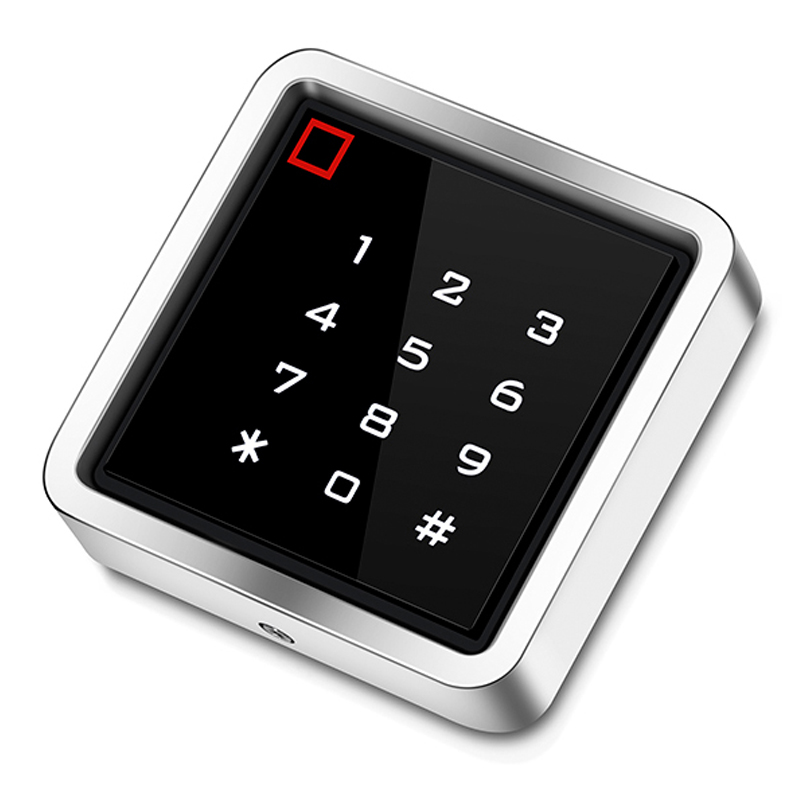

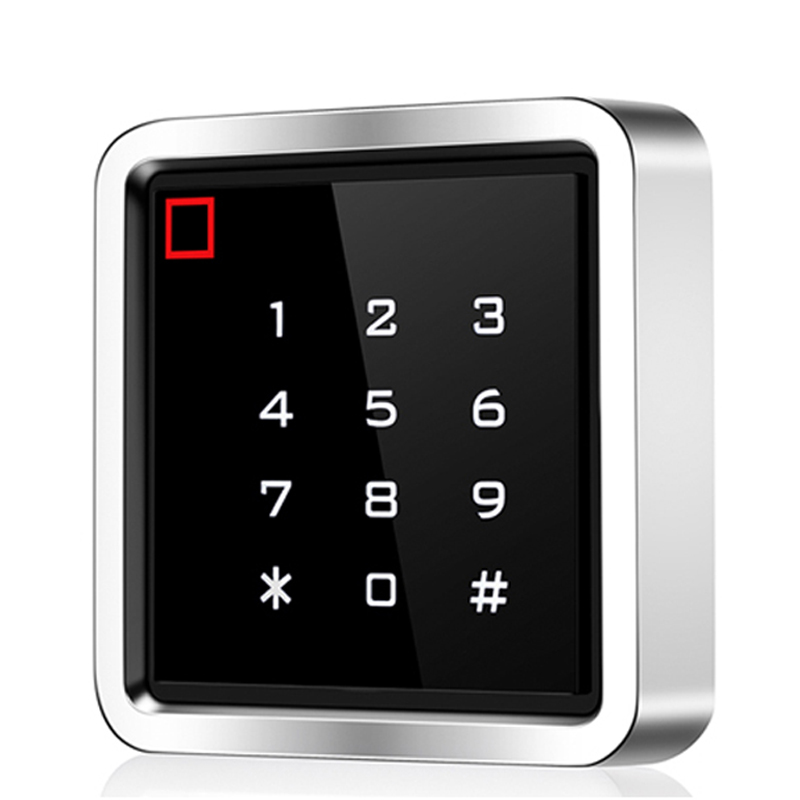

T8Bluetooth keypad Access Control with 125KHz card reader
Model No.: T8
Product feature
> Metal case, anti-vandal
> Digital backlit touch keypad
> Multi-function standalone access controller and reader,
> WG interface: WG26 Input / output
> Capacity: 2000 cards / codes
> Three accesses: card, pin, card + pin
Product Parameter | Parameter Description |
S4A Model | T8 |
Product Name | Touch Screen Standalone Access Controller |
Card type | EM/MF |
Working voltage | DC12-24V |
Static Electricity | ≤35mA |
Reading Range | 2 ~ 5cm |
Ambient Temperature | -40～60℃ |
Humidity | 10%～90% |
Electric Lock Output | ≤1A |
Short-Circuit Protect | ≤100μS |
Relay Output Delay Time | 0-99 s |

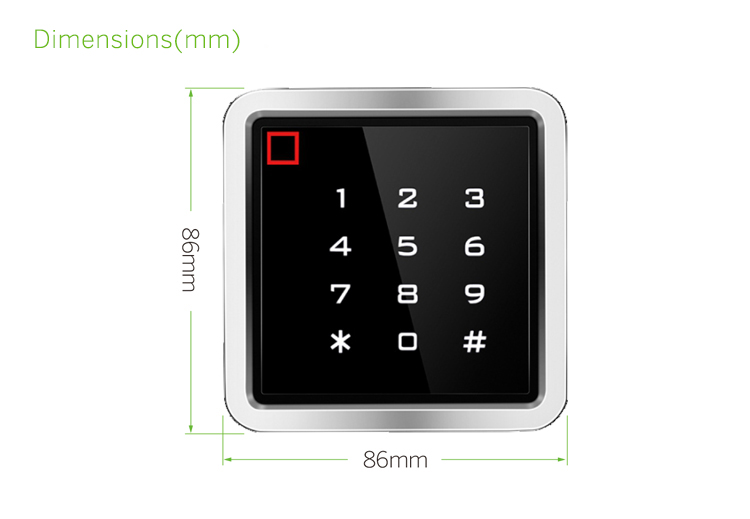

Dimension | 86*86*20mm |
Unit Weight | 0.4KG |
Standard Package | 54PCS |
Carton Weight | 22.6KG |
Carton Size | 56*40*41cm |
S4A Datesheet_Bluetooth keypad Access Control with 125KHz card reader

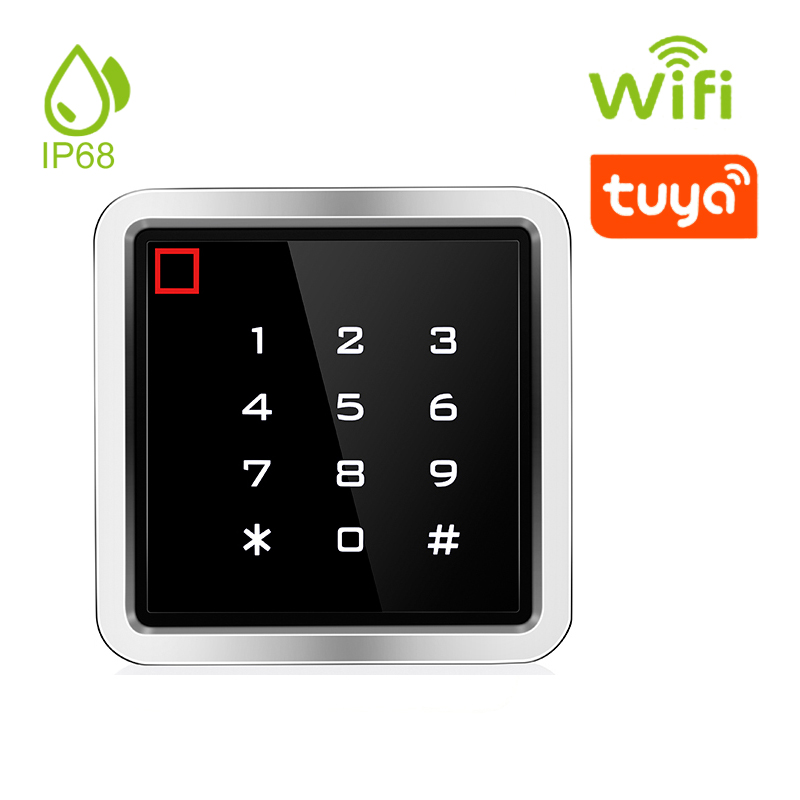

> Card type: EM, HID, MF, CPU Card(Factory default: EM 125KHz)> Metal backlight keypad> User capacity: 10,000 users> Dimensions: 139x70x20mm> Waterproof IP68> Support WIFI
> Card type: EM Card> Access ways: Card, code, card + code, Mobile APP> Protocol: Wiegand26 Input/Output> Searching time: Less than 0.1s after reading card> Backlight keypad: Easy to operate at night> Doorbell interface: Support external wired doorbell
> Card type: EM Card> Access ways: Card, code, card + code, Mobile APP> Protocol: Wiegand26 Input/Output> Searching time: Less than 0.1s after reading card> Backlight keypad: Easy to operate at night
> Support APP+2G+3G+4G> Voltage: 5~24V> 10A relay> Installation Environment: With WiFi> Support iOS and Android phon
> Card type: EM or MF Card> User Capacity: 2000> Card Reading Distance: 3-6 cm> Size: 117x71x22mm
> Card type: EM or Mifare Card> Hardware User: 1000> APP User: 100 (including 255 card/PIN users)> Waterproof, conforms to IP66> Metal housing, anti-vandal> iOS and Android available> Multiple Access Modes: Smartphone, Card, PIN
> Card type: EM or Mifare Card> Hardware User: 1000> APP User: 100 (including 255 card/PIN users)> Waterproof, conforms to IP66> Metal housing, anti-vandal> iOS and Android available> Multiple Access Modes: Smartphone, Card, PIN
> Card type: EM or Mifare Card> Hardware User: 1000> APP User: 100 (including 255 fingerprint/card/PIN users)> Waterproof, conforms to IP66> Metal housing, anti-vandal> iOS and Android available> Multiple Access Modes: Smartphone, Fingerprint, Card, PIN
S4A appreciate any of your inquiries and sincerelyhope to enjoy a fruitful long-term business relationship with youto share in the mutual benefits, If you have any questions, please feel free to contact us.
