Smart Phone Access Control

/

WIFI Access Control

/WIFI Access Control Module Support APP/2G/3G/4G to unlock

New Products

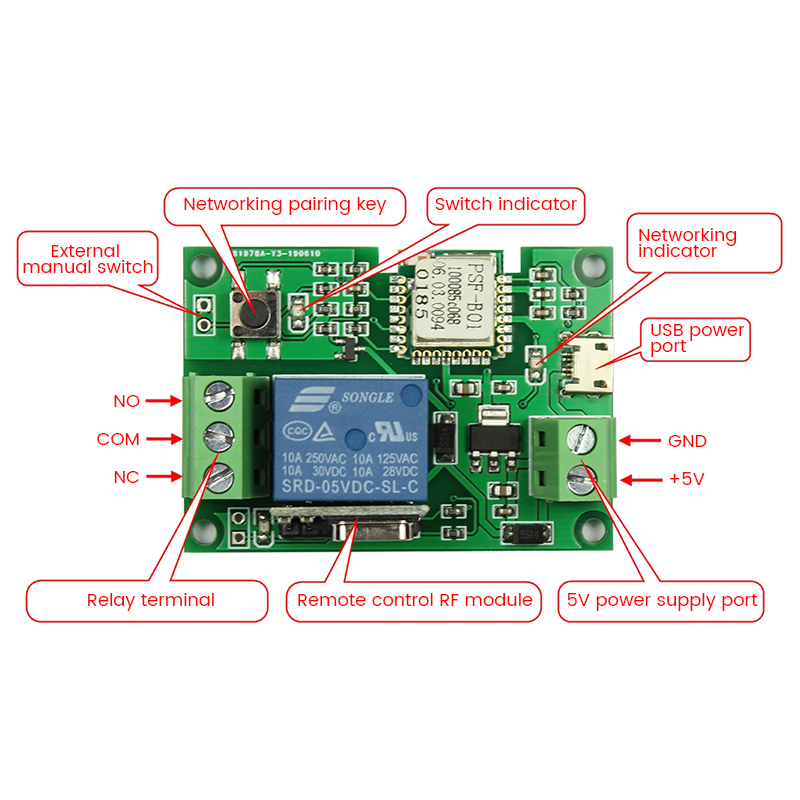

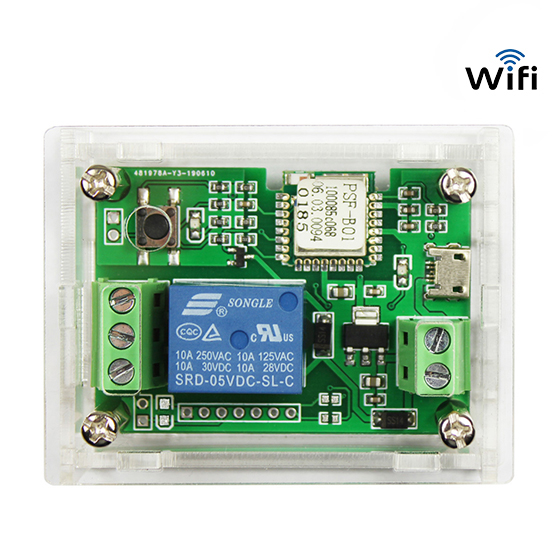

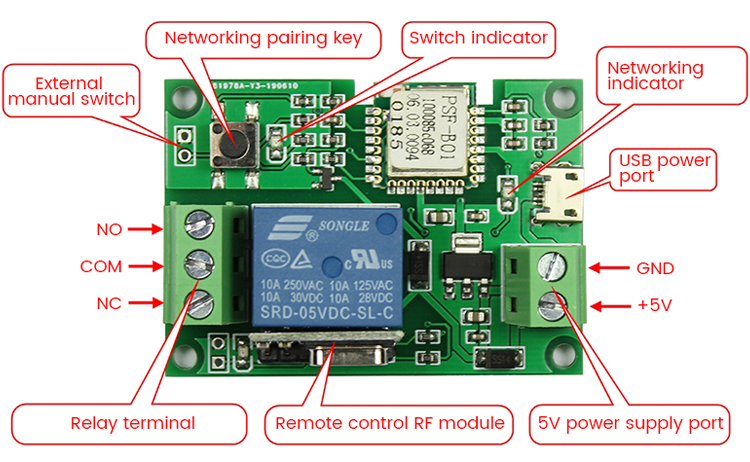

WIFI Access Control Module Support APP/2G/3G/4G to unlock

> Support APP+2G+3G+4G

> Voltage: 7-32V

> Maximum Capacity: 10A

> Function: Self-Locking and Inching Mode

> Installation Environment: With WIFI

> Support IOS and Android phone

  • Brand:

    S4A
  • Item NO.:

    ZJ_G1
  • Specifications

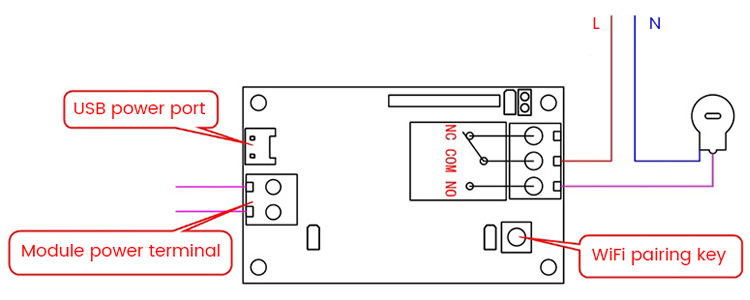

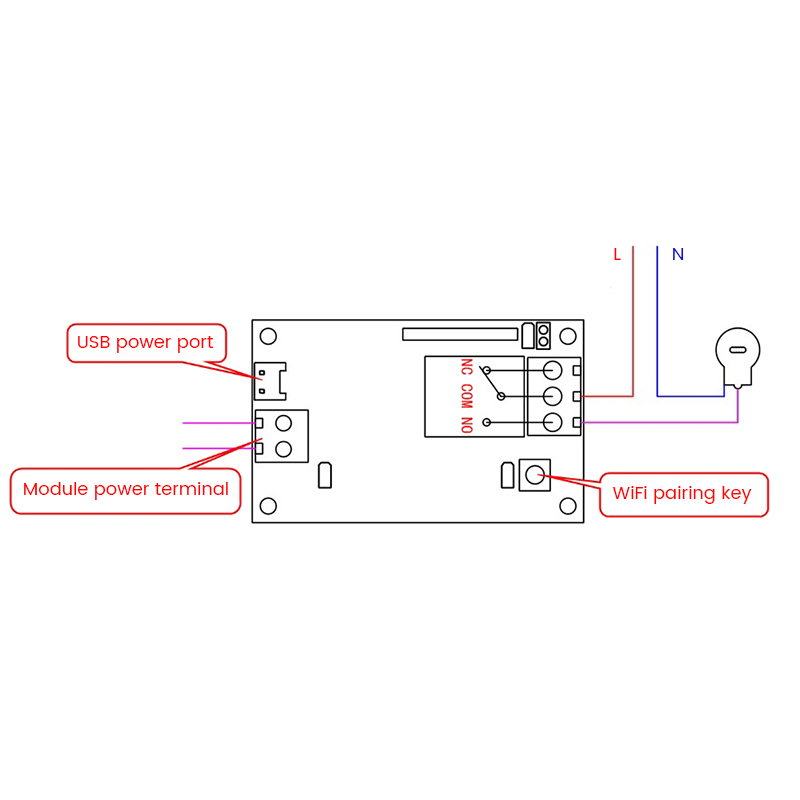

  • Wiring Diagram

WIFI Access Control Module with time delay

Model No.: ZJ_G1


> Support APP+2G+3G+4G

> Voltage: 7-32V

> Maximum Capacity: 10A

> Function: Self-Locking and Inching Mode

> Installation Environment: With WIFI

> Support IOS and Android phone


Voltage

DC 7-32V

Quiescent current

80mA

Maximum Load power

2200W

Installation Environment

With WIFI

Dimension

80X50X32MM

Time delay

3s 6s 9s adjustable

(press Config+Model switch button together)



WIFI Access Control Module with time delay

WIFI Access Control Module with time delay


WIFI Access Control Module with time delay
