> Card type: EM Card
> Access ways: Card, code, card + code, Mobile APP
> Protocol: Wiegand26 Input/Output
> Searching time: Less than 0.1s after reading card
> Backlight keypad: Easy to operate at night
> Doorbell interface: Support external wired doorbell
Brand:
S4AItem NO.:
K33 WiFiWiFi Access Controller
Model No.: K33 WIFI EM

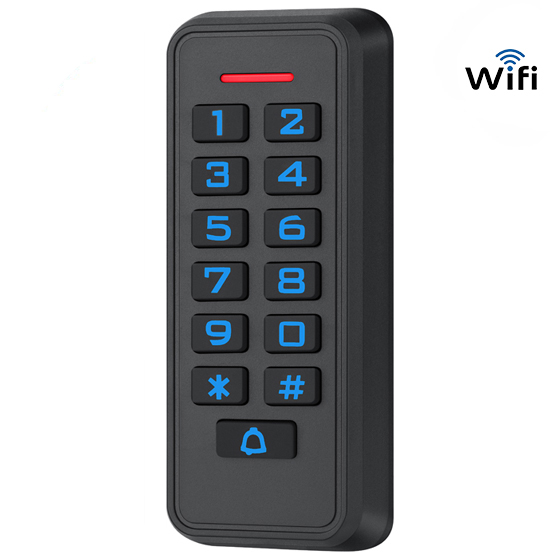

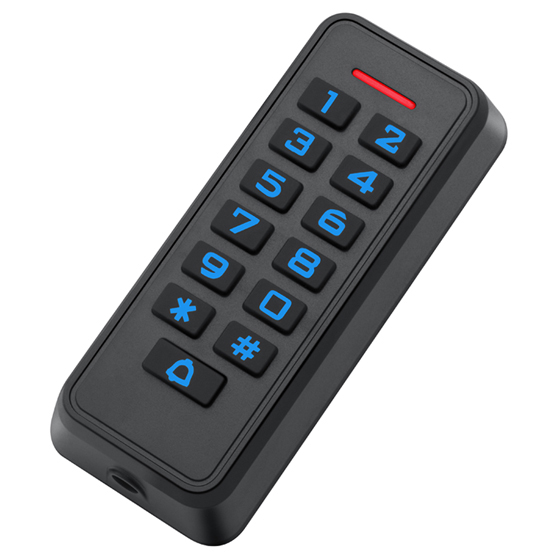

The device is a WIFI access control keypad and proximity card reader, which supports EM card types, it's one of the most advanced standalone access control. It adopts unique design, builds-in USA Atmel microprocessor, with strong anti-interference ability, high security and reliability, powerful function, and convenient operation. It's widely used in high-end buildings, residential communities, and other public places.
Feature
> Ultra-low power consumption: Standby current is less than 30mA
> Protocol: Wiegand26 Input/Output
> Searching time: Less than 0.1s after reading card
> Backlight keypad: Easy to operate at night
> Doorbell interface: Support external wired doorbell
> Access ways: Card, code, card + code, Mobile APP
|
Card type |
EM |
|
User Capacity |
10,000 users |
|
Operating Voltage |
DC 12-24V |
|
Card Reading Distance |
2～5cm |
|
Standby Current |
≤30mA |
|
Lock Output Load |
≤3A |
|
Alarm Output Load |
≤20A |
|
Door Relay Time |
0 ~ 300s |
|
Short-circuit Protection Output Time |
≤100μS |
|
Operating Temperature |
-40℃～60℃ |
|
Operating Humidity |
10%～90% |
|

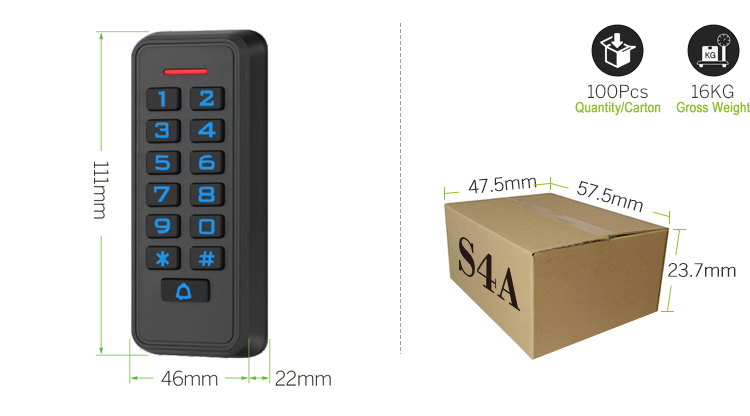

Dimensions |
111x46x22mm |
|
WiFi Access Control System with Mobile APP |
||||
|
Model No. |
Quantity/Carton |
Net Weight |
Gross Weight |
Carton Size |
|
K33 WiFi |
100PCS |
12.94KG |
16KG |
57.5x47.5x23.7CM |
S4A User Manual K33_WIFI Access Control System with Mobile APP
> Card type: EM, HID, MF, CPU Card(Factory default: EM 125KHz)> Metal backlight keypad> User capacity: 10,000 users> Dimensions: 139x70x20mm> Waterproof IP68> Support WIFI
> Card type: EM Card> Access ways: Card, code, card + code, Mobile APP> Protocol: Wiegand26 Input/Output> Searching time: Less than 0.1s after reading card> Backlight keypad: Easy to operate at night
> Support APP+2G+3G+4G> Voltage: 5~24V> 10A relay> Installation Environment: With WiFi> Support iOS and Android phon
> Card type: EM or MF Card> User Capacity: 2000> Card Reading Distance: 3-6 cm> Size: 117x71x22mm
> Card type: EM or Mifare Card> Hardware User: 1000> APP User: 100 (including 255 card/PIN users)> Waterproof, conforms to IP66> Metal housing, anti-vandal> iOS and Android available> Multiple Access Modes: Smartphone, Card, PIN
> Card type: EM or Mifare Card> Hardware User: 1000> APP User: 100 (including 255 card/PIN users)> Waterproof, conforms to IP66> Metal housing, anti-vandal> iOS and Android available> Multiple Access Modes: Smartphone, Card, PIN
> Card type: EM or Mifare Card> Hardware User: 1000> APP User: 100 (including 255 fingerprint/card/PIN users)> Waterproof, conforms to IP66> Metal housing, anti-vandal> iOS and Android available> Multiple Access Modes: Smartphone, Fingerprint, Card, PIN
> Card type: EM or Mifare Card> Hardware User: 1000> APP User: 100 (including 255 fingerprint/card/PIN users)> Waterproof, conforms to IP66> Metal housing, anti-vandal> iOS and Android available> Multiple Access Modes: Smartphone, Fingerprint, Card, PIN
S4A appreciate any of your inquiries and sincerelyhope to enjoy a fruitful long-term business relationship with youto share in the mutual benefits, If you have any questions, please feel free to contact us.
