Moblie Phone Control Door Access Control kit

> Contains card reader mode. The transmission format could be adjusted by user.

> Supports different access ways: Entry by Card + Code or Entry by multi cards

> Support master added a card and deleted the card

  • Brand:

    S4A
  • Item NO.:

    TF501
  • Specifications

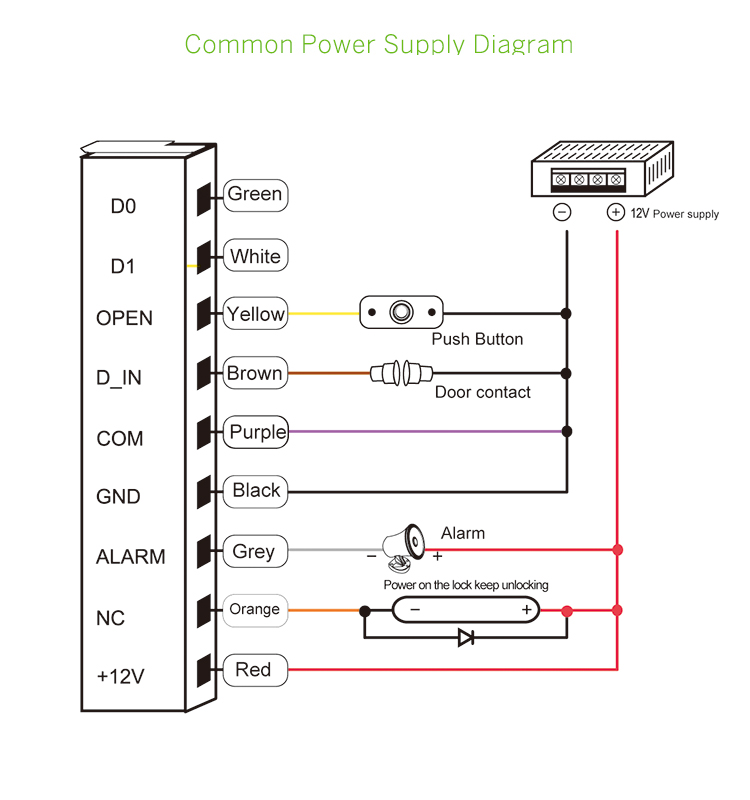

  • Wiring Diagram
  • Package
  • Download

Moblie Phone Control Door Access Control kit

Model No.:TF501

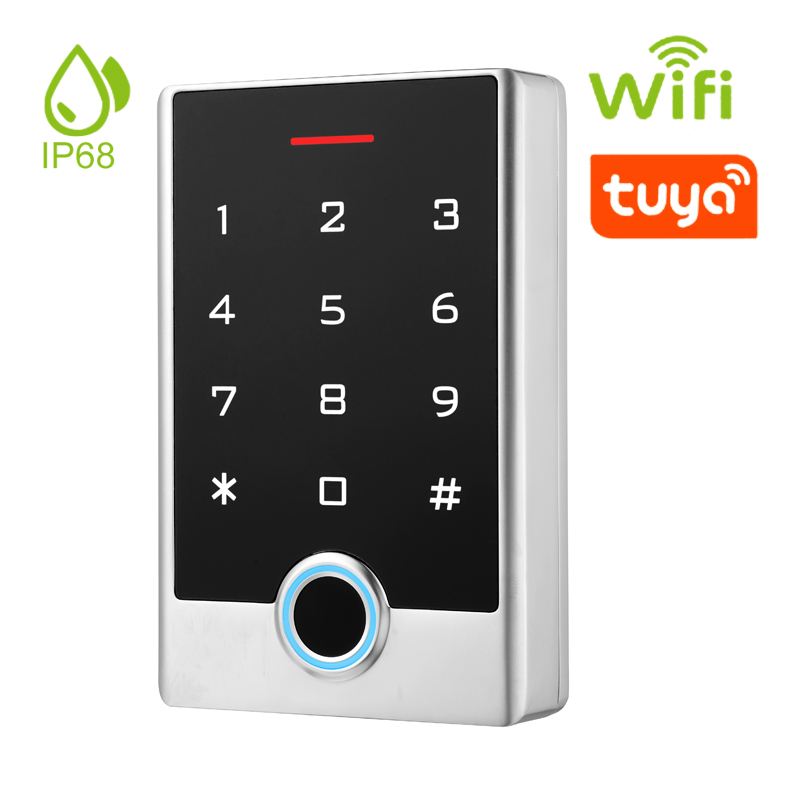

TF501 Metal & IP68 Waterproof Fingerprint Standalone Access Controller

This is a new generation of multi-function standalone access control.

It adopts a new ARM core 32-bit microprocessor design, which is powerful, stable, and reliable.

It includes card reader mode and standalone access control mode etc..

Its widely applied to different occasions, such as offices, residential communities, villa, bank, and prison, etc..


Features

> Read 125KHz EM / HID Card / 13.56MHz Mifare / CPU Card (Factory default: EM 125KHz)

> Metal backlight keypad

> Contains card reader mode. The transmission format could be adjusted by user.

> Supports different access ways: Entry by Card + Code or Entry by multi cards

> Support master added a card and deleted the card

> User capacity: 10,000 users


Product Parameter

Parameter Description

S4A Model

TF501

Product Name

Metal Fingerprint Access Control

Card type

EM / HID / MF / CPU

User Capacity

10,000 users

Fingerprint Capacity

256

Keypad Characteristic

Metal backlight keypad

Operating Voltage

DC 12-24V

Standby Current

<=35mA

Operating Current

<=100mA

Operating Temperature

-40℃ ~ 60℃

Operating Humidity

0%~95%

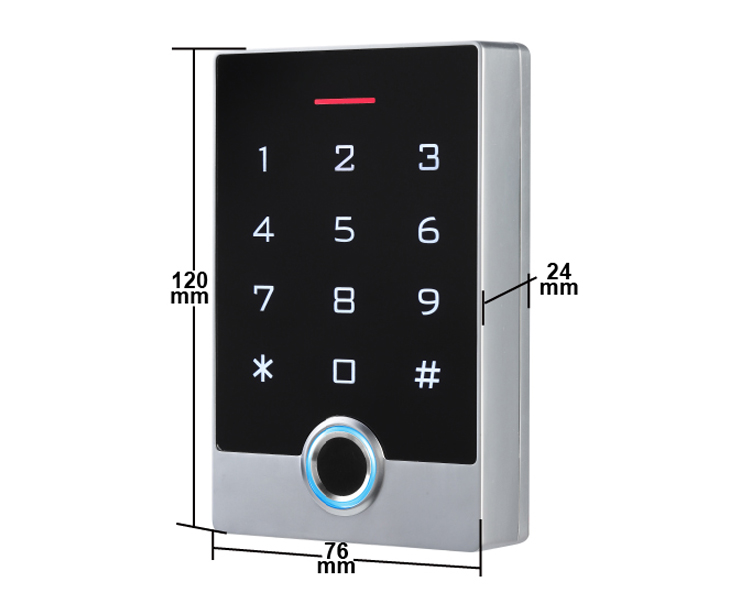

Dimensions

120x76x24mm

Access ways

Fingerprint, card, code, or multiple

combination methods


Moblie Phone Control Door Access

Moblie Phone Control Door Access

Moblie Phone Control Door Access

S4A Datesheet_Moblie Phone Control Door Access Control kit
