WIFI biometric fingerprint access control

> Card type: EM, HID, MF, CPU Card

(Factory default: EM 125KHz)

> Metal backlight keypad

> User capacity: 10,000 users

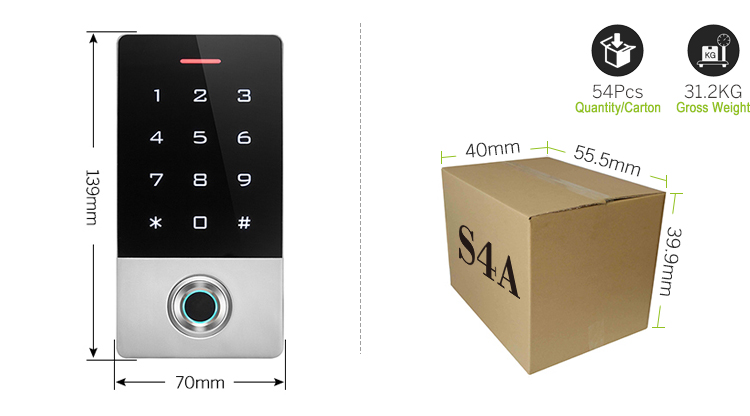

> Dimensions: 139x70x20mm

> Waterproof IP68

> Support WIFI

  • Brand:

    S4A
  • Item NO.:

    TF1 WIFI
  • Specifications
  • Wiring Diagram
  • Package
  • Download

WIFI Fingerprint Access Control

Model No.: TF1 WIFI EM, MF


This series’product is a new generation of multi-function standalone access control. It adopts a new ARM core 32-bit microprocessor design, which is powerful, stable, and reliable. It contains reader mode and standalone access control mode etc.. It’s widely applied to different occasions, such as office, residential communities, villa, bank, and prison, etc..


Features:

> Read 125KHz EM / HID Card / 13.56MHz Mifare / CPU Card (Factory default: EM 125KHz)

> Support WIFI

> Metal backlight keypad

> Contains card reader mode. The transmission format could be adjusted by the user.

> Support seven access ways

> Support admin add card and admin delete card

> 10,000 card users and 600 fingerprint users


Card type

EM, HID, MF, CPU

User Capacity

10,000 users

Fingerprint Capacity

600

Operating Voltage

DC 12-24V

Standby Current

≤35mA

Operation Current

≤100mA

Operating Temperature

-40℃~60℃

Operating Humidity

0%~95%

Waterproof

IP68

Dimensions

139x70x20mm

Access ways

Fingerprint, card, code, or multiple combination methods


WIFI Fingerprint Access Control

WIFI Fingerprint Access Control


WIFI Fingerprint Access Control

WIFI Fingerprint Access Control
