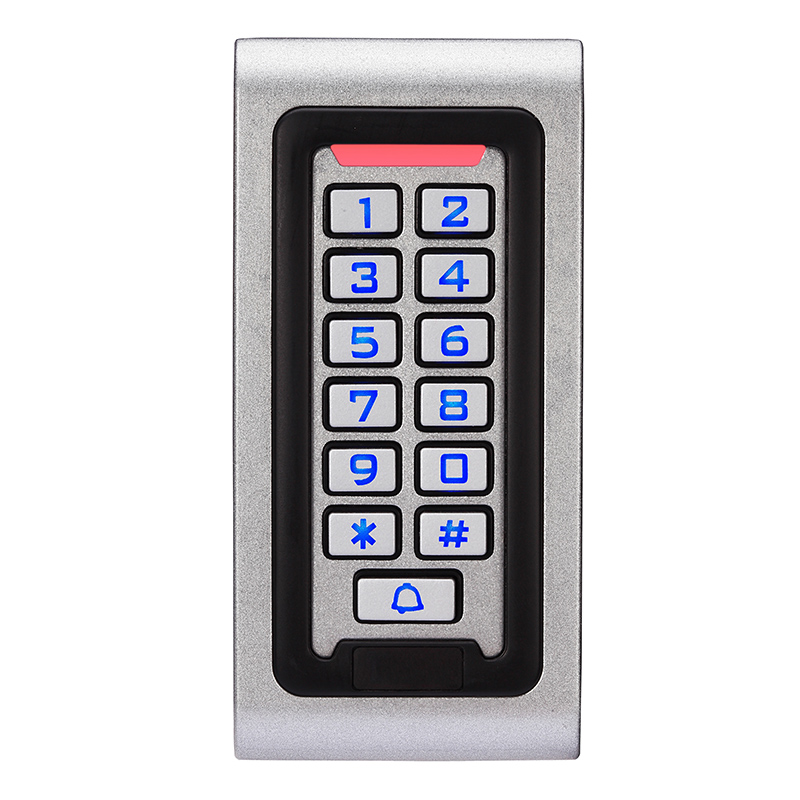

Waterproof RFID Access Control Metal Keypad Door Entry Security Control Systems

> Metal structure design, anti-vandal

> Digital backlit keyboard

> All-in-one, WG26 output/input


  • Brand:

    S4A
  • Item NO.:

    S601-W
  • Specifications

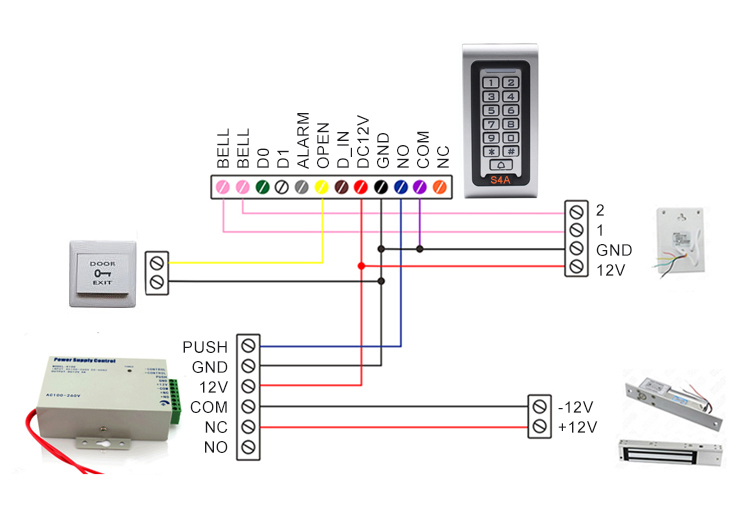

  • Wiring Diagram
  • Package
  • Download

Waterproof RFID Access Control Metal Keypad Door Entry Security Control Systems

Model No.: S601 EM, MF


RFID Access Control


The product is a Contactless inductive card Metal Password Access Controller,According to the model, respectively support EM, HID, MIFARE three cards, It is one of the most advanced stands alone access controller.

It uses a unique metal exterior design, Dexterity keyboard panel operation, Built-in high-grade microprocessors, Strong anti-interference ability, Safety, and reliability are extremely high, can provide powerful security for 2,000 users.

It has strong functions, such as low power consumption, Luminous keyboard, independent passwords, Wiegand output, the output short circuit protection, door magnetic alarm, prevent demolition alarm, exit button, the doorbell interface, level of security Settings, etc. widely used in home, office, residential area, and other public places.


Card type

EM or MF

Waterproof degree

Non-Waterproof(S601) / IP68(S601-W)

User capacity

2000 card user card, 2000 user password

Environment Humidity

10%~90%

Lock output

≤3A

Working voltage

DC12V±10%

Static electricity

≤30mA

Alarm output

≤20A

Output short circuit protection time

≤100μS

Card read distance

5~8cm

Ambient temperature

-45℃~60℃

Door Opening Time

0~99s(Adjustable)

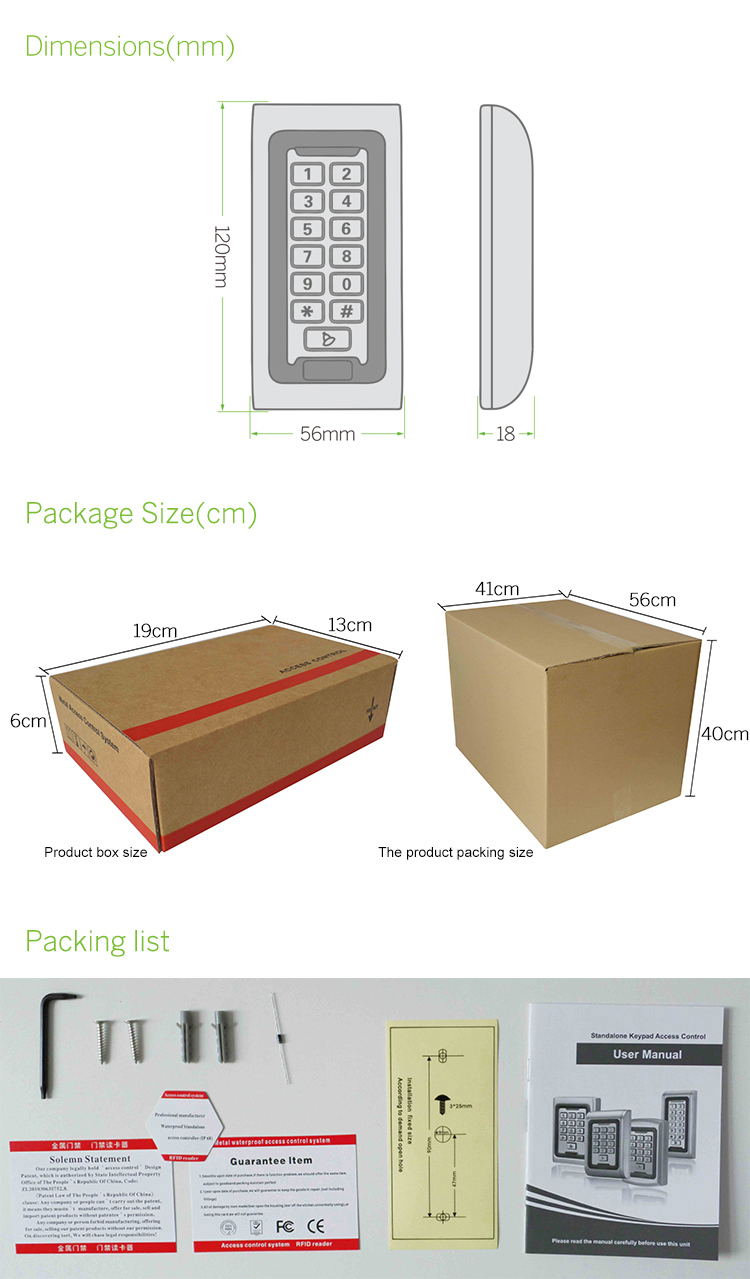

Dimension

120*56*18mm


Perfect design, with backlight and fashion silver finish.

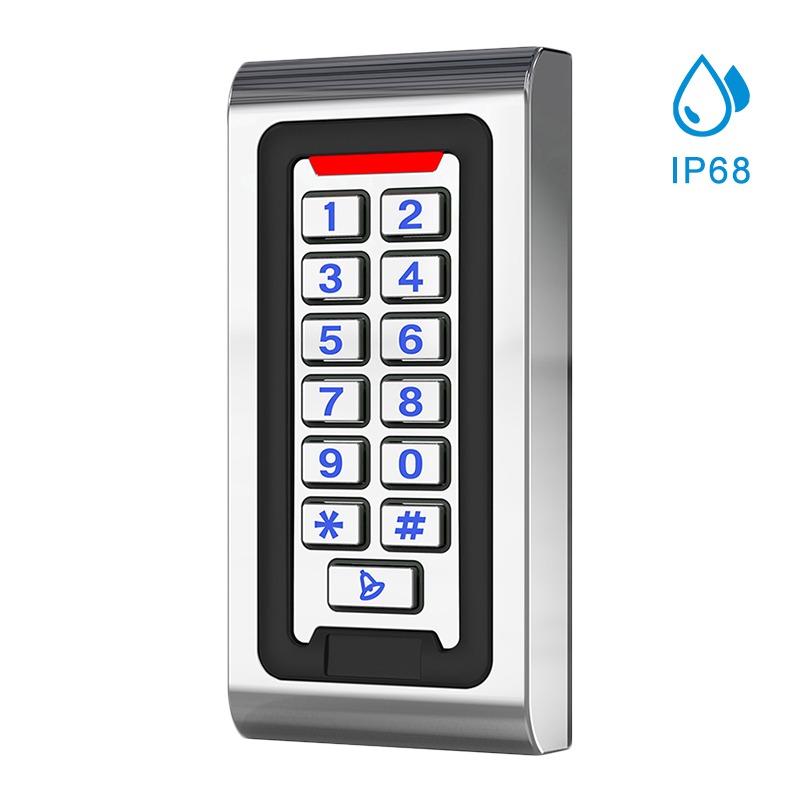

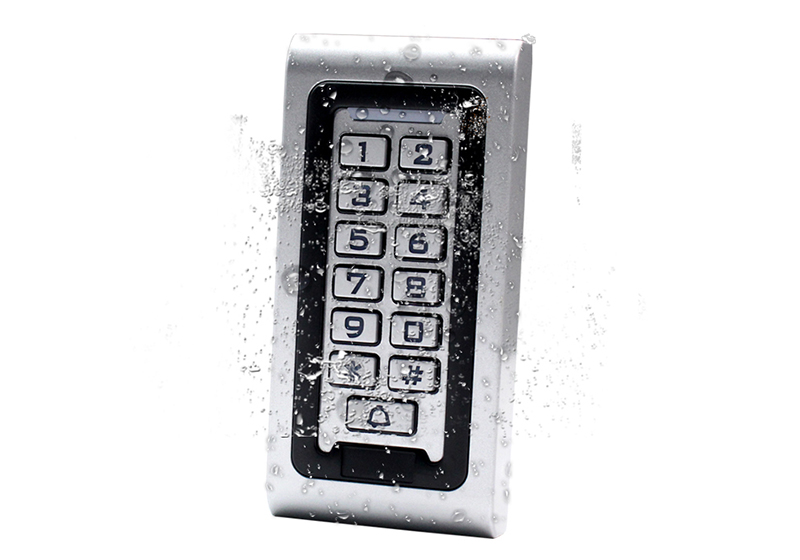

Waterproof design for outdoor use.

A strong standalone function device can be used as a WG26 reader alone.

Capacity: 2000 user's cards, 2000 codes.

Access ways: cards, code, card+code.

Low power: static current less than 30mA

Support the only keypad.

Users can reset private passwords.

Search fast less than 0.1S.

Wiegand output W26 for card and w4 for codes.

Use the keypad to delete lost cards for safety.

Short-circuit protect: when relay or alarm output short circuit, it will shut up output in 100μS.


RFID Access Control



RFID Access Control

RFID Access Control

S4A Datasheet_Waterproof RFID Access Control Metal Keypad Door Entry Security Control Systems
