Full Kits Biometric Fingerprint RFID Access Control Systems

> Card type: EM Card

> Metal case, anti-vandal

> One Programming relay output

> Multi-color LED Status Display

> 1000 Users (100 Fingerprint + 890 Card + 10 Visitor)

> Mini Size: L105 x W69 x H20 mm

> Capacitive Fingerprint Sensor

  • Brand:

    S4A
  • Item NO.:

    SF8
  • Specifications

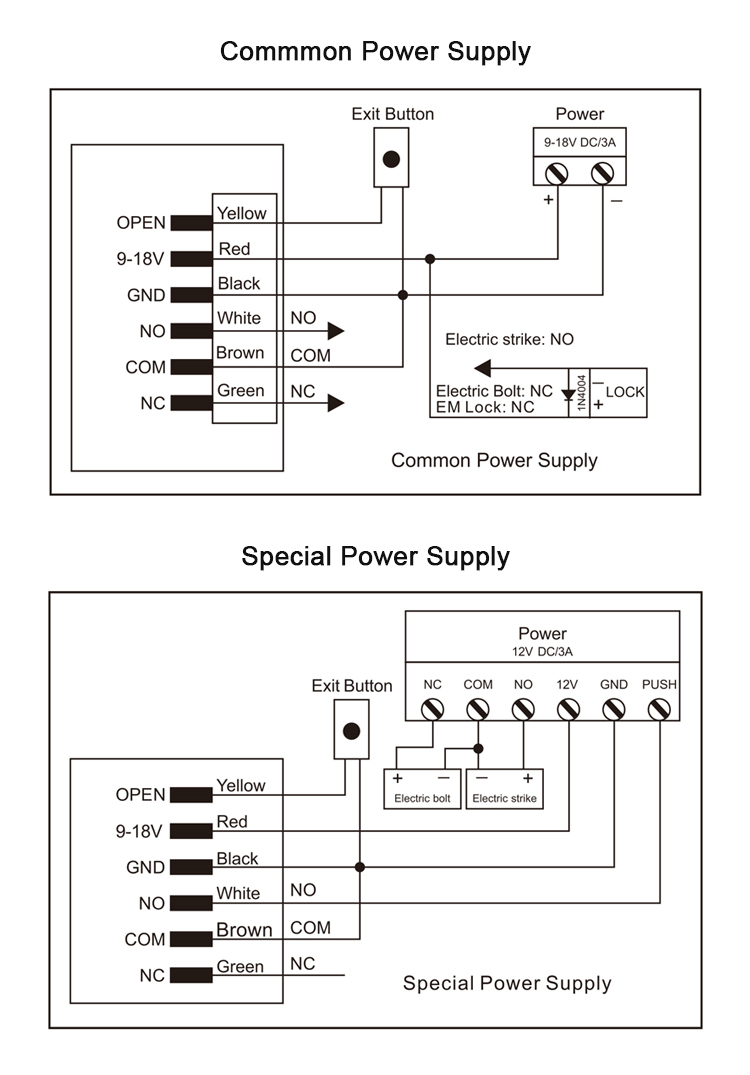

  • Wiring Diagram
  • Package
  • Download

Full Kits Biometric Fingerprint RFID Access Control Systems

Model No.: SF8 EM


What is access control keypad?

Access control keypad locks offer basic access control capabilities. Typically programmed by visiting the door, these locks provide security using keypad only. Keypad locks come in a variety of forms, including the Yale nexTouch lock, which has a digital touch screen similar to a smartphone.


SF8 is Standalone fingerprint mini access control. IP66 waterproof version is very suitable for outdoor use, with the mini design, it is an ideal choice to install on door frame.

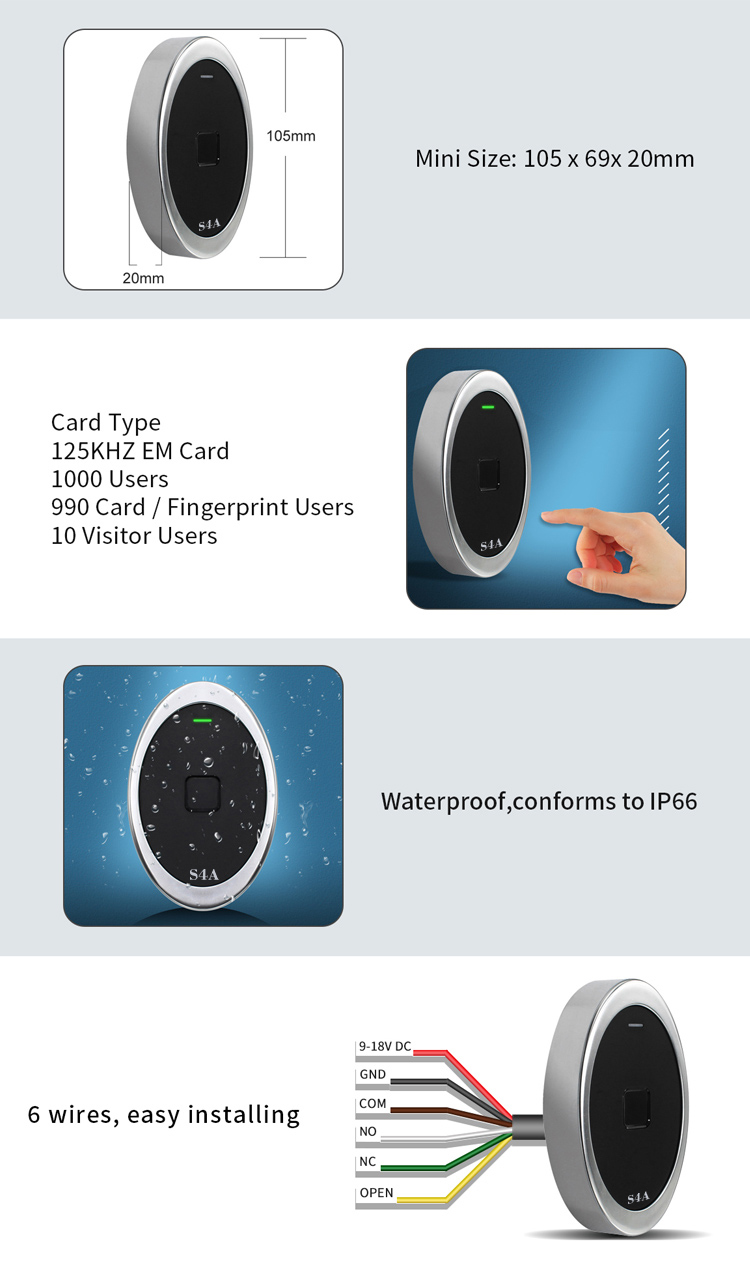

Features:

> Metal case, anti-vandal

> One Programming relay output

> Multi-color LED Status Display

> 1000 Users (100 Fingerprint Users + 890 Card Users + 10 Visitor User)

> Card type: 125KHz EM card

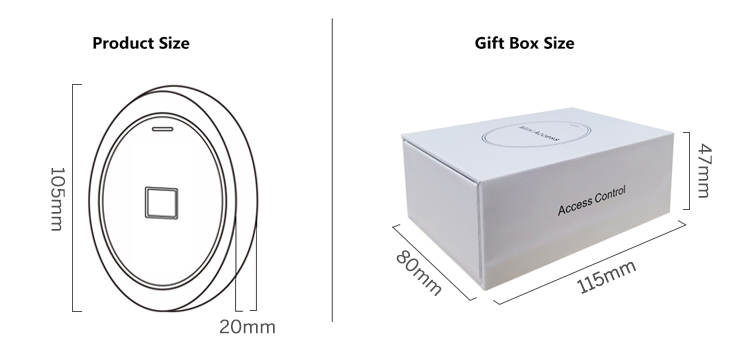

> Mini Size: L105 x W69 x H20 mm

> Capacitive Fingerprint Sensor


User Capacity

1000

Fingerprint

100

Card

890

Visitor

10

Operating Voltage

12V DC

Idle Current

< 45mA

Proximity Card Reader

EM

Radio Technology

125KHz Proximity Card

Read Range

1~4 cm

Fingerprint Reader

Capacitive Fingerprint Module

Resolution

500DPI

Identification time

<1S

FAR

<1%

FRR

<0.001%

Wiring Connections

Relay output, exit button

Relay

One (NO, NC, Common)

Adjustable Relay Output Time

0~99 Seconds (5 seconds default)

Lock Output Load

2 Amp Maximum

Environment

Meets IP66

Operating Temperature

-25°C ~ 60°C (-13°F ~ 140°F)

Operating Humidity

10%RH ~ 99%RH

Physical

Zinc-Alloy

Color

Silver & Black

Dimensions

L105 x W69 x H20 mm

Unit Weight

220g

Shipping Weight

280g


Fingerprint access control

Mini Fingerprint Access Control

Mini Fingerprint Access Control

S4A User Manual SF8_Full Kits Biometric Fingerprint RFID Access Control Systems
