> Wire diameter: 10mm
> Inner Diameter: Support 2pcs 6mm cat6 wires
Brand:
S4AItem NO.:

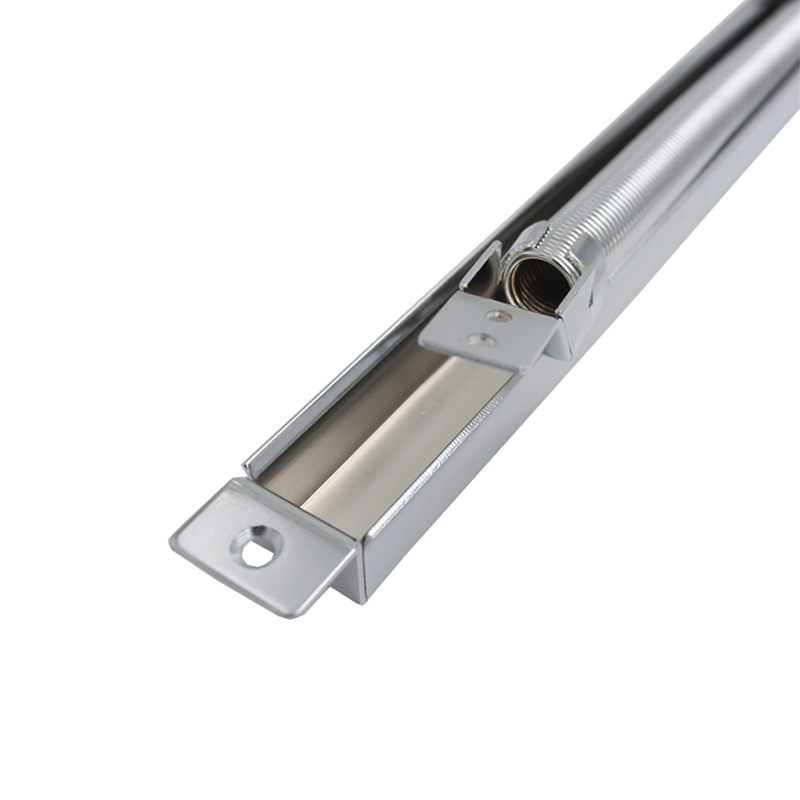

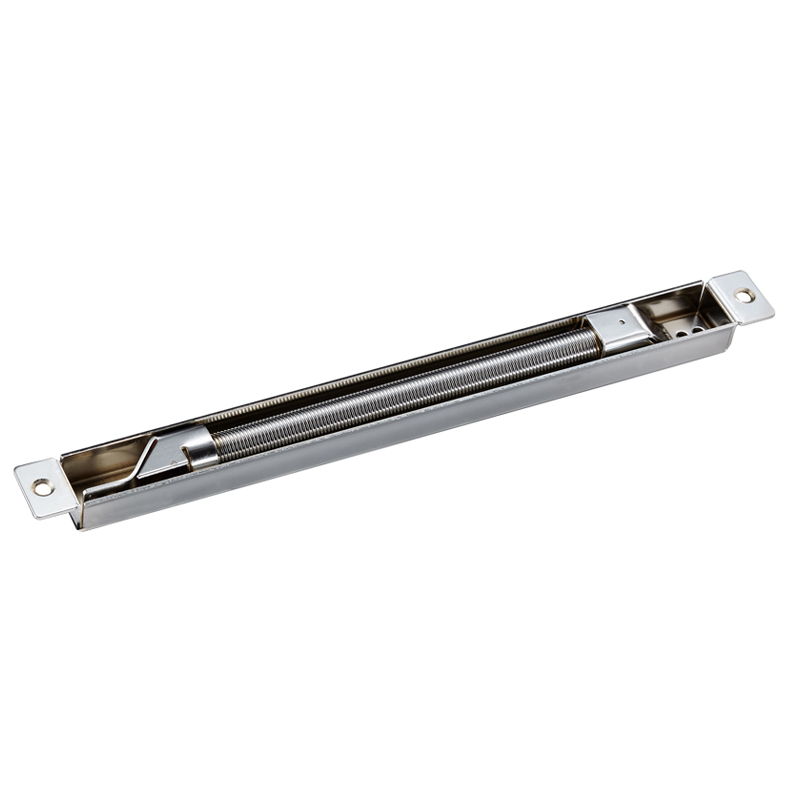

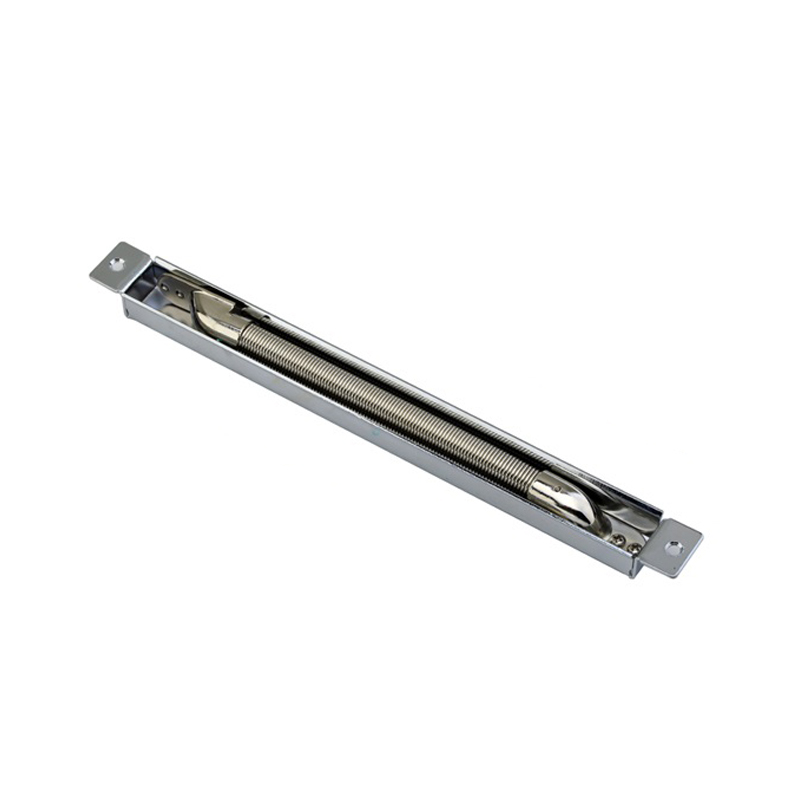

S4A-601F(DL-37)Concealed Door Loop Electrical Power Transfer
Model No.: S4A-601F
What is concealed door loop?
Concealed door loop,Whereas typical door loops are surface mounted and remain constantly visible, the Concealed Door Loop slides into the door and/or frame completely concealing itself when the door is closed. ... The Concealed Door Loops aesthetic appeal will benefit retrofits and new installations alike.
Wire diameter | 10mm |
Inner Diameter | Support 2pcs 6mm cat6 wires |

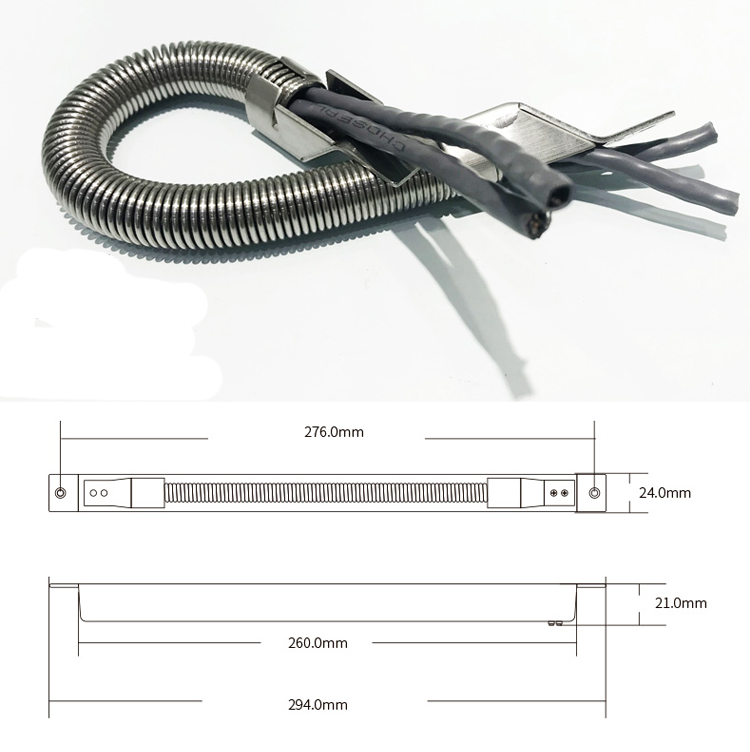

Dimension | 294x24x21mm |
Standard Structure | Alloy Material, Thickened Ripple Tube |
Finish For Shell | Painted by high temperature |

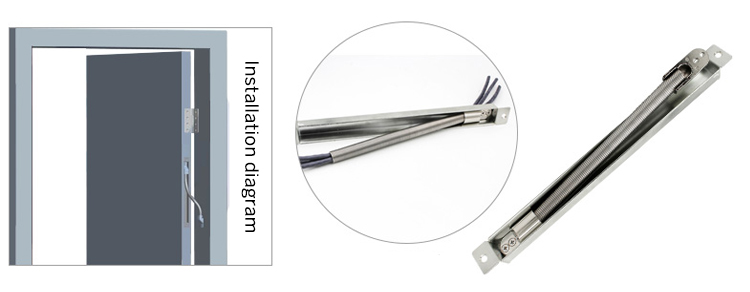

Installation | Mortise Mounting |
Usage | Prevent the wire from malicious damage |
Concealed Door Loop Electrical Power Transfer | ||||
Model No. | Quantity/Carton | Net Weight | Gross Weight | Carton Size |
DL-37 | 67PCS | 21KG | 21.25KG | 32x15x47cm |
S4A Datesheet_Concealed Door Loop Electrical Power Transfer
ACB-T01 Single door Network Access Control board Control 1 door> Support 2pcs RFID access reader or 1pcs RFID access reader+1pcs Exit button> Free software to manage users> Real-time monitor
> Card type: EM Card> Metal case, anti-vandal> One Programming relay output > Multi-color LED Status Display > 1000 Users (100 Fingerprint + 890 Card + 10 Visitor)> Mini Size: L105 x W69 x H20 mm > Capacitive Fingerprint Sensor
> Wire diameter: 8mm> Door loop length: 400mm
> Finger Capacity: 1000> User Capacity: 3000> LCD: 1.77 inches TFT colour screen> Work with 4pcs 1.5V “AA” alkaline battery> Optical sensorSupport USB to download attendance record(Support: Fingerprint+RFID+Pincode)
> Finger Capacity: 1000> User Capacity: 3000> LCD: 1.77 inches TFT colour screen> Work with 4pcs 1.5V “AA” alkaline battery> Optical sensorSupport USB to download attendance record(Support: Fingerprint+RFID+Pincode)
> Finger Capacity: 1000> User Capacity: 3000> LCD: 1.77 inches TFT colour screen> Work with 4pcs 1.5V “AA” alkaline battery> Semiconductor sensor(Support: Fingerprint+RFID+Pincode)Support USB to download attendance record
> Finger Capacity: 1000> User Capacity: 3000> LCD: 1.77 inches TFT colour screen> Work with 4pcs 1.5V “AA” alkaline battery> Semiconductor sensor(Support: Fingerprint+RFID+Pincode)Support USB to download attendance record
> Card type: EM or MF Card > Keypad Characteristic: Infrared remote controller operation. > Admin Card: admin card, admin fingerprint (add/delete) > User Capacity: 10,000 card users, 1000 facial users and 600 fingerprint users
S4A appreciate any of your inquiries and sincerelyhope to enjoy a fruitful long-term business relationship with youto share in the mutual benefits, If you have any questions, please feel free to contact us.
