>Power supply:AC/DC 12V- 24V
>Quiescent Current:15mA
>Operating current:80mA (when powered by DC12V)
Brand:
S4AItem NO.:

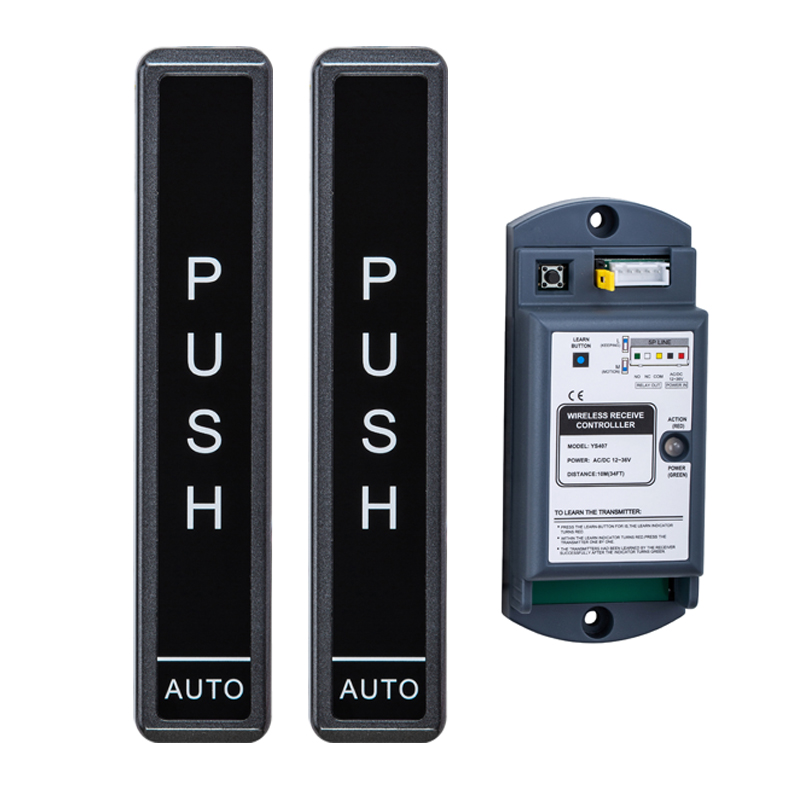

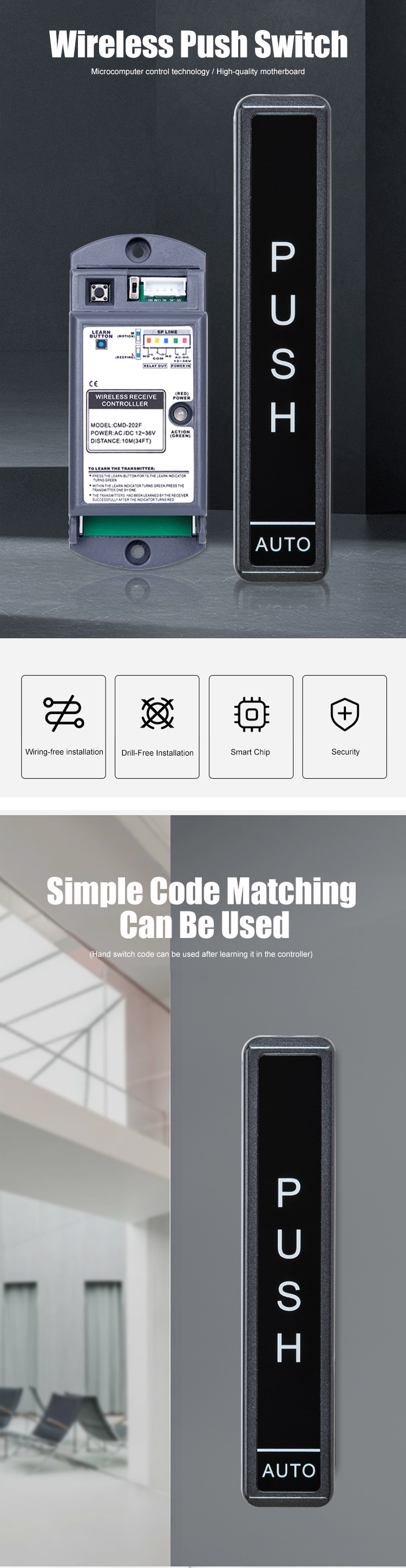

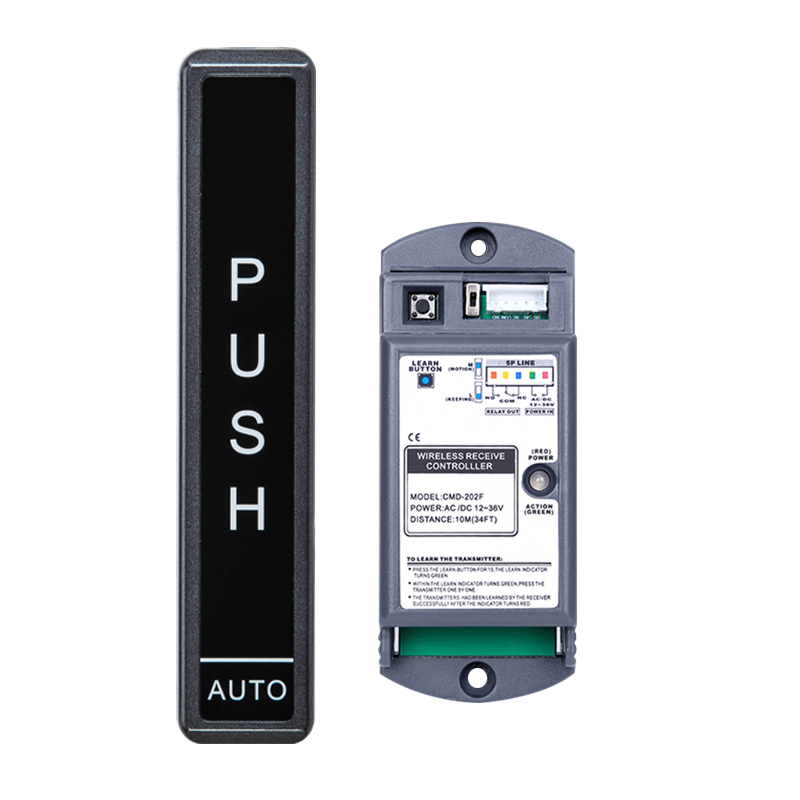

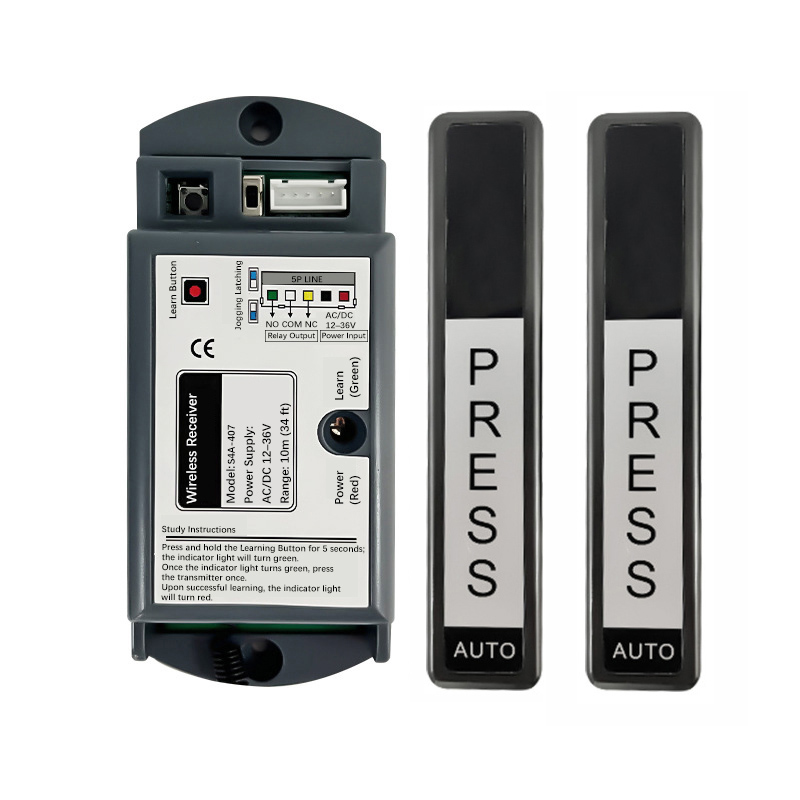

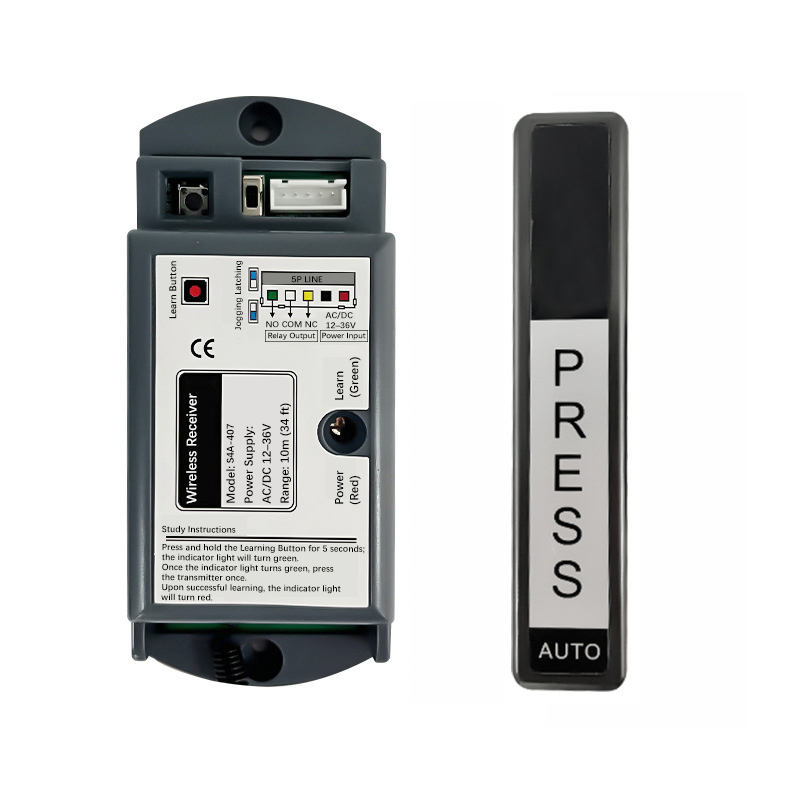

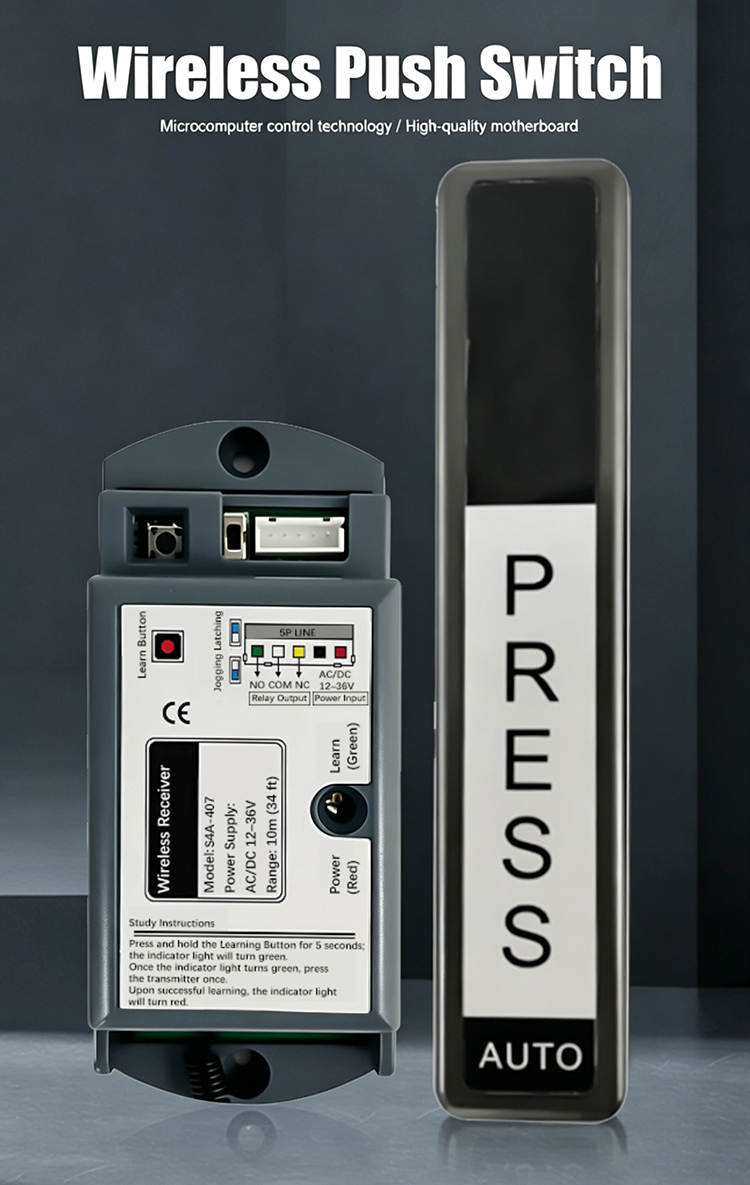

S4A-407Wireless Hand Press Push Switch For Automatic Door Opener Systems
Model No: S4A-407
Over-all Characteristic
ADOPT uniformity frequency, high stability of wireless signal receiving and sending

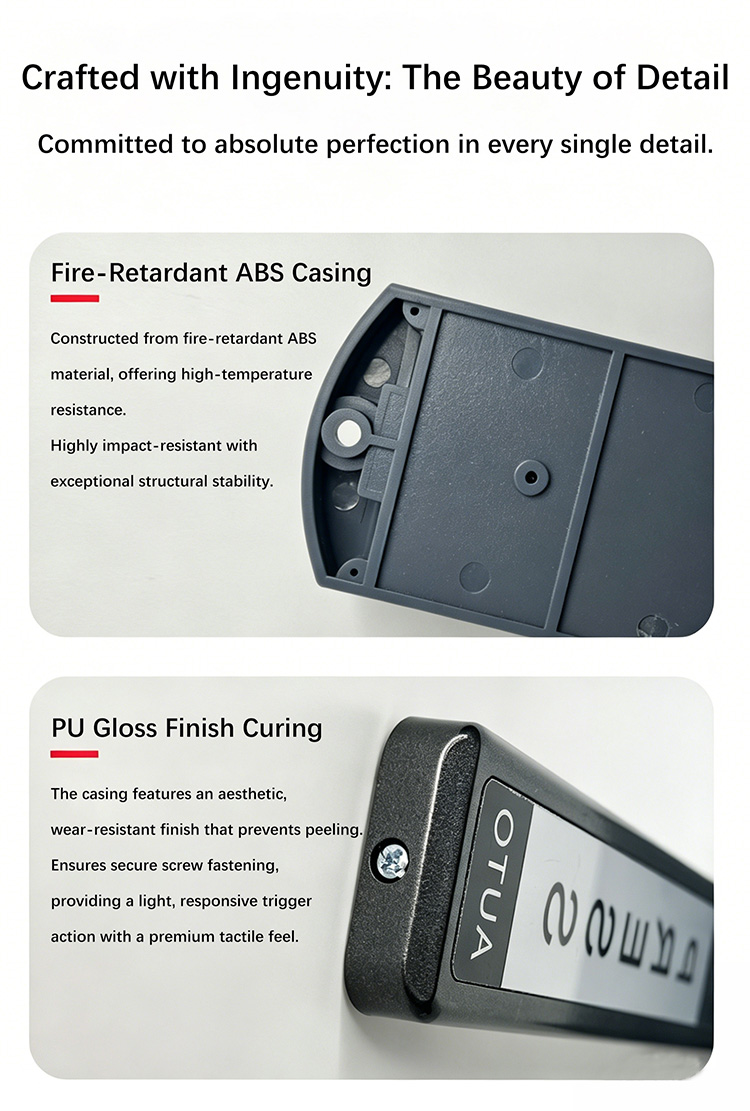

Siludification of PU varnished shell, dapper appearance with anti-off screw
Operation frequency 315M
Panel pushing with low-power consumption,long service life battery

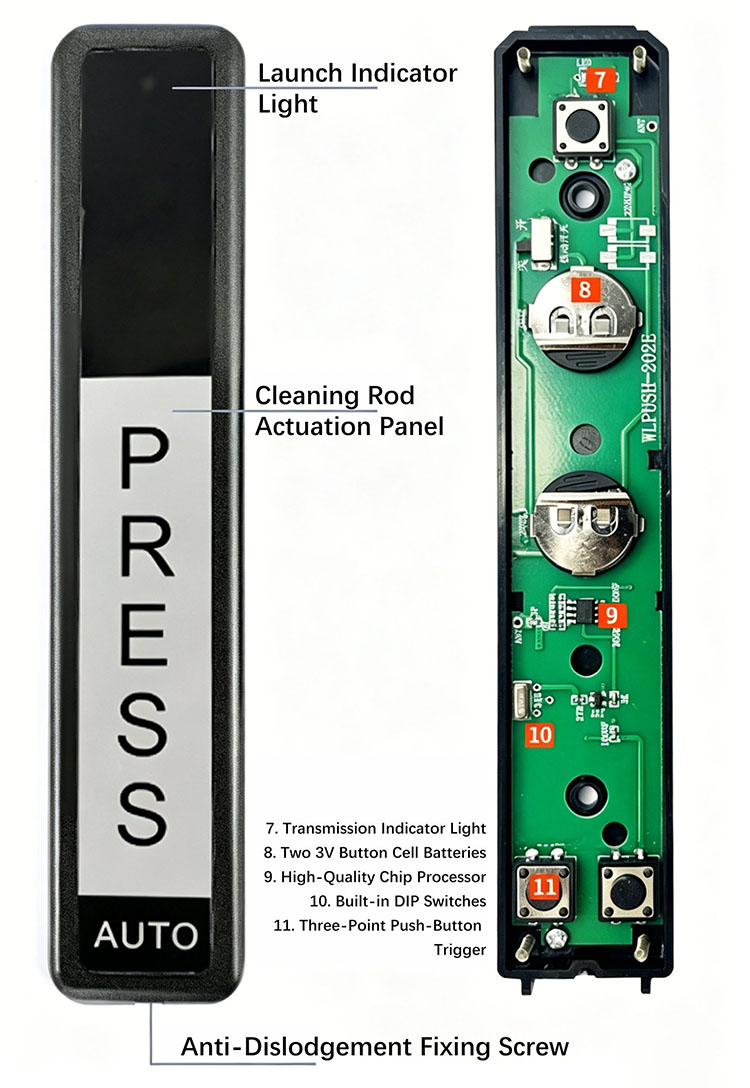

Three point of trigger pressing design to ensure the effective action

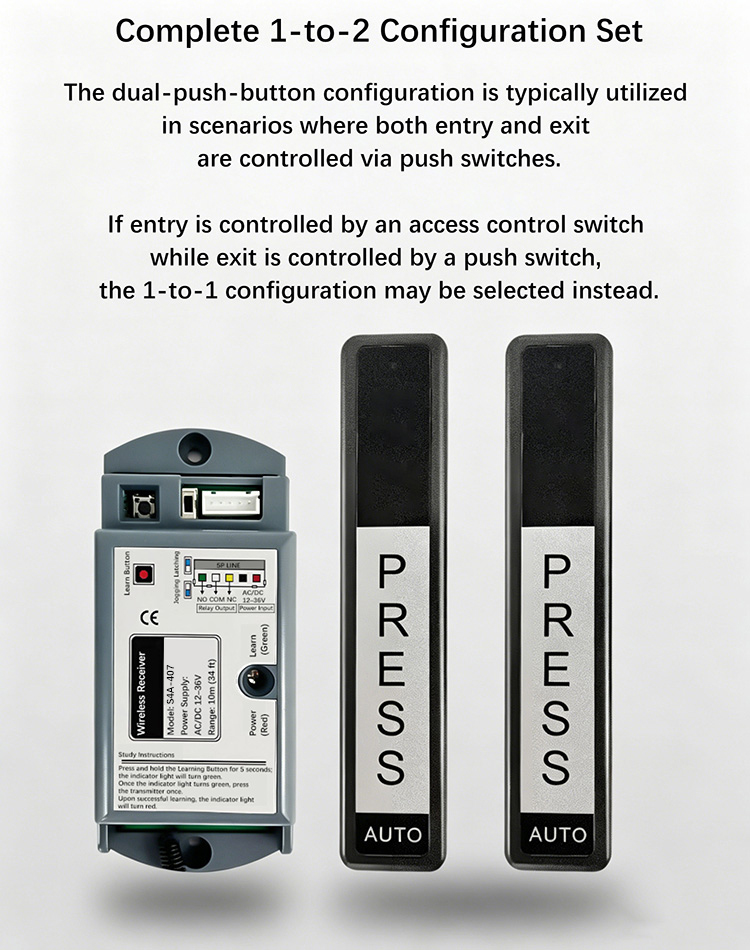

With large capacity output,available to be used with autodoor,electric lock and access controller
Door open within 2s when signal received
Wide voltage input of AC/DC12-36V
Function switch with voice indicator,power indicator turns green to confirm the validity of operation
|
Power supply |
AC/DC 12V- 24V |
|
Quiescent Current |
15mA |
|
Operating current |
80mA (when powered by DC12V) |
|
Main contact capacity (wireless receiver) |
20A 14VDC |
|
Contact holding time (wireless receiver) |
2 seconds |
|
Emission current |
3.9mA |
|
Working temperature |
-42°C 45°C |
|
Working environment humidity |
10-90%RH |
|

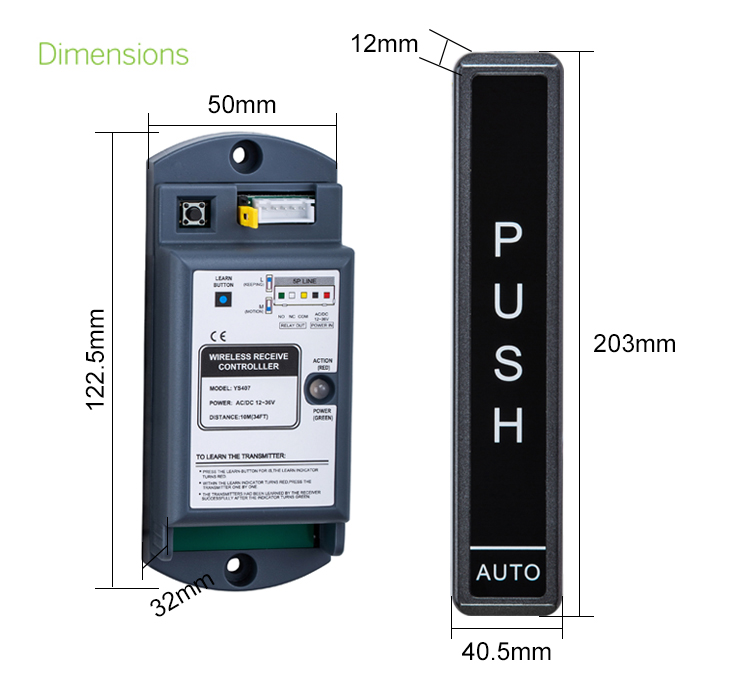

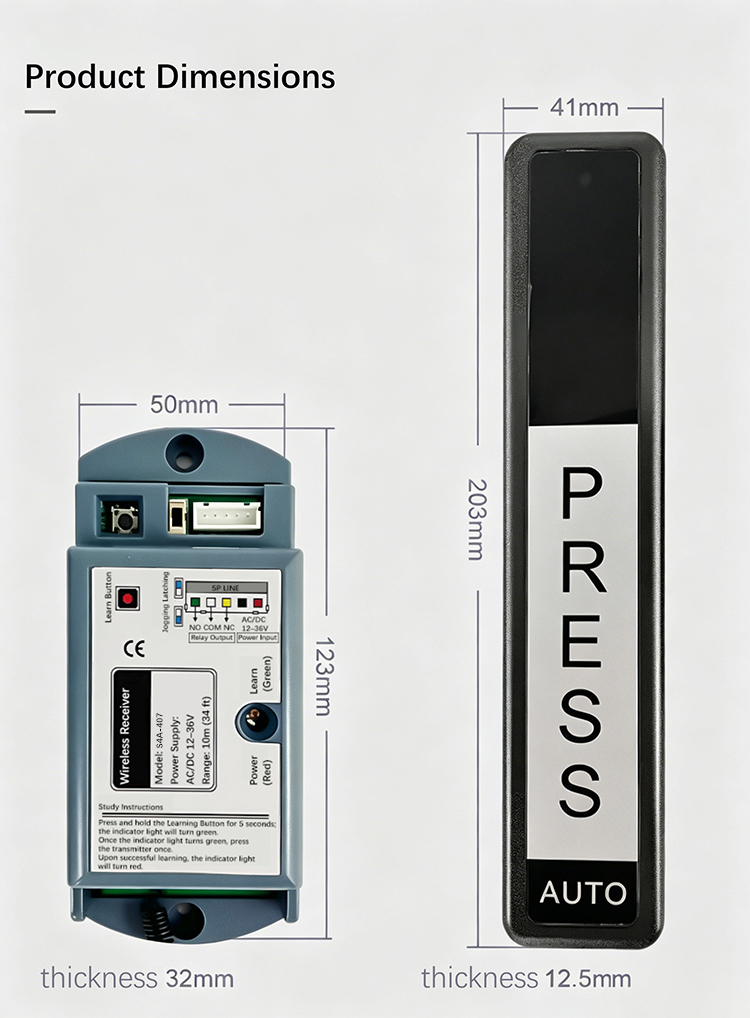

physical dimension |
203mm(L)X41mm(W)X12.5mm(H) (hand press) |
|
|
123mm(L)X50mm(W)X32mm(H) (receiver) |
|
gross weight |
About 148 grams (hand switch) about 100 grams (receiver) |
S4A Datesheet_Wireless Hand Press Push Switch For Automatic Door Opener Systems
