Automatic Door Opener Moving Safety Curtain

It can detect moving or standing people or objects, keep safety when people or equipments enter from rotation door or automatic swing door.

> Sensor for revolving door M-227A

> Motion light curtain sensor M-227B

> Operation voltage: AC/DC12-36V

> Current consumption: <100mA

  • Brand:

    S4A
  • Item NO.:

    M-227A, M-227B
  • Specifications

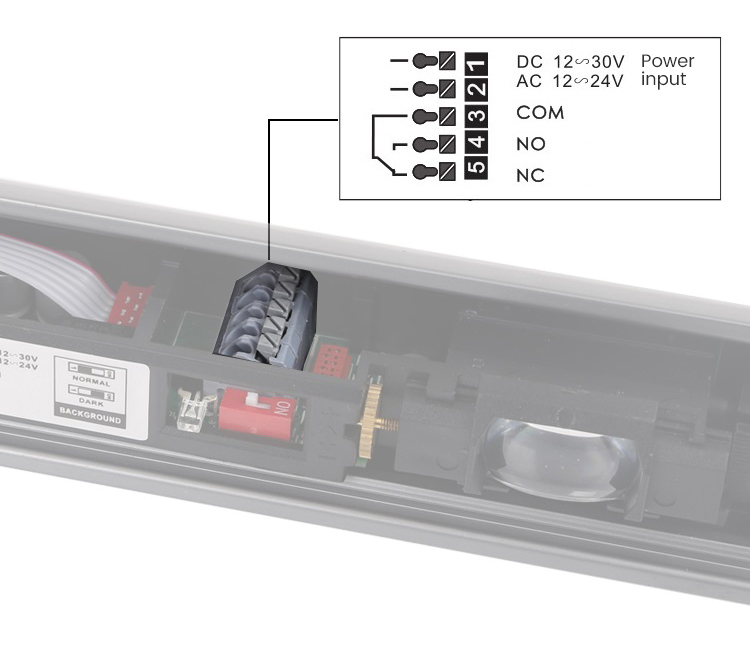

  • Wiring Diagram

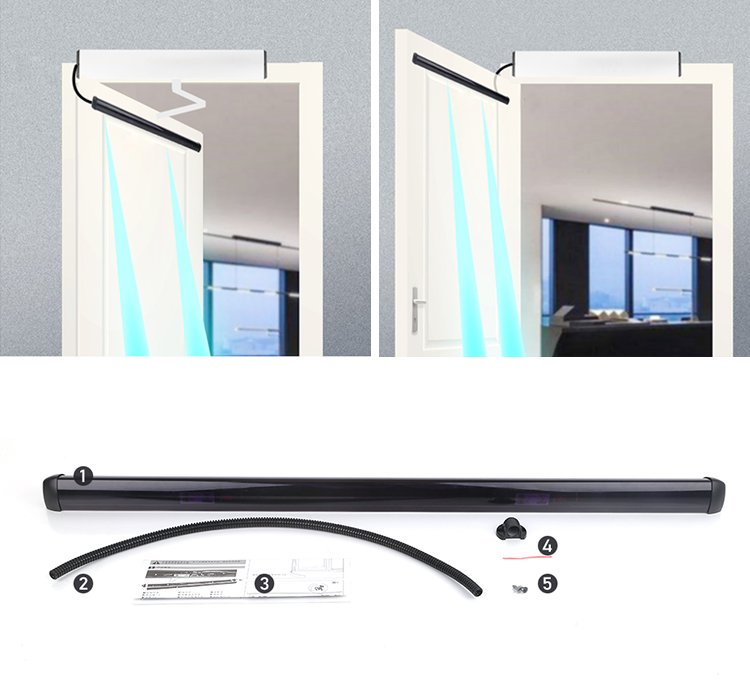

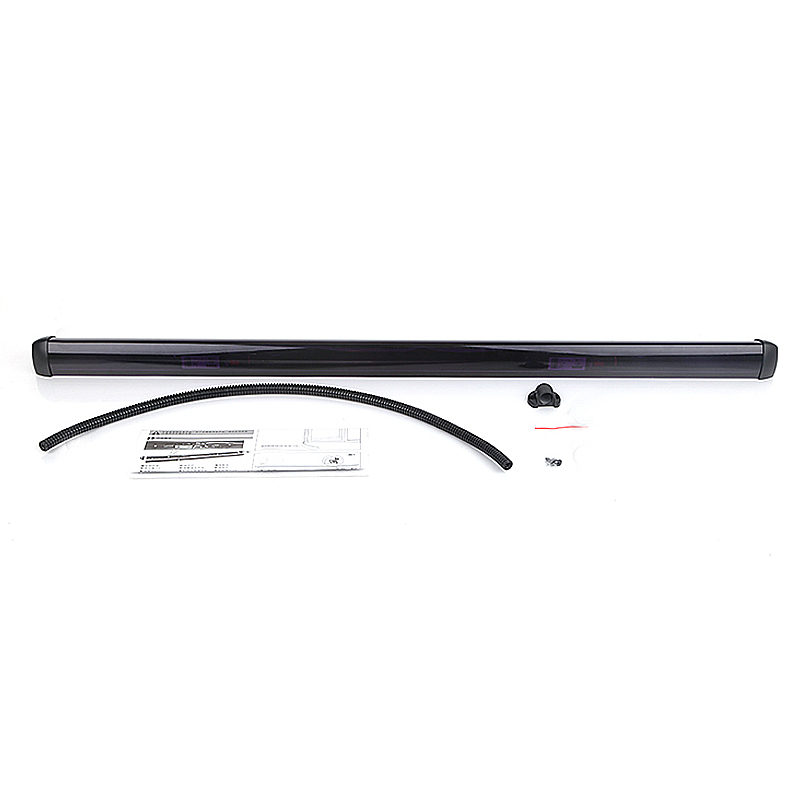

  • Package
  • Download

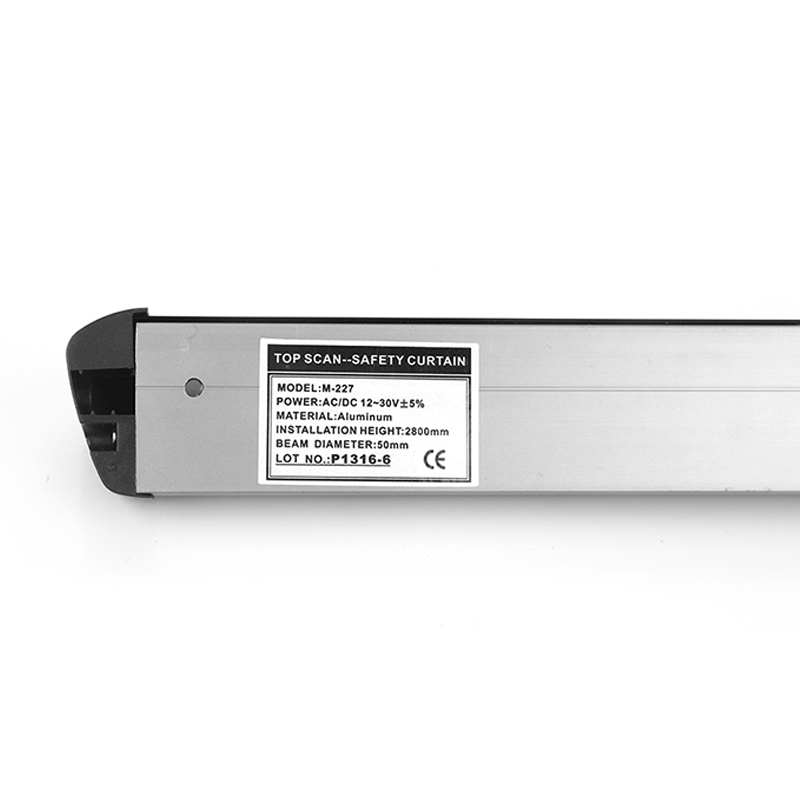

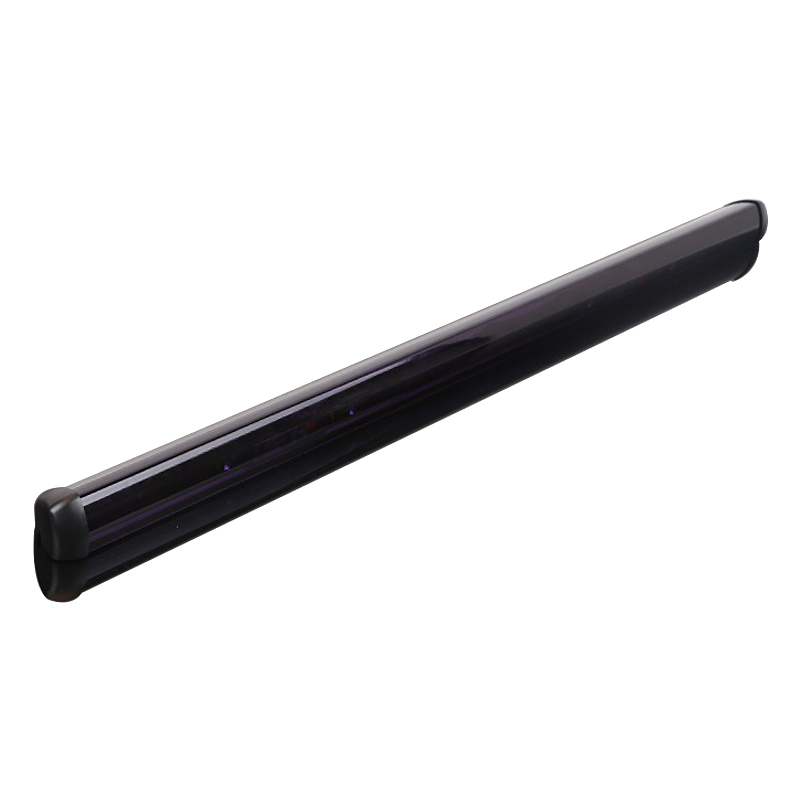

Automatic Door Opener Moving Safety Curtain

Model No.: M-227A, M-227B

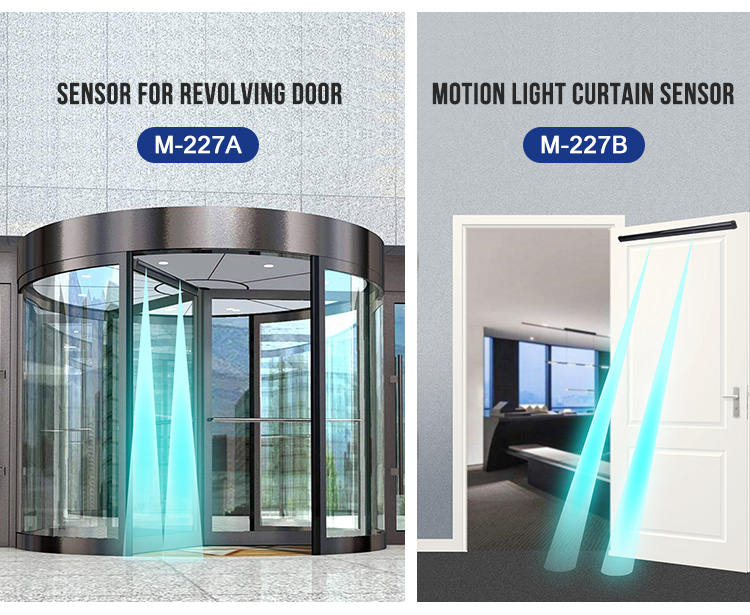

Sensor for revolving door M-227A

Motion light curtain sensor M-227B


It can detect moving or standing people or objects, keep safety when people or equipments enter from rotation door or automatic swing door.

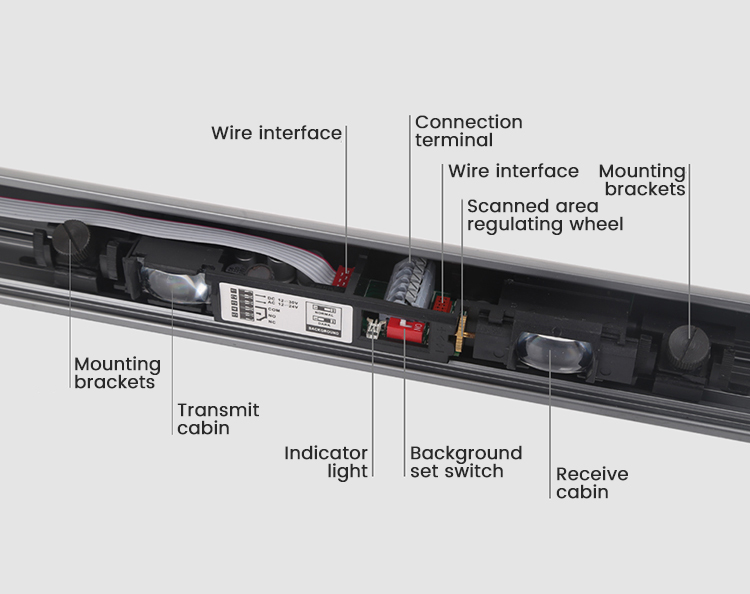

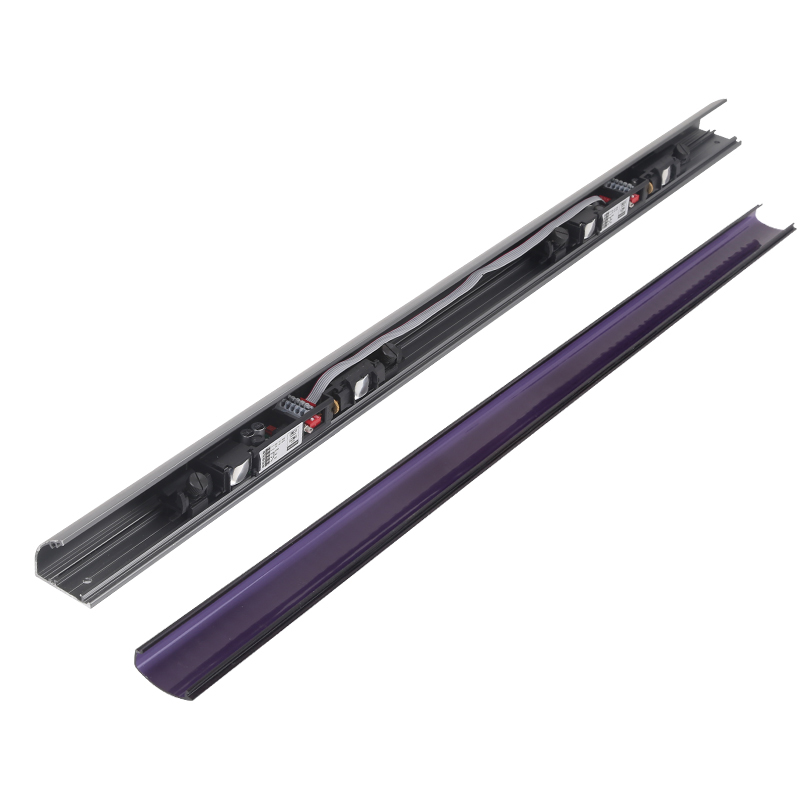

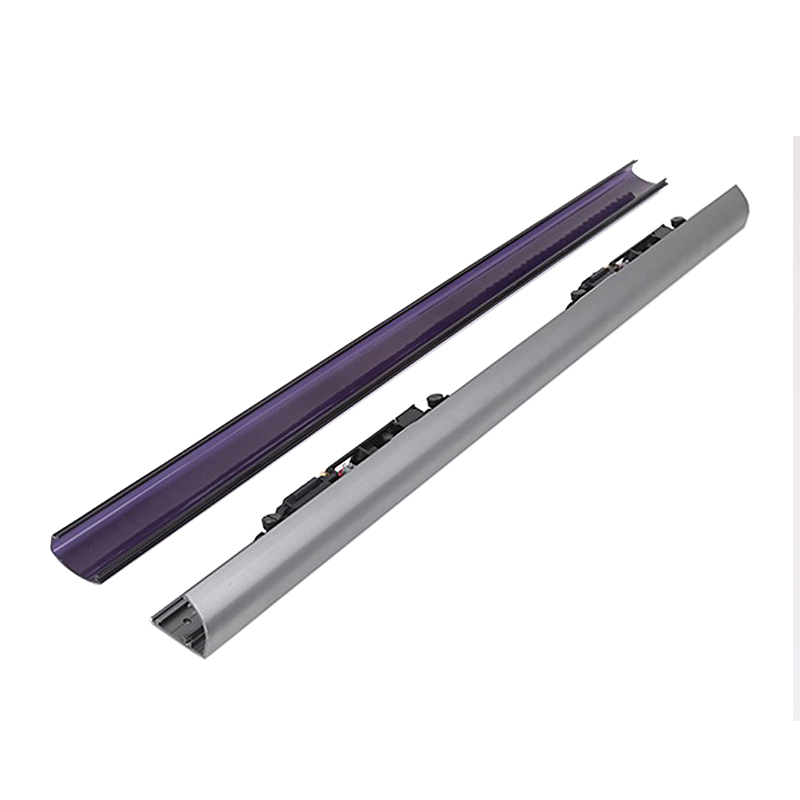

Ingenious structure, simple but modern appearance. And very easy to instal.

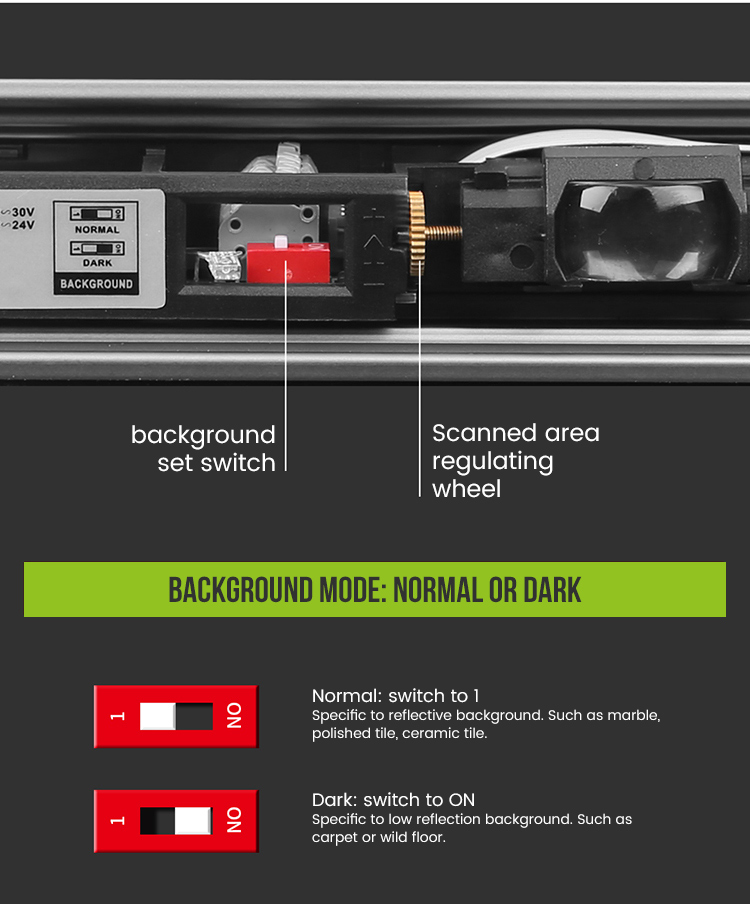

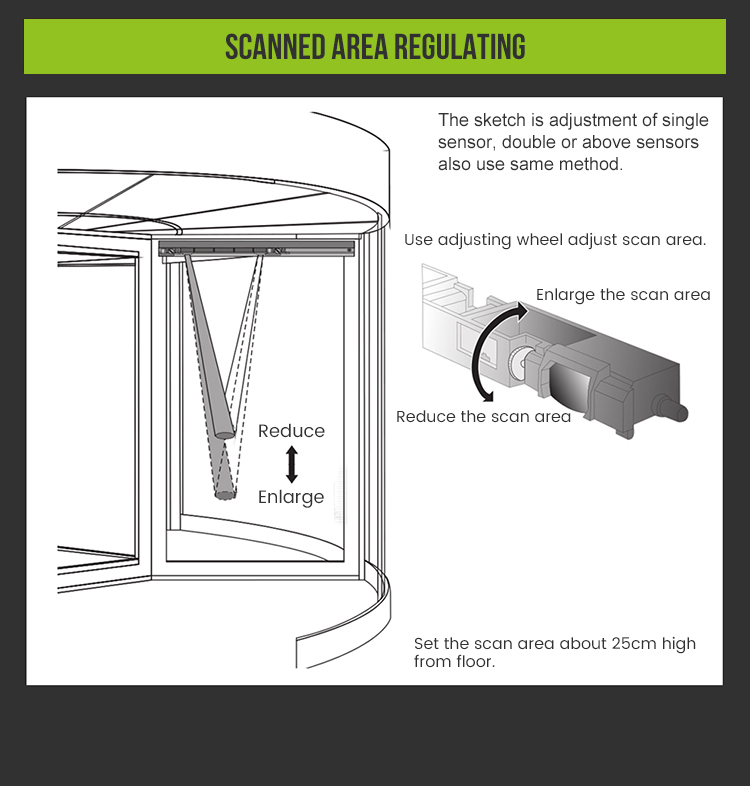

The detection height and sensing area are adjusted by adjusting wheel and locking the screws. Quick response and accurately.

The system has stabilized voltage and set filtration system to filter background and noise. Do not influence by environment(sunshine, snow or rain).

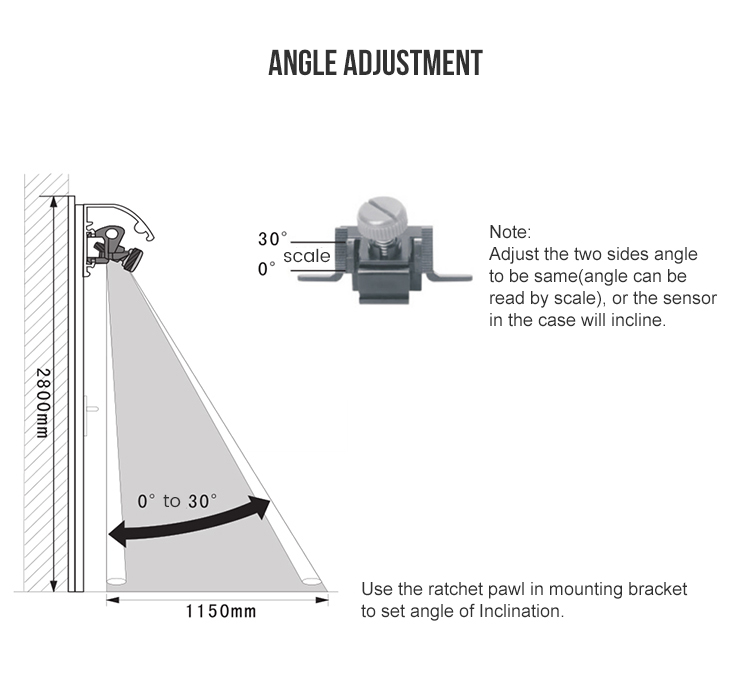

The detection angle of scanning can be adjusted by mounting bracket accurately.


Scan area setting

Mechanical adjustment of wheels 500-2800mm

Triangle principle

Ambient temperature

-20°C~60°C

Deviate from set scan area 60°C

Distinguish black/white

Max20%
White: scan area is larger
Black: scan area is smaller

The distinguish between black and white according to scan area set

Detection area diameter

About 75mm light spot

Apply in 2000mm scan area

Type of ray

Infrared ray

880nm pulse modulation infrared light

Operation voltage

AC/DC12-36V


Current consumption

<100mA


Signal output

Relay, switch point
Highest alternating voltage 48VDC/AC
Highest alternating current 0.5ADC/AC
Highest alternating capacitance 55 volt-ampere/24 watts

Electrical isolation
Rated current (resistive load) DC1A/24V
Inductive load/capacitive load, Provide EDM quenching Resistive load

Detection response time

≤100ms


Operation mode

Motion or standstill mode

Self-adaption

Function Indicator

LED

Blue-standby, Red-detect

IP

Ip52


Housing material

AL/ABS


Sensor for revolving door M-227A

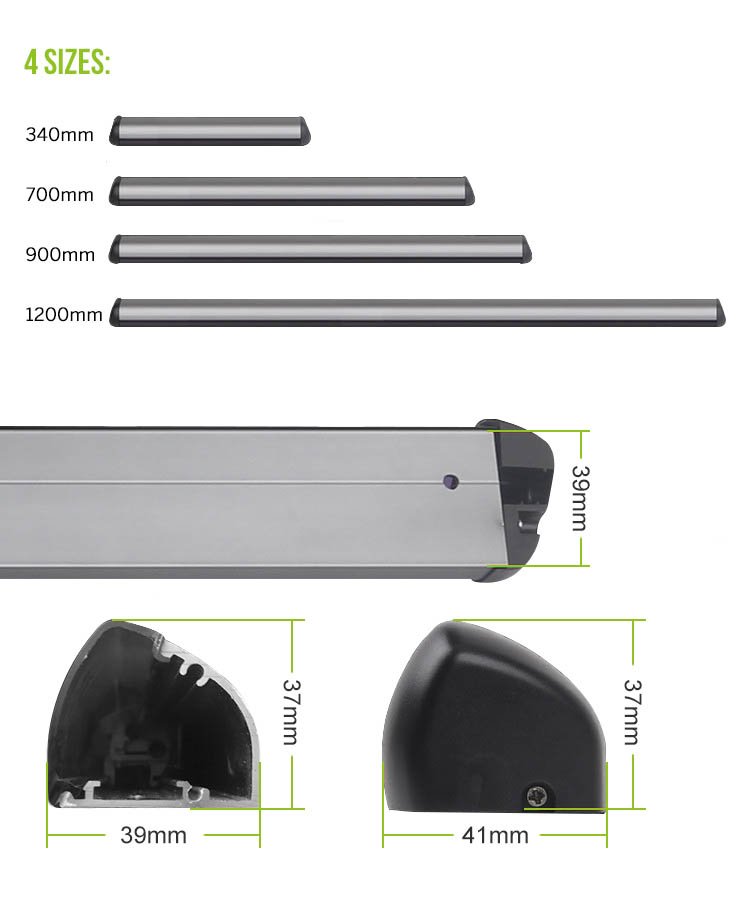

620×39×37mm, 750×39×37mm, 900×39×37mm, 1200×39×37mm

Length/Width/Hight

Motion light curtain sensor M-227B

Electromagnetic compatibility

Anti-interference abide by EN61000-6-1, EN61000-6-2 Emission interference abide b

CE abide by 89/336 EEC EMC


Moving Safety CurtainMoving Safety CurtainMoving Safety CurtainMoving Safety CurtainMoving Safety CurtainMoving Safety CurtainMoving Safety Curtain

Moving Safety Curtain

Moving Safety Curtain

Operation Instruction_M-227A Moving Safety Curtain
