Specially designed for automatic door back-up power. The power can help automatic door work normally once power off (open-close about 500 times, around 7hours), or keep door open automatically based on fire evacuation requirements.
> Input Voltage: AC220V 50Hz
> Output Voltage: DC24V 2.6AH; DC12V 5.2AH
> Working Mode: Automatic working or keep opening
Brand:
S4AItem NO.:

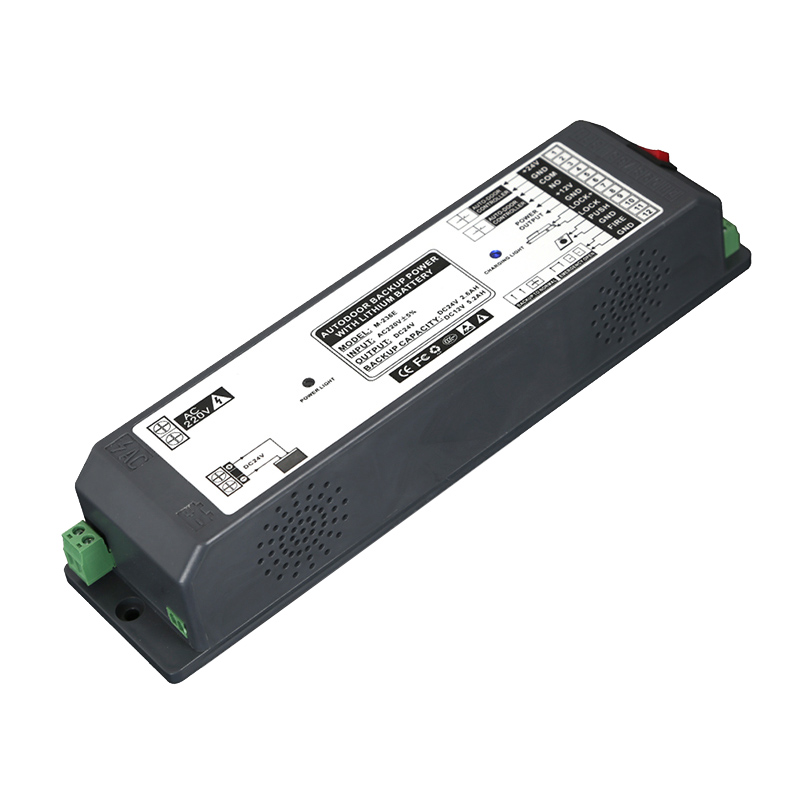

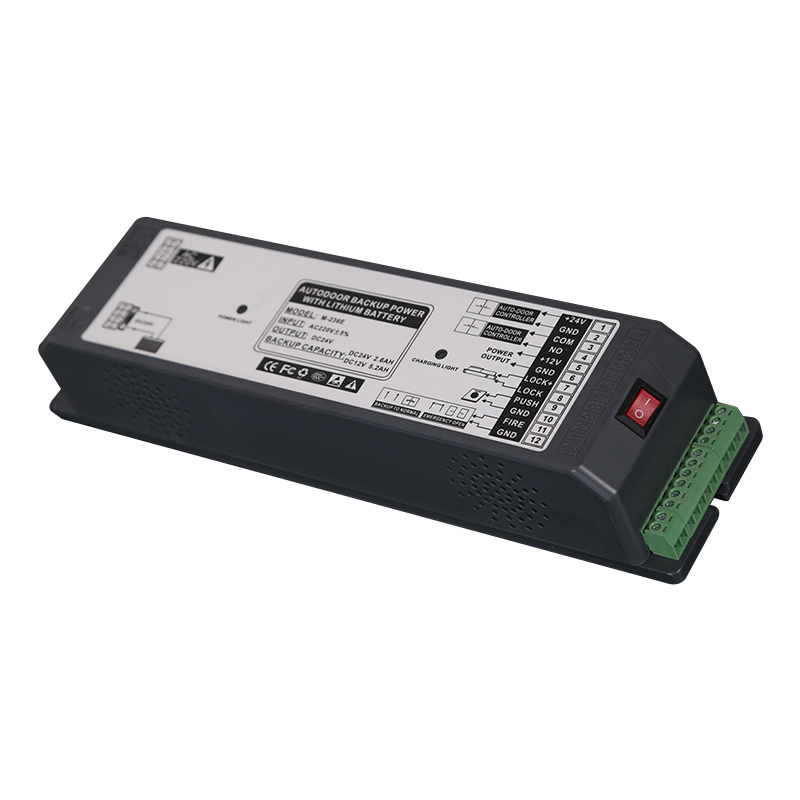

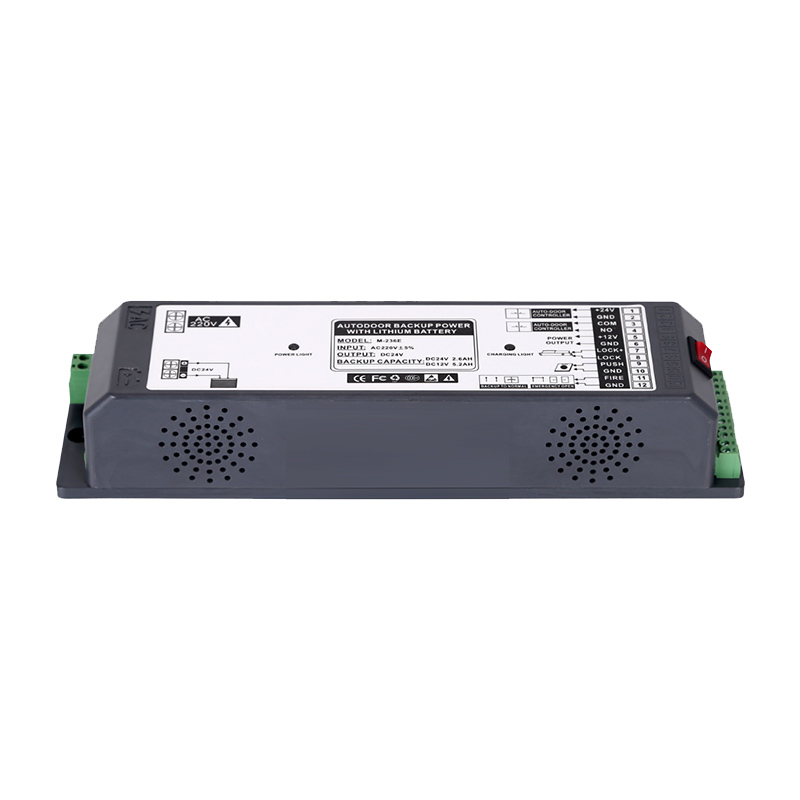

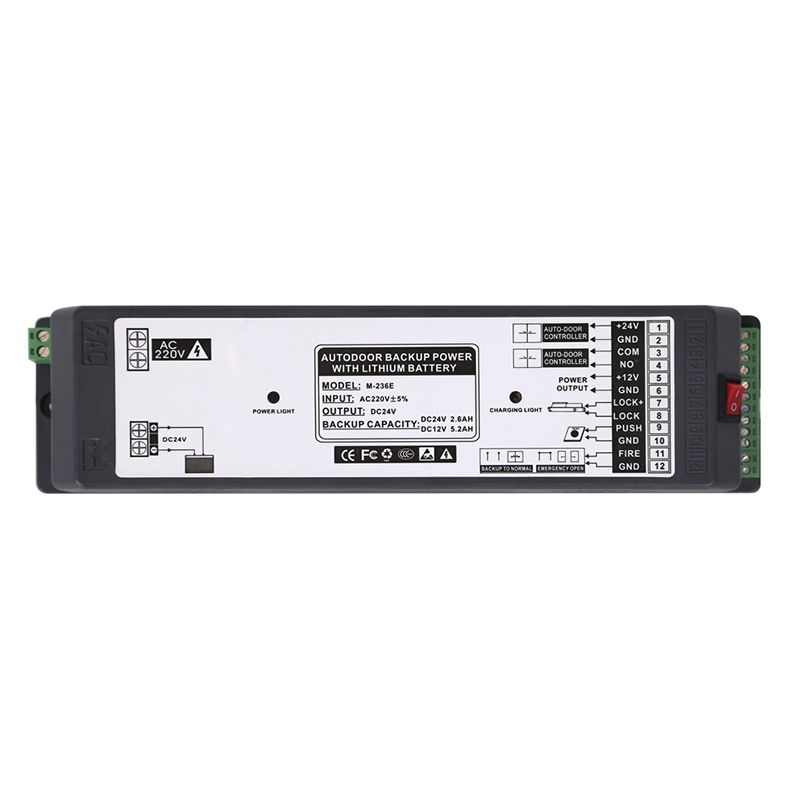

M-236EAutomatic door back-up power with lithium battery
Model No.: M-236E
Specially designed for automatic door back-up power. The power can help automatic door work normally once power off (open-close about 500 times, around 7hours), or keep door open automatically based on fire evacuation requirements.
Input Voltage | AC220V 50Hz |
Output Voltage | DC24V 2.6AH; DC12V 5.2AH |
Working Mode | Automatic working or keep opening |
Indicator and Protect | Charging proceeding shown by LED. Low voltage will automatically cut. |
Charging time | Around 10 hours |
Open times | About 550 times |

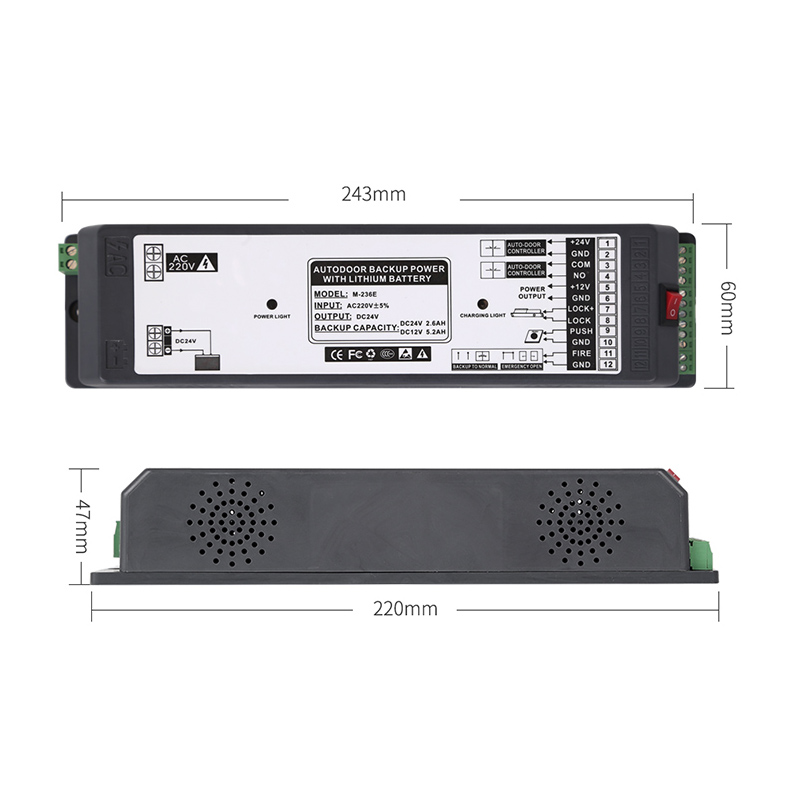

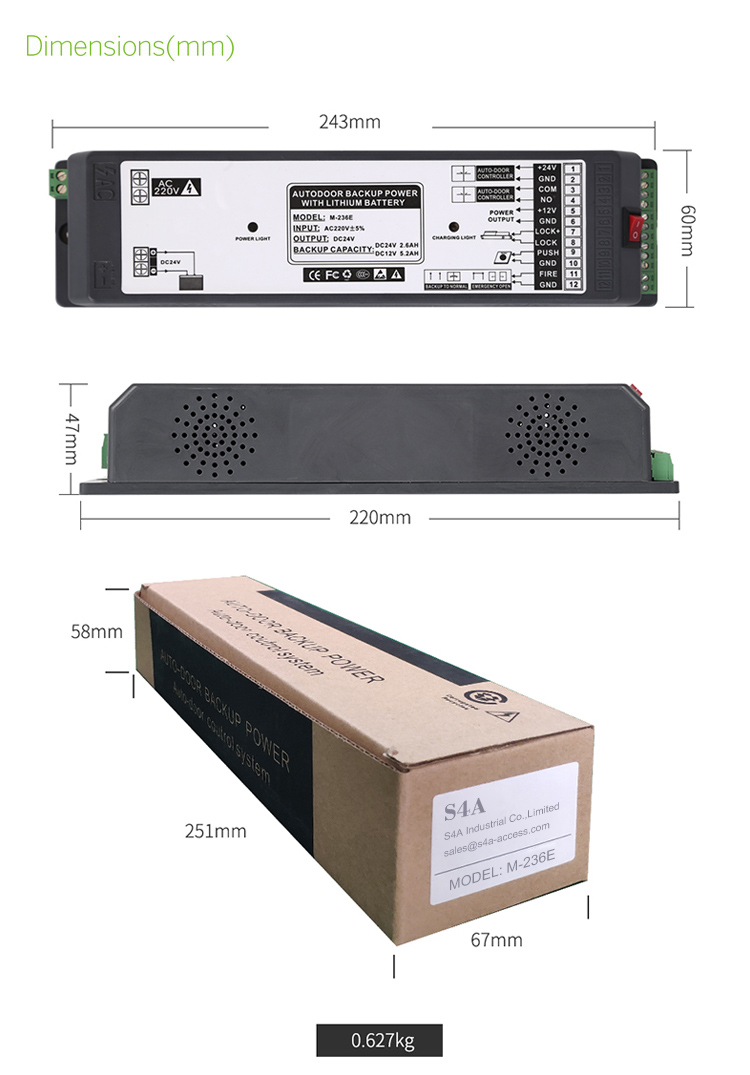

Controller Dimension | 243(L)×59(W)×45(H)mm |
Storage battery size | 96(L)×43(W)×55(H)mm |

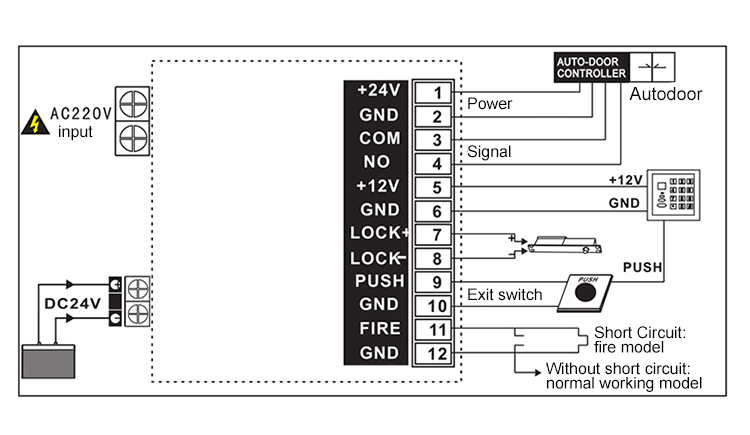

S4A M-236E User Manual_Automatic Door Back-up Power with Lithium Battery
