NO/NC/COM;115Lx70Wx14H(mm)
Brand:
S4AItem NO.:

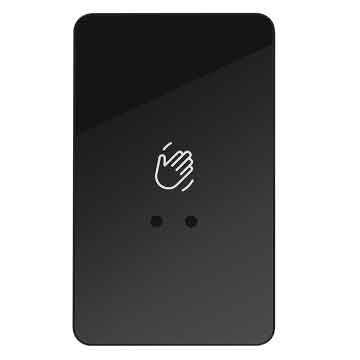

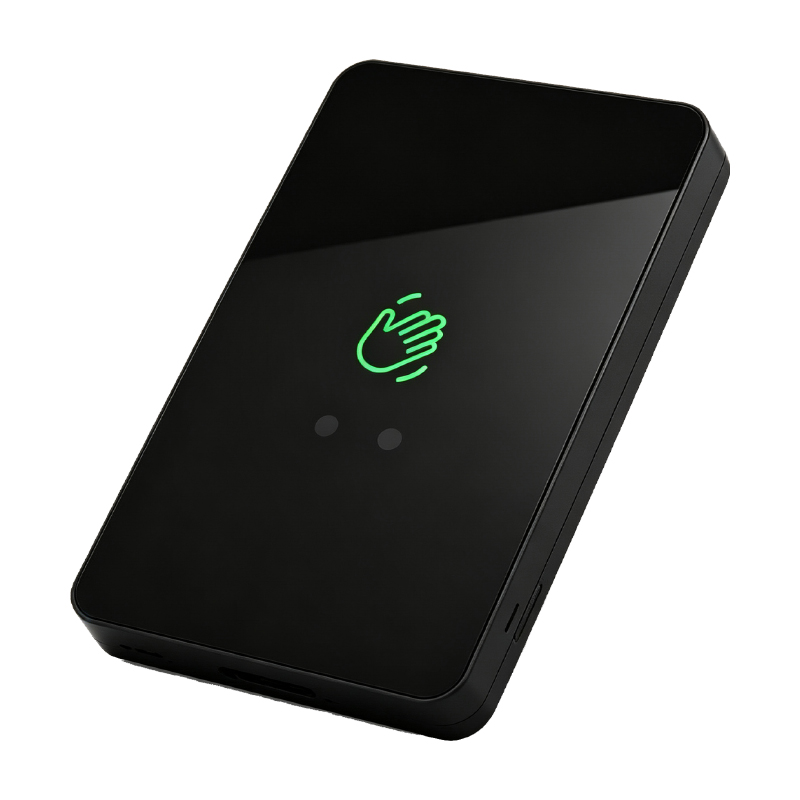

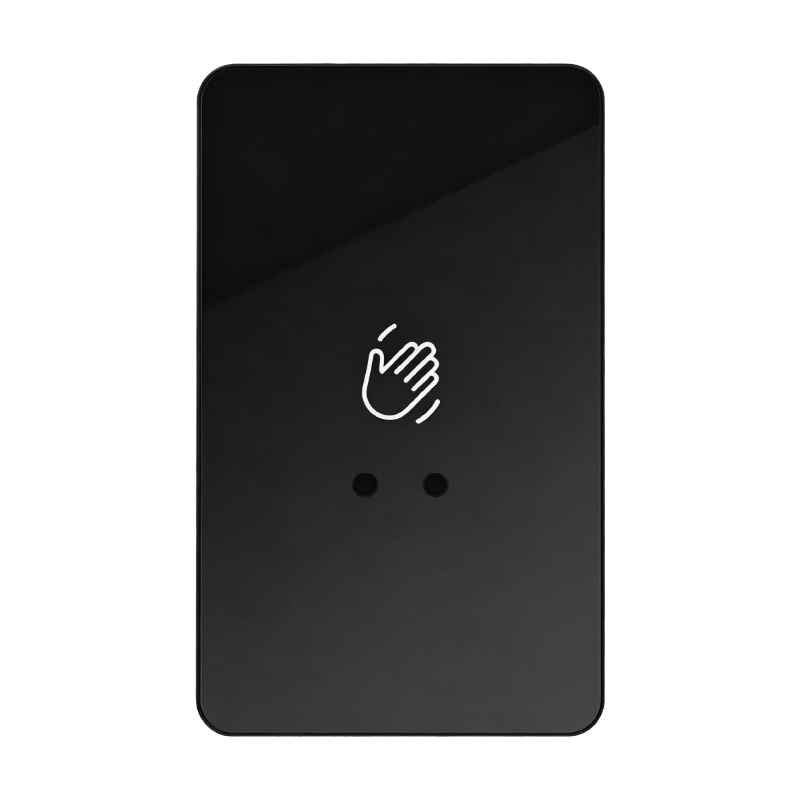

T7DInfrared sensor touchless exit button
Model No: T7D
| Product Parameter | Parameter Description |
| S4A Model | T7D |
| Product Name | Touch Sensor Exit Button |

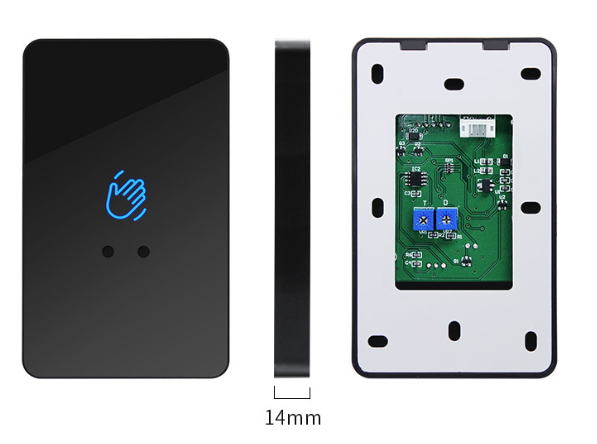

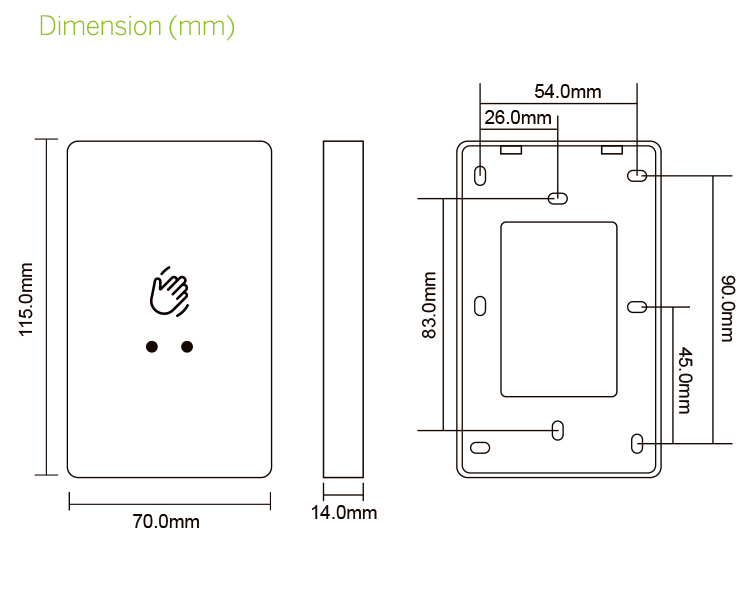

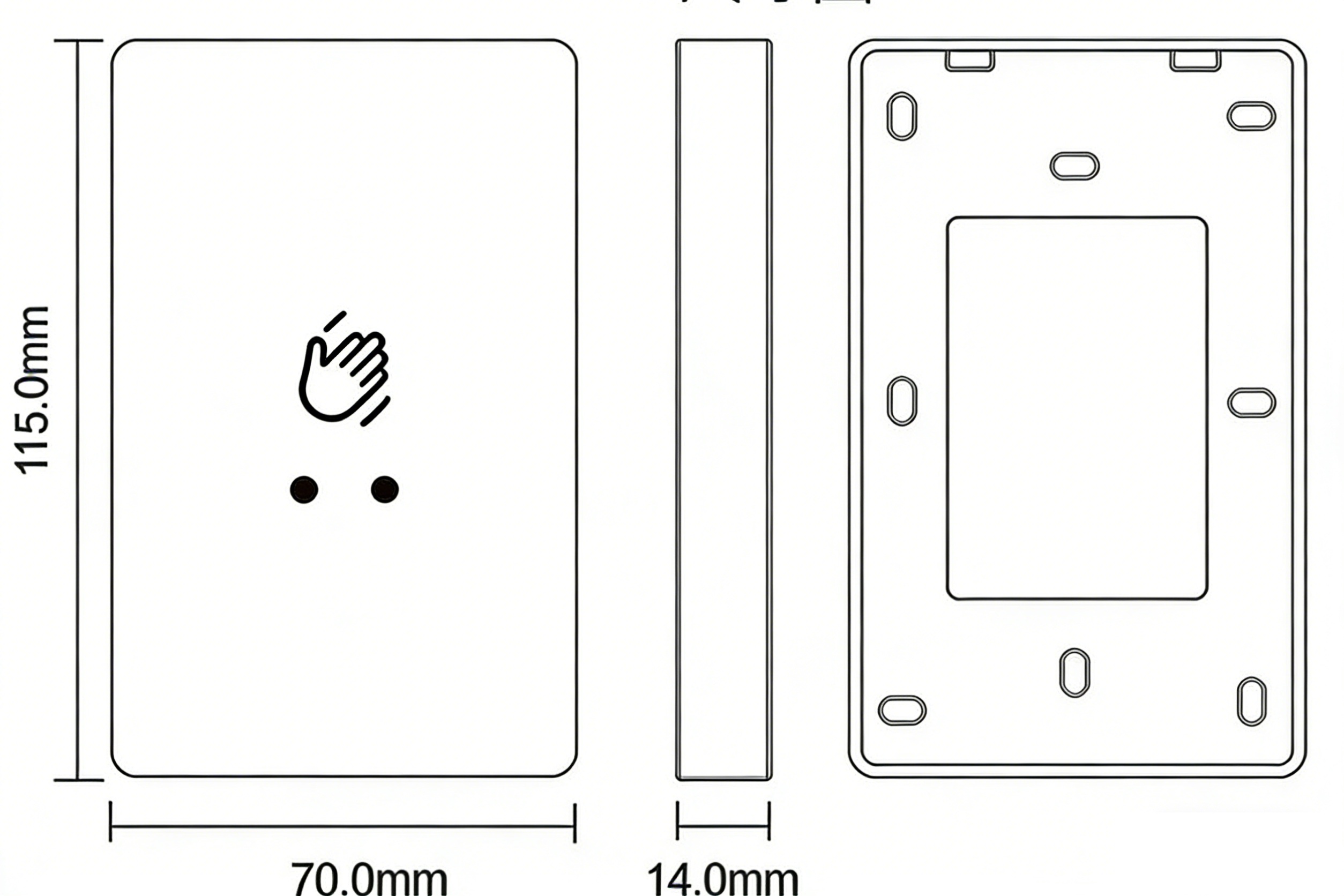

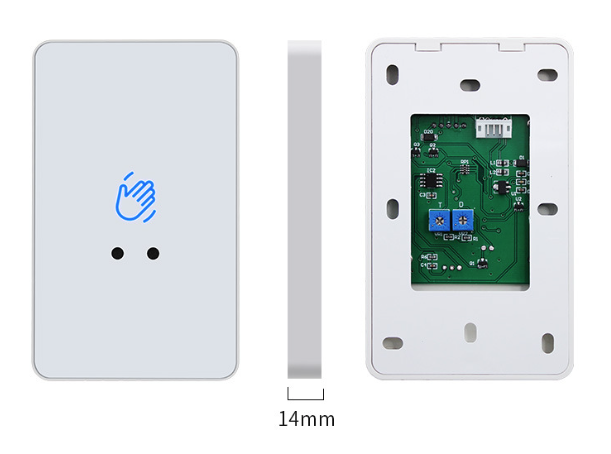

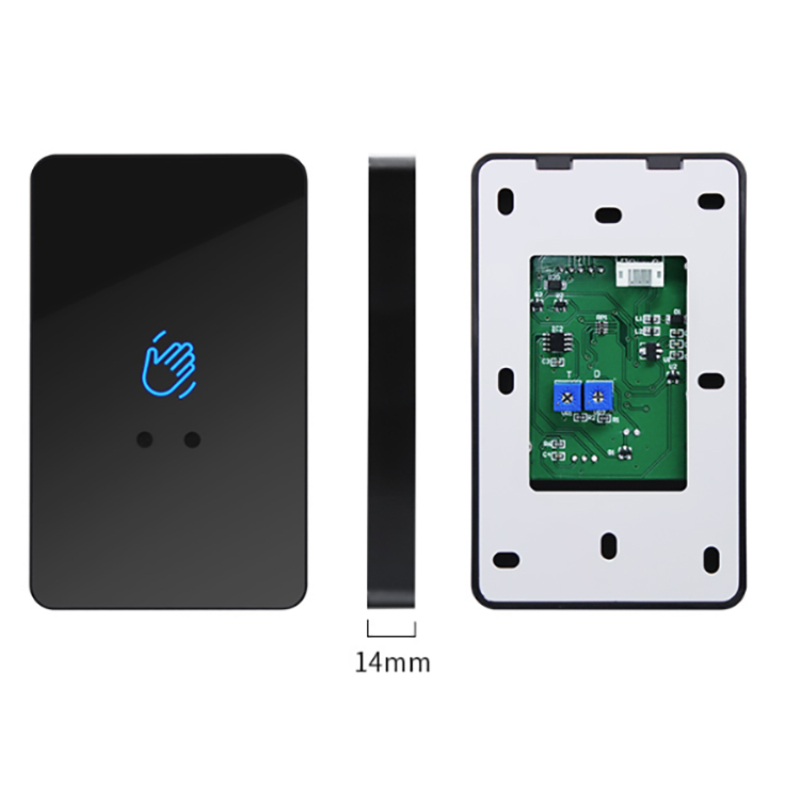

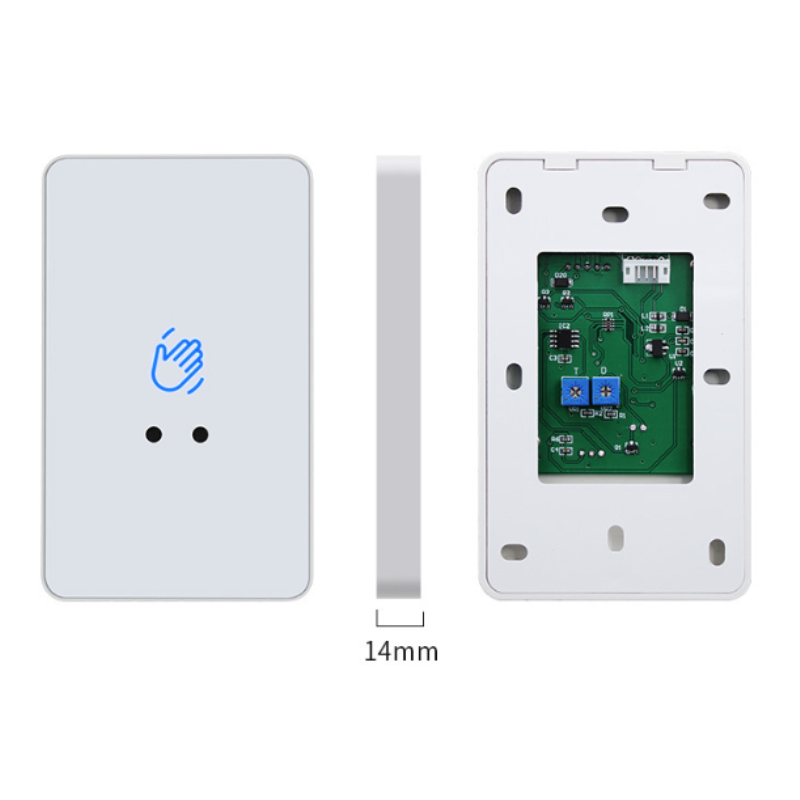

| Dimensions | 115Lx70Wx14H(mm) |
| Power | DC12V-24V |

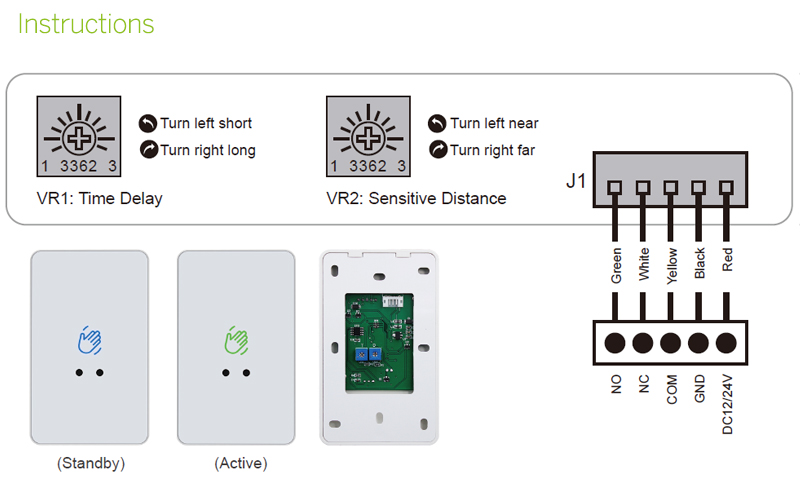

| Output Contact | NO/NC/COM |
| Mounting Way | Surface Mount |
| Material | PC case+ABS face plate |
| Mechanical Life | 500,000 Tested |

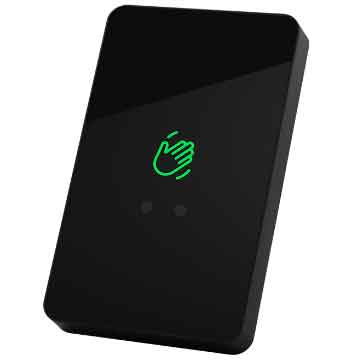

| LED Indicator | Blue LED (Standby) |
| Green LED (Active) | |
| Time delay | 0~30s（Adjustable） |
| Operating temp | -20℃～+55℃(14-131F) |
| Suitable Humidity | 0-95% (relative humidity) |
| Unit Weight | 0.094KG |
| Standard Package | 100PCS/carton |
| Carton Weight | 10KG |
| Carton Size | 51*43*33(cm) |
Dimensions: 80x80x28mm
Dimension: 115x40mm
Dimension: 115x40mm
Dimensions: 86x86x11.5mm
Dimensions: 86x86x14mm
Dimensions: 86x86x14mm
Dimensions: 86x86x14mm
Dimensions: 86x86x14mm
S4A appreciate any of your inquiries and sincerelyhope to enjoy a fruitful long-term business relationship with youto share in the mutual benefits, If you have any questions, please feel free to contact us.
