No Touch Wave-to-open Switches

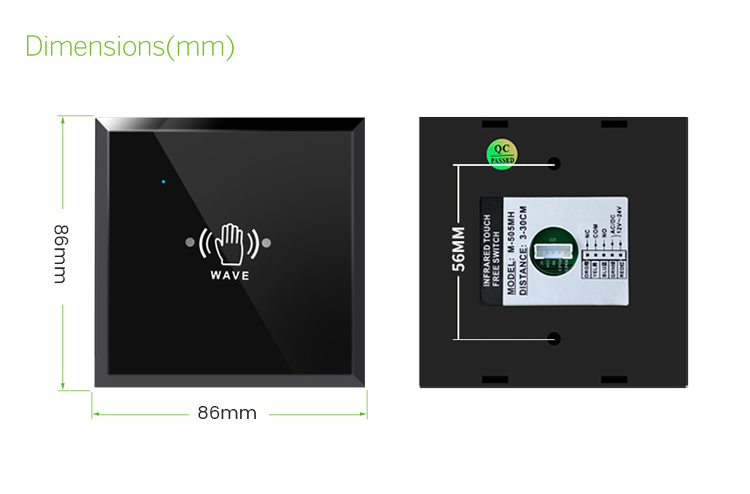

Dimensions: 86x86x14mm

  • Brand:

    S4A
  • Item NO.:

    S4A-505MH
  • Specifications

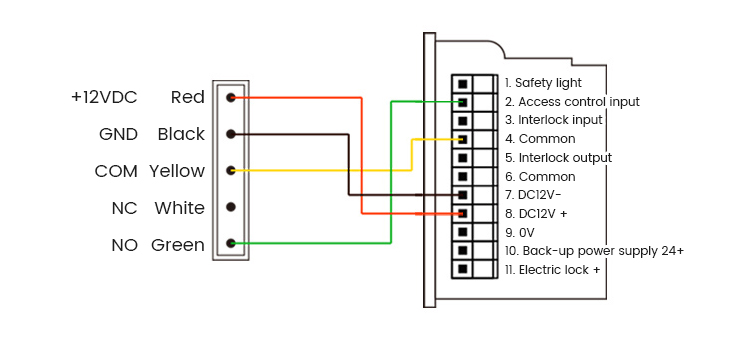

  • Wiring Diagram

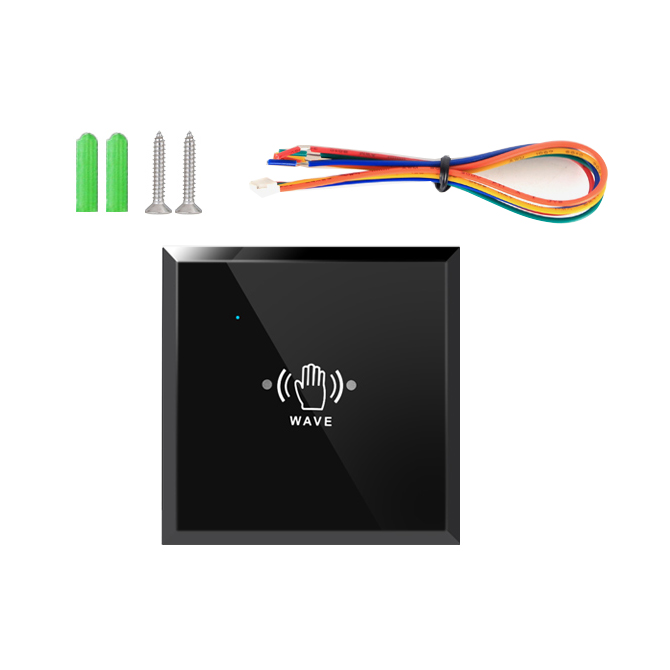

  • Package
  • Download

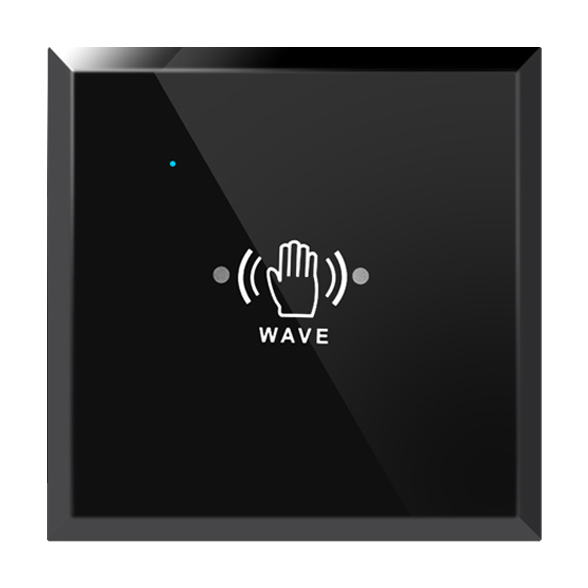

No Touch Wave-to-open Switches

Model No: S4A-505MH


Infrared sensing distance: 3~17cm adjustable


What is Hand Wave Sensor Button?

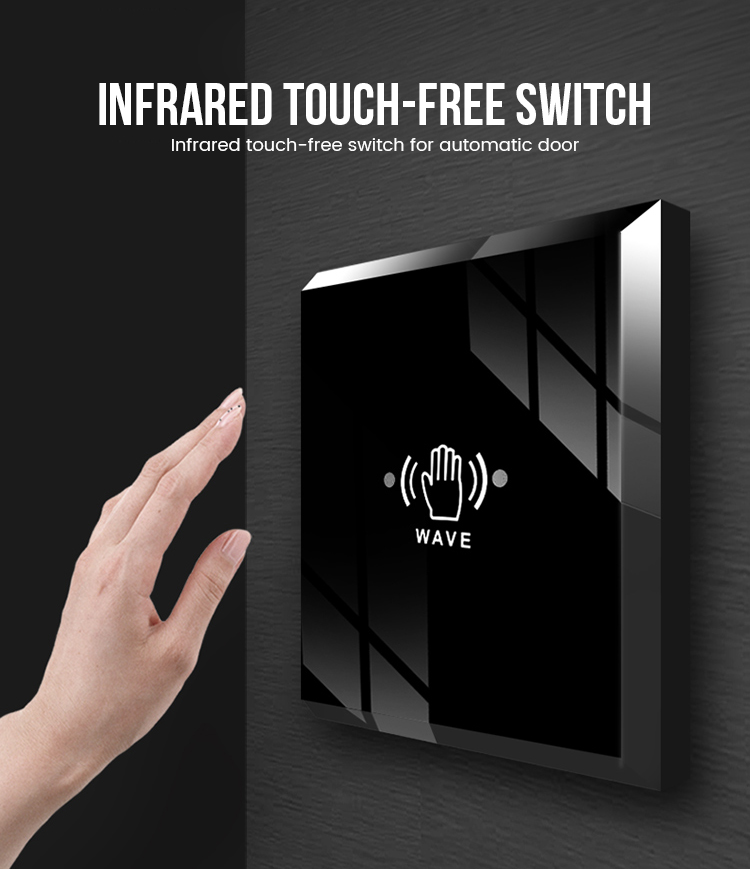

Hand Wave Sensor Button It is activated by hands waving. After correctly connected this sensor with your power supply and access control system, when you wave your hand at the sensor, the door will turn on automatically.

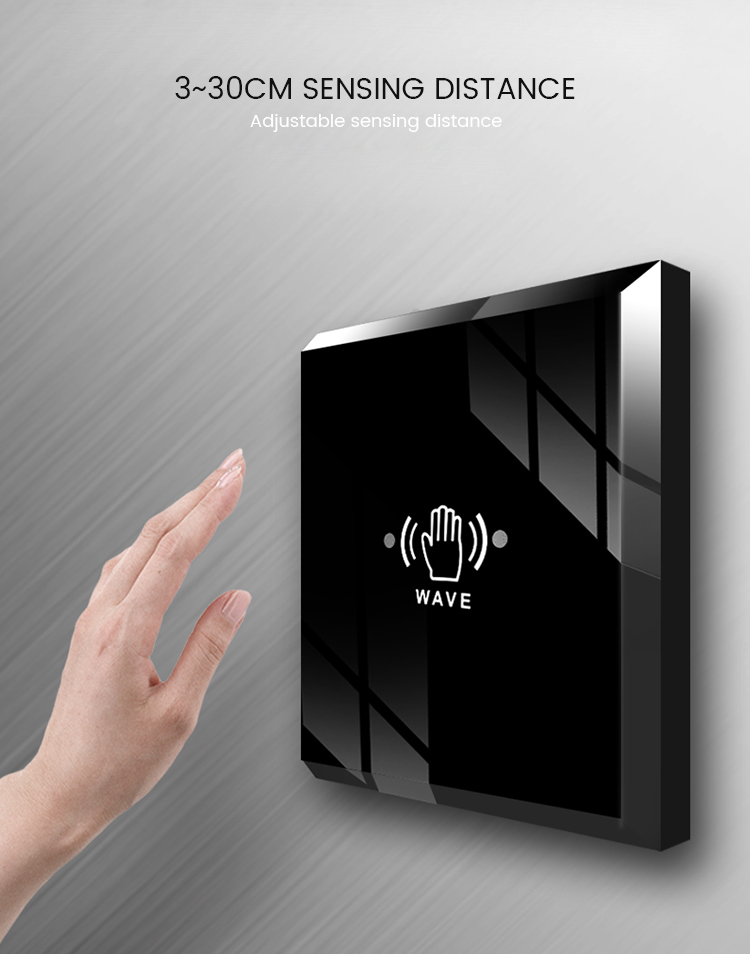

S4A-505MH induction adopts infrared modulation and demodulation, which is not easy to be misjudged by interference. Non-contact induction on the front of the hand or reflective object, clean and sanitary. The sensing distance is adjustable from 3-30cm, and can be adjusted by itself for different occasions. High-sensitivity infrared pair of tubes , Induction is timely and convenient.

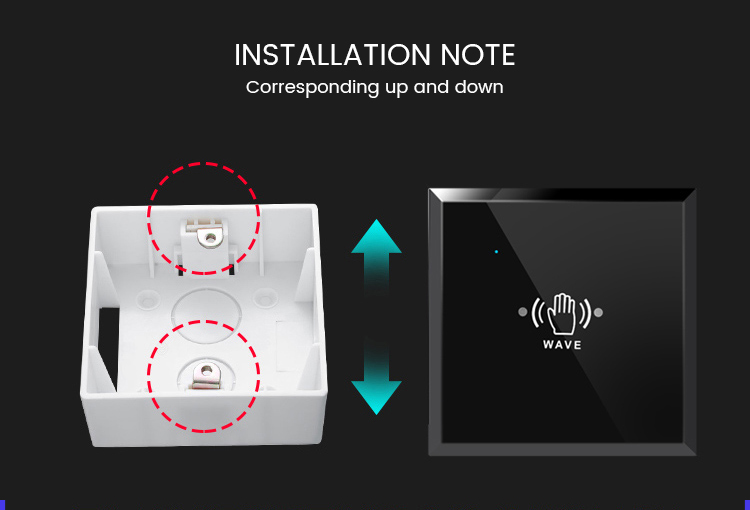

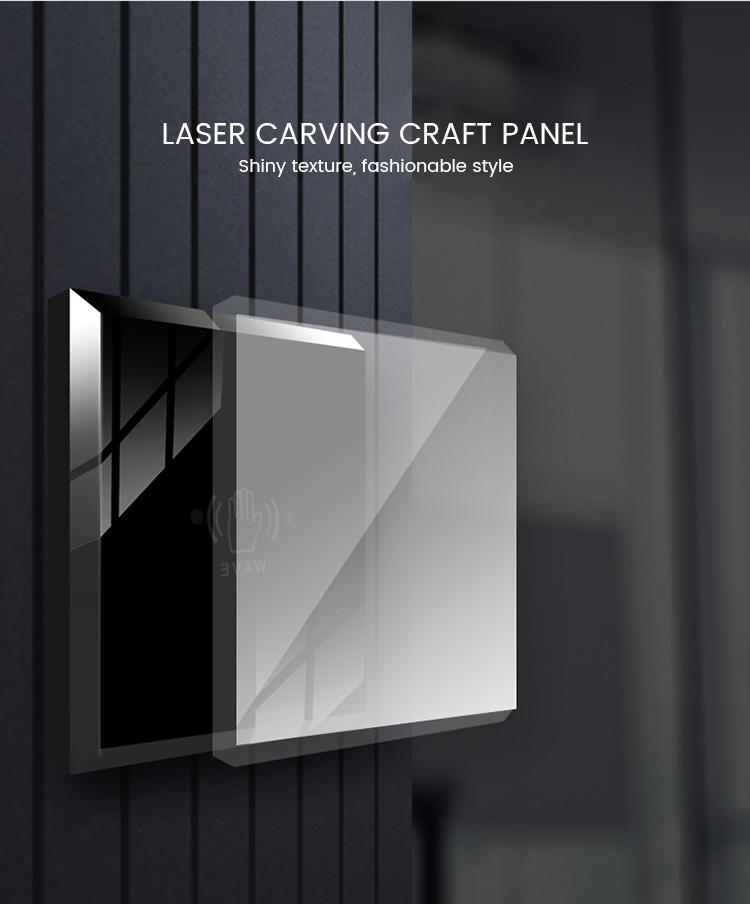

The standard 86 switch panel design is convenient for installation in various occasions. The panel adopts laser carving technology, which is fashionable and fashionable. The relay dry contact output is convenient for connection with various door control equipment.


Power supply (transmitter)

AC/DC 12-24V

Action current

42mA (when DC12V power supply)

Quiescent current

7.3mA (when DC12V power supply)

Relay output

Normally open/normally closed

Relay contact capacity

DC24V 1A

Infrared modulation frequency

38KHz

Response time

30ms

Infrared sensing distance

3~17cm adjustable

Working temperature

-42℃~45℃

Working humidity

10∽90%RH

Appearance size

86x86mm (Panel)


Wave-to-open SwitchesWave-to-open SwitchesWave-to-open SwitchesWave-to-open SwitchesWave-to-open Switches

Wave-to-open SwitchesWave-to-open Switches

Wave-to-open Switches

S4A_Datesheet_No Touch Wave-to-open Switches
