Switch Access Control Door Exit Button

NO/NC/COM;86Lx86Wx14H(mm)

  • Brand:

    S4A
  • Item NO.:

    T8A
  • Specifications

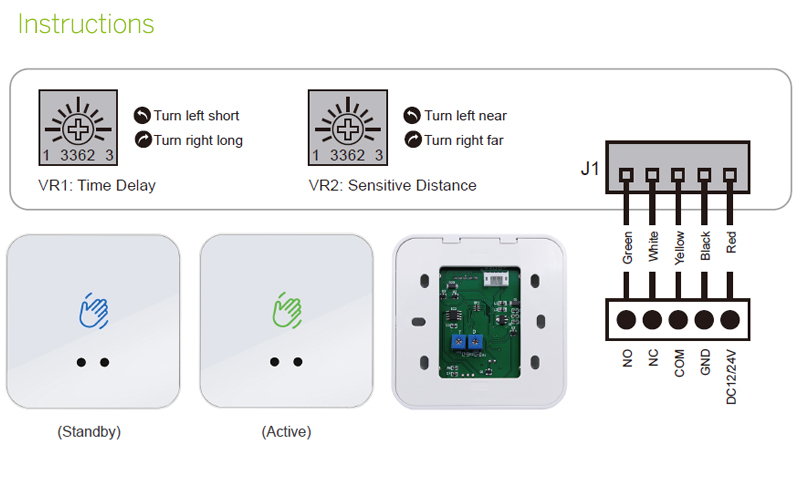

  • Wiring Diagram
  • Package

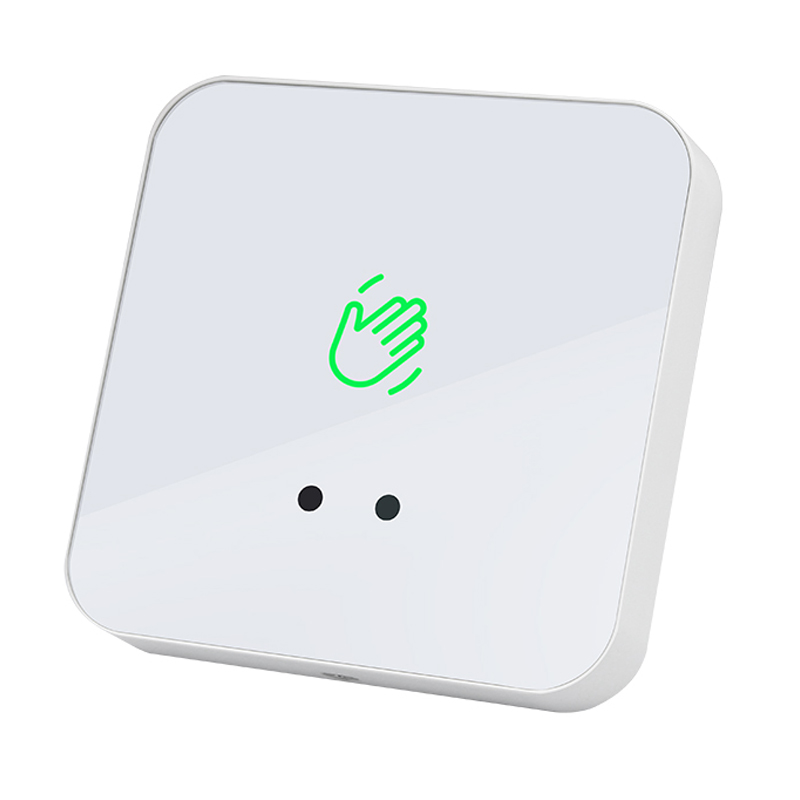

Switch Access Control Door Exit Button

Model No: T8A


Product ParameterParameter Description
S4A Model

T8A

Product NameTouch Sensor Exit Button

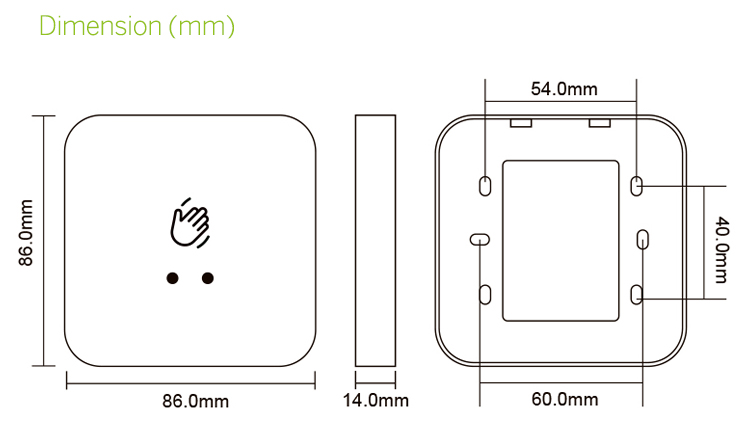

Dimensions86Lx86Wx14H(mm)
PowerDC12V-24V
Output ContactNO/NC/COM
Mounting WaySurface Mount
MaterialPC case+ABS face plate
Mechanical Life500,000 Tested
LED IndicatorBlue LED (Standby)
Green LED (Active)
Time delay0~30s(Adjustable)
Operating temp-20℃~+55℃(14-131F)
Suitable Humidity0-95% (relative humidity)

Unit Weight0.094KG
Standard Package100PCS/carton
Carton Weight10KG
Carton Size51*43*33(cm)
