Single Way Vehicle Door Detector

> Power supply: AC220V,AC110V,DC12V,DC24V

> Sensitivity: 3 levels adjustable (low, medium, high)

> Reaction time: 35ms

> Working frequency: One-level adjustable

> Size: 112x73x38mm

> Delay function: Three-stage delay adjustable (1st gear 0.7s)

  • Brand:

    S4A
  • Item NO.:

    110B
  • Specifications

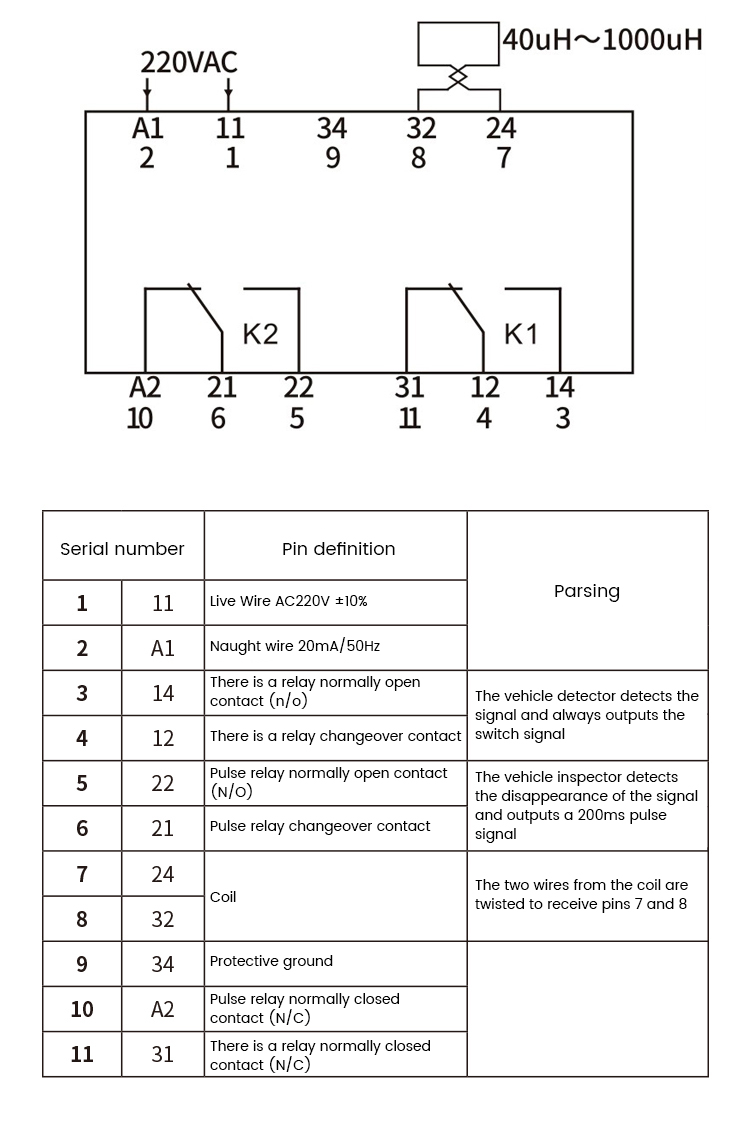

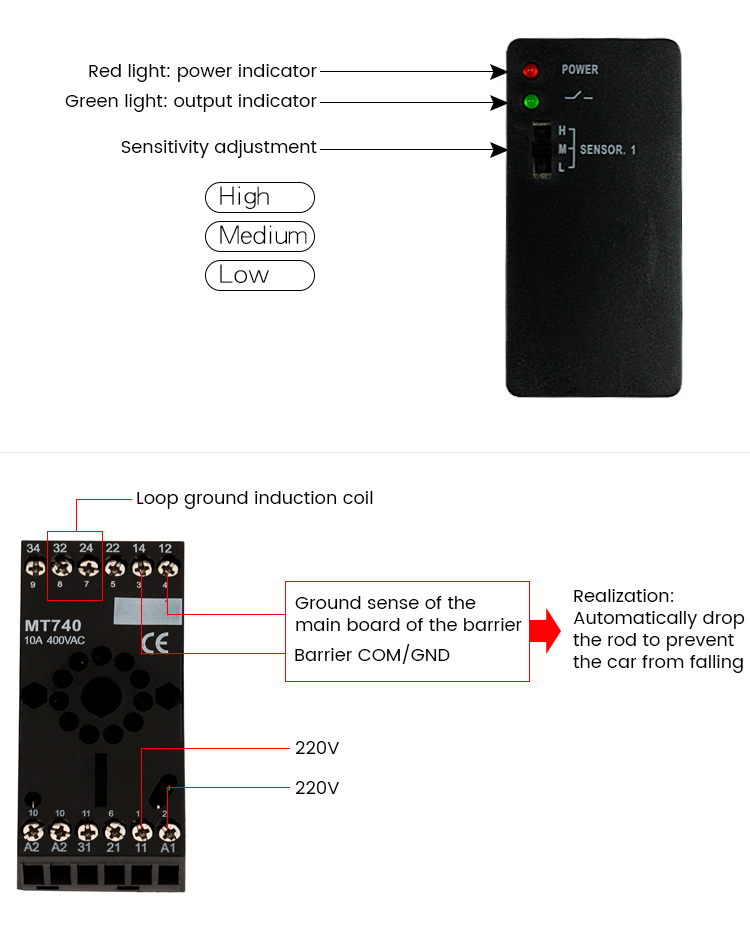

  • Wiring Diagram
  • Package
  • Download

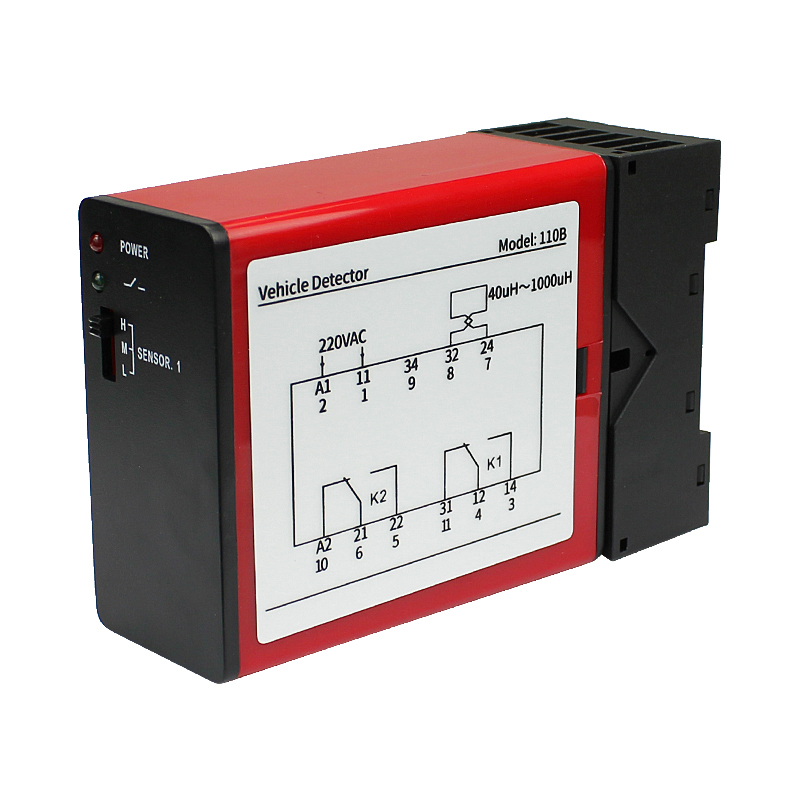

Single Way Vehicle Door Detector

Model No.: 110B


This product is an inductive coil vehicle detection Device, its working principle is that the metal parts of the vehicle will Change the inductance of the detection loop through the microcontroller An analysis is performed to determine if the vehicle exists. Mainly used . For controlling electric doors, quick doors, barriers, and Involving a field requiring the presence detection of a vehicle Together.


Feature of vehicle loop detector:

> Industrial grade design, superior anti-interference ability and stability.

> Adjustable Multi-level sensitivity to meet various needs.

> Support multiple output interfaces to adapt to different scenarios.

> Support loop coil self diagnosis checking.

> Working with boom barrier gate, it can realize gate automatic close after vehicle passes.

> Support for environmental drift compensation.


Power supply

AC220V/50Hz 4.5W

Sensitivity

3 levels adjustable (low, medium, high)

Reaction time

35ms

Working frequency

One level adjustable

Maximum coil

8Mx1M

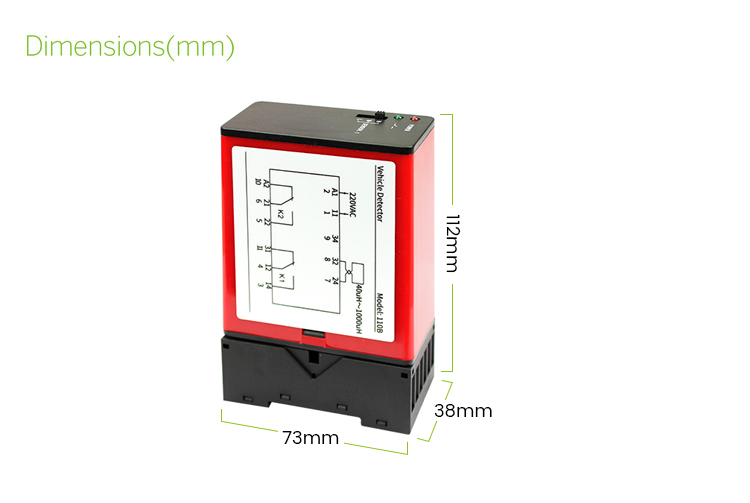

Size

112x73x38mm

Output method

Relay

Probe lead

Within 10 meters

Delay function

Three-stage delay adjustable (1st gear 0.7s)


Single Vehicle DetectorSingle Vehicle DetectorSingle Vehicle DetectorSingle Vehicle DetectorSingle Vehicle DetectorSingle Vehicle DetectorSingle Vehicle Detector

Single Vehicle DetectorSingle Vehicle Detector

                                  Single Way Vehicle Door Detector

Model No.

Dimension

Quantity/Carton

Net Weight

Gross Weight

Carton Size

110B

112x73x38mm

50pcs

8.5KG

14.5KG

58x27x26cm



Single Vehicle Detector

S4A Datesheet_Single Way Vehicle Door Detector
