Uhf Rfid Reader 1-5m Long Range Outdoor Ip67 8dbi Antenna Rs232/rs485/wiegand Output Uhf Rfid Reader

> Waterproof, IP65

> Free demo and SDK

> Stable reading distance: 1~5m

> Frequency: 902~928MHz or customize other frequency

  • Brand:

    S4A
  • Item NO.:

    UHF-105
  • Specifications
  • Wiring Diagram

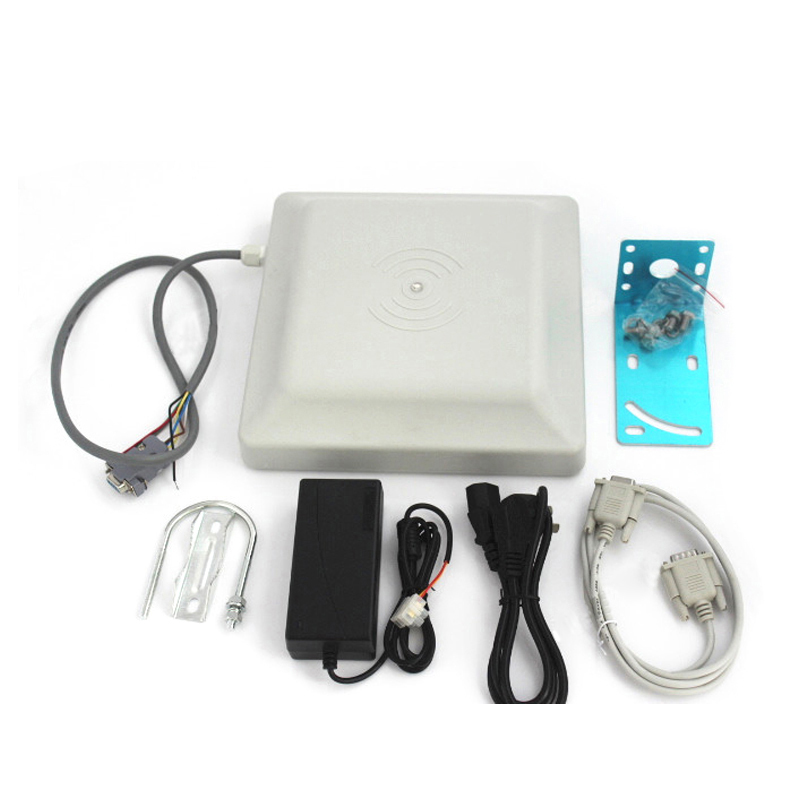

  • Package
  • Download

UHF RFID Reader 1-5m Long Range Outdoor IP67 8dbi Antenna RS232/RS485/Wiegand Output Uhf Rfid Reader

Model No.: UHF-105


Introduction

The UHF RFID reader has many advantages of more protocol supporting, fast reading, more labels identification, circular polarization antenna and compact design. This reader is widely used in all kinds of RFID systems.



Application:

Logistics and Warehouse management;

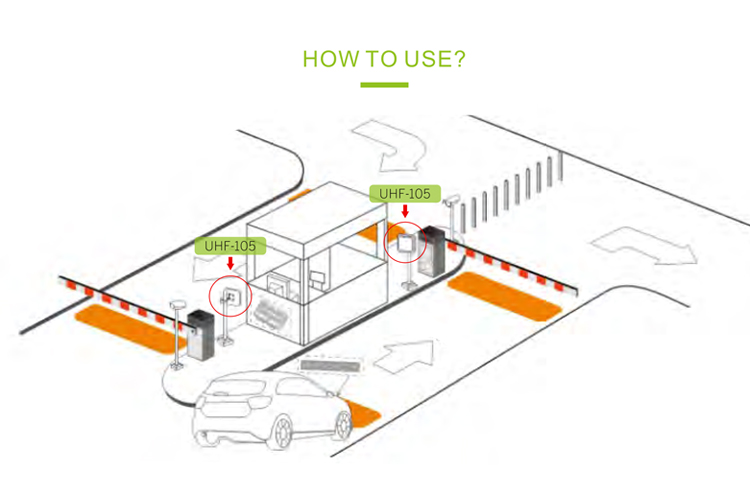

Parking control system;

Manufacturing management;

Products anti-counterfeiting detection;

Other fields: club management, library, student school rolls, attendance management and swimming pool system, etc.


Specification


Working Frequency

National standard (920~925MHz), America standard (902~928MHz), or customize other frequency

Support Protocol

ISO18000-6B, ISO18000-6C(EPC GEN2)

Frequency Hopping

FHSS or fixed frequency set by software

Working Way

automatically reading card at regular time, can set reading card way

Frequency Power

0~30dBm, be adjusted by software

Reading Distance

1-5M

Reading Sensitivity

dual polarization reading

Reading Speed

one label 64 bit ID number < 6ms

Antenna

build-in circular polarization antenna, gain 8dB /build-in linear polarization antenna, gain 12dBi

Interface

RS485, RS232, Wiegand26, Wiegand34, RJ45

Working Voltage

DC12V

Working Status Indication

buzzer

Power

1W

Working Temperature

-20℃ ~ 80℃

Storage Temperature

-40℃ ~ 125℃

Working Humidity

20% ~ 95% (no condensing)

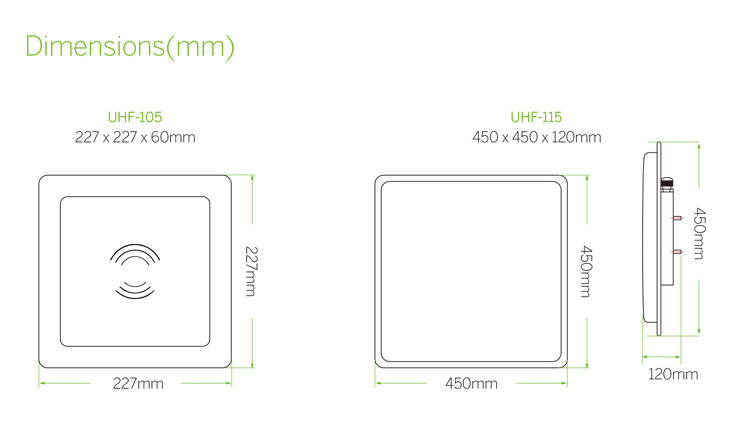

Dimension

227 × 227 × 60mm

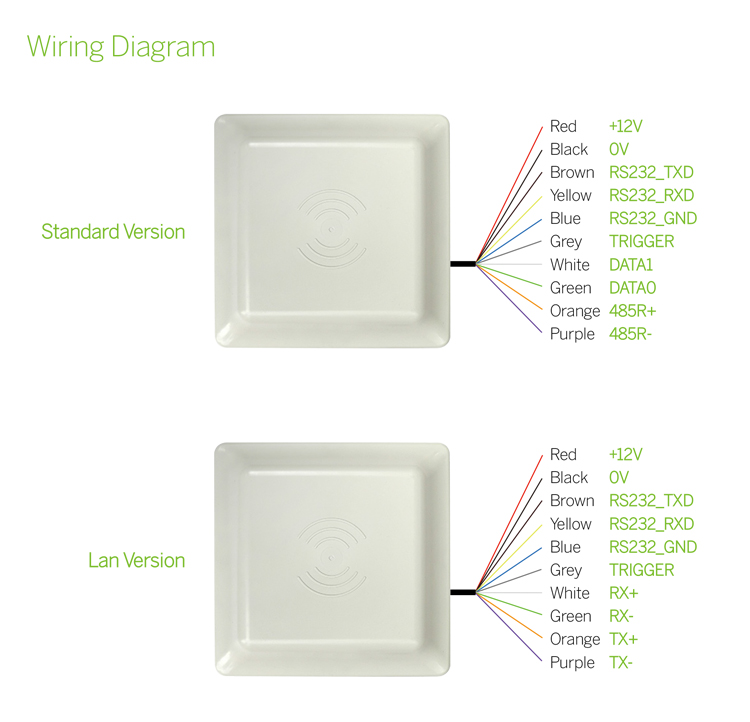

Signal Definition:


Name

Cable Color

Function

DC+12V

Red

+9V~15V positive

GND

black

Negative

TXD

brown

RS232 signal output (PIN2)

RXD

Yellow

RS232 signal input (PIN3)

GND

Blue

RS232 grounding (PIN5)

Triger

Gray

Trig pin

DATA0/485A+

Green

Wiegand data 0 or 485 interface positive port

DATA1/485B-

White

Wiegand data 1 or 485 interface negative port


Uhf Rfid ReaderUhf Rfid ReaderUhf Rfid Reader

Uhf Rfid Reader

Uhf Rfid Reader

S4A HUF-105 Use Manual_Uhf Rfid Reader 1-5m Long Range Outdoor Ip67 8dbi Antenna Rs232/rs485/wiegand Output Uhf Rfid Reader
