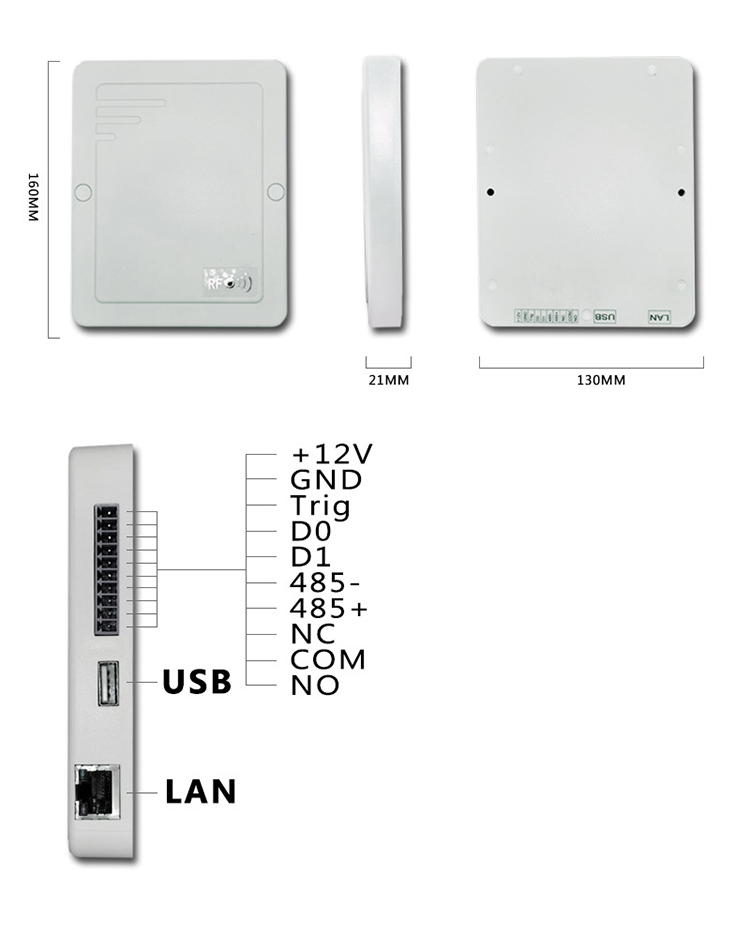

S4A 3M Long-Range UHF RFID Reader | 840-960MHz Integrated Directional Antenna

S4A 3M Long-Range UHF RFID Reader | 840-960MHz Integrated Directional Antenna

3-Meter vs. 15-Meter UHF Readers: Which One Does Your Project Actually Need?

Choosing the right RFID reading distance isn’t just about "bigger is better." In the 16 years S4A has been manufacturing access control hardware, we’ve seen that the most successful installations are about matching the technology to the specific flow of traffic.

If you are currently deciding between a 3-meter and a 15-meter UHF setup, here is how to look at it from a practical, user-experience standpoint.

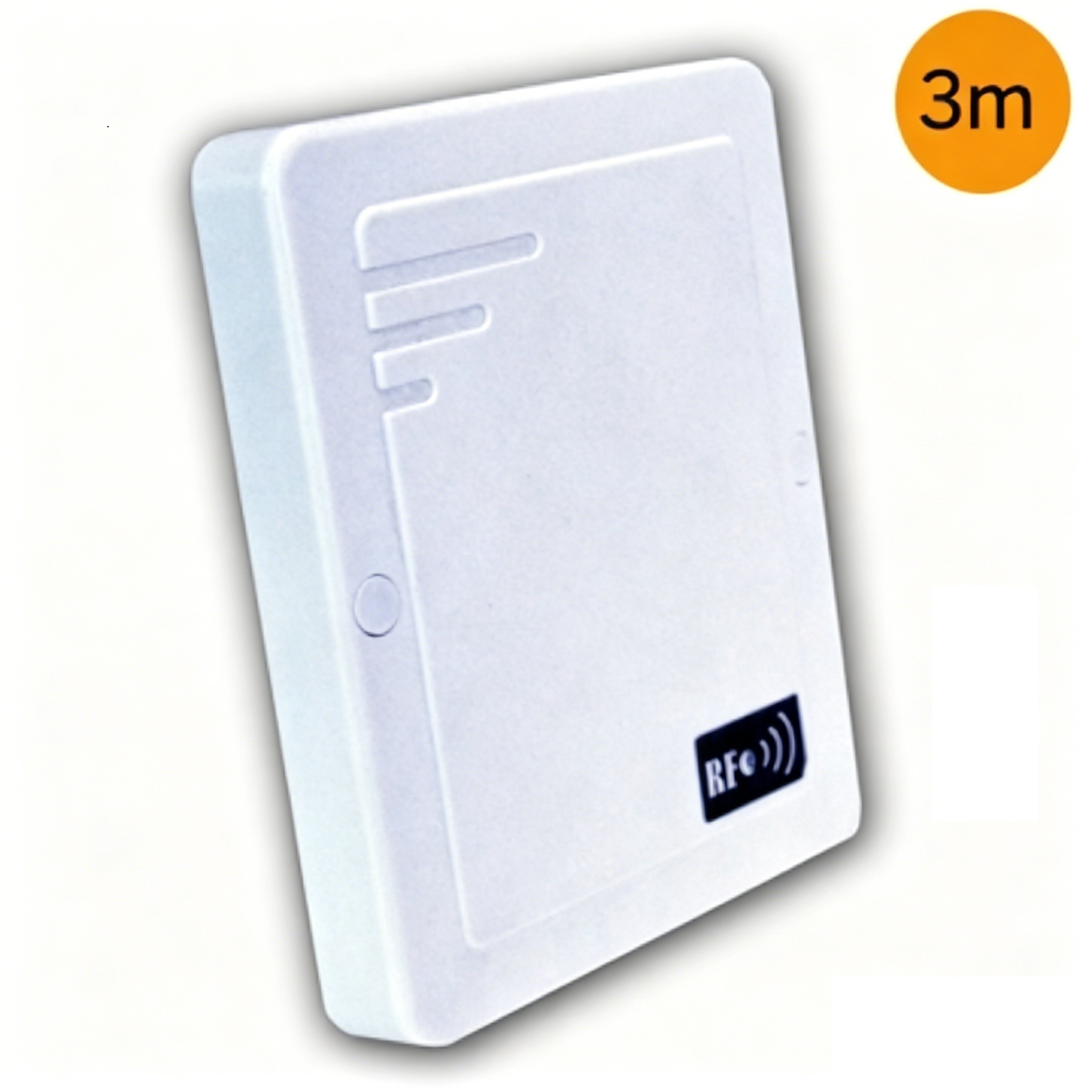

When to Choose the 3-Meter UHF Reader (e.g., S4A UHF-003)

The 3-meter range is the "Goldilocks Zone" for standard commercial vehicle access. It is the ideal choice for controlled, high-security environments where you need a deliberate and orderly entry process.

Standard Parking Entrances: Perfect for office buildings or residential complexes where the vehicle needs to slow down or stop at a barrier gate. The 3-meter range ensures the gate only opens for the car directly at the front, preventing "accidental" triggers from cars parked nearby or in the second lane.

Narrow Access Points: If your entry lane is tight or located near a busy sidewalk, a 3-meter reader is safer. It prevents the system from accidentally reading tags held by pedestrians or cars simply driving past the gate.

Cost-Effective Efficiency: For projects where you need a reliable "hands-free" experience without the premium price of ultra-long-range hardware, the 3-meter model is our most recommended "workhorse" solution.

When to Choose the 15-Meter UHF Reader (e.g., S4A High-Gain Series)
The 15-meter range is designed for momentum and heavy-duty logistics. This is for scenarios where stopping is not an option, or where the vehicles involved are massive.

High-Speed Logistics & Trucking: In industrial zones or busy warehouses, time is money. A 15-meter reader identifies the vehicle long before it reaches the gate, allowing the barrier to be fully open by the time the truck arrives. This maintains the vehicle's momentum and reduces fuel consumption and brake wear.

Wide or Multi-Lane Entrances: At large factory gates or toll-style entries where the reader is mounted high up on a gantry or far to the side, you need that extra power to reach the windshield tag across a wide distance.

Heavy Industrial Equipment: For construction sites or mining operations involving oversized vehicles, the driver is often positioned much higher and further back from the front bumper. A 15-meter range ensures the tag is read reliably despite the vehicle's size.

Why S4A is Different in the UHF Space
At S4A, we don't just sell you a box; we provide a factory-direct solution backed by 16 years of manufacturing data. We understand that a 15-meter reader installed in a small 3-meter space will cause "ghost reads" and security headaches. Conversely, a 3-meter reader on a fast-moving truck line will cause traffic jams.

Our "One-Stop-Shop" approach means we test our readers against our own Automatic Barrier Gates to ensure the synchronization is perfect before it ever leaves our floor. Whether you need the precision of 3 meters or the power of 15, we provide the technical support to ensure your installation works on the first try.
