UHF RFID Reader 840-960MHz

/Uhf Rfid Passive Reader with 915m Long Distance Access Control Vehicle Logistics Application

New Products

Uhf Rfid Passive Reader with 915m Long Distance Access Control Vehicle Logistics Application

> Waterproof, IP65

> Free demo and SDK

> Stable reading distance: 5~15m

> Frequency: 920-925MHz or customize other frequency

  • Brand:

    S4A
  • Item NO.:

    UHF-115
  • Specifications
  • Wiring Diagram
  • Package
  • Download

UHF RFID Passive Reader with 915M Long Distance Access Control Vehicle Logistics Application

Model No.: UHF-115


> Working Frequency: National standard (920~925MHz), America standard (902~928MHz), or customize other frequency ISO18000-6C(EPC GEN2)

> Frequency Power: 0~30dBm, be adjusted by software


Specification


Working Frequency

National standard (920~925MHz), America standard (902~928MHz), or customize other frequency

Support Protocol

ISO18000-6B, ISO18000-6C(EPC GEN2)

Frequency Hopping

FHSS or fixed frequency set by software

Working Way

automatically reading card at regular time, can set reading card way

Frequency Power

0~30dBm, be adjusted by software

Reading Distance

5-15M

Reading Sensitivity

dual polarization reading

Reading Speed

one label 64 bit ID number < 6ms

Antenna

build-in circular polarization antenna, gain 8dB /build-in linear polarization antenna, gain 12dBi

Interface

RS485, RS232, Wiegand26, Wiegand34, RJ45

Working Voltage

DC12V

Working Status Indication

buzzer

Power

1W

Working Temperature

-20℃ ~ 80℃

Storage Temperature

-40℃ ~ 125℃

Working Humidity

20% ~ 95% (no condensing)

Dimension

450 × 450 × 120mm

Weight

9.5KG


Signal Definition:


Name

Cable Color

Function

DC+12V

Red

+9V~15V positive

GND

black

Negative

TXD

brown

RS232 signal output (PIN2)

RXD

Yellow

RS232 signal input (PIN3)

GND

Blue

RS232 grounding (PIN5)

Triger

Gray

Trig pin

DATA0/485A+

Green

Wiegand data 0 or 485 interface positive port

DATA1/485B-

White

Wiegand data 1 or 485 interface negative port

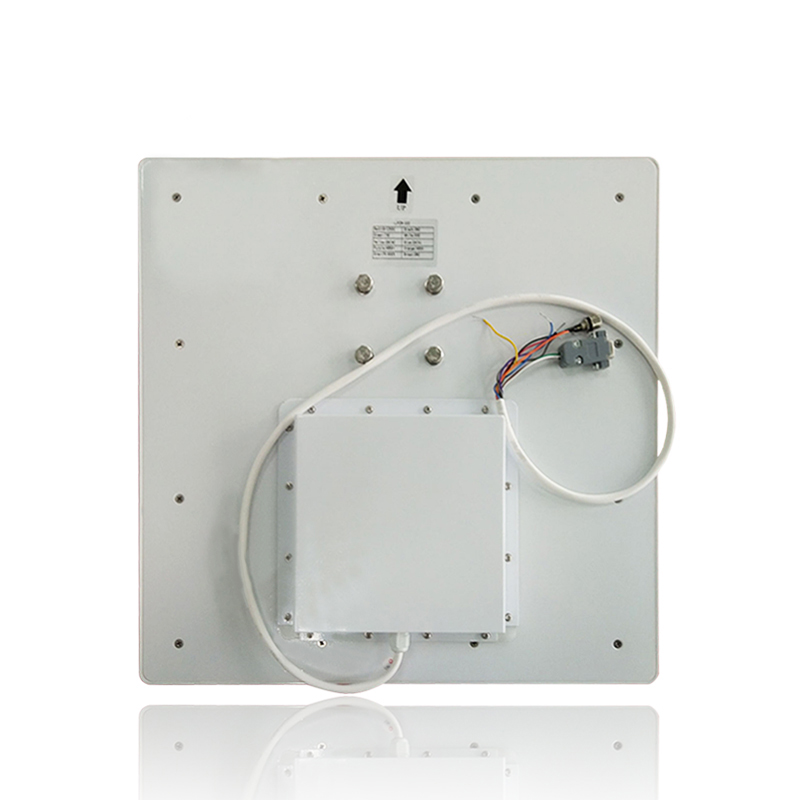

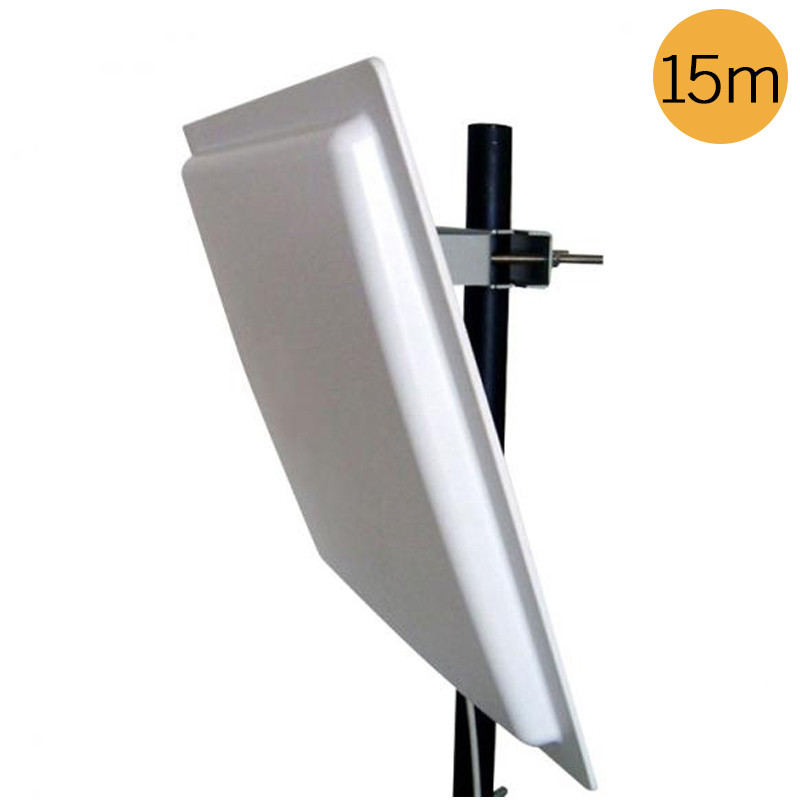

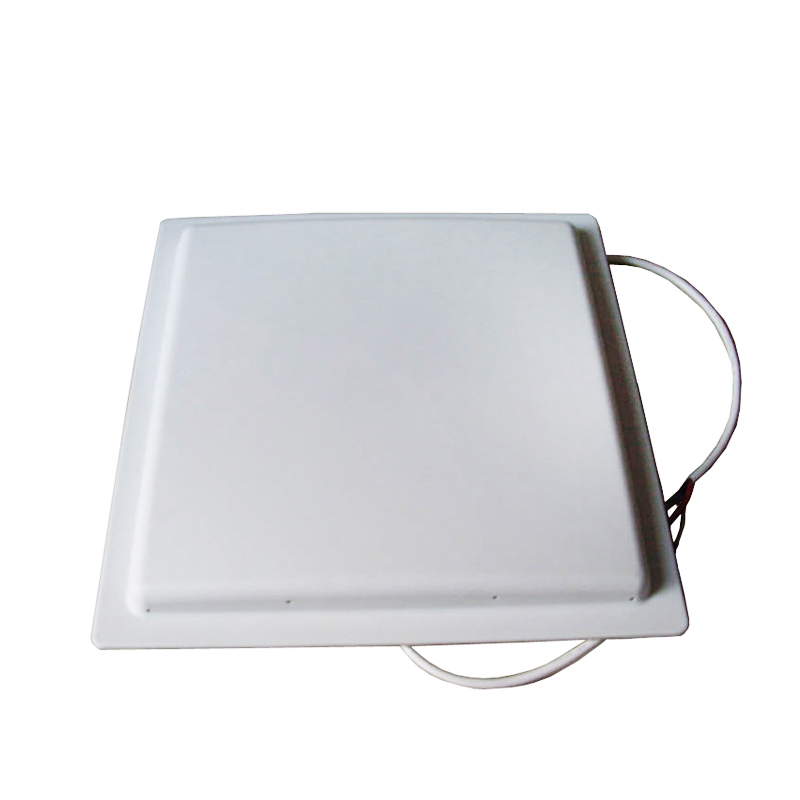

UHF RFID Passive ReaderUHF RFID Passive ReaderUHF RFID Passive Reader




UHF RFID Passive Reader

UHF RFID Passive Reader

S4A UHF-115 Use Manual_Uhf Rfid Passive Reader with 915m Long Distance Access Control Vehicle Logistics Application
