>User Capacity:1000
>Common User:900 (Fingerpint version support 100 fingerprints)
>Visitor User:10
Brand:
S4AItem NO.:

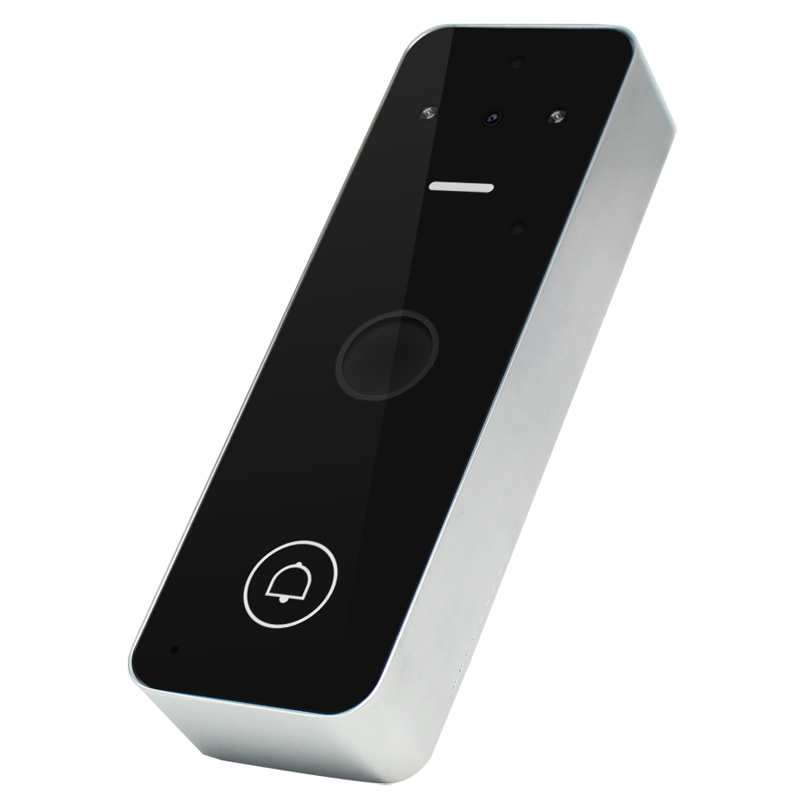

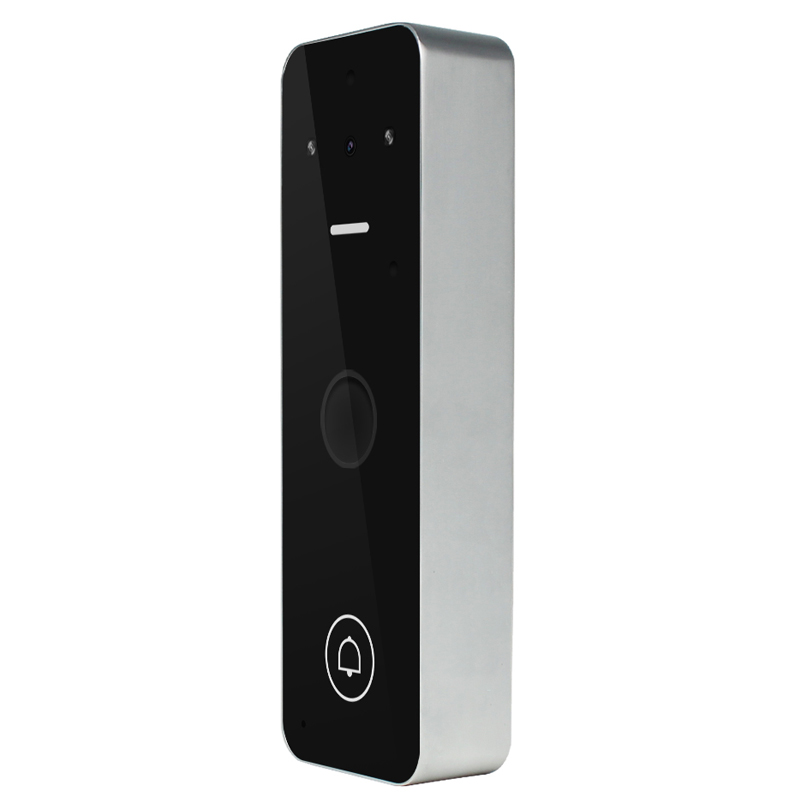

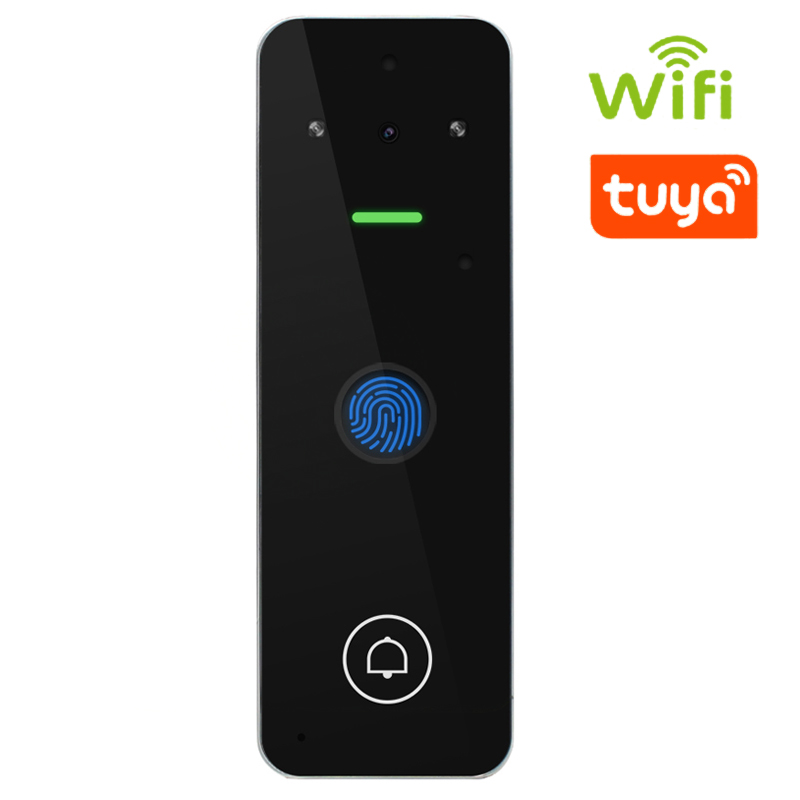

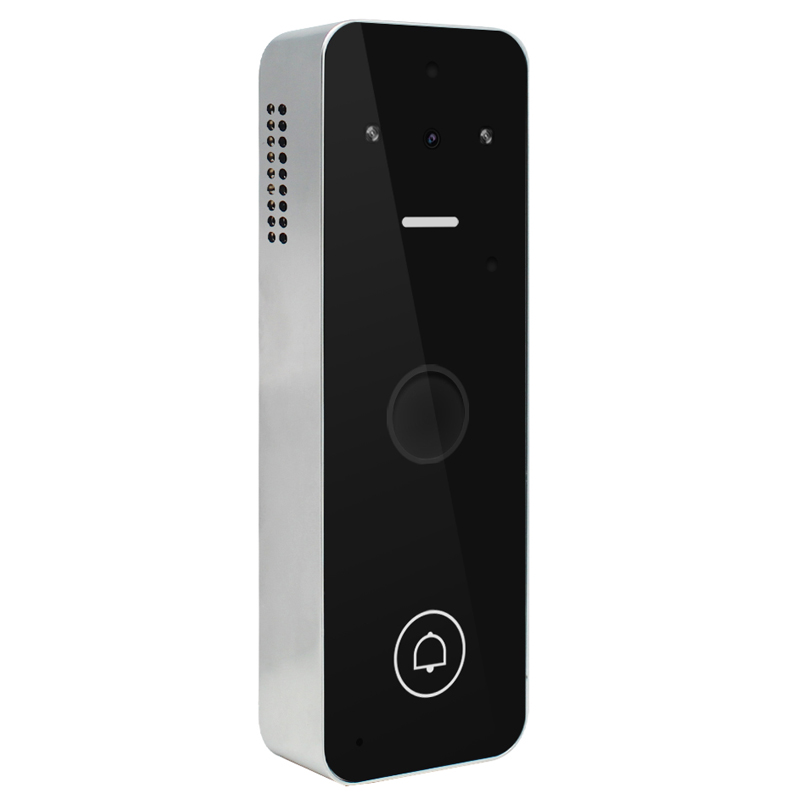

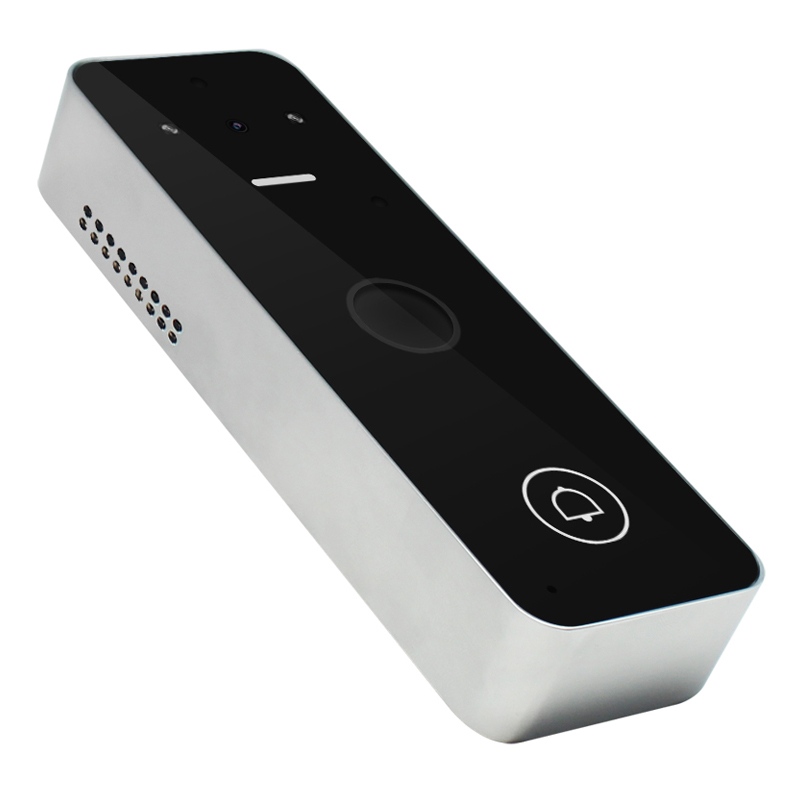

Vcontrol4-FTuya access control with video doorbell
Model No: Vcontrol4-F
User Capacity | 1000 |
Common User | 900 (Fingerpint version support 100 fingerprints) |
Visitor User | 10 |
Operating Voltage | 12~18V DC |
Working Current | ≤1 50mA |
Idle Current | ≤60mA |
Proximity Card Reader | EM |
Radio Technology | 125KHz |
Read Range | 2~6 cm |
PIN Length | 4~6 digits (Keypad version only) |
Wiring Connections | Relay Output, Exit Button, Wiegand Input, Wiegand Output |
Relay | One (NO, NC, Common) |
Adjustable Relay Output | 0~99 Seconds (5 seconds default) |
Time Lock Output Load | 2 Amp Maximum |
Wiegand Interface | Wiegand 26~44 bits input & output(Factory Default: Wiegand 26bits) |
PIN Output(Keypad version only) | 4 bits, 8 bits(ASCI), 10 digits Virtual Number(Factory Default: 4 bits) |
S4A Datesheet_Tuya access control with video doorbell
> Card type: EM, HID, MF, CPU Card(Factory default: EM 125KHz)> Metal backlight keypad> User capacity: 10,000 users> Dimensions: 139x70x20mm> Waterproof IP68> Support WIFI
> Card type: EM Card> Access ways: Card, code, card + code, Mobile APP> Protocol: Wiegand26 Input/Output> Searching time: Less than 0.1s after reading card> Backlight keypad: Easy to operate at night> Doorbell interface: Support external wired doorbell
> Card type: EM Card> Access ways: Card, code, card + code, Mobile APP> Protocol: Wiegand26 Input/Output> Searching time: Less than 0.1s after reading card> Backlight keypad: Easy to operate at night
> Support APP+2G+3G+4G> Voltage: 5~24V> 10A relay> Installation Environment: With WiFi> Support iOS and Android phon
> Card type: EM or MF Card> User Capacity: 2000> Card Reading Distance: 3-6 cm> Size: 117x71x22mm
> Card type: EM or Mifare Card> Hardware User: 1000> APP User: 100 (including 255 card/PIN users)> Waterproof, conforms to IP66> Metal housing, anti-vandal> iOS and Android available> Multiple Access Modes: Smartphone, Card, PIN
> Card type: EM or Mifare Card> Hardware User: 1000> APP User: 100 (including 255 card/PIN users)> Waterproof, conforms to IP66> Metal housing, anti-vandal> iOS and Android available> Multiple Access Modes: Smartphone, Card, PIN
> Card type: EM or Mifare Card> Hardware User: 1000> APP User: 100 (including 255 fingerprint/card/PIN users)> Waterproof, conforms to IP66> Metal housing, anti-vandal> iOS and Android available> Multiple Access Modes: Smartphone, Fingerprint, Card, PIN
S4A appreciate any of your inquiries and sincerelyhope to enjoy a fruitful long-term business relationship with youto share in the mutual benefits, If you have any questions, please feel free to contact us.
