Categories
> Card type: EM or MF Card
> Metal structure design, anti-vandal

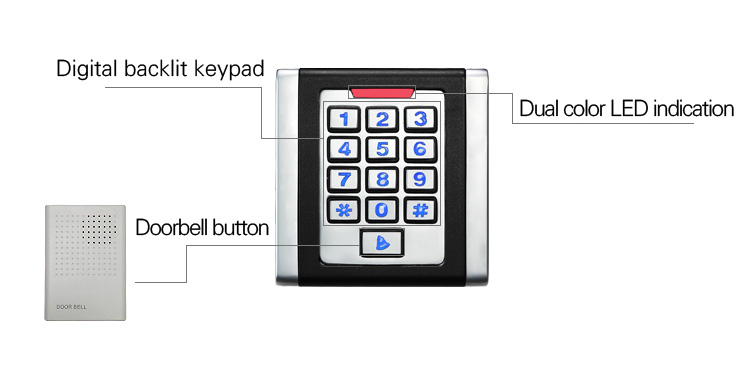

> Digital backlit keyboard
> All-in-one, WG26 output/input
> Three-way to open the door, card, password, card + password

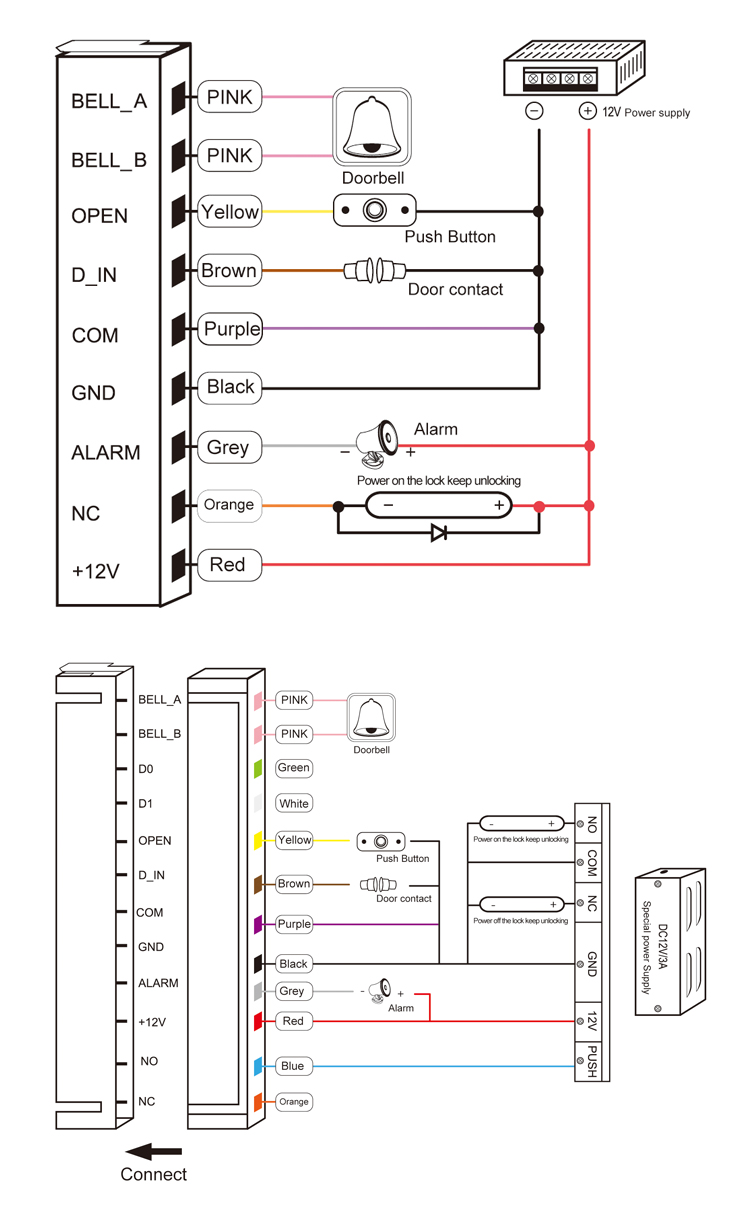

> The doorbell button and interface: buttons and isolation circuit, connect to any external bell
Brand:
S4AItem NO.:
K6Metal Standalone Access control
Model No.: K6 EM, MF
Card type | EM or MF |
Waterproof degree | Non-Waterproof(K6) / IP68(K6-W) |
User capacity | 2000 card user card, 2000 user password |
Environment Humidity | 10%～90% |
Lock output | ≤3A |
Working voltage | DC12V±10％ |
Static electricity | ≤30mA |
Alarm output | ≤20A |
Output short circuit protection time | ≤100μS |
Card read distance | 5～8cm |
Ambient temperature | -45℃～60℃ |
Door Opening Time | 0～99s(Adjustable) |

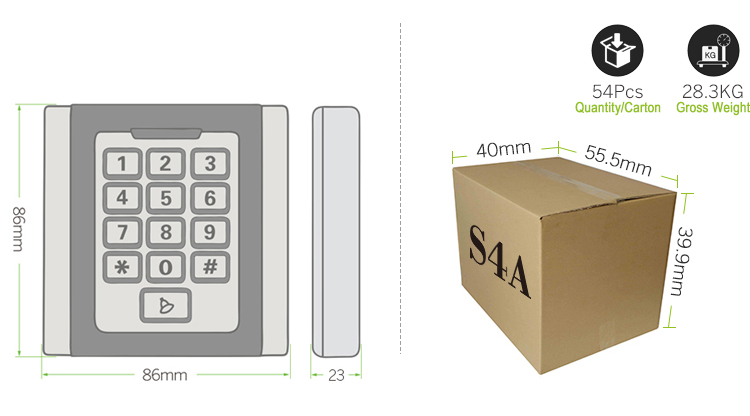

Dimension | 86*86*23mm |
Metal Standalone Access Control Reader | |||
Model No. | Quantity/Carton | Gross Weight | Carton Size |
K6EM | 54pcs | 28.3KG | 55.5x39.9x40cm |
K6MF | |||
K6EM-W | 54pcs | 32KG | |
K6MF-W | |||
S4A User Manual K6_Metal Standalone Access Control Reader
> Card type: EM Card> Dimension: 120 x 56 x 18mm> Access Control Keypad Containing 2000 users with Pincode
> Card type: EM or MF Card> Metal structure design, anti-vandal> Digital backlit keyboard> All-in-one, WG26 output/input> Three-way to open the door, card, password, card + password> The doorbell button and interface: buttons and isolation circuit, connect to any external bell
> Card type: EM or MF Card> Metal structure design, anti-vandal> Digital backlit keyboard> All-in-one, WG26 output/input> Three-way to open the door, card, password, card + password
> Card type: EM or MF Card> Metal structure design, anti-vandal> Digital backlit keyboard> All-in-one, WG26 output/input> Three-way to open the door, card, password, card + password
> Card type: EM or EM+HID Card> Capacity: 10,000 card users> Waterproof IP68> Rainproof, moistureproof, durable> Can be used as WG26 reader
> Card type: EM or MF Card> Metal structure design, anti-vandal> Digital backlit keyboard> All-in-one, WG26 output/input> Three-way to open the door, card, password, card + password> The doorbell button and interface: buttons and isolation circuit, connect to any external bell
> Card type: EM or MF Card> Metal structure design, anti-vandal> Digital backlit keyboard> All-in-one, WG26 output/input> Three-way to open the door, card, password, card + password> The doorbell button and interface: buttons and isolation circuit, connect to any external bell
> Card type: EM or MF Card> Metal structure design, anti-vandal> Digital backlit keyboard> All-in-one, WG26 output/input> Three-way to open the door, card, password, card + password> The doorbell button and interface: buttons and isolation circuit, connect to any external bell
S4A appreciate any of your inquiries and sincerelyhope to enjoy a fruitful long-term business relationship with youto share in the mutual benefits, If you have any questions, please feel free to contact us.
