Categories
> Card type: EM or MF Card
> Metal Case
> Digital backlit keypad
> Wiegand 26 output/input
> Anti-vandal
> User capacity: 2000usrs
Brand:
S4AItem NO.:

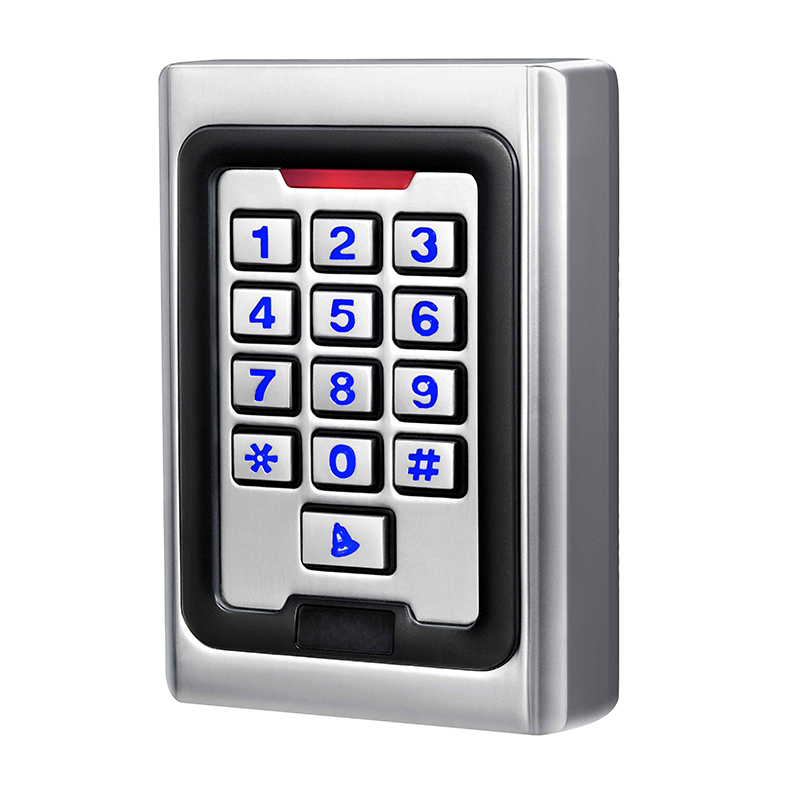

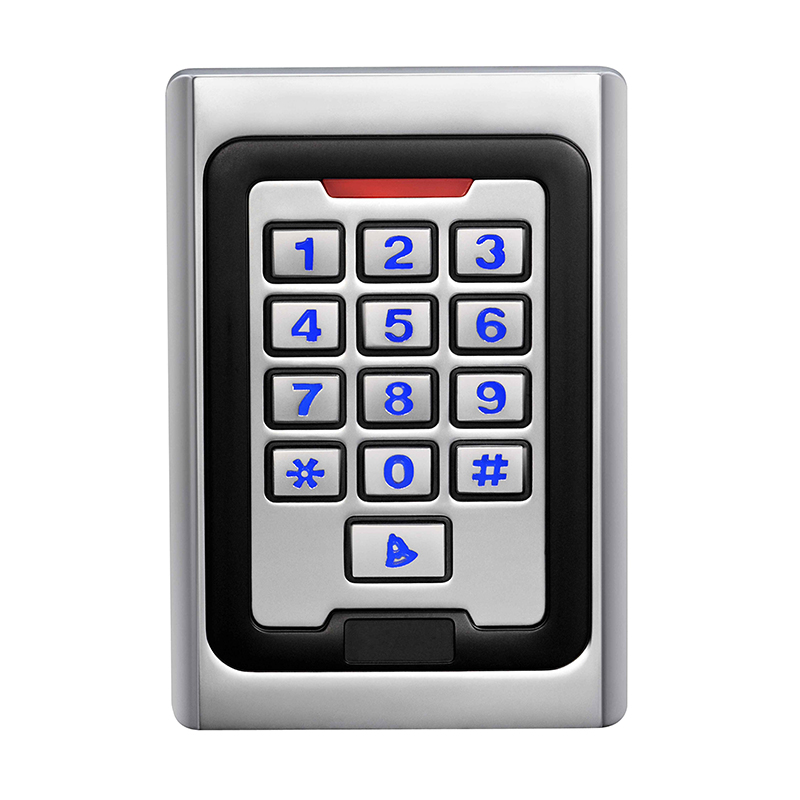

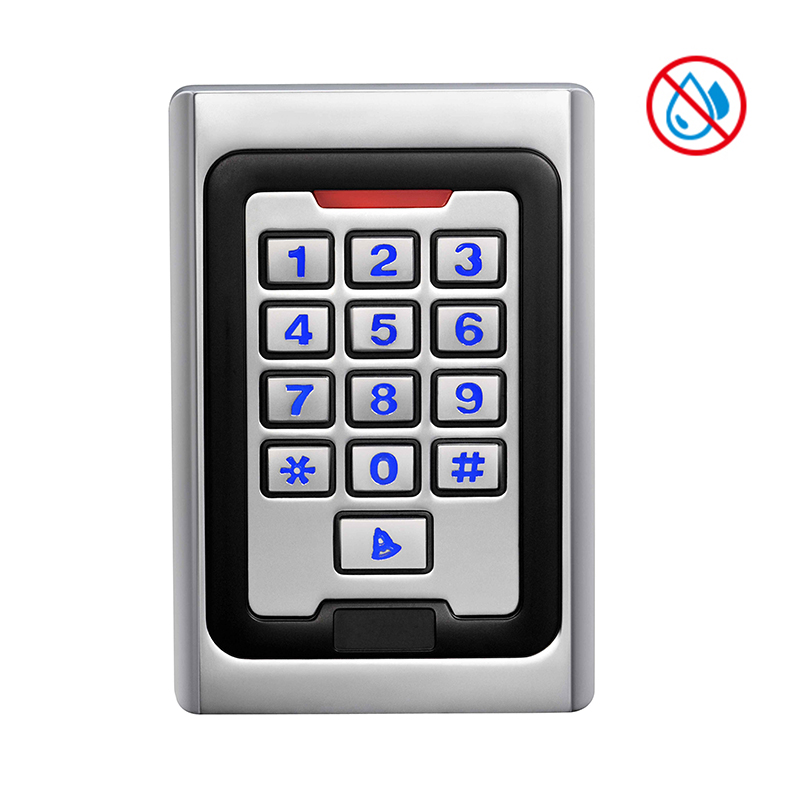

K5Metal Standalone Access Control
Model No.: K5 EM, MF
Card type | EM or MF |
Capacity | 2,000 |
Environment Humidity | 10%～90% |
Lock output | ≤3A |
Working voltage | DC12V±10％ |
Static electricity | ≤30mA |
Alarm output | ≤20A |
Output short circuit protection time | ≤100μS |
Card read distance | 5～8cm |
Ambient temperature | -45℃～60℃ |
Door Opening Time | 0～99s(Adjustable) |

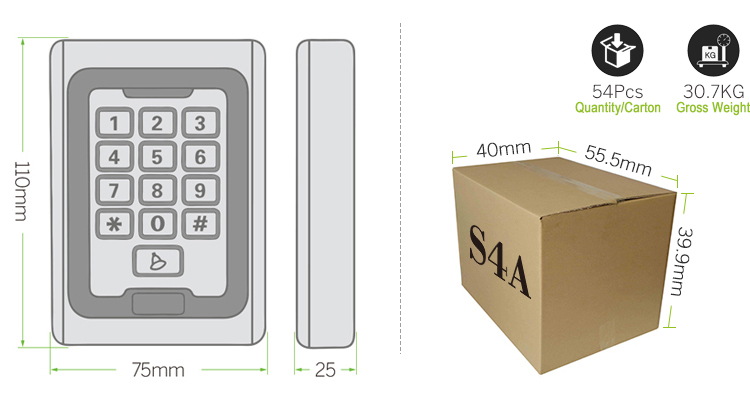

Dimension | 110*75*25mm |

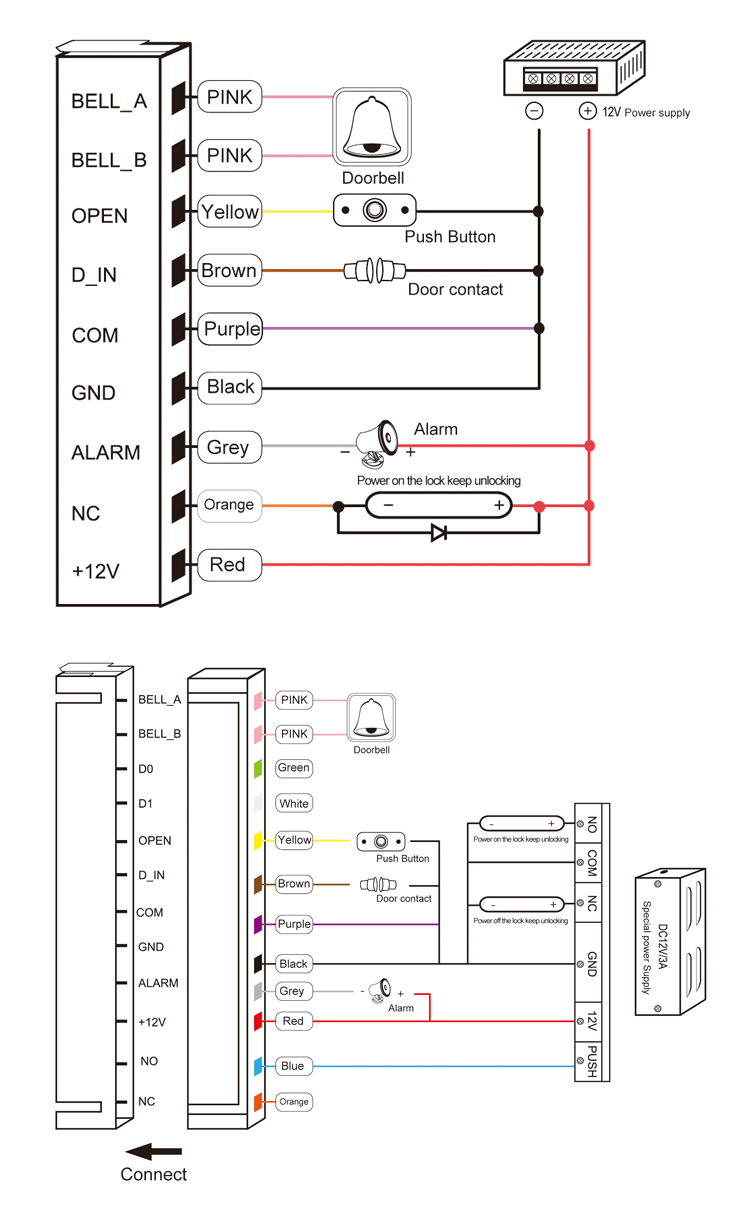

Colour | Function | Description |
Pink | BELL_A | Doorbell button one end |
Pale blue | BELL_B | Doorbell button to the other end |
Green | D0 | WG output D0 |
White | D1 | WG output D1 |
Grey | ALARM | Alarm negative(alarm positive connected 12 V+) |
Yellow | OPEN | Exit button one end(the other end connected GND) |
Brown | D_IN | Magnetic switch one end(the other end connected GND) |
Red | 12V+ | 12V + DC Regulated Power Input |
Black | GND | 12V - DC Regulated Power Input |
Blue | NO | Relay normally-on end(Connect positive electric lock '-') |
Purple | COM | Relay Public end, connect GND |
Orange | NC | Relay Closed-end(connect negative electric lock '-') |
Standalone Access Control System Outdoor Keypad Gate Lock | |||
Model No. | Quantity/Carton | Gross Weight | Carton Size |
K5EM | 54pcs | 30.7KG | 55.5x39.9x40cm |
K5MF | 54pcs | 30.7KG | |
S4A User Manual K5_Standalone Access Control System Outdoor Keypad Gate Lock
