Categories
> Card type: EM or MF Card
> Metal structure design, anti-vandal
> Digital backlit keyboard
> All-in-one, WG26 output/input
> Three-way to open the door, card, password, card + password
Brand:
S4AItem NO.:

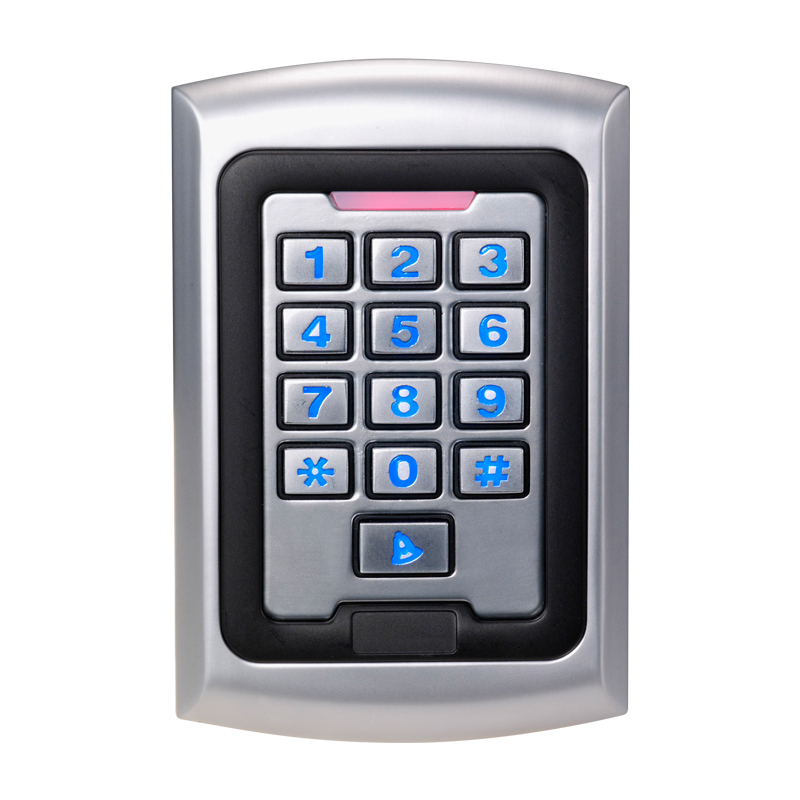

S500Metal Standalone Access control
Model No.: S500 EM, MF
Card type | EM or MF |

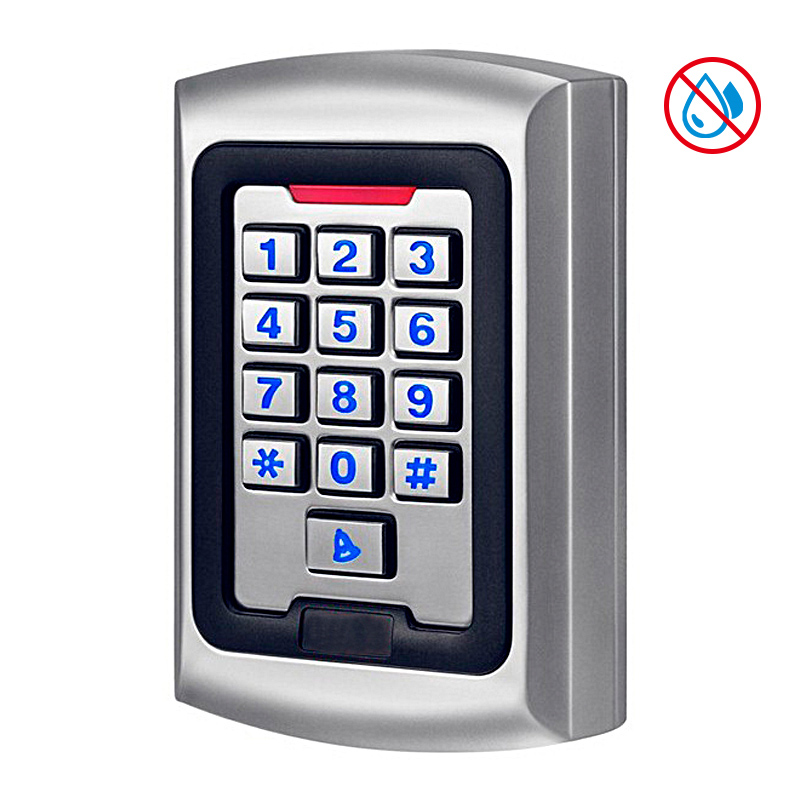

Waterproof degree | Non-Waterproof(S500) / IP68(S500-W) |
User capacity | 2000 card user card, 2000 user password |
Environment Humidity | 10%～90% |
Lock output | ≤3A |
Working voltage | DC12V±10％ |
Static electricity | ≤30mA |
Alarm output | ≤20A |
Output short circuit protection time | ≤100μS |
Card read distance | 5～8cm |
Ambient temperature | -45℃～60℃ |
Door Opening Time | 0～99s(Adjustable) |

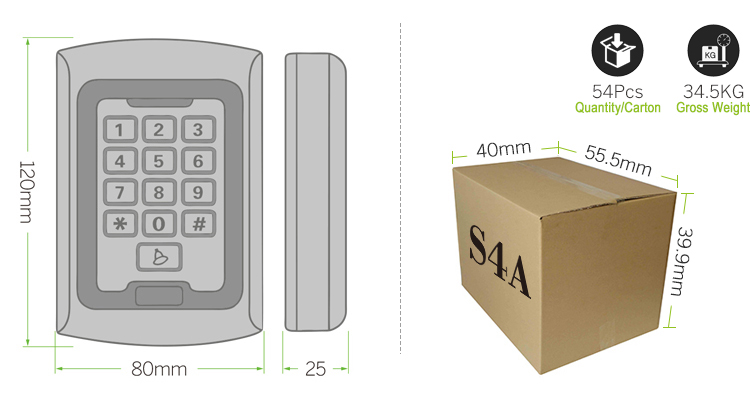

Dimension | 120*80*25mm |
Anti-Vandal One-Door Access Control with Backlit Keyboard | |||
Model No. | Quantity/Carton | Gross Weight | Carton Size |
S500EM | 54pcs | 34.5KG | 55.5x39.9x40cm |
S500MF | |||
S500EM-W | 54pcs | 38.5KG | |
S500MF-W | |||
S4A User Manual S500_Anti-Vandal One-Door Access Control with Backlit Keyboard
