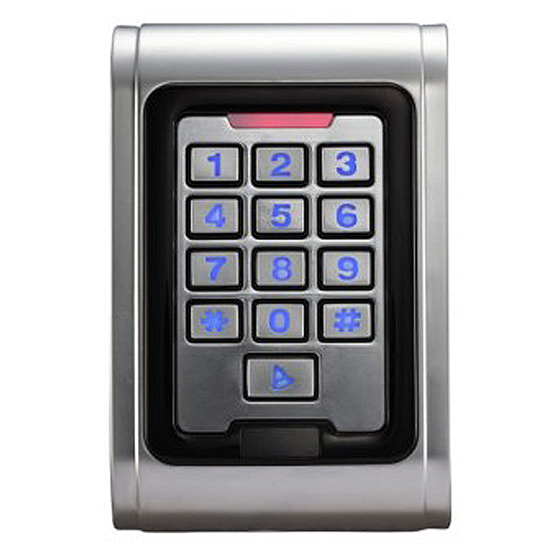

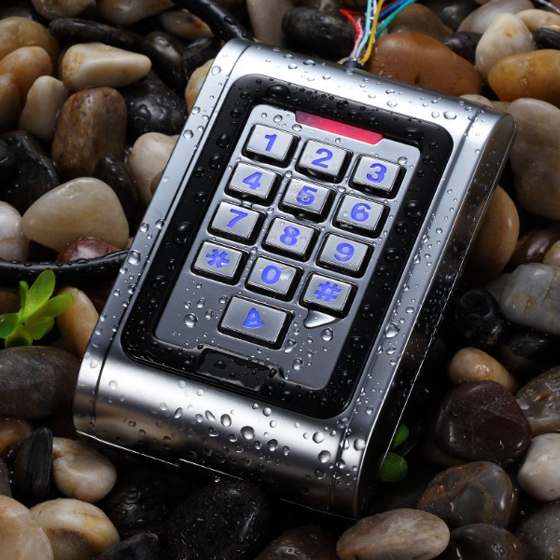

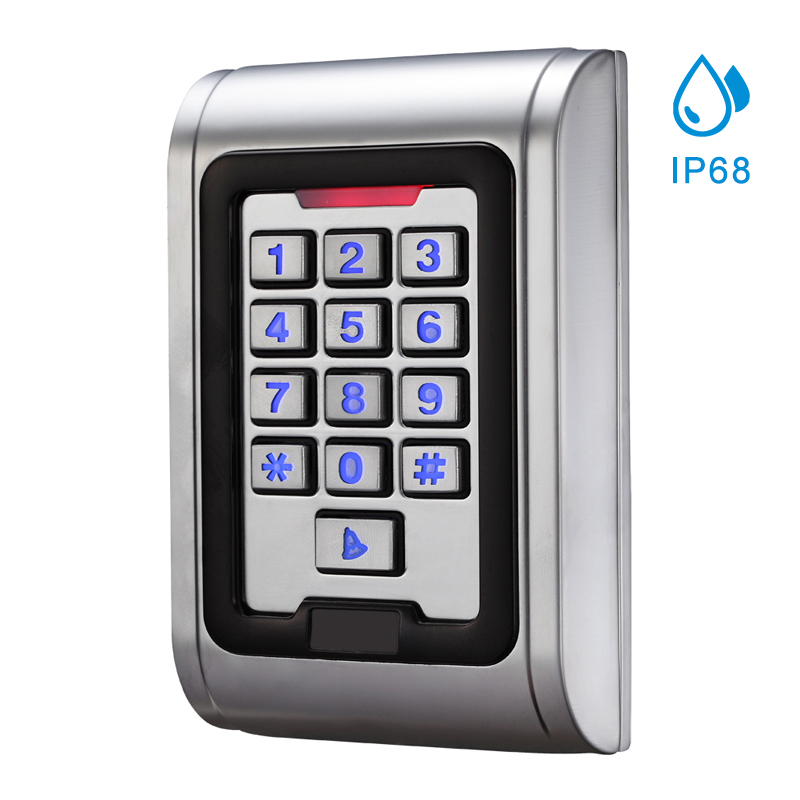

Standalone Waterproof Access Control System Rfid

> Card type: EM or MF Card

> Metal structure design, anti-vandal

> Digital backlit keyboard

> All-in-one, WG26 output/input

> Three-way to open the door, card, password, card + password

> The doorbell button and interface: buttons and isolation circuit, connect to any external bell

  • Brand:

    S4A
  • Item NO.:

    S100
  • Specifications

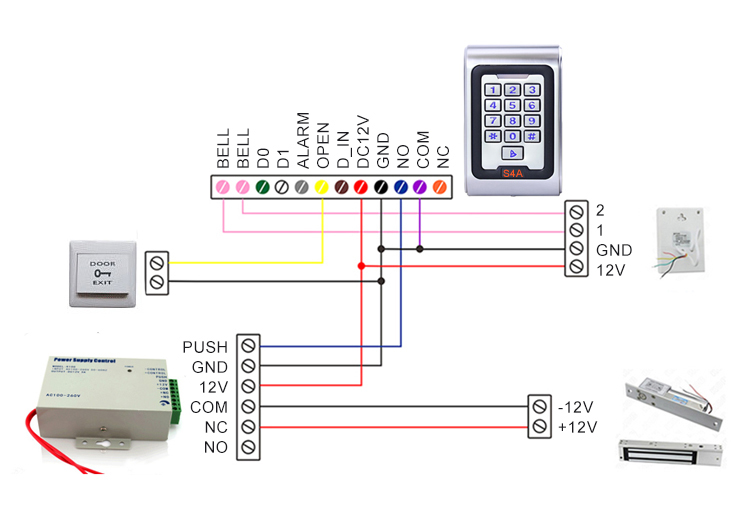

  • Wiring Diagram
  • Package
  • Download

Waterproof Metal Access Control

Model No.: S100 EM, MF


Card type

EM or MF

Waterproof degree

IP68

User capacity

2000 card user card, 2000 user password

Environment Humidity

10%~90%

Lock output

≤3A

Working voltage

DC12V±10%

Static electricity

≤30mA

Alarm output

≤20A

Output short circuit protection time

≤100μS

Card read distance

5~8cm

Ambient temperature

-45℃~60℃

Door Opening Time

0~99s(Adjustable)

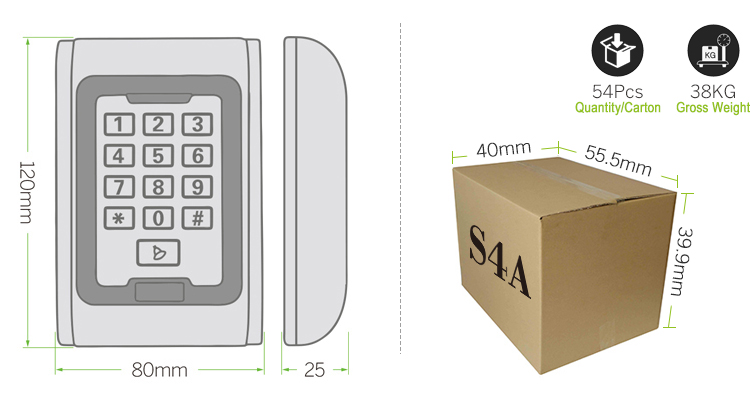

Dimension

120*80*25mm


Advantageous for Metal  Standalone Access control kit

> Perfect design, with backlight and fashion silver finish.

> Waterproof design for outdoor use.

> A strong standalone function device can be used as a WG26 reader alone.

> Capacity: 2000 user's cards, 2000 codes.

> Access ways: cards, code, card+code.

> Low power: static current less than 30mA

> Support the keypad.

> Users can reset private passwords.

> Search fast less than 0.1S.

> Wiegand output W26 for card and w4 for codes.

> Use the keypad to delete lost cards for safety.

> Short-circuit protect: when relay or alarm output short circuit, it will shut up output in 100μS.


access control system rfid



access control system rfid

Standalone Waterproof Access Control System Rfid

Model No.

Quantity/Carton

Gross Weight

Carton Size

S100EM-W

54pcs

38KG

55.5x39.9x40cm

S100MF-W

54pcs

38KG

access control system rfid

S4A S100 Use Manual_Standalone Waterproof Access Control System Rfid
