>Working voltage:AC/DC 12 - 24V
>Static electricity:≤30mA
>Alarm output:≤20A
Brand:
S4AItem NO.:

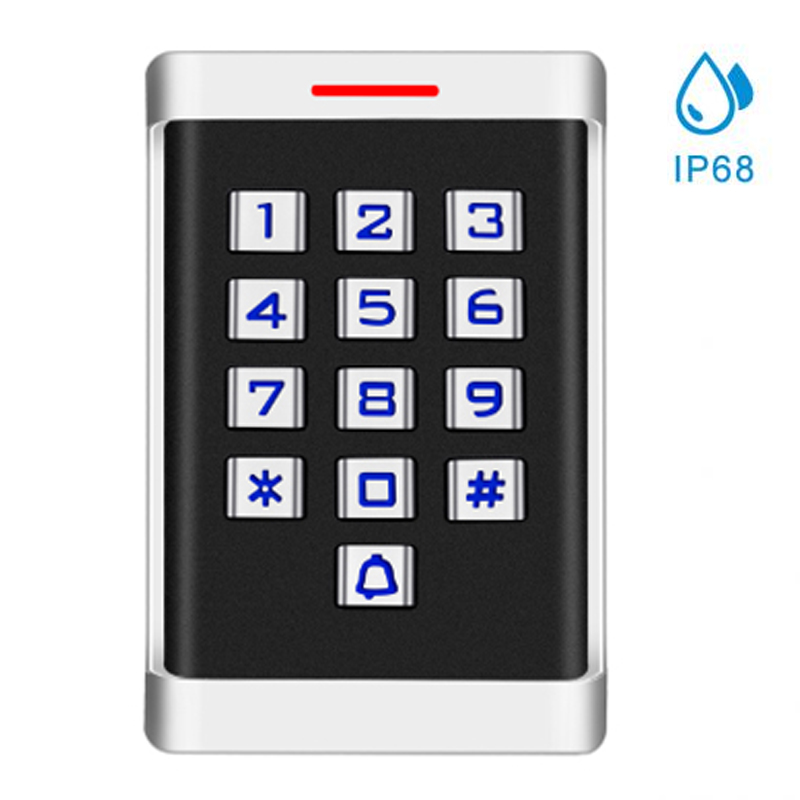

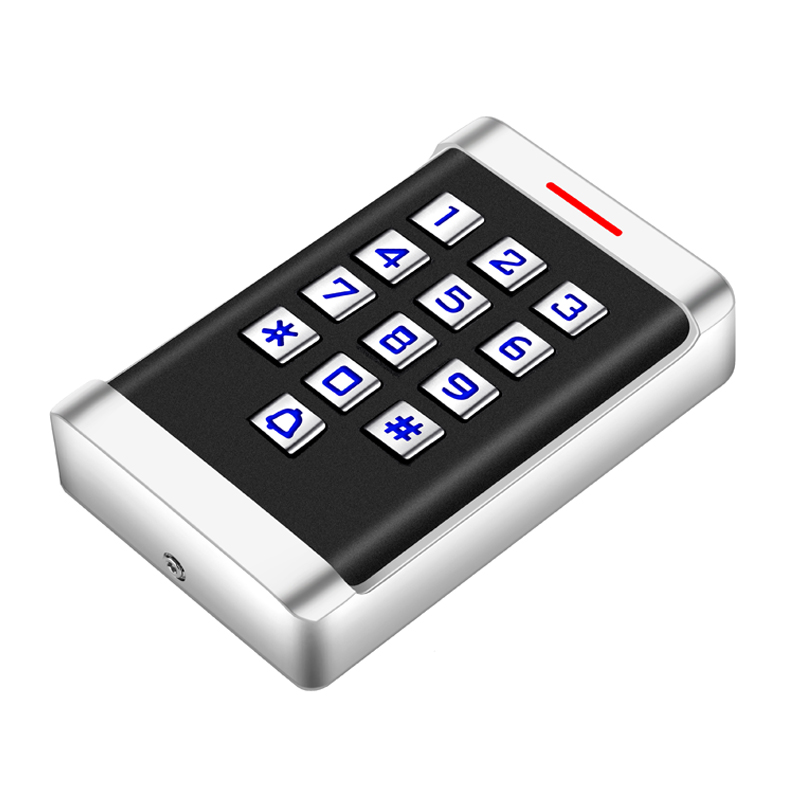

H2H2 Metal Access Controller
Model No.: H2
Feature:
> Waterproof Degree: IP68
> Metal structure design, anti-vandal
> Digital backlit keyboard
> All-in-one, WG26 output / input
> User capacity: 2000 card user card, 2000 user password
> Three way to open the door, card, password, card + password
> The doorbell button and interface: buttons and isolation circuit,
> Connect to any external bell
S4A Model:
> H2EM: Metal Keypad, Read RFID-125KHz Cards
> H2MF: Metal Keypad, Read Mifare-13.56MHz Cards
> H2EM-W: Metal Keypad, IP68 Waterproof, Read RFID-125KHz Cards
> H2MF-W: Metal Keypad, IP68 Waterproof, Read Mifare-13.56MHz Cards
| Product Parameter | Parameter Description |
| S4A Model | H2 |
| Product Name | Metal Access Control Keypad |
| Card type | EM or MF |
| Waterproof degree | IP68 |
| User capacity | 2000 card user card, 2000 user password |
| Environment Humidity | 10%～90% |
| Lock output | ≤3A |
| Working voltage | AC/DC 12 - 24V |
| Static electricity | ≤30mA |
| Alarm output | ≤20A |
| Output short circuit protection time | ≤100μS |
| Card read distance | 5~8cm |
| Ambient temperature | ‘-45℃~60℃ |
| Door Opening Time | 0~99s(Adjustable) |

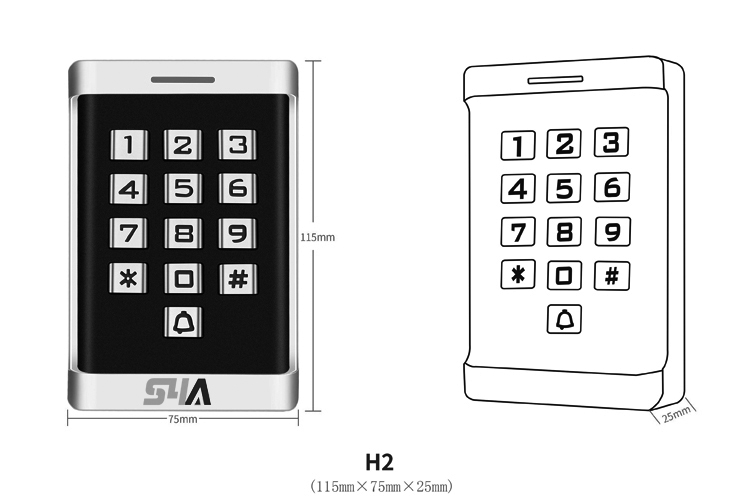

| Dimension | 115*75*25mm |
> Card type: EM Card> Dimension: 120 x 56 x 18mm> Access Control Keypad Containing 2000 users with Pincode
> Card type: EM or MF Card> Metal structure design, anti-vandal> Digital backlit keyboard> All-in-one, WG26 output/input> Three-way to open the door, card, password, card + password> The doorbell button and interface: buttons and isolation circuit, connect to any external bell
> Card type: EM or MF Card> Metal structure design, anti-vandal> Digital backlit keyboard> All-in-one, WG26 output/input> Three-way to open the door, card, password, card + password
> Card type: EM or MF Card> Metal structure design, anti-vandal> Digital backlit keyboard> All-in-one, WG26 output/input> Three-way to open the door, card, password, card + password
> Card type: EM or MF Card> Metal structure design, anti-vandal> Digital backlit keyboard> All-in-one, WG26 output/input> Three-way to open the door, card, password, card + password> The doorbell button and interface: buttons and isolation circuit, connect to any external bell
> Card type: EM or MF Card> Metal structure design, anti-vandal> Digital backlit keyboard> All-in-one, WG26 output/input> Three-way to open the door, card, password, card + password> The doorbell button and interface: buttons and isolation circuit, connect to any external bell
> Card type: EM or MF Card> Metal structure design, anti-vandal> Digital backlit keyboard> All-in-one, WG26 output/input> Three-way to open the door, card, password, card + password> The doorbell button and interface: buttons and isolation circuit, connect to any external bell
> Card type: EM or MF Card> Metal structure design, anti-vandal> Digital backlit keyboard> All-in-one, WG26 output/input> Three-way to open the door, card, password, card + password> The doorbell button and interface: buttons and isolation circuit, connect to any external bell
S4A appreciate any of your inquiries and sincerelyhope to enjoy a fruitful long-term business relationship with youto share in the mutual benefits, If you have any questions, please feel free to contact us.
