International Standard 86size Access Control Reader for outdoor use

> Card type: EM or MF Card

> Metal structure design, anti-vandal

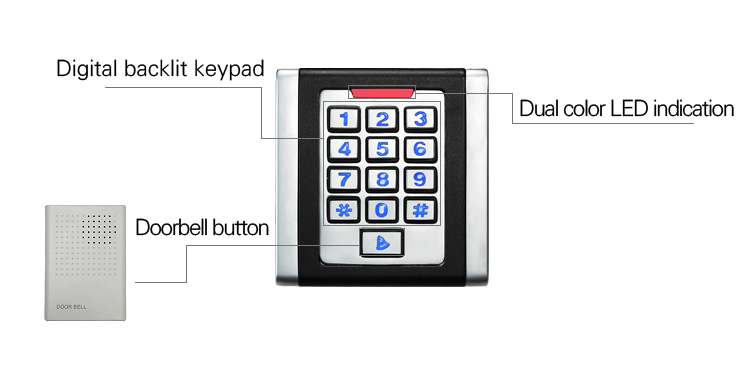

> Digital backlit keyboard

> All-in-one, WG26 output/input

> Three-way to open the door, card, password, card + password

> The doorbell button and interface: buttons and isolation circuit, connect to any external bell

  • Brand:

    S4A
  • Item NO.:

    K6-W
  • Specifications

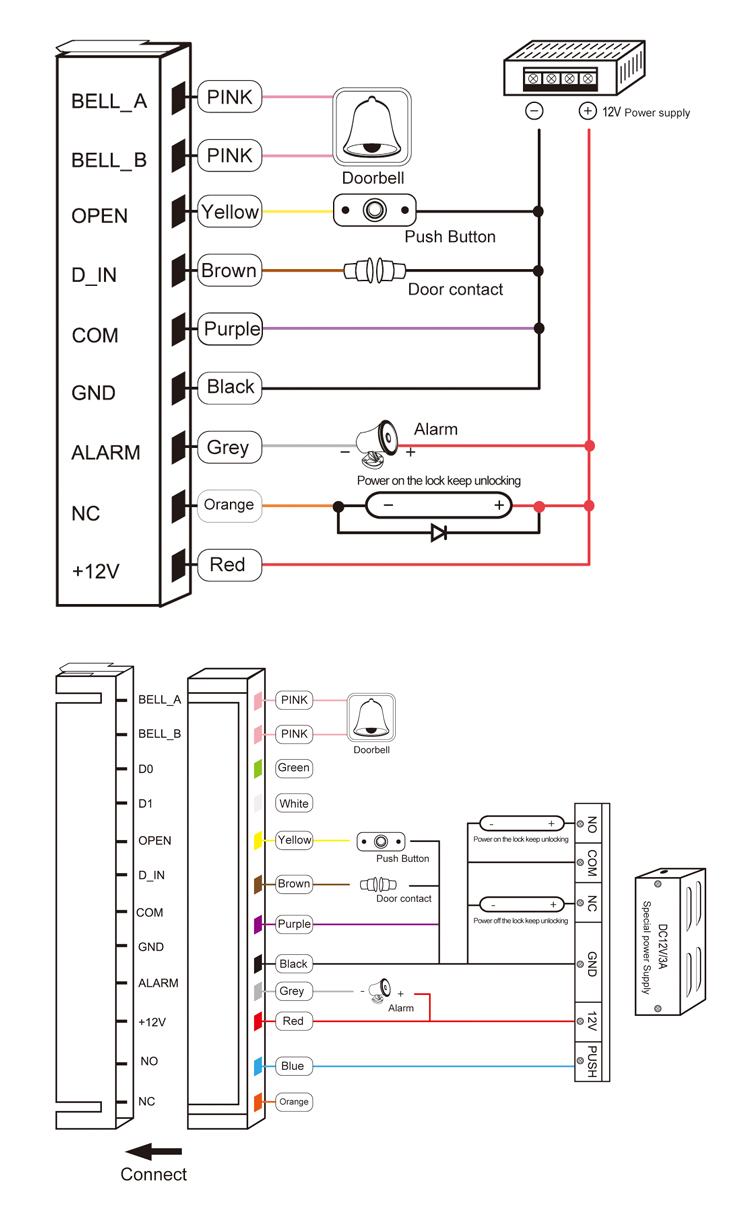

  • Wiring Diagram
  • Package

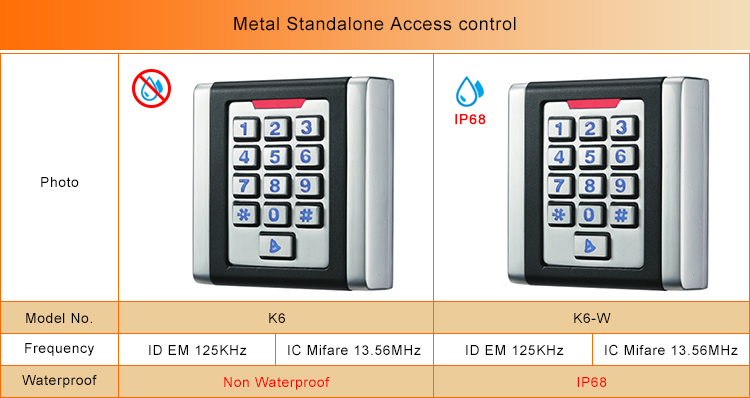

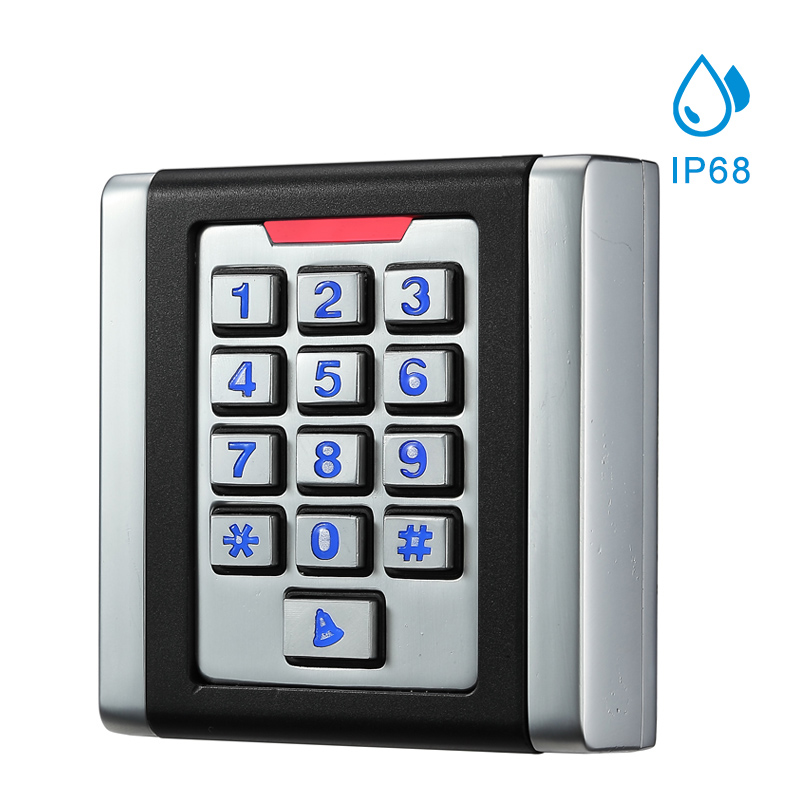

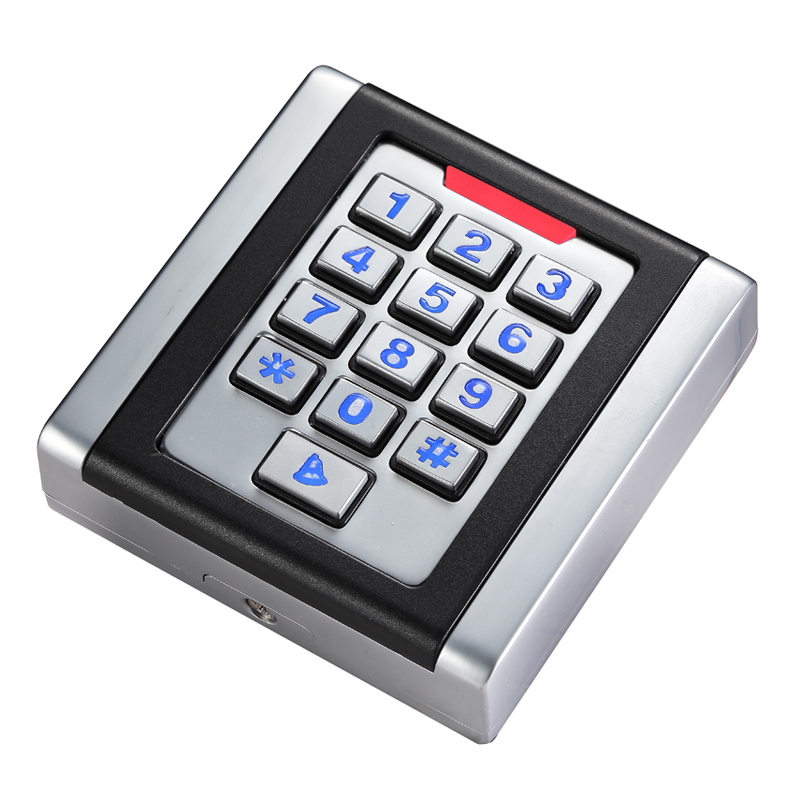

Waterproof Metal Access Control

Model No.: K6-W EM, MF


Waterproof Metal Access Control


Card type

EM or MF

Waterproof degree

Non-Waterproof(K6) / IP68(K6-W)

User capacity

2000 card user card, 2000 user password

Environment Humidity

10%~90%

Lock output

≤3A

Working voltage

DC12V±10%

Static electricity

≤30mA

Alarm output

≤20A

Output short circuit protection time

≤100μS

Card read distance

5~8cm

Ambient temperature

-45℃~60℃

Door Opening Time

0~99s(Adjustable)

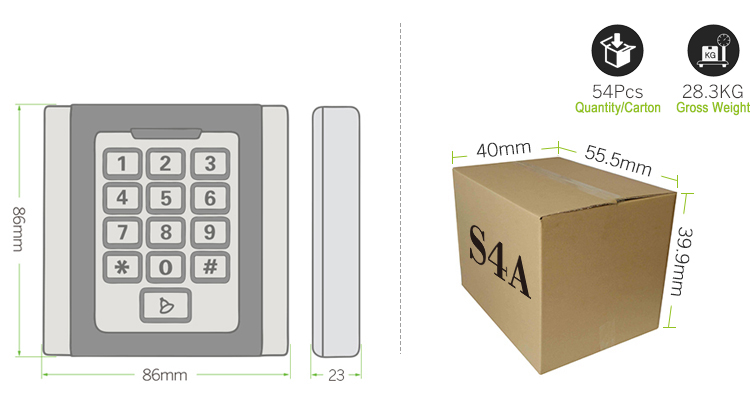

Dimension

86*86*23mm

Waterproof Metal Access Control

Waterproof Metal Access Control

Waterproof Metal Access Control

Waterproof Metal Access Control
