> Voltage: DC12V (24V is customized)
> Holding force: 70KG (150lbs)
> Current Draw: DC12/180mA
> Suitable: For auto-Door
Brand:
S4AItem NO.:

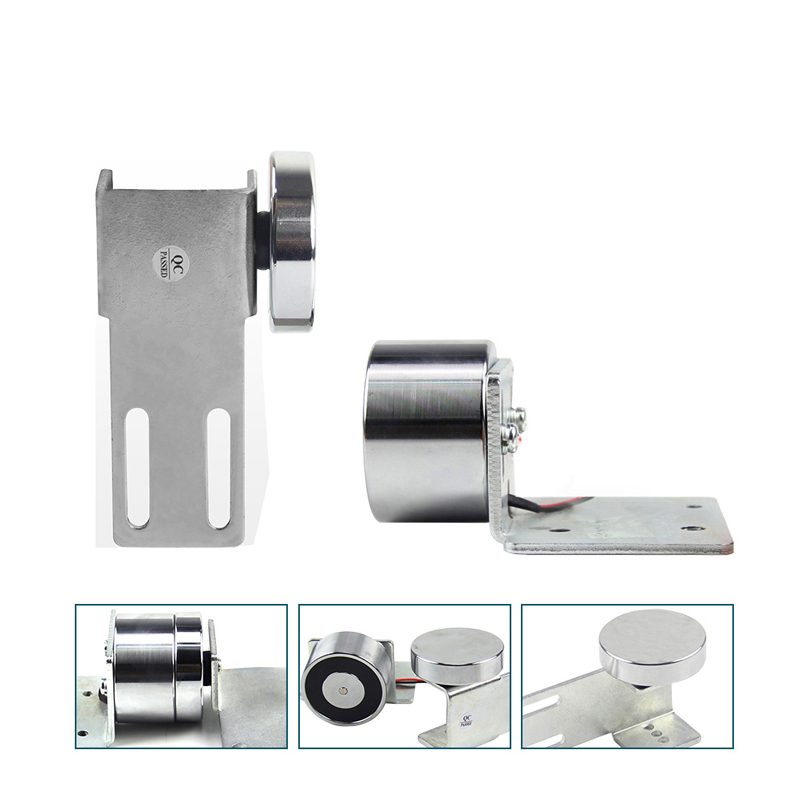

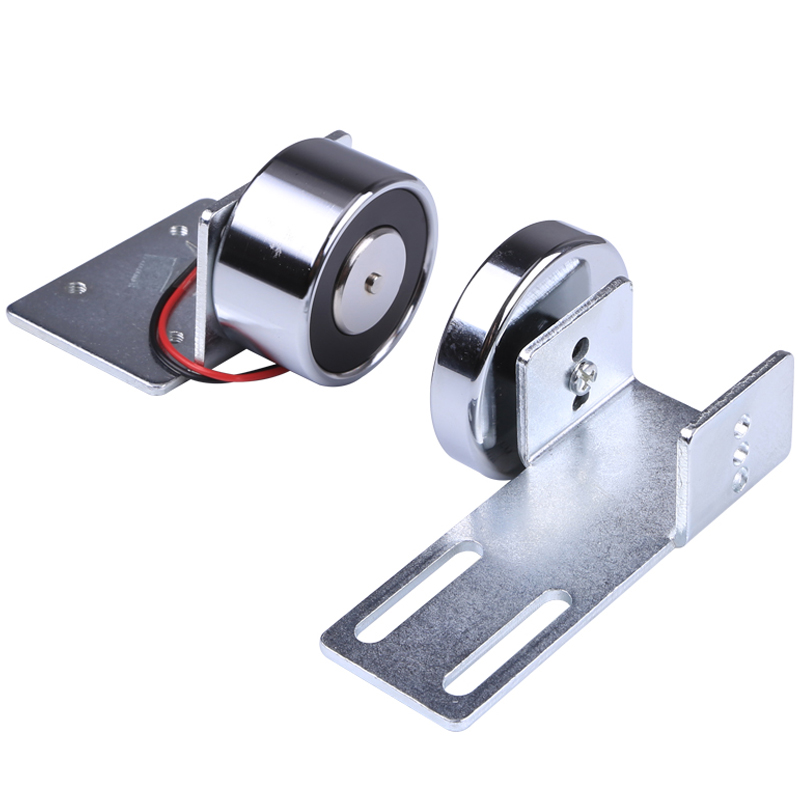

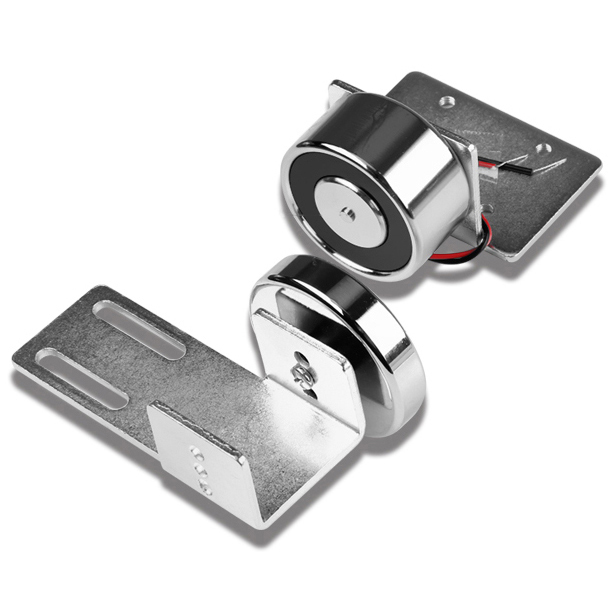

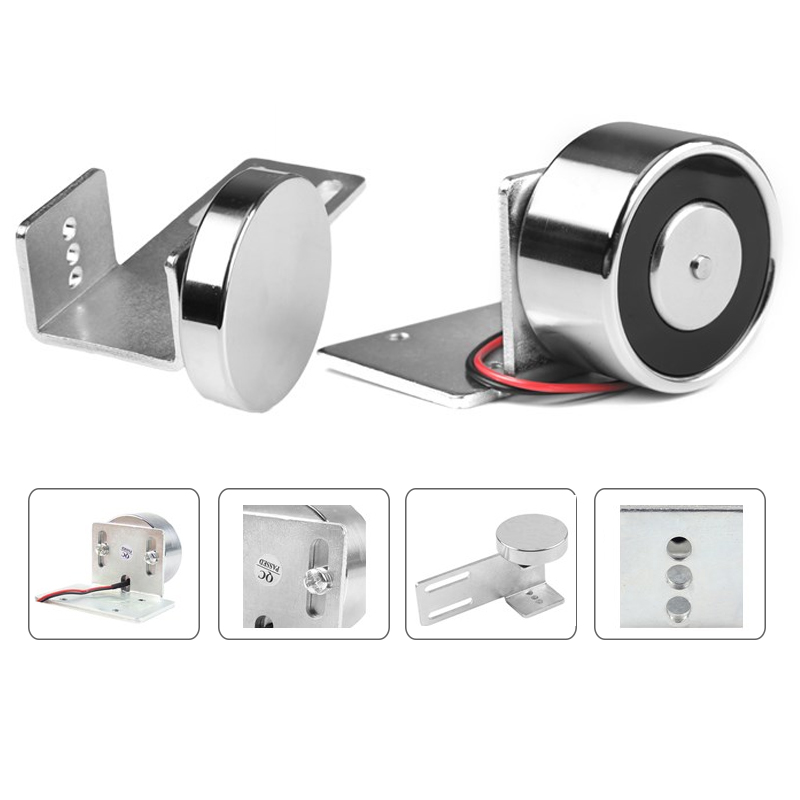

EL-150Magnetic Locks for Automatic Doors
Model No.: EL-150
Basic Instruction
Special design and suitable for any auto-door
Professional design, install easily, adjust convenient
No Fault Diagnosis, safety, durable
Selected product by Auto-door manufacturer
Model | EL-150 |
Voltage | DC12V |
Current | 170mA ( DC12V ) |
Option: 85mA ( DC24V ) | |
Lock size | 70Lx70Wx50H(mm) |
Armature plate | 100Lx53Wx53H(mm) |
Holding force | 70KG ( 150lbs ) |
Power off button | NO |
Material | High-temperature paint and environment protection Zinc |
Suitable | Auto-door |
Surface temp | 50° |
Operating temp | -20℃ ~ 55℃ (14°F ~ 131°F) |
Suitable humidity | 0 ~ 90% (relative humidity) |
Magnetic Locks for Automatic Doors | ||||
Model No. | Dimension | Quantity/Carton | Gross Weight | Carton Size |
EL-150 | 70x70x50mm | 50pcs | 36.92KG | 50x36x32cm |

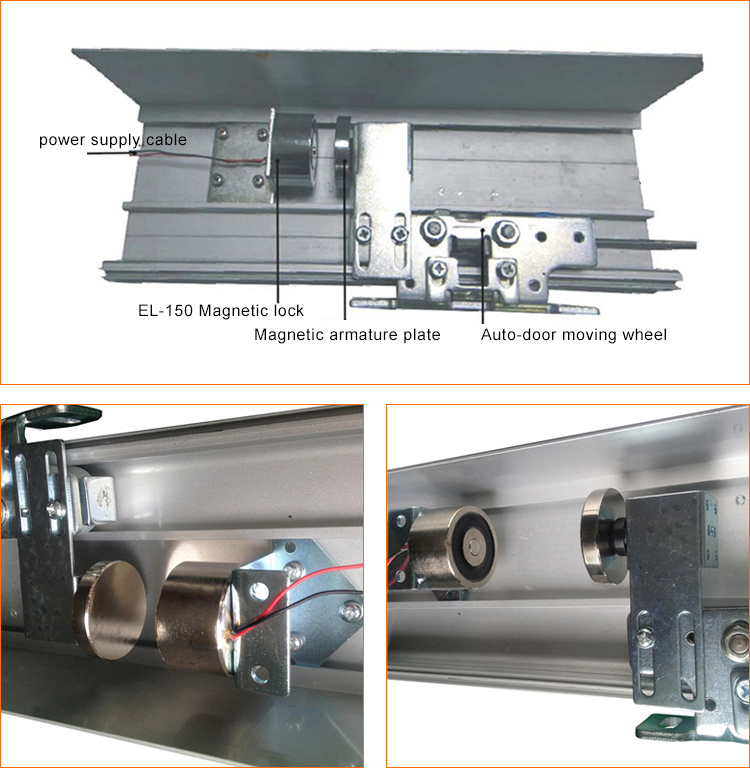

S4A_Instruction for Magnetic Locks for Automatic Doors
> Holding Force: 60KG(100Lbs)> Voltage: DC12V> lock size: 79Lx40Wx23H(mm)> Armature plate: 75Lx31Wx10H(mm)
> Holding Force: 60KG(100Lbs)> Voltage: DC24V> lock size: 79Lx40Wx23H(mm)> Armature plate: 75Lx31Wx10H(mm)
> Holding Force: 60KG(100Lbs)> Voltage: DC12V> lock size: 114Lx35Wx23H(mm)> Armature plate: 75Lx31Wx10H(mm)
> Holding Force: 60KG(100Lbs)> Voltage: DC24V> lock size: 114Lx35Wx23H(mm)> Armature plate: 75Lx31Wx10H(mm)
>100lbs Embedded Door Electromagnetic Lock, it is designed for showcase, cabinet door and easy to install .>Accessories are available for inward door, frameless glass door and narrow doorframe door. >Special anti-residual magnetism designed.
>100lbs Embedded Door Electromagnetic Lock, it is designed for showcase, cabinet door and easy to install .>Accessories are available for inward door, frameless glass door and narrow doorframe door. >Special anti-residual magnetism designed.
> Holding Force: 60KG(100Lbs)> Voltage: DC12V>Finishes for magnetic:Zinc>Current draw: 12V/160mA
> Holding Force: 60KG(100Lbs)> Voltage: DC12V> lock size: 79Lx40Wx23H(mm)> Armature plate: 75Lx31Wx10H(mm)
S4A appreciate any of your inquiries and sincerelyhope to enjoy a fruitful long-term business relationship with youto share in the mutual benefits, If you have any questions, please feel free to contact us.
