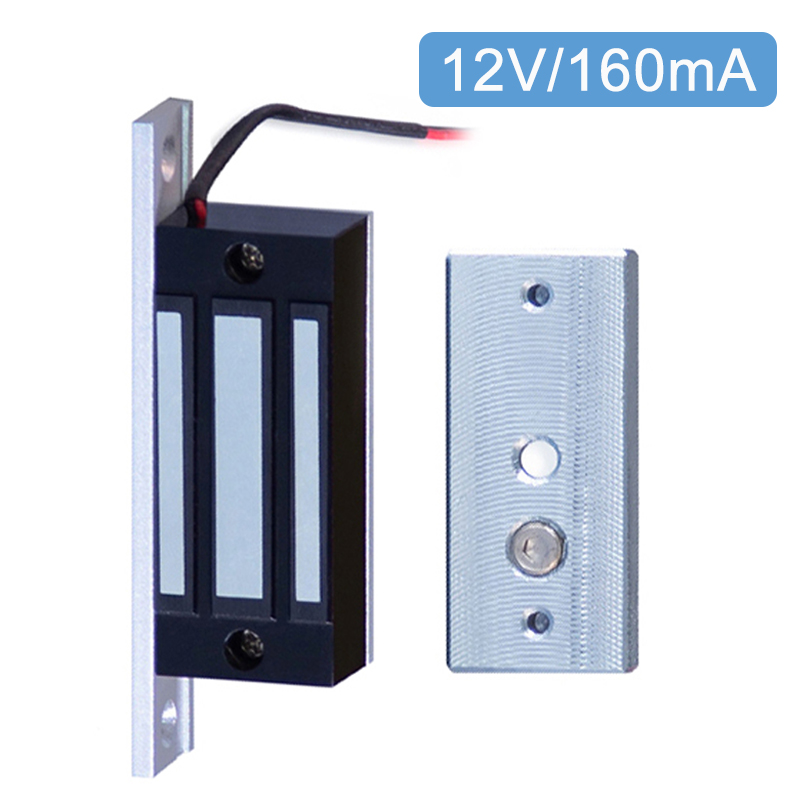

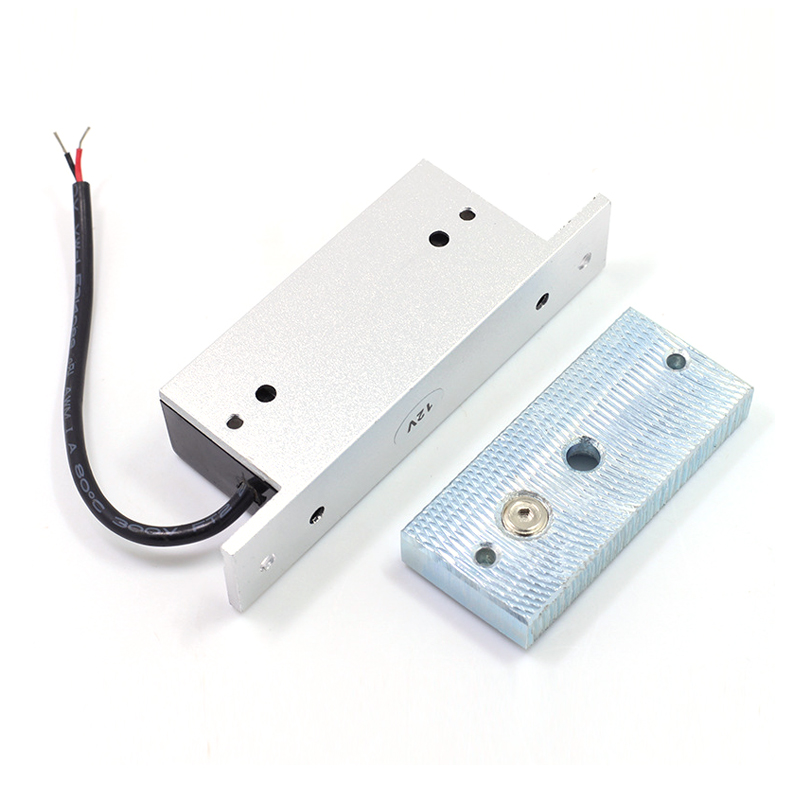

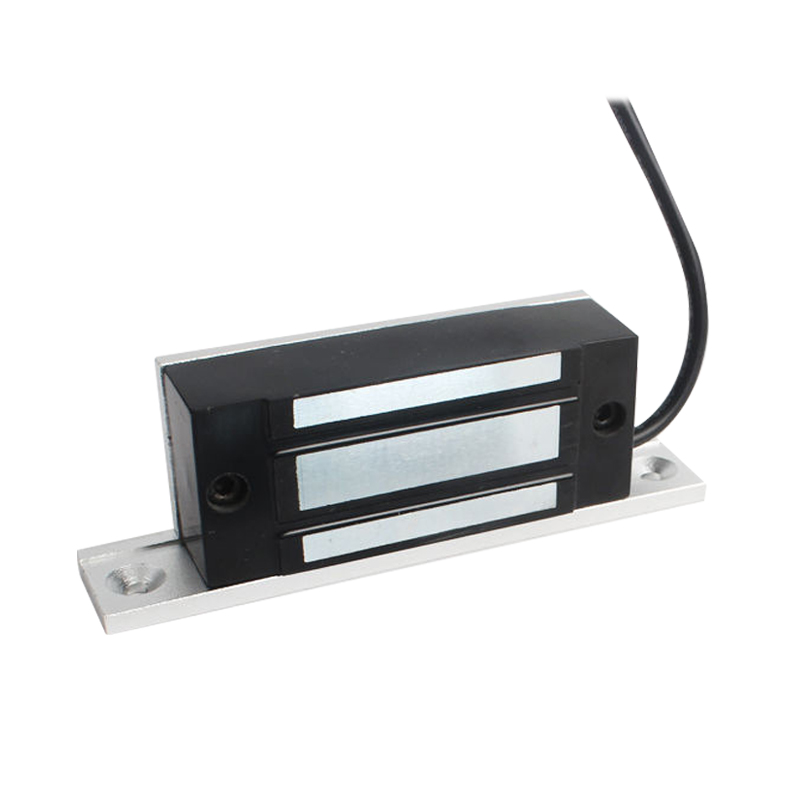

60KG Electric Magnetic Lock Fail-Safe DC12V for Access Control System

> Holding Force: 60KG(100Lbs)

> Voltage: DC12V

> lock size: 114Lx35Wx23H(mm)

> Armature plate: 75Lx31Wx10H(mm)

  • Brand:

    S4A
  • Item NO.:

    EL-H100 12V
  • Specifications
  • Wiring Diagram
  • Package
  • Download

60KG Electric Magnetic Lock Fail-Safe DC12V for Access Control System

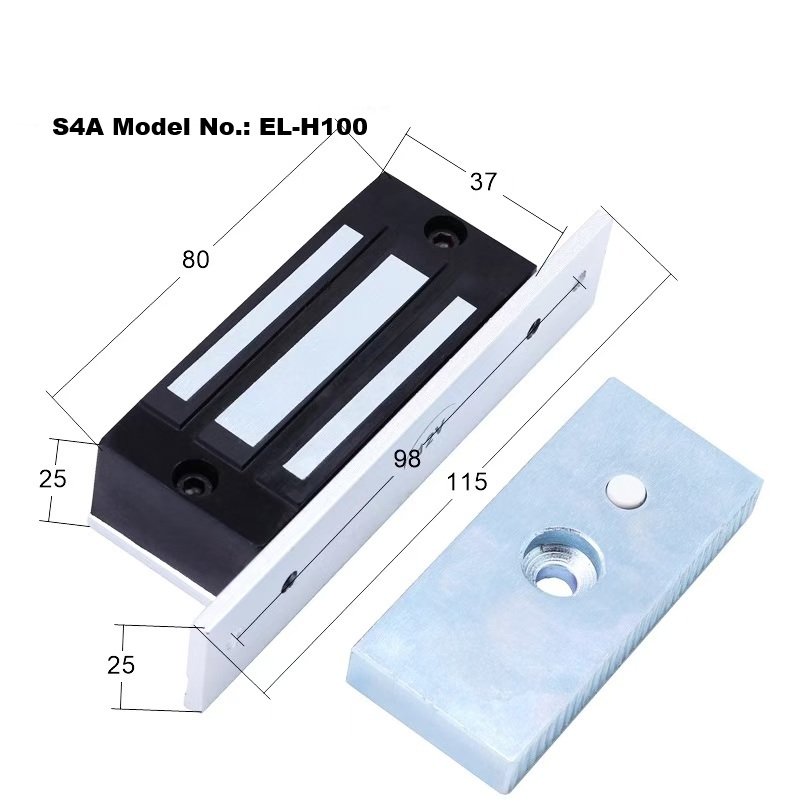

Model No.: EL-H100 12V


What is Electromagnetic Lock?


Electromagnetic locks consist of an armature and a coil assembly, which become magnetized when an electric current passes through them. This magnetic field secures the door and electronically controls when doors are locked and unlocked.

Electromagnetic locks are fail-safe by design.


Item

Parameter

Lock size

114Lx35Wx23H(mm)

Armature plate

75Lx31Wx10H(mm)

Holding force

60kg(100Lbs)

Voltage

DC 12V

Current draw

12V/160mA

Suitable for

File Cabinet, Display Cabinet

Operating temp

≤20°C

Surface temp

-10℃ ~ 55℃ (14°F~131°F)

Suitable humidity

0~90%(non-condensing)

Finishes for shell

Anodized aluminum surface texture processing

Finishes for magnetic

Zinc

Finishes for armature

Zinc

Weight

0.6kg

Standard packing

60pcs


 Magnetic Lock

 Magnetic Lock

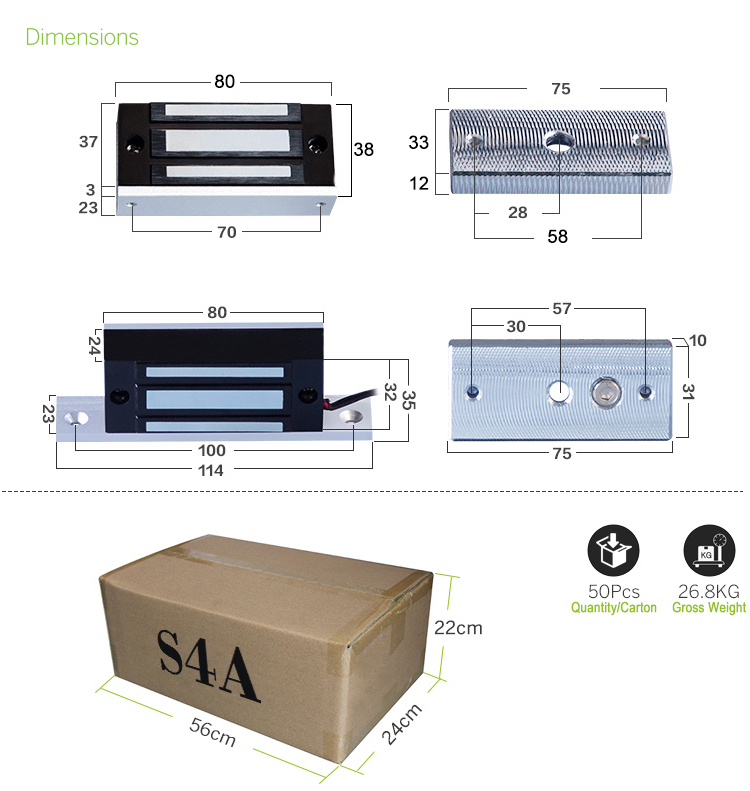

60KG Electric Magnetic Lock Fail-Safe DC12V for Access Control System

Model No.

Dimension

Quantity/Carton

Gross Weight

Carton Size

EL-H100 12V

114x35x23mm

50pcs

26.8KG

56x24x22cm

EL-H100 24V

26.8KG

 Magnetic Lock


S4A Instruction_EL-100H 60KG Electric Magnetic Lock Fail-Safe DC12V For Access Control System
