> Holding Force: 60KG(100Lbs)
> Voltage: DC24V
> lock size: 114Lx35Wx23H(mm)
> Armature plate: 75Lx31Wx10H(mm)
Brand:
S4AItem NO.:

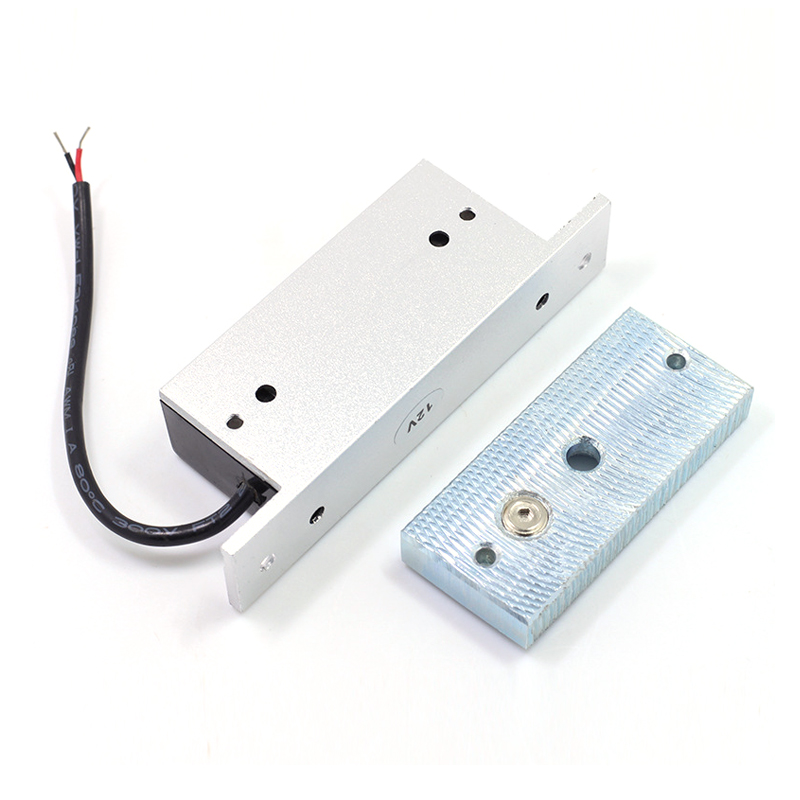

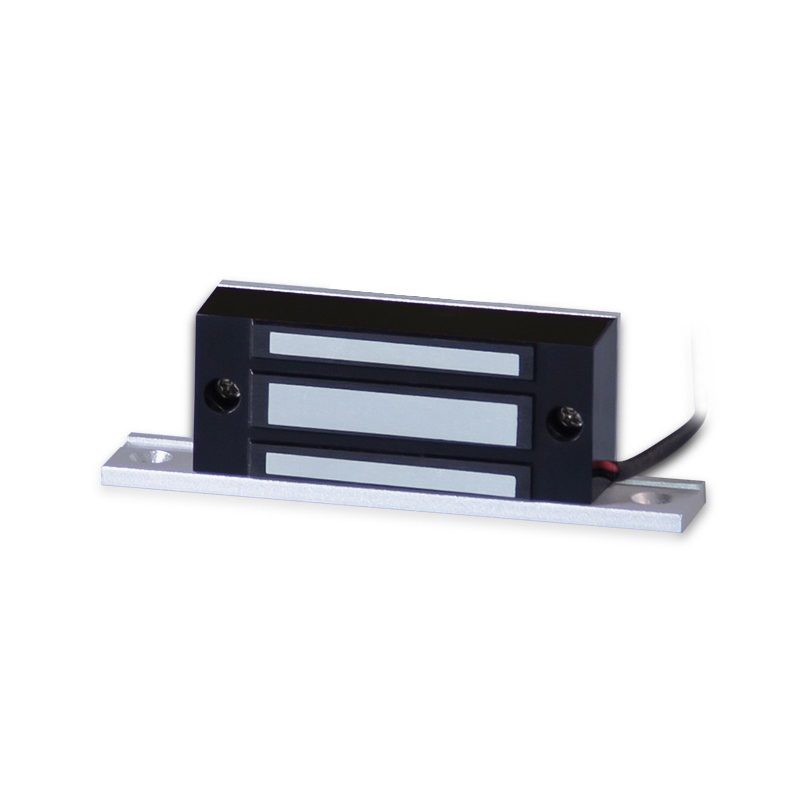

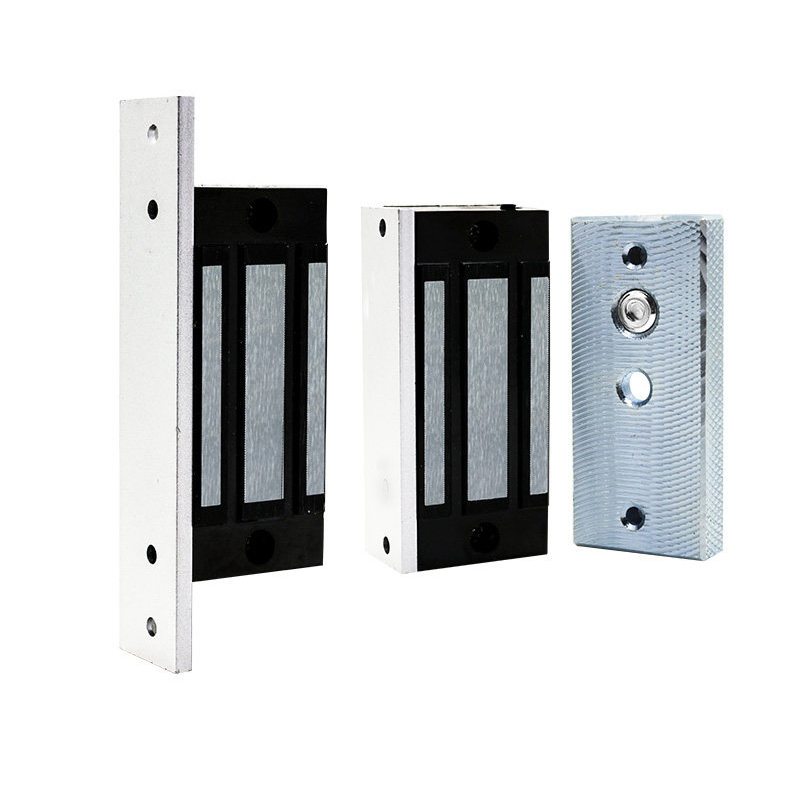

EL-H100 24V12V Mini 60kg Hanging Hidden Electromagnetic Lock
Model No.: EL-H100 24V
What is Electromagnetic Lock?
Electromagnetic locks consist of an armature and a coil assembly, which become magnetized when an electric current passes through them. This magnetic field secures the door and electronically controls when doors are locked and unlocked.
Electromagnetic locks are fail-safe by design.
Item | Parameter |

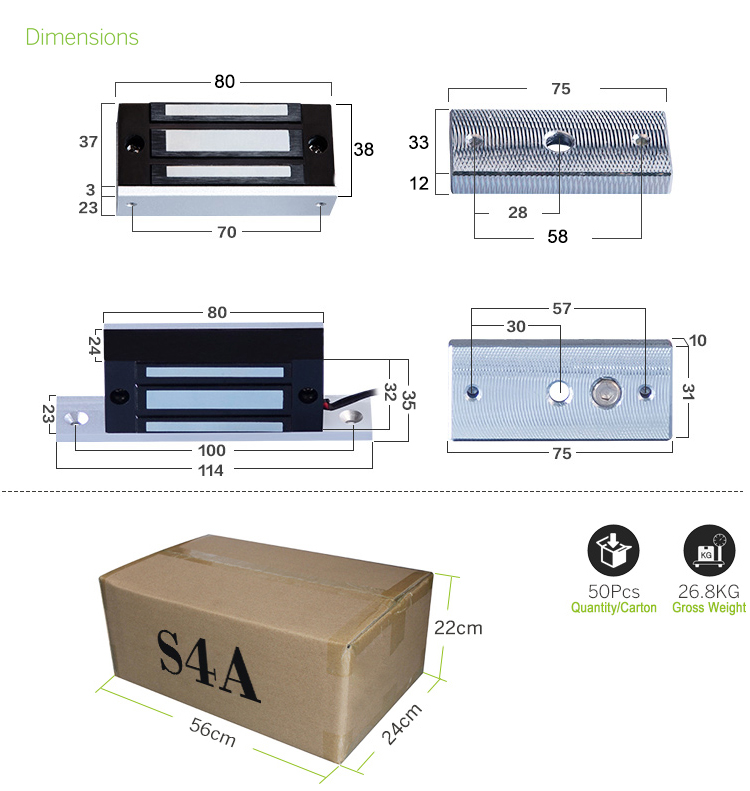

Lock size | 114Lx35Wx23H(mm) |
Armature plate | 75Lx31Wx10H(mm) |
Holding force | 60kg(100Lbs) |
Voltage | DC 24V |

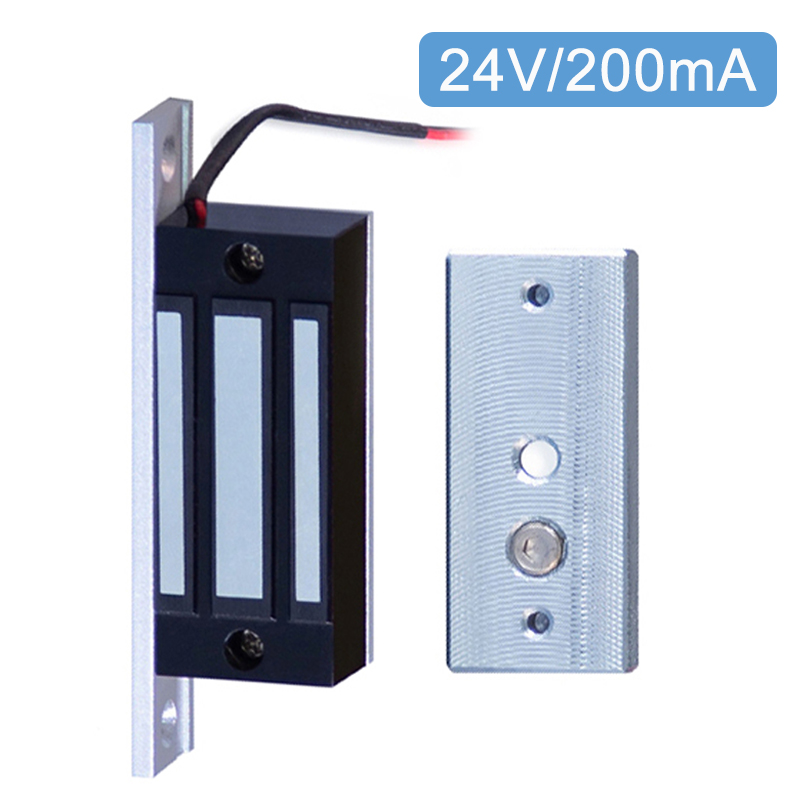

Current draw | 24V/200mA |
Suitable for | File Cabinet, Display Cabinet |
Operating temp | ≤20°C |
Surface temp | -10℃ ~ 55℃ (14°F~131°F) |
Suitable humidity | 0~90%(non-condensing) |
Finishes for shell | Anodized aluminum surface texture processing |
Finishes for magnetic | Zinc |
Finishes for armature | Zinc |
Weight | 0.6kg |
Standard packing | 60pcs |
12V Mini 60kg Hanging Hidden Electromagnetic Lock | ||||
Model No. | Dimension | Quantity/Carton | Gross Weight | Carton Size |
EL-H100 12V | 114x35x23mm | 50pcs | 26.8KG | 56x24x22cm |
EL-H100 24V | 26.8KG | |||
S4A Instruction_12V Mini 60kg Hanging Hidden Electromagnetic Lock
> Holding Force: 60KG(100Lbs)> Voltage: DC12V> lock size: 79Lx40Wx23H(mm)> Armature plate: 75Lx31Wx10H(mm)
> Holding Force: 60KG(100Lbs)> Voltage: DC24V> lock size: 79Lx40Wx23H(mm)> Armature plate: 75Lx31Wx10H(mm)
> Holding Force: 60KG(100Lbs)> Voltage: DC12V> lock size: 114Lx35Wx23H(mm)> Armature plate: 75Lx31Wx10H(mm)
> Voltage: DC12V (24V is customized)> Holding force: 70KG (150lbs)> Current Draw: DC12/180mA> Suitable: For auto-Door
>100lbs Embedded Door Electromagnetic Lock, it is designed for showcase, cabinet door and easy to install .>Accessories are available for inward door, frameless glass door and narrow doorframe door. >Special anti-residual magnetism designed.
>100lbs Embedded Door Electromagnetic Lock, it is designed for showcase, cabinet door and easy to install .>Accessories are available for inward door, frameless glass door and narrow doorframe door. >Special anti-residual magnetism designed.
> Holding Force: 60KG(100Lbs)> Voltage: DC12V>Finishes for magnetic:Zinc>Current draw: 12V/160mA
> Holding Force: 60KG(100Lbs)> Voltage: DC12V> lock size: 79Lx40Wx23H(mm)> Armature plate: 75Lx31Wx10H(mm)
