Electromagnetic Lock Flush Mount with 60KG 100lbs Embedded Electric Magnetic Lock

>100lbs Embedded Door Electromagnetic Lock, it is designed for showcase, cabinet door and easy to install .

>Accessories are available for inward door, frameless glass door and narrow doorframe door.

>Special anti-residual magnetism designed.

  • Brand:

    S4A
  • Item NO.:

    EM-100T 12V
  • Specifications
  • Wiring Diagram
  • Package
  • Download

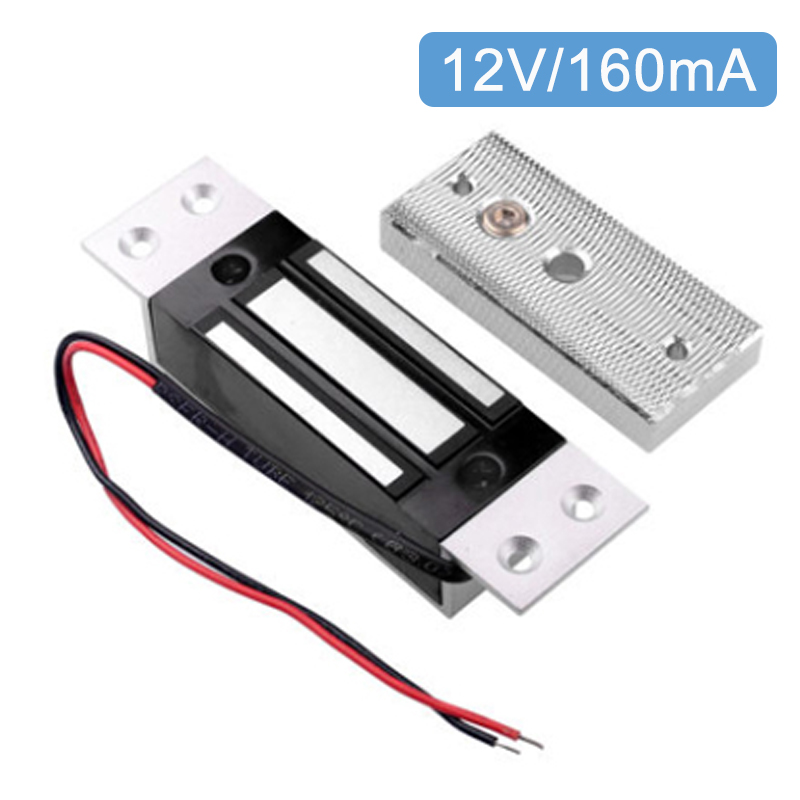

Electromagnetic Lock Flush Mount with 60KG 100lbs  Embedded Electric Magnetic Lock

Model No.: EM-100T 12V


What is Electromagnetic Lock?

Electromagnetic locks consist of an armature and a coil assembly, which become magnetized when an electric current passes through them. This magnetic field secures the door and electronically controls when doors are locked and unlocked.

Electromagnetic locks are fail-safe by design.


Product Parameter

Parameter Description

S4A Model No.

EM-100T

Product Name

Embedded door Mini Magnetic Lock

Holding Force

60KG(100LBS)

Input Voltage

DC12V (Option DC24V)

Current

12V/160mA(±10%);


24V/80mA(±10%)

Suitable

File Cabinet ,Display Cabinet

Surface Temp

≤+20℃

Operating Temp

-20℃~+55℃(-4—131°F)

Humidity

0~90%(non-condensing)

Cover Finish

Anodized aluminum

Lock Finish

Zinc

Armature Plate Finish

Zinc

Unit Weight

0.5KG

Standard Package

24PCS/carton

Carton Weight

12KG

Carton Size

30*35*16cm


Electromagnetic Lock Flush Mount

Electromagnetic Lock Flush Mount

Electromagnetic Lock Flush Mount

S4A_Datesheet_Electromagnetic Lock Flush Mount with 60KG 100lbs  Embedded Electric Magnetic Lock
