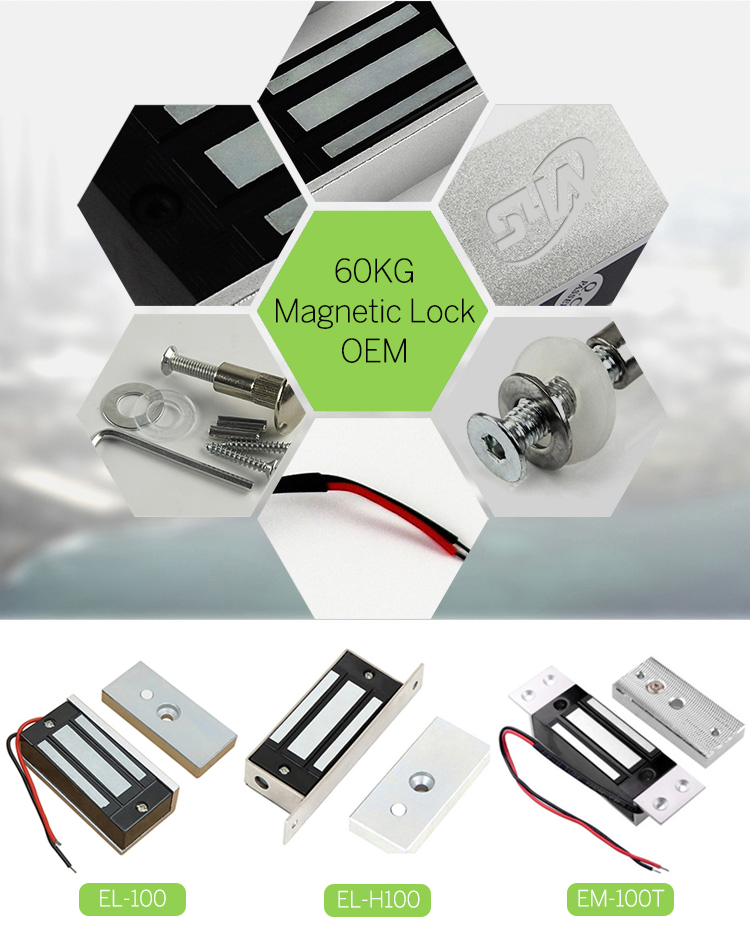

>100lbs Embedded Door Electromagnetic Lock, it is designed for showcase, cabinet door and easy to install .
>Accessories are available for inward door, frameless glass door and narrow doorframe door.
>Special anti-residual magnetism designed.
Brand:
S4AItem NO.:
EM-100T 24VElectromagnetic Lock Flush Mount with 60KG 100lbs Embedded Electric Magnetic Lock 24V
Model No.: EM-100T 24V
What is Electromagnetic Lock?
Electromagnetic locks consist of an armature and a coil assembly, which become magnetized when an electric current passes through them. This magnetic field secures the door and electronically controls when doors are locked and unlocked.
Electromagnetic locks are fail-safe by design.
Product Parameter | Parameter Description |
S4A Model No. | EM-100T |
Product Name | Embedded door Mini Magnetic Lock |
Holding Force | 60KG(100LBS) |
Input Voltage | DC12V (Option DC24V) |
Current | 12V/160mA(±10%); |

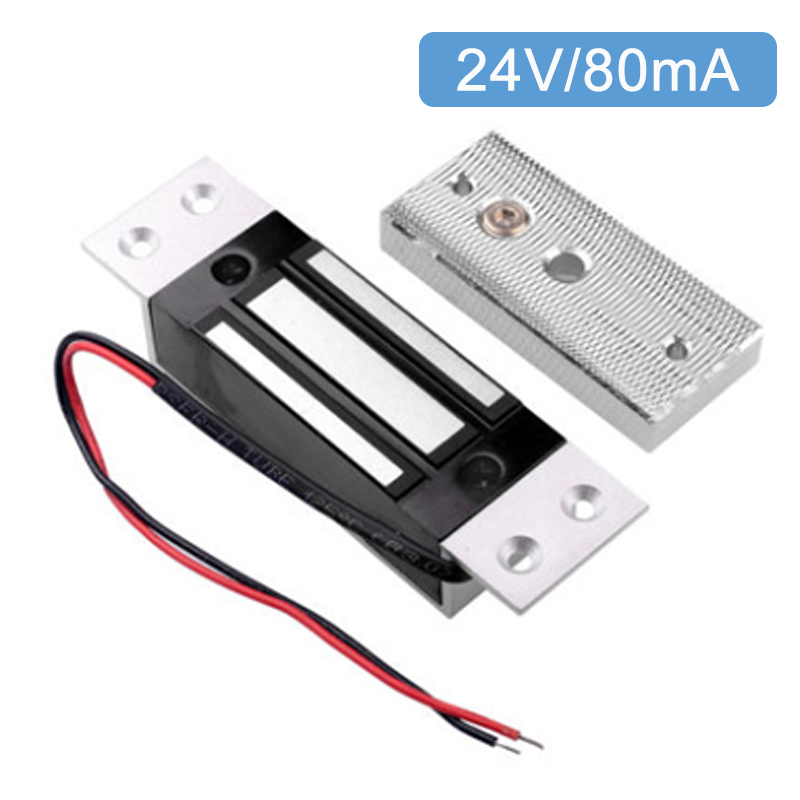

24V/80mA(±10%) | |
Suitable | File Cabinet ,Display Cabinet |
Surface Temp | ≤+20℃ |
Operating Temp | -20℃~+55℃(-4—131°F) |
Humidity | 0~90%(non-condensing) |
Cover Finish | Anodized aluminum |
Lock Finish | Zinc |
Armature Plate Finish | Zinc |
Unit Weight | 0.5KG |
Standard Package | 24PCS/carton |
Carton Weight | 12KG |
Carton Size | 30*35*16cm |
S4A_Datesheet_Electromagnetic Lock Flush Mount with 60KG 100lbs Embedded Electric Magnetic Lock

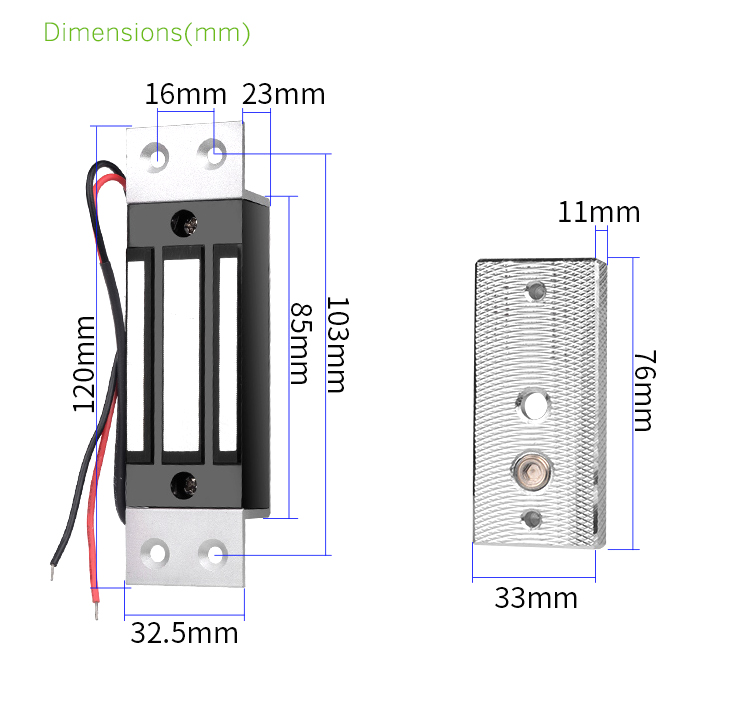

> Holding Force: 60KG(100Lbs)> Voltage: DC12V> lock size: 79Lx40Wx23H(mm)> Armature plate: 75Lx31Wx10H(mm)
> Holding Force: 60KG(100Lbs)> Voltage: DC24V> lock size: 79Lx40Wx23H(mm)> Armature plate: 75Lx31Wx10H(mm)
> Holding Force: 60KG(100Lbs)> Voltage: DC12V> lock size: 114Lx35Wx23H(mm)> Armature plate: 75Lx31Wx10H(mm)
> Holding Force: 60KG(100Lbs)> Voltage: DC24V> lock size: 114Lx35Wx23H(mm)> Armature plate: 75Lx31Wx10H(mm)
> Voltage: DC12V (24V is customized)> Holding force: 70KG (150lbs)> Current Draw: DC12/180mA> Suitable: For auto-Door
>100lbs Embedded Door Electromagnetic Lock, it is designed for showcase, cabinet door and easy to install .>Accessories are available for inward door, frameless glass door and narrow doorframe door. >Special anti-residual magnetism designed.
> Holding Force: 60KG(100Lbs)> Voltage: DC12V>Finishes for magnetic:Zinc>Current draw: 12V/160mA
> Holding Force: 60KG(100Lbs)> Voltage: DC12V> lock size: 79Lx40Wx23H(mm)> Armature plate: 75Lx31Wx10H(mm)
S4A appreciate any of your inquiries and sincerelyhope to enjoy a fruitful long-term business relationship with youto share in the mutual benefits, If you have any questions, please feel free to contact us.
