Fail-Safe or Fail Secure Dead Electric Bolt Lock with Magnetic Feature

BL-2700A: (power to lock)
BL-2700B: (power to open)
Voltage: DC12V ( 12V+ 24V is optional)

Brand:
S4A
Item NO.:
BL-2700

Inquire Now

Specifications

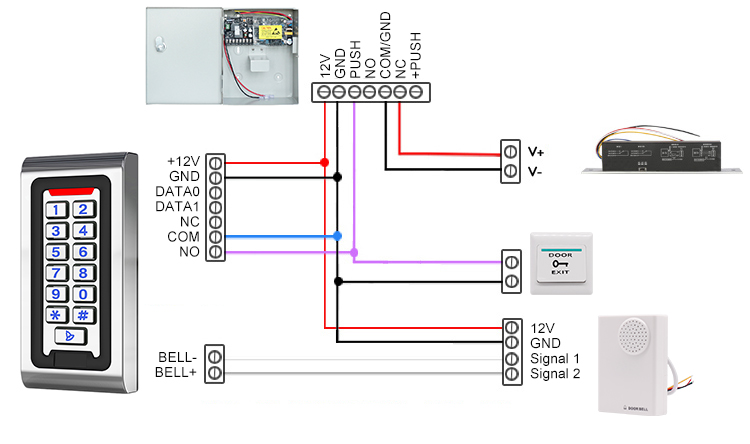

Wiring Diagram
Package
Download

Model No.: BL-2700A, 2700B

Voltage	DC12V
Current	Start current: 1.1A standby 0.14A
Time Delay	0.3. 6 seconds
Current output	Less 200mA
Open door way	Fail-safe or Fail-Secure
Lock way	Magnet induction
Weight	0.52KG

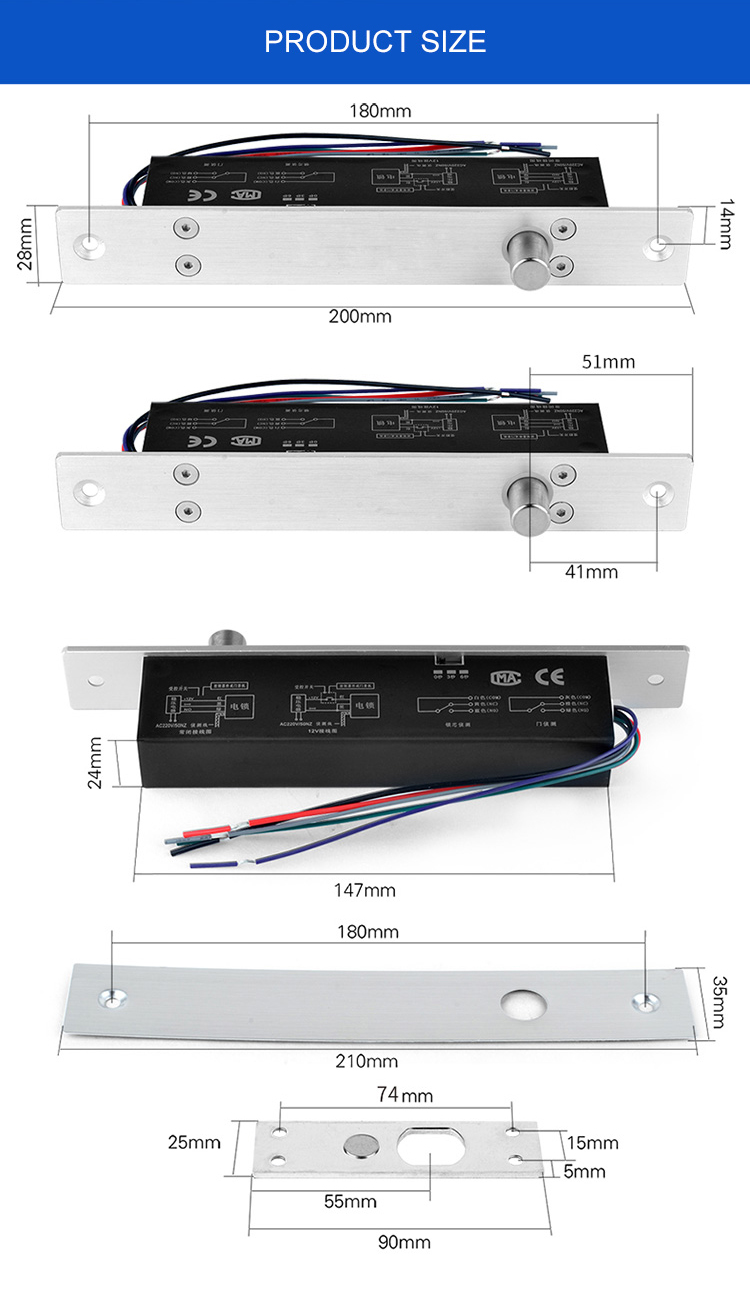

Dimension	200 X 28 X 38mm

Electric Dropbolt Lock

S4A Datasheet_Fail-Safe or Fail Secure Dead Electric Bolt Lock with Magnetic Feature

Download

Related Tags : Electric Dropbolt lock Electric Dead Bolt Lock Fail Secure Door Lock Door Dead Bolt Lock
