>Working current:Start state 1.2A
>Persistent state 200mA
Brand:
S4AItem NO.:

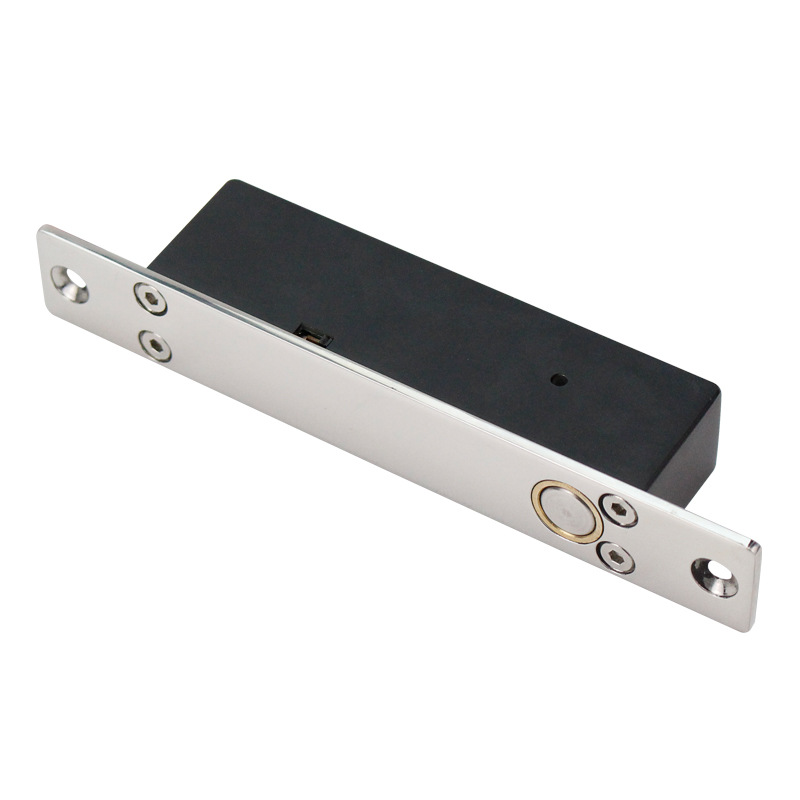

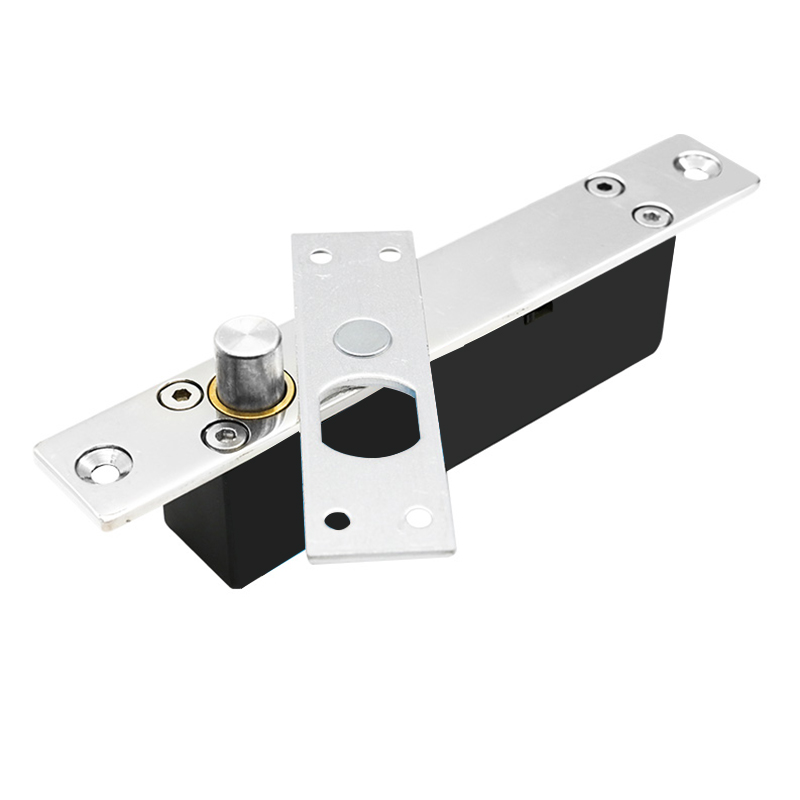

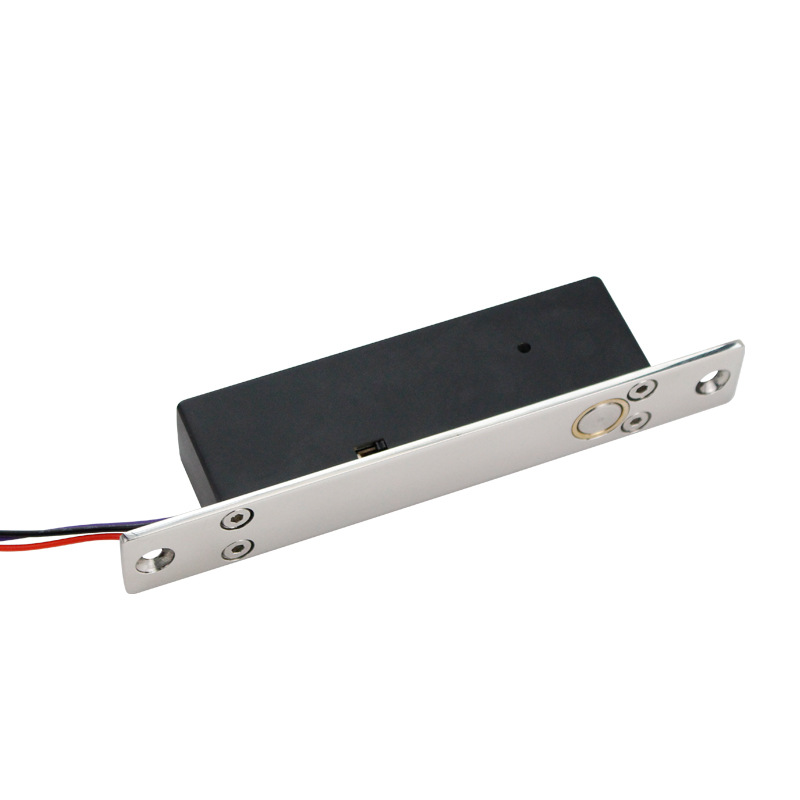

BL-168AHigh-Security Safety Solenoid Bolt Door Lock
Model No.: BL-168A
How do electric bolt locks work?
When the two core wires are energized, the current directly drive the coil to generate the electromagnetic effect.
The electromagnetic force attracts the spring piece to control theiron core switch. lt is easy to use heat, and the fluctuation of the current is easy to cause electric lock failure.
What is electronic lock used for?
Furniture – electronic locks are often used in office 'hot desking' environments or personal or temporary storage
for employees' belongings. Items such as wooden office furniture, filing cabinets and metal office furniture should be equipped with a secure locking system where privacy or security is necessary.
Are bolt locks secure?
Deadbolts are the most secure because they need to be engaged when the door is shut.
They have a unique locking device built into the bolt, that can't be forced back into the door, thus preventing unwanted entry.
Working voltage | 12/24V(Adjustable time delay) |

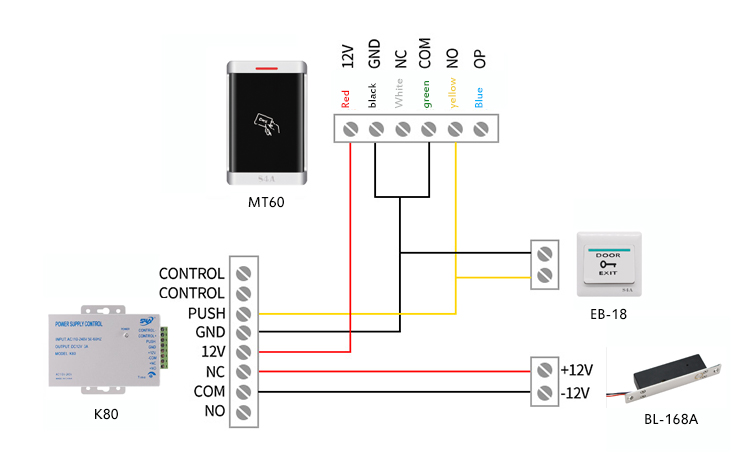

Red-Power supply(+) White-COM | |
Black-Power ground(-) Yellow-NC | |
Working current | Start state 1.2A |
Persistent state 200mA | |
Coil type | Continuous working |
Security type | Electri power lock,unlock |

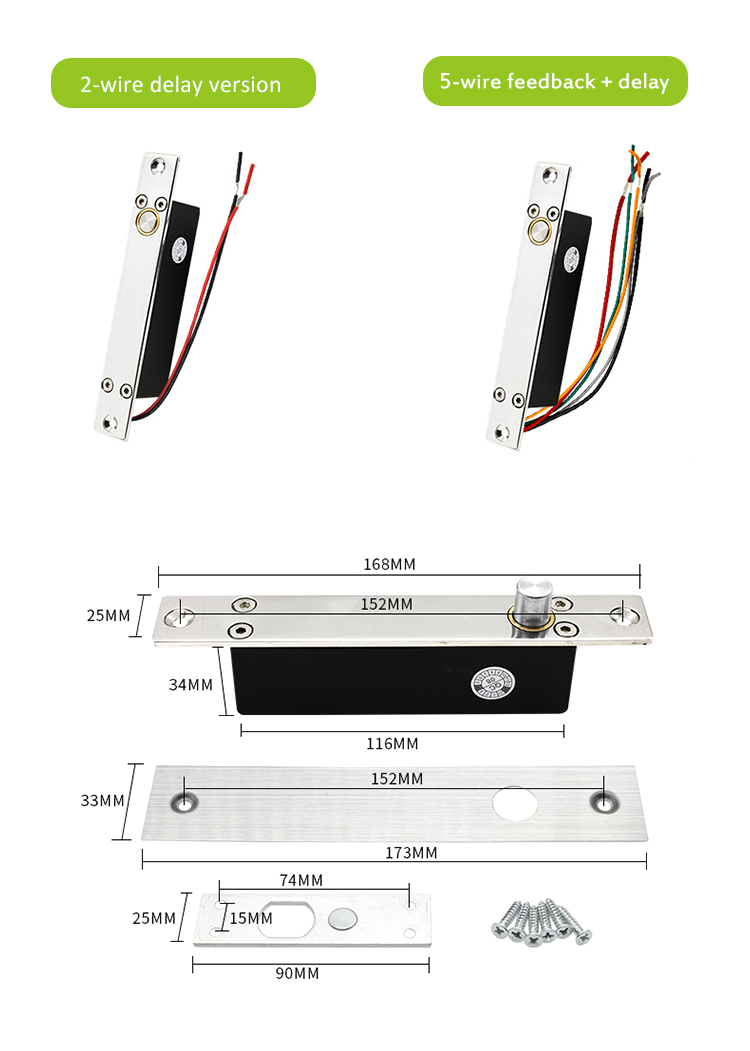

Lock core | The diameter og 12.5MM stainless core,extending the lengh of 15MM |
Locking mode | Magnetic induction |

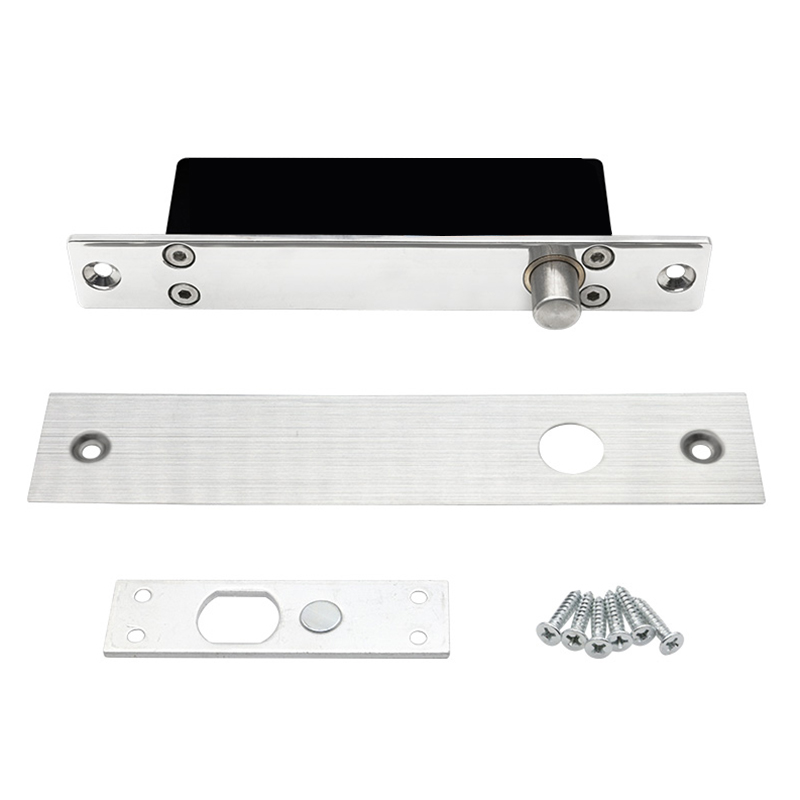

The original list | |
Electic mortise lock | (A handful of) |
Panel cover | (A block) |
lnduction lock | (A block) |
Screw | (A packet of) |
Manual | (A piece of) |
Certificate of confromity | (A piece of) |
S4A Datasheet_High-Security Safety Solenoid Bolt Door Lock
