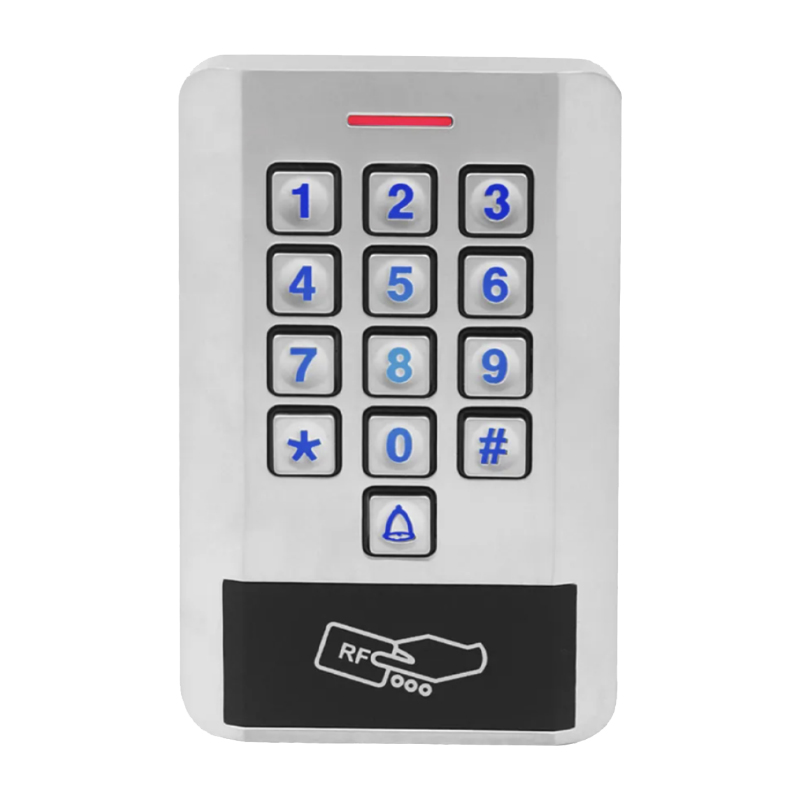

M2SM2S Dual-Frequency Waterproof Access Control Keypad
The M2S is a high-capacity standalone access control terminal engineered to deliver superior durability and advanced multi-credential security. Constructed with a heavy-duty zinc alloy housing and featuring robust metal backlit keys, this terminal incorporates a fully potted waterproof structure, making it an excellent choice for demanding indoor and outdoor professional entry setups.
Product Parameter
Parameter Descr1ption
Model
M2S (Dual Frequency)
Working Voltage
AC/DC 12V - 24V
Working Current
< 100mA
Operating Temperature
-20°C to 60°C
Keypad Type
Metal Backlit Keys
Material Zinc
Alloy Housing

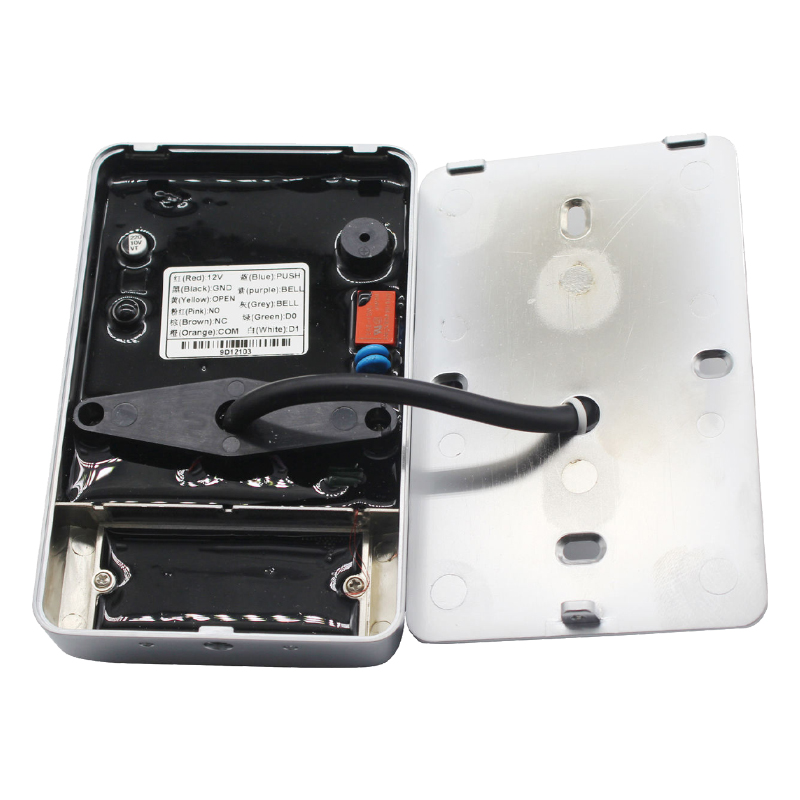

Waterproof Method
Glue-poured / Potted Waterproof
User Capacity
10,000 Users
Card Types
ID, IC, NFC (Dual Frequency)
Wiegand Interface
WG26 / WG34 Input & Output
External Connectivity
Supports external card reader connection
Reading Distance
1cm - 10cm

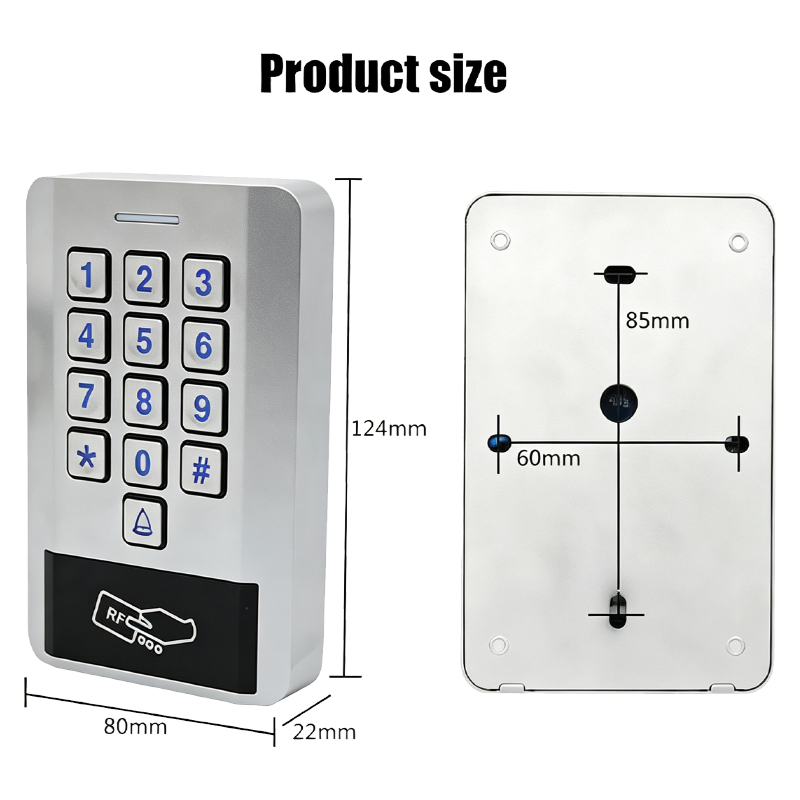

Dimensions
125mm * 80mm * 23mm
> Card type: EM Card> Dimension: 120 x 56 x 18mm> Access Control Keypad Containing 2000 users with Pincode
> Card type: EM or MF Card> Metal structure design, anti-vandal> Digital backlit keyboard> All-in-one, WG26 output/input> Three-way to open the door, card, password, card + password> The doorbell button and interface: buttons and isolation circuit, connect to any external bell
> Card type: EM or MF Card> Metal structure design, anti-vandal> Digital backlit keyboard> All-in-one, WG26 output/input> Three-way to open the door, card, password, card + password
> Card type: EM or MF Card> Metal structure design, anti-vandal> Digital backlit keyboard> All-in-one, WG26 output/input> Three-way to open the door, card, password, card + password
> Card type: EM or MF Card> Metal structure design, anti-vandal> Digital backlit keyboard> All-in-one, WG26 output/input> Three-way to open the door, card, password, card + password> The doorbell button and interface: buttons and isolation circuit, connect to any external bell
> Card type: EM or MF Card> Metal structure design, anti-vandal> Digital backlit keyboard> All-in-one, WG26 output/input> Three-way to open the door, card, password, card + password> The doorbell button and interface: buttons and isolation circuit, connect to any external bell
> Card type: EM or MF Card> Metal structure design, anti-vandal> Digital backlit keyboard> All-in-one, WG26 output/input> Three-way to open the door, card, password, card + password> The doorbell button and interface: buttons and isolation circuit, connect to any external bell
> Card type: EM or MF Card> Metal structure design, anti-vandal> Digital backlit keyboard> All-in-one, WG26 output/input> Three-way to open the door, card, password, card + password> The doorbell button and interface: buttons and isolation circuit, connect to any external bell
S4A appreciate any of your inquiries and sincerelyhope to enjoy a fruitful long-term business relationship with youto share in the mutual benefits, If you have any questions, please feel free to contact us.
