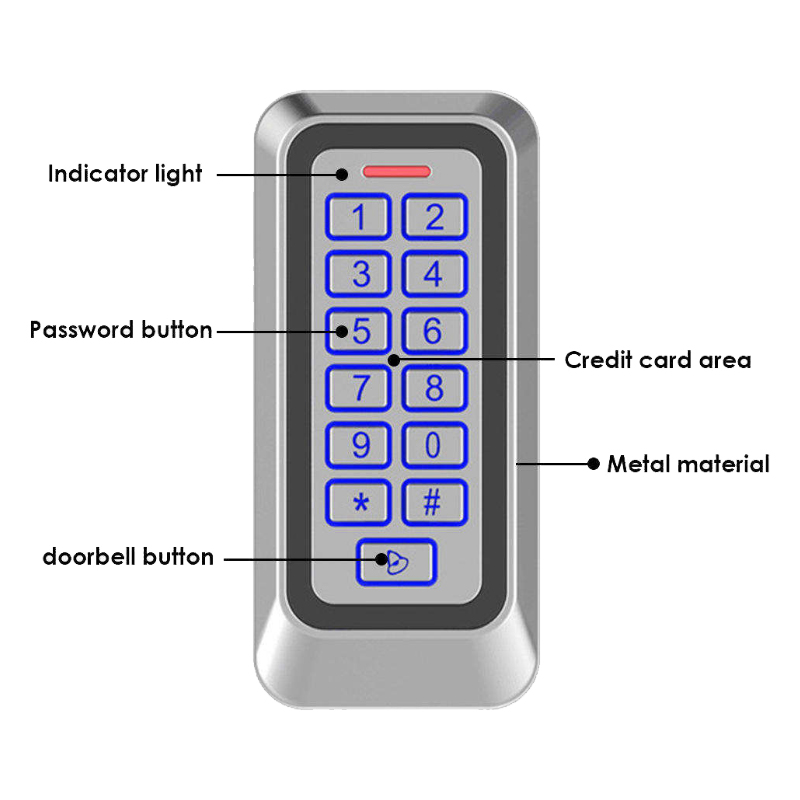

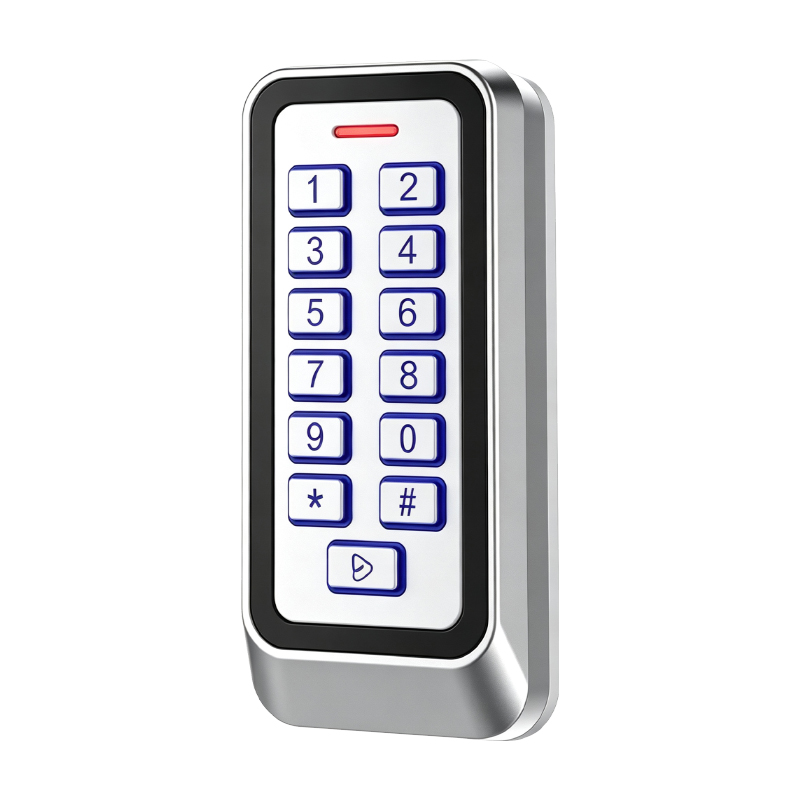

M6D、M6C、M6LM6D / M6C / M6L Slim Waterproof RFID Access Control Keypad
The M6D / M6C / M6L series offers high-reliability standalone access control terminals featuring a space-saving narrow profile. Built with a rugged zinc alloy housing and an integrated potted waterproof design, these devices excel in harsh environments. Equipped with crisp, backlit keys, this series ensures highly visible, low-light operation for diverse architectural entryways.
Product Parameter
Parameter Descr1ption
Working Voltage
DC 12V ± 10%
Working Current
< 100mA
Operating Temperature
-20°C to 60°C
Keypad Type
Translucent Backlit Keys
Material Zinc
Alloy Housing
Waterproof Method
Glue-poured / Potted Waterproof
User Capacity
1,000 Users 2,000 Users
Relay Output
Standard Single Relay / Dual Relay Output (M6L)
Card Types
ID or IC Card Options
Wiegand Interface
Optional WG26 / WG34 Input & Output / Standard / Optional Configuration (M6L)
Reading Distance
1cm - 10cm

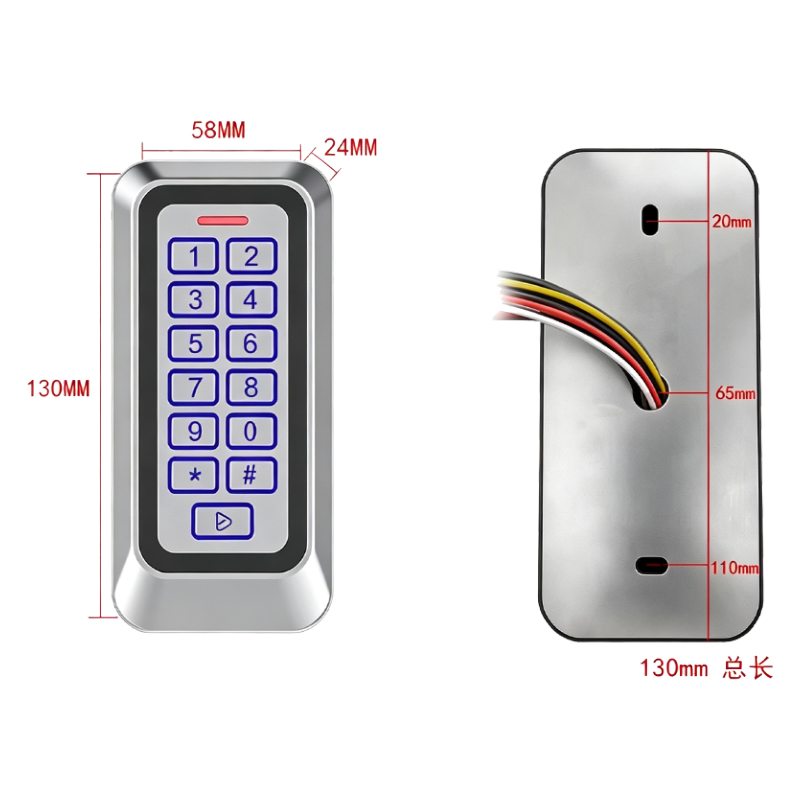

Dimensions
130mm * 58mm * 24mm
> Card type: EM Card> Dimension: 120 x 56 x 18mm> Access Control Keypad Containing 2000 users with Pincode
> Card type: EM or MF Card> Metal structure design, anti-vandal> Digital backlit keyboard> All-in-one, WG26 output/input> Three-way to open the door, card, password, card + password> The doorbell button and interface: buttons and isolation circuit, connect to any external bell
> Card type: EM or MF Card> Metal structure design, anti-vandal> Digital backlit keyboard> All-in-one, WG26 output/input> Three-way to open the door, card, password, card + password
> Card type: EM or MF Card> Metal structure design, anti-vandal> Digital backlit keyboard> All-in-one, WG26 output/input> Three-way to open the door, card, password, card + password
> Card type: EM or MF Card> Metal structure design, anti-vandal> Digital backlit keyboard> All-in-one, WG26 output/input> Three-way to open the door, card, password, card + password> The doorbell button and interface: buttons and isolation circuit, connect to any external bell
> Card type: EM or MF Card> Metal structure design, anti-vandal> Digital backlit keyboard> All-in-one, WG26 output/input> Three-way to open the door, card, password, card + password> The doorbell button and interface: buttons and isolation circuit, connect to any external bell
> Card type: EM or MF Card> Metal structure design, anti-vandal> Digital backlit keyboard> All-in-one, WG26 output/input> Three-way to open the door, card, password, card + password> The doorbell button and interface: buttons and isolation circuit, connect to any external bell
> Card type: EM or MF Card> Metal structure design, anti-vandal> Digital backlit keyboard> All-in-one, WG26 output/input> Three-way to open the door, card, password, card + password> The doorbell button and interface: buttons and isolation circuit, connect to any external bell
S4A appreciate any of your inquiries and sincerelyhope to enjoy a fruitful long-term business relationship with youto share in the mutual benefits, If you have any questions, please feel free to contact us.
