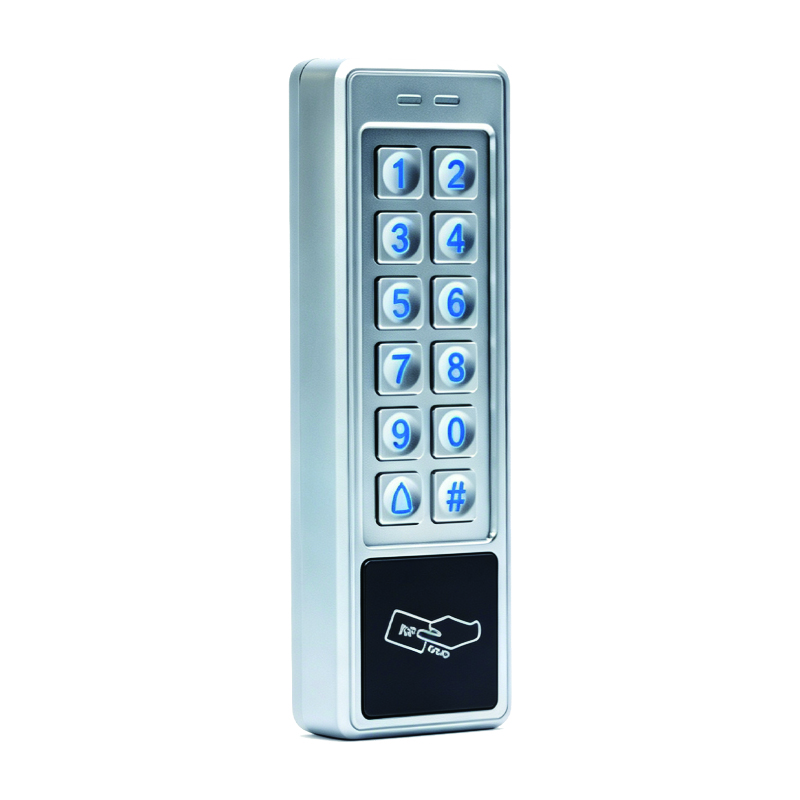

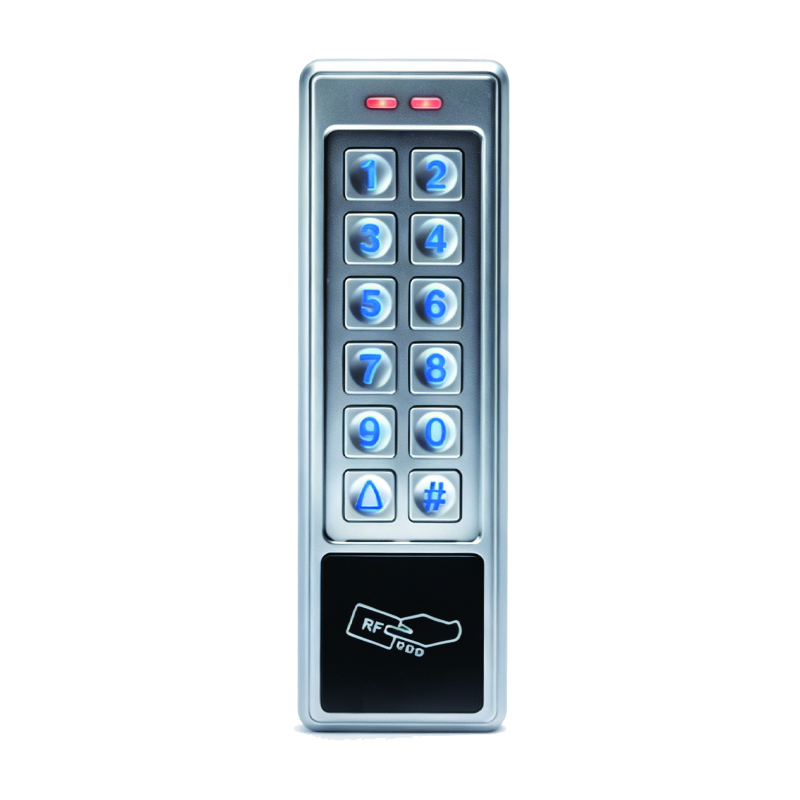

M8DM8D Slim Waterproof RFID Access Control Keypad
The M8D is a high-capacity standalone access control terminal featuring an ultra-narrow profile designed for streamlined installations. Built with a heavy-duty zinc alloy housing and equipped with durable metal backlit keys, this unit integrates a fully potted waterproof structure. It provides exceptional weather resistance and reliable security for narrow door frames in both indoor and outdoor settings.
Product Parameter
Parameter Descr1ption
Model
M8D
Working Voltage
DC 12V ± 10%
Working Current
< 100mA
Operating Temperature
-20°C to 60°C
Keypad Type
Metal Backlit Keys
Material Zinc
Alloy Housing
Waterproof Method
Glue-poured / Potted Waterproof
User Capacity
6,000 Users
Card Types
ID Card

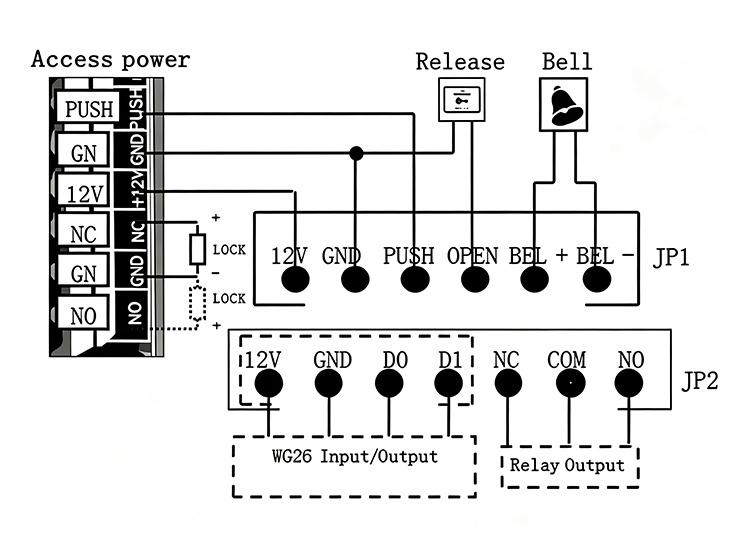

Wiegand Interface
WG26 / WG34 Input
Reading Distance
1cm - 10cm
Dimensions
145mm * 45mm * 21mm
> Card type: EM Card> Dimension: 120 x 56 x 18mm> Access Control Keypad Containing 2000 users with Pincode
> Card type: EM or MF Card> Metal structure design, anti-vandal> Digital backlit keyboard> All-in-one, WG26 output/input> Three-way to open the door, card, password, card + password> The doorbell button and interface: buttons and isolation circuit, connect to any external bell
> Card type: EM or MF Card> Metal structure design, anti-vandal> Digital backlit keyboard> All-in-one, WG26 output/input> Three-way to open the door, card, password, card + password
> Card type: EM or MF Card> Metal structure design, anti-vandal> Digital backlit keyboard> All-in-one, WG26 output/input> Three-way to open the door, card, password, card + password
> Card type: EM or MF Card> Metal structure design, anti-vandal> Digital backlit keyboard> All-in-one, WG26 output/input> Three-way to open the door, card, password, card + password> The doorbell button and interface: buttons and isolation circuit, connect to any external bell
> Card type: EM or MF Card> Metal structure design, anti-vandal> Digital backlit keyboard> All-in-one, WG26 output/input> Three-way to open the door, card, password, card + password> The doorbell button and interface: buttons and isolation circuit, connect to any external bell
> Card type: EM or MF Card> Metal structure design, anti-vandal> Digital backlit keyboard> All-in-one, WG26 output/input> Three-way to open the door, card, password, card + password> The doorbell button and interface: buttons and isolation circuit, connect to any external bell
> Card type: EM or MF Card> Metal structure design, anti-vandal> Digital backlit keyboard> All-in-one, WG26 output/input> Three-way to open the door, card, password, card + password> The doorbell button and interface: buttons and isolation circuit, connect to any external bell
