S4A-BG01Heavy-Duty Electric Boom Barrier Gates with High-Speed Motor & IP54 Protection
| Controller Specifications | |
| Input voltage | 24V |
| Rated/peak current | 8A / 30A |
| Applicable motor | Brushless DC motor |
| Applicable motor power | ≤200W |
| Human-machine interface | 3-digit LED, 5-digit button |
| Communication interface | RS232/RS485 |
| Hardware protection | Overcurrent protection, overvoltage protection, short circuit protection |
| Input signal | Open, close, stop, ground sense, anti-smash |
| Output signal | Open in place, close in place dry contact |
| Power-off opening | External 12V 1AH battery |
| Temperature rise | ≤15℃ |
| Controller size | 176.6(H)*103(W)*34(D)mm |
| Working environment temperature | -20℃~55℃ |
| Working environment humidity | 90%, no condensation |
|
|
|
| Basic performance parameters of motor | |
| Rated voltage | 24VDC |
| Number of poles | 10 poles |
| Number of phases | Three phases |
| Hall | 120 degrees |
| Phase resistance | 1.1Ω |
| No-load speed | 2600RPM±%10 |
| No-load current | 1.75 A |
| Load speed | 1800RPM±%10 |
| Load current | 4.16A |
| Input power | 100-200W |
| Torque | 48N.m |
| Reduction ratio | 1/150 |
| Protection level | IP20 (GB4942.1) |

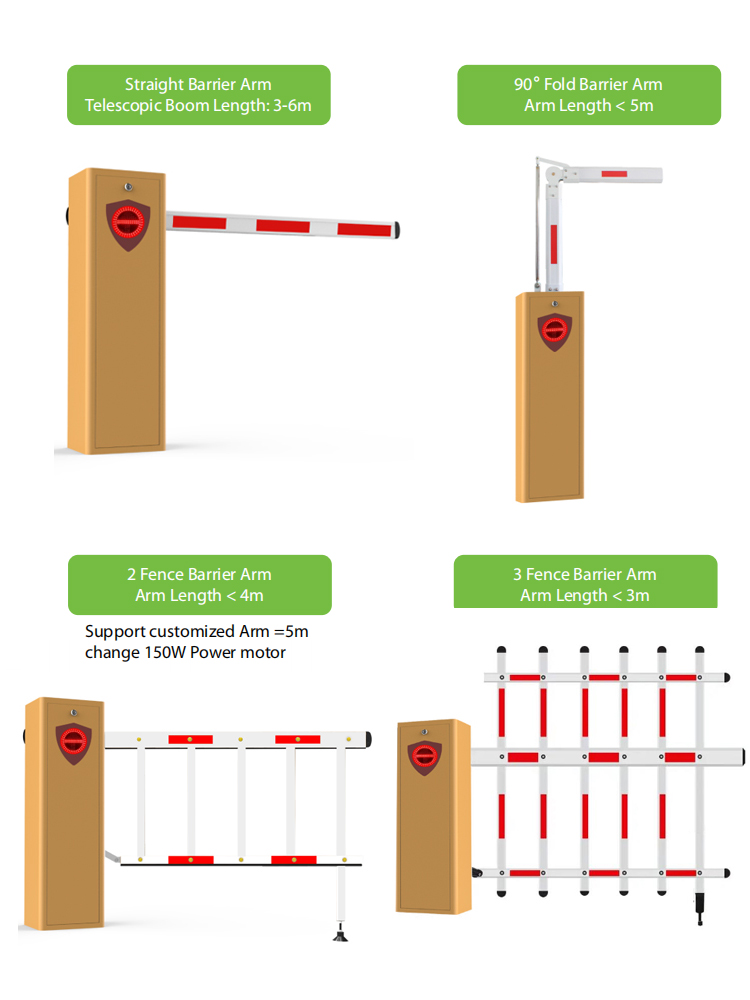

| Adapter rod | ＜6m straight rod |
| Insulation level | Class B |
| Ambient temperature | -30～+65℃ |
| Service life |
＞1 million times |
S4A Industrial Series: High-Performance Automatic Boom Barrier Gates
Managing high-volume vehicle entry requires more than just a barrier—it requires a system that balances speed, safety, and long-term durability. The S4A BG2126 Series is engineered for industrial-grade performance, featuring a high-speed motor and a patented mechanical structure designed to handle the rigors of continuous operation. Drawing on our 16 years of production expertise, we provide a "one-stop" factory solution that ensures your parking or logistics entrance remains secure and efficient around the clock.
Why Professionals Trust the S4A-BG2126:
Unmatched Mechanical Stability: At the heart of our gate is a high-torque motor paired with a specialized crank rocker transmission. This design ensures smooth, jitter-free arm movement and a significantly extended service life compared to standard residential gates.
Advanced All-Weather Protection: With an IP54-rated heavy-duty housing, our barrier gates are built to withstand harsh outdoor conditions, from intense heat and dust to heavy rain, ensuring consistent reliability for years to come.
Intelligent Safety & Integration: S4A barrier gates are designed to work in perfect synchronization with our 79GHz Anti-Smash Radars and Long-Range UHF Readers. The onboard controller features an automatic reverse mechanism, ensuring the arm immediately retracts if an obstacle is detected.
Fail-Safe Operation: We understand that downtime is not an option. Our gates include a quick-release manual clutch for power outages and support a wide range of control interfaces (Remote, Push Button, or RFID), giving you complete control over your facility's access points.

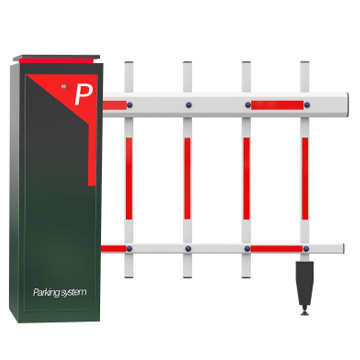

Anti-Climb Security Fence: The dual-layer fence arm prevents both vehicles and pedestrians from unauthorized entry. Patented Self-Locking Tech: Features a high-rigidity crank rocker mechanism that automatically locks the arm in place for maximum safety. Low-Maintenance Reliability: Built with 20% fewer components to significantly reduce mechanical failure and long-term operating costs
1. Heavy‑Duty Motor Control Supports brushless DC motors up to 200W with 8A rated / 30A peak current — delivering reliable starting torque and stable operation even under frequent use. 2. Comprehensive Hardware Protection Built‑in overcurrent, overvoltage, and short‑circuit protection safeguards the system against electrical faults, reducing downtime and maintenance costs. 3. Backup‑Ready & Environmentally Robust External 12V 1AH battery support enables power‑off opening, while the controller operates reliably from −20°C to 55°C at up to 90% humidity (non‑condensing)
Reliable Performance Under Pressure: Our brushless DC motor and high-torque gear system are rated for over a million cycles, ensuring consistent, maintenance-free operation for even the busiest entry points. Smart Safety & Connectivity: Built-in hardware protections and versatile signal inputs allow for seamless integration with ground sensors and anti-smash systems to prioritize vehicle and pedestrian safety. Uninterrupted Access Control: Designed with an efficient emergency backup interface, the system remains fully operational during power outages to maintain site security without manual intervention.
1: Precision Brushless DC Technology: Powered by a high-efficiency brushless DC motor, the BG01 ensures smooth, quiet, and rapid operation with a long service life suitable for continuous high-traffic environments. 2: Comprehensive Hardware Protection: The advanced controller features built-in overcurrent, overvoltage, and short-circuit protection, guaranteeing stable operation and safeguarding your investment against electrical fluctuations. 3:Seamless Smart Integration: Equipped with RS232/RS485 communication interfaces, this barrier supports a full suite of safety and access signals, including 79GHz radar, ground sensing, and anti-smash protocols for 100% site security
