ES-100A: Fail-secure type (Power to unlock)
ES-100B: Fail-safe type (Power to lock)
Brand:
S4AItem NO.:

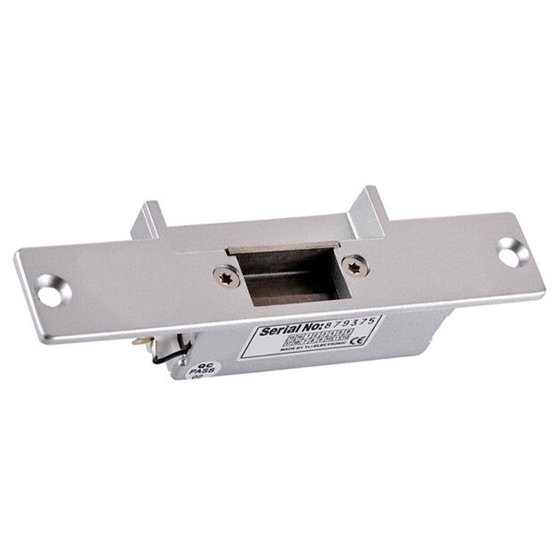

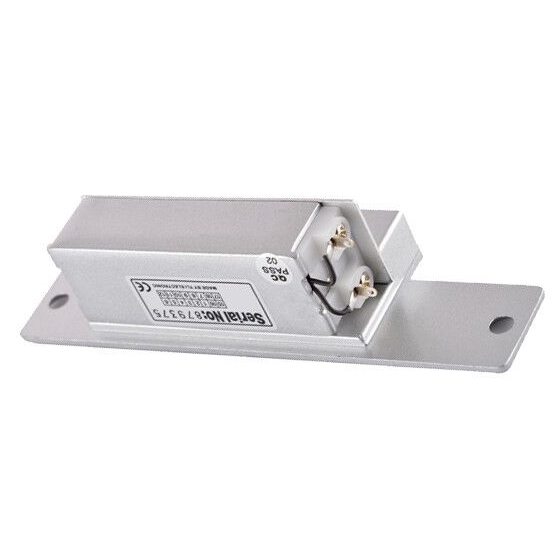

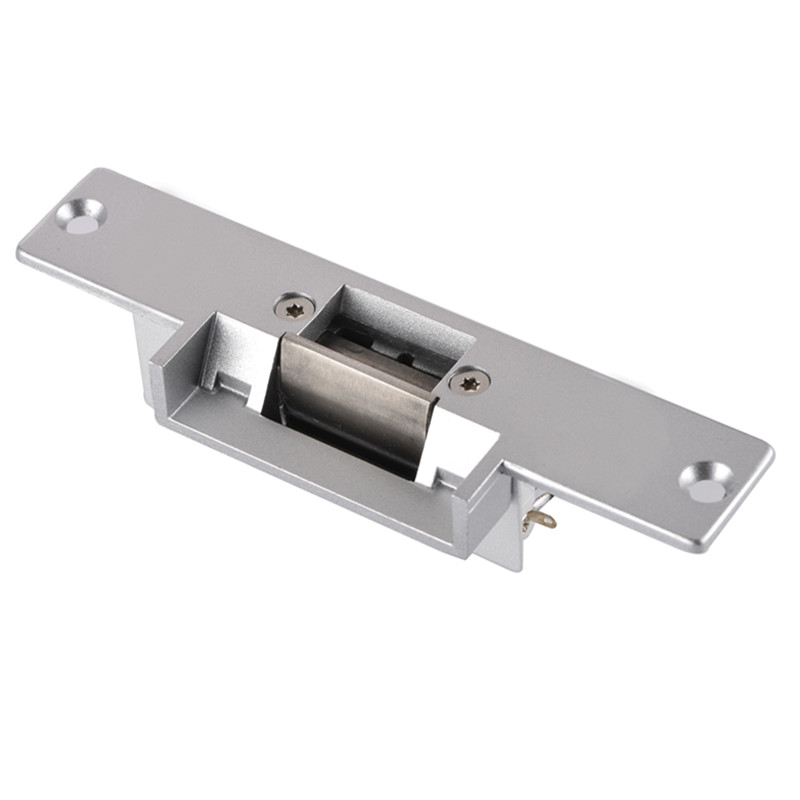

ES-100Electric Strike Lock for Wooden and Metal Door Fail Secure Lock
Model No.: ES-100A, 100B
Electric Strike lock with 800kg holding force
Electric strike lock series:
ES-100A: Fail-secure type (Power to unlock)
ES-100B: Fail-safe type (Power to lock)
Lock Size | 150x39.5x28mm |
Holding Strength | 800kg |
Bolt structure | Stainless Steel |
Voltage | 12VDC |
Current | 450mA(ES-100A ) / 200mA(ES-100B) |
Surface Temperature | Within +20°C |
Suitable Temperature | -10°C~25°C(14°F-131°F) |
Bolt Housing | Stainless steel, Draw the Polishing of silk |
Function | Built-out MOV |
Suitable For | Wooden Door, Metal Door, PVC Door |
Opening Mode | 90 Degree Swinging Door |
Weight | 0.3kg |
Standard Packing | 60pcs/box |
S4A Datasheet_Electric Strike Lock for Wooden and Metal Door Fail Secure Lock
ACB-T01 Single door Network Access Control board Control 1 door> Support 2pcs RFID access reader or 1pcs RFID access reader+1pcs Exit button> Free software to manage users> Real-time monitor
> Card type: EM Card> Metal case, anti-vandal> One Programming relay output > Multi-color LED Status Display > 1000 Users (100 Fingerprint + 890 Card + 10 Visitor)> Mini Size: L105 x W69 x H20 mm > Capacitive Fingerprint Sensor
> Wire diameter: 8mm> Door loop length: 400mm
> Wire diameter: 10mm> Inner Diameter: Support 2pcs 6mm cat6 wires
> Finger Capacity: 1000> User Capacity: 3000> LCD: 1.77 inches TFT colour screen> Work with 4pcs 1.5V “AA” alkaline battery> Optical sensorSupport USB to download attendance record(Support: Fingerprint+RFID+Pincode)
> Finger Capacity: 1000> User Capacity: 3000> LCD: 1.77 inches TFT colour screen> Work with 4pcs 1.5V “AA” alkaline battery> Optical sensorSupport USB to download attendance record(Support: Fingerprint+RFID+Pincode)
> Finger Capacity: 1000> User Capacity: 3000> LCD: 1.77 inches TFT colour screen> Work with 4pcs 1.5V “AA” alkaline battery> Semiconductor sensor(Support: Fingerprint+RFID+Pincode)Support USB to download attendance record
> Finger Capacity: 1000> User Capacity: 3000> LCD: 1.77 inches TFT colour screen> Work with 4pcs 1.5V “AA” alkaline battery> Semiconductor sensor(Support: Fingerprint+RFID+Pincode)Support USB to download attendance record
S4A appreciate any of your inquiries and sincerelyhope to enjoy a fruitful long-term business relationship with youto share in the mutual benefits, If you have any questions, please feel free to contact us.
