>Operating Voltage:DC12V (24V optional)
>Working current:240mA
>Product Size:124X43X32mm
Brand:
S4AItem NO.:

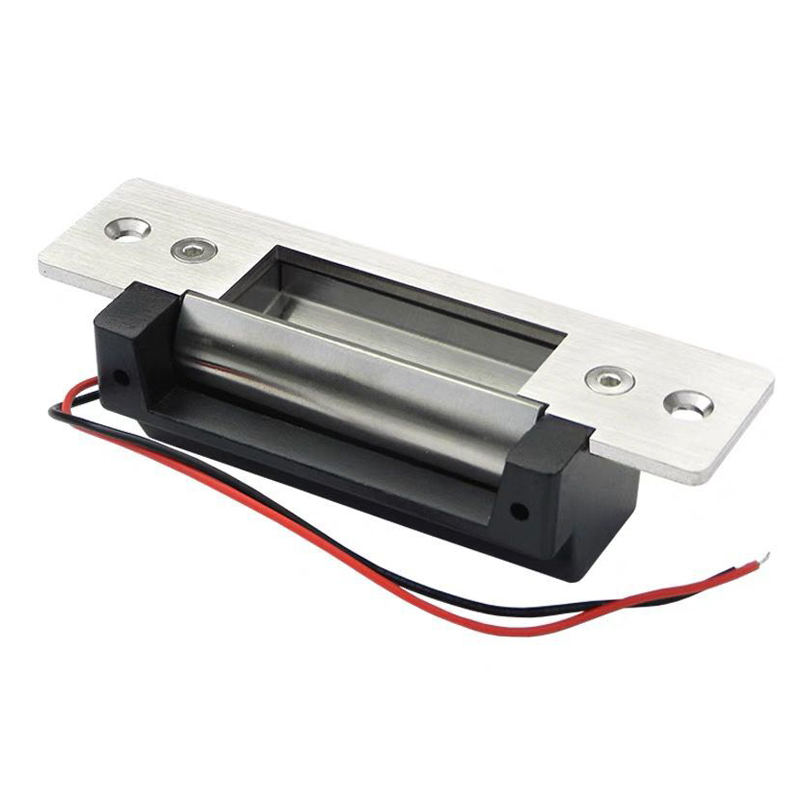

ES-121Embedded 12V Electric Strike lock support Power Off and Power On to work withmechanical lock
Model No.: ES-121
Operating Voltage | DC12V (24V optional) |
Working current | 240mA |
unlock method | Self-adjustable power-on unlock or power-off unlock |
withstand thrust | 400kg |
Material technology | Zinc alloy high-temperature baking paint lock body, stainless steel polished and brushed panel |
proper temperature | -10~+55°C |
Opening direction | Regardless of left-handed/right-handed door |
Permeable range | Community, campus, factory, building, use with mechanical lock cylinder |

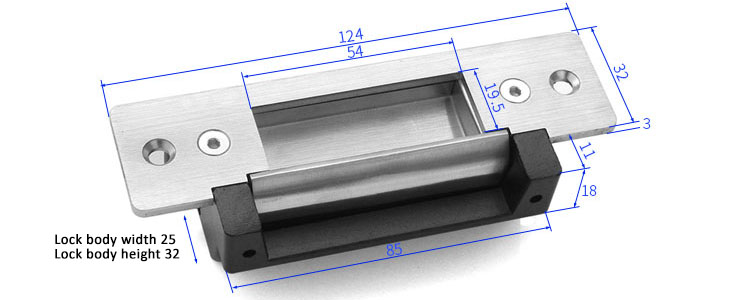

Product Size | L124XW43XH32(mm) |
product weight | 0.4kg |
S4A Datesheet_Embedded 12V Electric Strike lock support Power Off and Power On to work withmechanical lock
ES-100A: Fail-secure type (Power to unlock)ES-100B: Fail-safe type (Power to lock)> Lock Size: 150Lx39.5Wx28H(mm)> Bolt structure: Stainless Steel> Holding Stength: 800kg> Voltage: 12VDC> Current: 450mA(ES-100A) 200mA(ES-100B)
ES-110A: Fail-secure type (Power to unlock)ES-110B: Fail-safe type (Power to lock)> Lock Size: 250Lx25Wx34H(mm)> Strike Struiture: Stainless Steel> Holding Force: 400kg> Voltage: DC12V> Current: 240mA(ES-110A) 120mA(ES-110B)
ES-120A 2wires: Fail-Secure & Fail-Safe(default: Fail-safe)ES-120B 5wires: With signal output>Input voltage: DC12V [24V customized]>Working current: 240mA>Withstand thrust: 400KG>Product material: stainless steel + zinc alloy>Product size: 124X43X32mm
ES-130A: Fail-secure type (Power to unlock)ES-130B: Fail-safe type (Power to lock)> Lock Size: 149Lx28Wx34H(mm)> Bolt structure: Stainless Steel> Holding Stength: 250kg> Voltage: 12VDC> Current: 240mA(ES-130A) 120mA(ES-130B)
ES-140A: Fail-secure type (Power to unlock)ES-140B: Fail-safe type (Power to lock)> Lock Size: 149Lx28Wx31H(mm)> Strike Struiture: Stainless Steel> Holding Force: 250kg> Voltage: DC12V> Current: 240mA(ES-140A) 120mA(ES-140B)
> Lock Size: 110Lx25Wx31.5H(mm)> Strike Struiture: Zinc die-casting> Holding Stength: 600kg> Voltage: DC12V> Current: 700mA
> Lock Size: 250Lx25Wx31H(mm)> Strike Struiture: Zinc die-casting> Holding Stength: 500kg> Voltage: DC12V> Current: 700mA
> All wireless, no need wires any more > 433MHz Rolling Code technology > With two remote transmitters > 100 PIN/card users > 4~6 digits PIN, 125KHz EM or 13.56MHz Mifare card optional > Open the lock by keypad, wireless exit button and remote transmitters
