> Lock Size: 110Lx25Wx31.5H(mm)
> Strike Struiture: Zinc die-casting
> Holding Stength: 600kg
> Voltage: DC12V
> Current: 700mA
Brand:
S4AItem NO.:
ES-150European Narrow-type and Adjustable Electric Strike lock
Model No.: ES-150

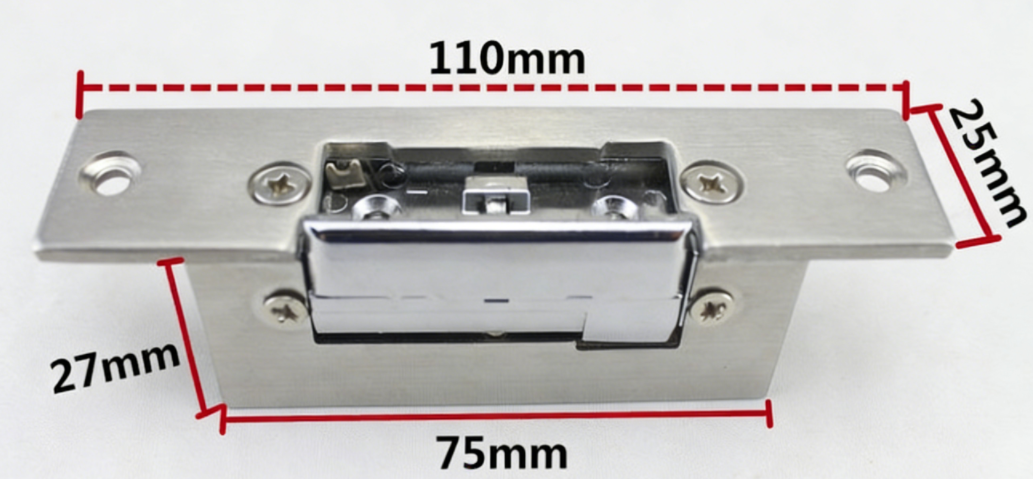

Lock Size | 110Lx25Wx31.5H(mm) |
Strike Structure | Zinc die-casting |
Holding Strength | 600kg |
Voltage | DC12V |
Current | 700mA |
Special Design | Adjust Lock-tongue to NO style |
Surface Temperature | Within +20°C |
Suitable Temperature | -10°C~25°C(14°F-131°F) |
Faceplate Housing | Surface by coating nickel |
Surface by | Coating nickel and polishing |
Function | Built-out MOV |
Suitable For | Narrow Wooden Door, Narrow Metal Door |
Opening Mode | 90 Degree Swinging Door |
Weight | 0.3kg |
Standard Packing | 60pcs/carton |
S4A Datesheet_European Narrow-Type And Adjustable Electric Strike Lock
ES-100A: Fail-secure type (Power to unlock)ES-100B: Fail-safe type (Power to lock)> Lock Size: 150Lx39.5Wx28H(mm)> Bolt structure: Stainless Steel> Holding Stength: 800kg> Voltage: 12VDC> Current: 450mA(ES-100A) 200mA(ES-100B)
ES-110A: Fail-secure type (Power to unlock)ES-110B: Fail-safe type (Power to lock)> Lock Size: 250Lx25Wx34H(mm)> Strike Struiture: Stainless Steel> Holding Force: 400kg> Voltage: DC12V> Current: 240mA(ES-110A) 120mA(ES-110B)
ES-120A 2wires: Fail-Secure & Fail-Safe(default: Fail-safe)ES-120B 5wires: With signal output>Input voltage: DC12V [24V customized]>Working current: 240mA>Withstand thrust: 400KG>Product material: stainless steel + zinc alloy>Product size: 124X43X32mm
ES-130A: Fail-secure type (Power to unlock)ES-130B: Fail-safe type (Power to lock)> Lock Size: 149Lx28Wx34H(mm)> Bolt structure: Stainless Steel> Holding Stength: 250kg> Voltage: 12VDC> Current: 240mA(ES-130A) 120mA(ES-130B)
ES-140A: Fail-secure type (Power to unlock)ES-140B: Fail-safe type (Power to lock)> Lock Size: 149Lx28Wx31H(mm)> Strike Struiture: Stainless Steel> Holding Force: 250kg> Voltage: DC12V> Current: 240mA(ES-140A) 120mA(ES-140B)
> Lock Size: 250Lx25Wx31H(mm)> Strike Struiture: Zinc die-casting> Holding Stength: 500kg> Voltage: DC12V> Current: 700mA
>Operating Voltage:DC12V (24V optional)>Working current:240mA>Product Size:124X43X32mm
> Voltage: DC12V 0.3A DC24V 0.2A> Lock size: 55 x 23 x 28mm> Working Mode: Power on to Lock Power off to Unlock> Support Power on all the time
